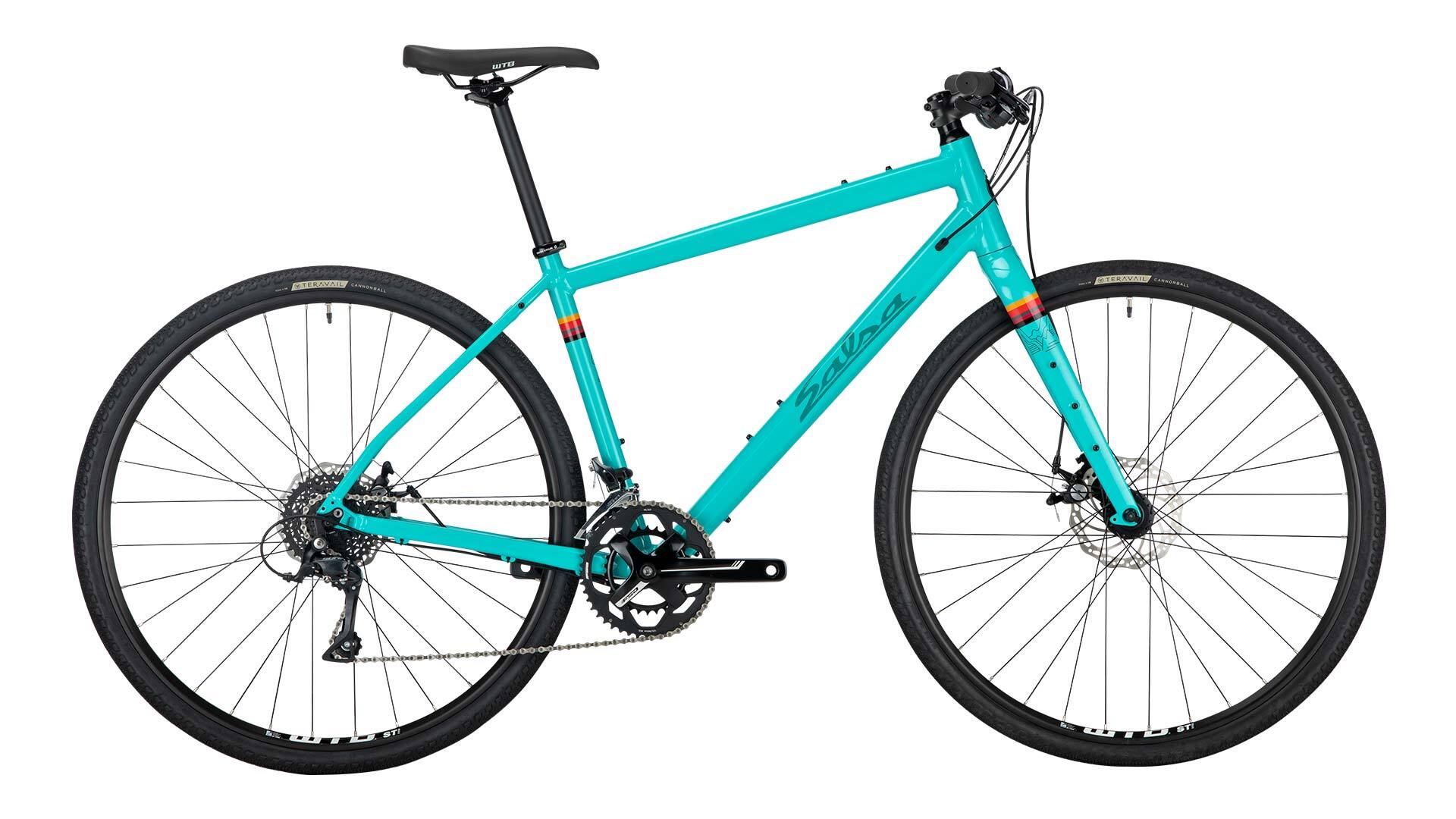

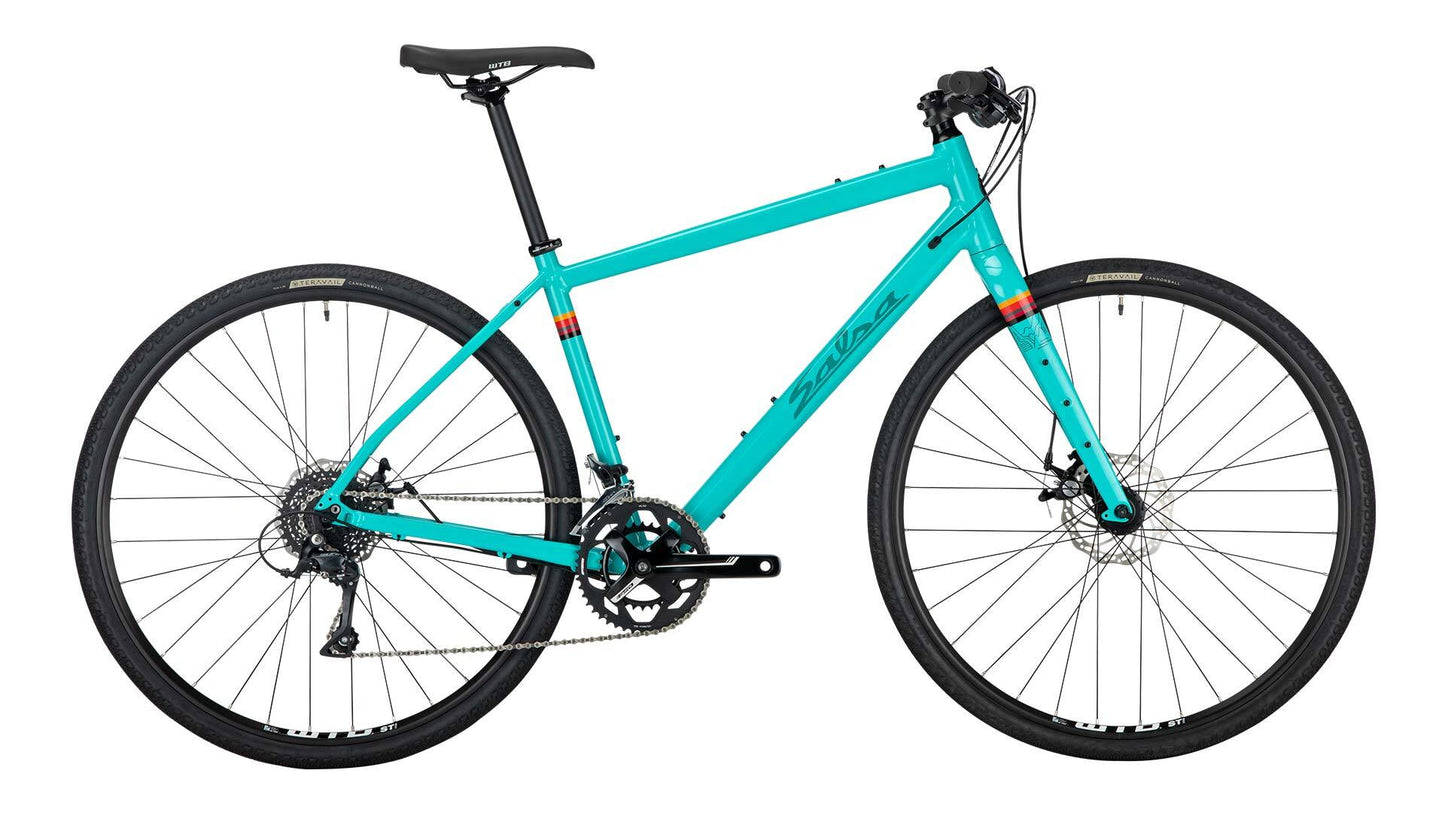

• Salsa Journeyman Sora 700c flat bar bike side view

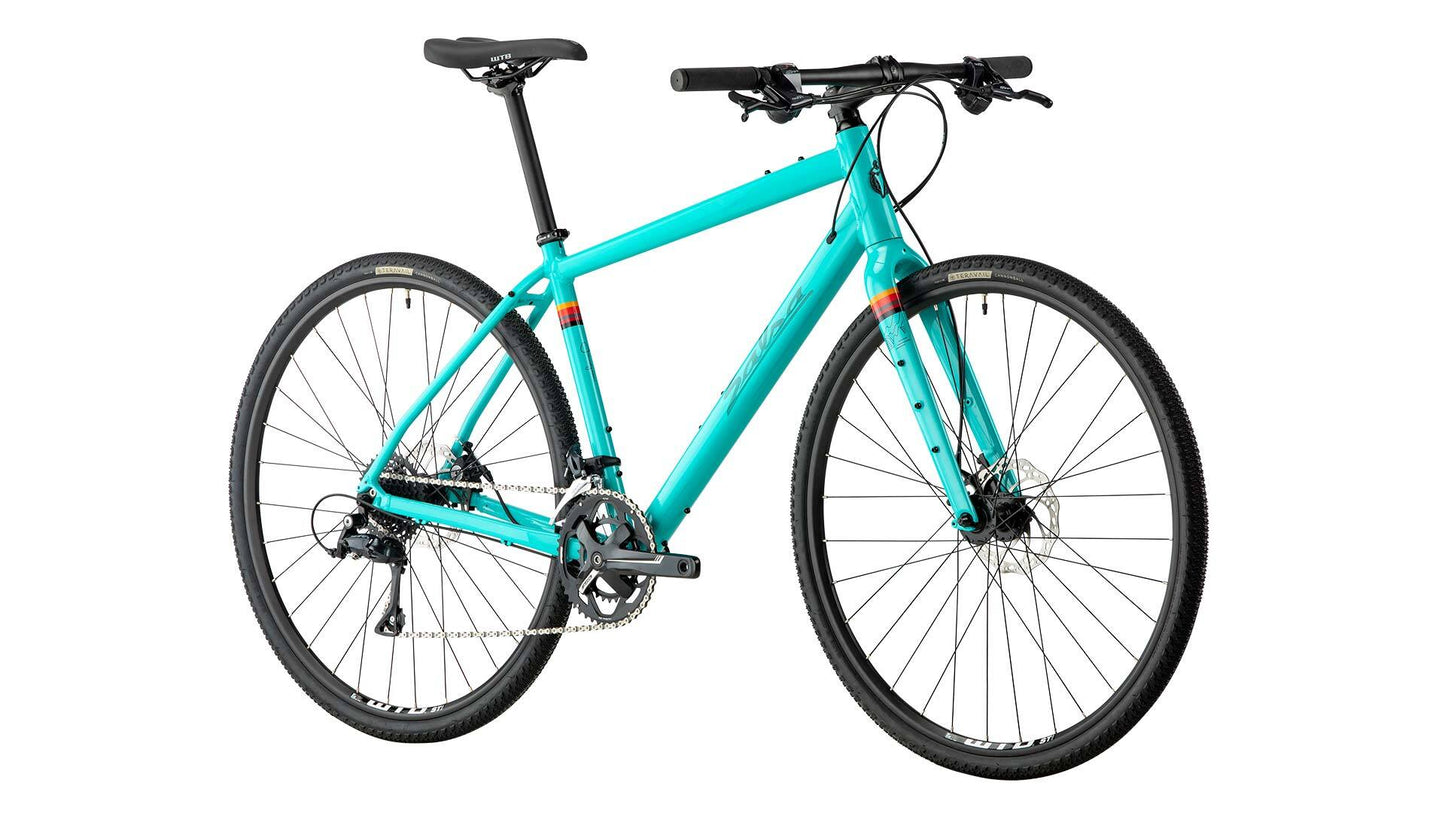

  • Salsa Journeyman Sora 700c flat bar bike front three-quarter view

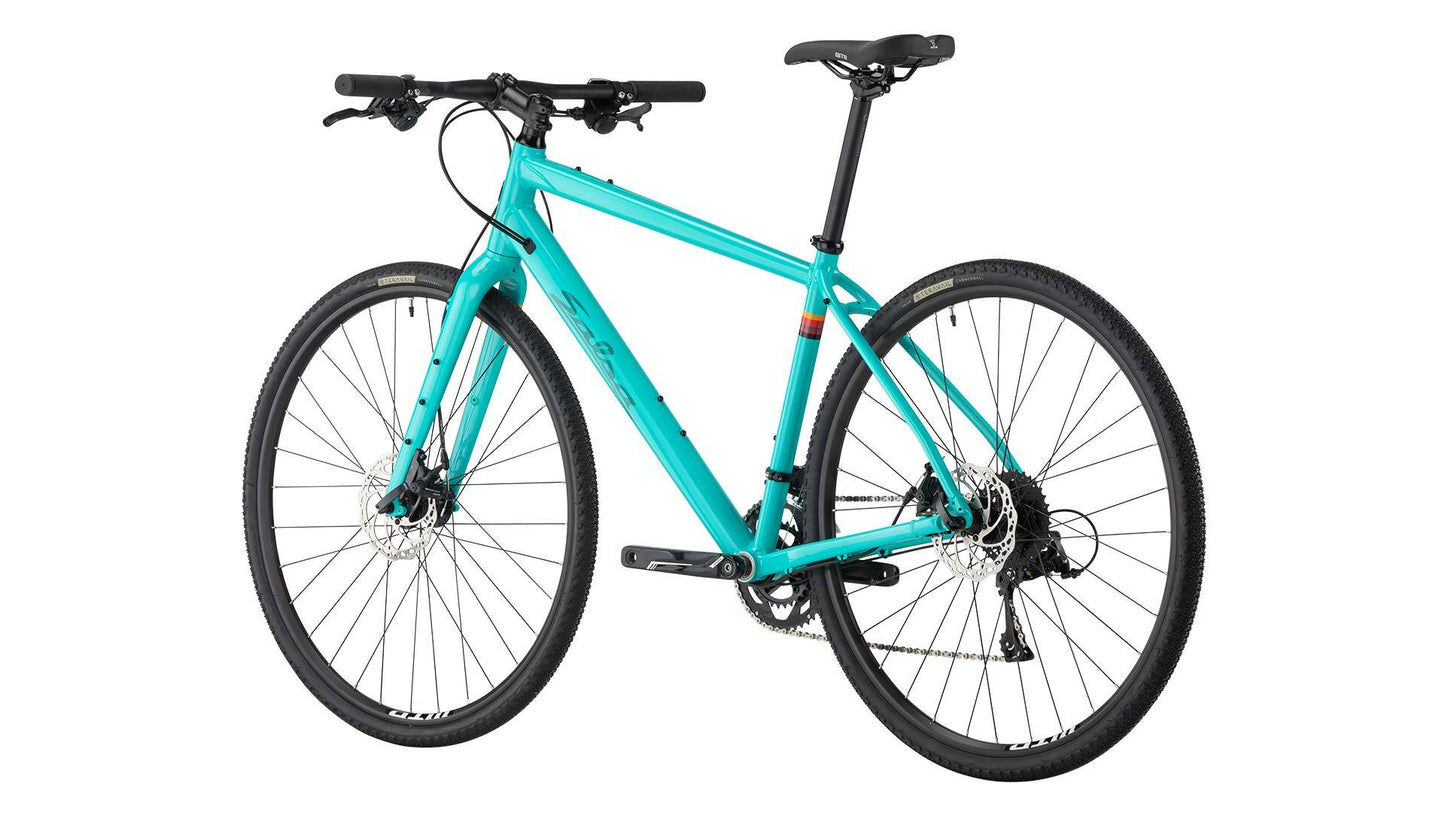

  • Salsa Journeyman Sora 700c flat bar bike rear three-quarter view
1 3

2019 Journeyman Flat Bar Sora 700

2019 Journeyman Flat Bar Sora 700

Archived

Journeyman Flat Bar Sora 700 comes equipped with the tried-and-true Shimano Sora shifters and derailleurs. The flat handlebar adds leverage and stability for rugged roads and the 700c x 38mm tires offer low rolling resistance to get you where you’re going quickly and efficiently.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Journeyman Flat Bar
  • Fork: Fantail Deluxe Carbon with Three-Pack Mounts
  • Color: Teal
  • Rear Shock: N/A
  • Front Der: Shimano Sora
  • Rear Der: Shimano Sora GS 9-speed
  • Cassette: Sunrace 9-speed 11-34t
  • Chain: KMC X9
  • Crankset: FSA Vero Pro Adventure, 46/30t
  • Shifter: Shimano Sora Rapidfire Plus
  • Brakes & Rotors: Promax DSK-330R flat mount, 160mm rotors
  • Headset: FSA Sealed Bearing
  • Stem: Salsa Guide
  • Handlebar: Salsa Salt Flat
  • Grips: Salsa File Tread
  • Seatpost: Salsa Guide 27.2 x 350mm
  • Saddle: WTB Volt
  • Front Wheel: Novatec, 32h, 100mm, WTB ST i19 TCS 2.0 700c, 2.0mm spokes, brass nipples
  • Rear Wheel: Novatec, 32h, 135mm, WTB ST i19 TCS 2.0 700c, 2.0mm spokes, brass nipples
  • Tires: Teravail Cannonball 700c x 38mm Wire Bead NOT TUBELESS COMPATIBLE
  • Complete Bike Weight: 24 lb 12 oz for size medium

Frame Specs

  • Tire Size Range for 622/700c/29" Wheels: 32–51mm (1.26–2.0")
  • Tire Size Range for 584/650b/27.5" Wheels: 47–57mm (1.85–2.2")
  • Tire Size Range for 559/26" Wheels: 559/26" is Not Compatible
  • Maximum Wheel/Tire Diameter: 727mm (28.6")
  • Minimum Wheel/Tire Diameter: 684mm (26.9")
  • Rigid Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: IS41
  • Headset-Lower: IS47
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Front Derailleur Mount: 34.9mm OD, bottom pull
  • Bottom Bracket: 68mm BSA
  • Crankset (Max Ring): 1x crankset: 46t max, 2x crankset: 52/36t max, 3x crankset: 53/39/30t max
  • Rear Brake (Rotor): Flat mount (140–160mm)
  • Rear Spacing: 135mm
  • Rear Axle Size: 10 x 135mm, QR
  • Derailleur Hanger: 959 hanger
  • BB Cable Guide: 06-000682
  • Fender Mounts: Yes
  • Rack Mounts: Yes
  • Stem Clamp: 28.6mm
  • Crown Race: 33mm
  • Front Brake (Rotor): 140–160mm
  • Front Spacing: 100mm
  • Front Axle: See Fork

Geometry

Geometry Diagram
Metric 50cm 52cm 54cm 55.5cm 57cm
Top Tube Effective Metric 565 590 610 630 650
Seat Tube Length Metric 380 450 470 510 530
Head Tube Length Metric 100 130 160 190 215
Head Tube Angle 70.5 70.5 70.5 70.5 70.5
Seat Tube Angle 74 73 73 73 72.5
BB Drop Metric 72 72 72 72 72
Chainstay Length Metric 440 440 440 440 440
Fork Length Metric 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50
Wheelbase Metric 1062 1079 1100 1121 1136
Stack Metric 529 558 586 614 638
Reach Metric 413 420 431 442 449
Standover Metric 660 719 741 777 797
Rider Height Metric 147–160 cm 160–173 cm 173–183 cm 183–191 cm 188 cm–UP
Stem Length 60 70 70 80 90
Crank Length 165 165 170 172.5 175
Handlebar Width 700mm 700mm 700mm 700mm 700mm
Seatpost Offset Metric 12 12 12 12 12
  • A fork which is 405 x 50mm offset
  • Measurements listed are based on a 700 x 40mm tire measuring 706mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Designed to Meet Your Needs

We offer our Journeyman model in two different wheel/tire sizes (700c x 37mm or 650b x 2.1”) as well as in two different handlebar styles (drop bar or flat bar). There is a Journeyman to meet your needs as a rider

Journeyman Specific Aluminum Tubing

Journeyman utilizes the same custom toptube and downtube we developed for the Warbird Aluminum, with new seatstays, chainstays, and dropouts in 6061-T6 aluminum to match. The entire frame is then heat treated to T6 alloy standards for extra strength and durability

700c x 38mm Wheel/Tire Spec

700c wheels with 38mm tires are fast rolling and efficient, and the best choice if speed is a high priority

Salsa Salt Flat Handlebar

Flat handlebars offer excellent leverage and control, especially when riding on bumpy, loose surfaces. They also offer a more upright position than drop bar handlebars

Fantail Deluxe Fork

Feature-packed carbon fork with a tapered steerer and flat-mount brake. A crown light mount, fender eyelets, mid-blade mounts for low-rider racks, and Three-Pack mounts for our Anything Cages or water bottles help add to the potential length of your rides

Journeyman Geometry

Journeyman geometry was developed from years of riding our Vaya and Warbird. Taking cues from both, Journeyman is comfortable stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths into and through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides

Full-Length Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Front and Rear Fender Mounts

Integrated front and rear fender mounts for drier riding in inclement weather.

Front and Rear Rack Compatible

Low-rider rack capability on the fork with mid-blade mounts with integrated mounts for a rear rack. For optimal rear rack fit, we recommend our Wanderlust Rack

Toptube Bag Mounts

Install our EXP Series Toptube bag using Journeyman’s integrated toptube mounts

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View <a href="http://salsacycles.com/support/warranty" target="_blank" rel="noreferrer noopener">Warranty</a>

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
