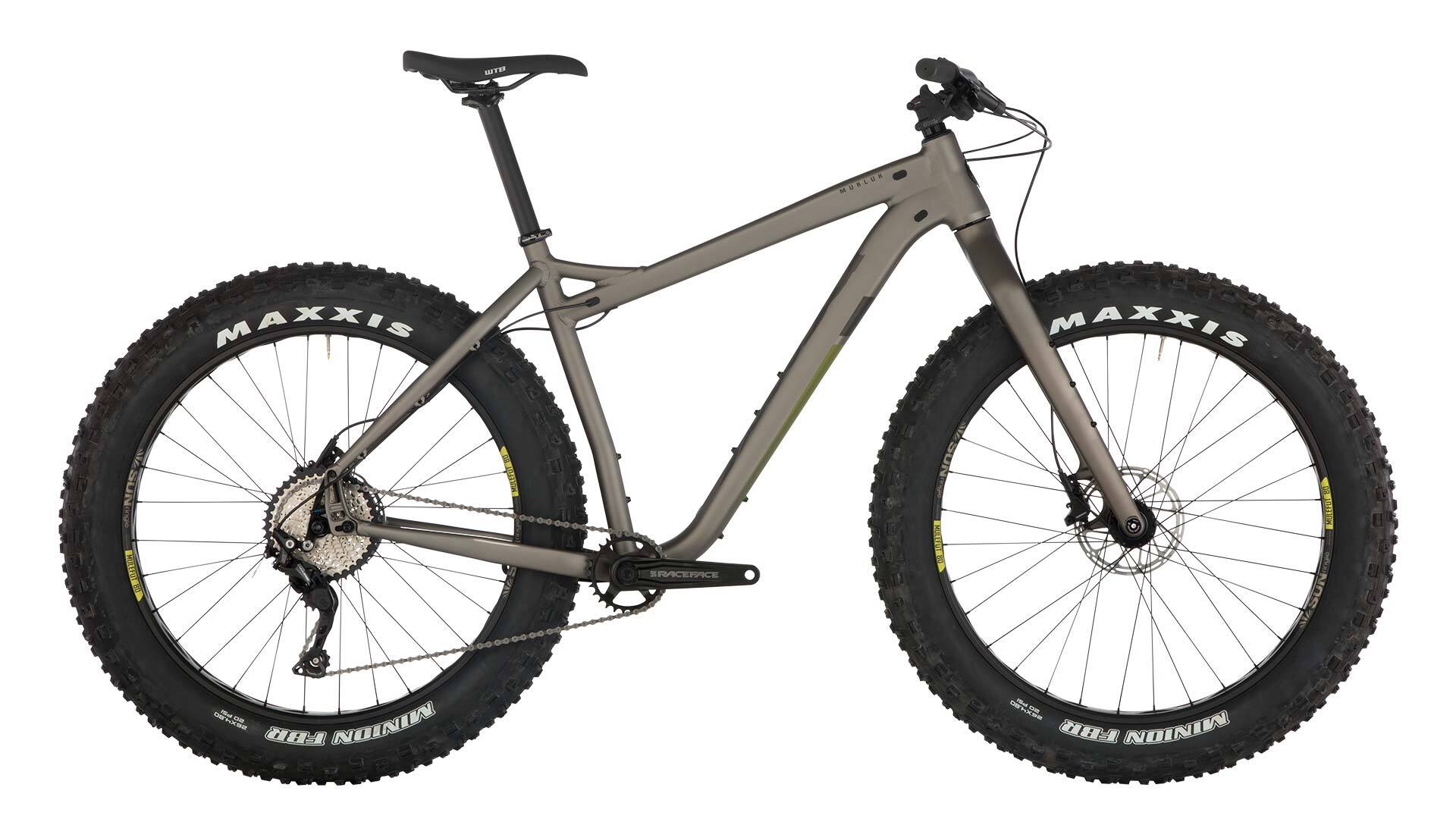

• Salsa Mukluk Deore bike gray color side view

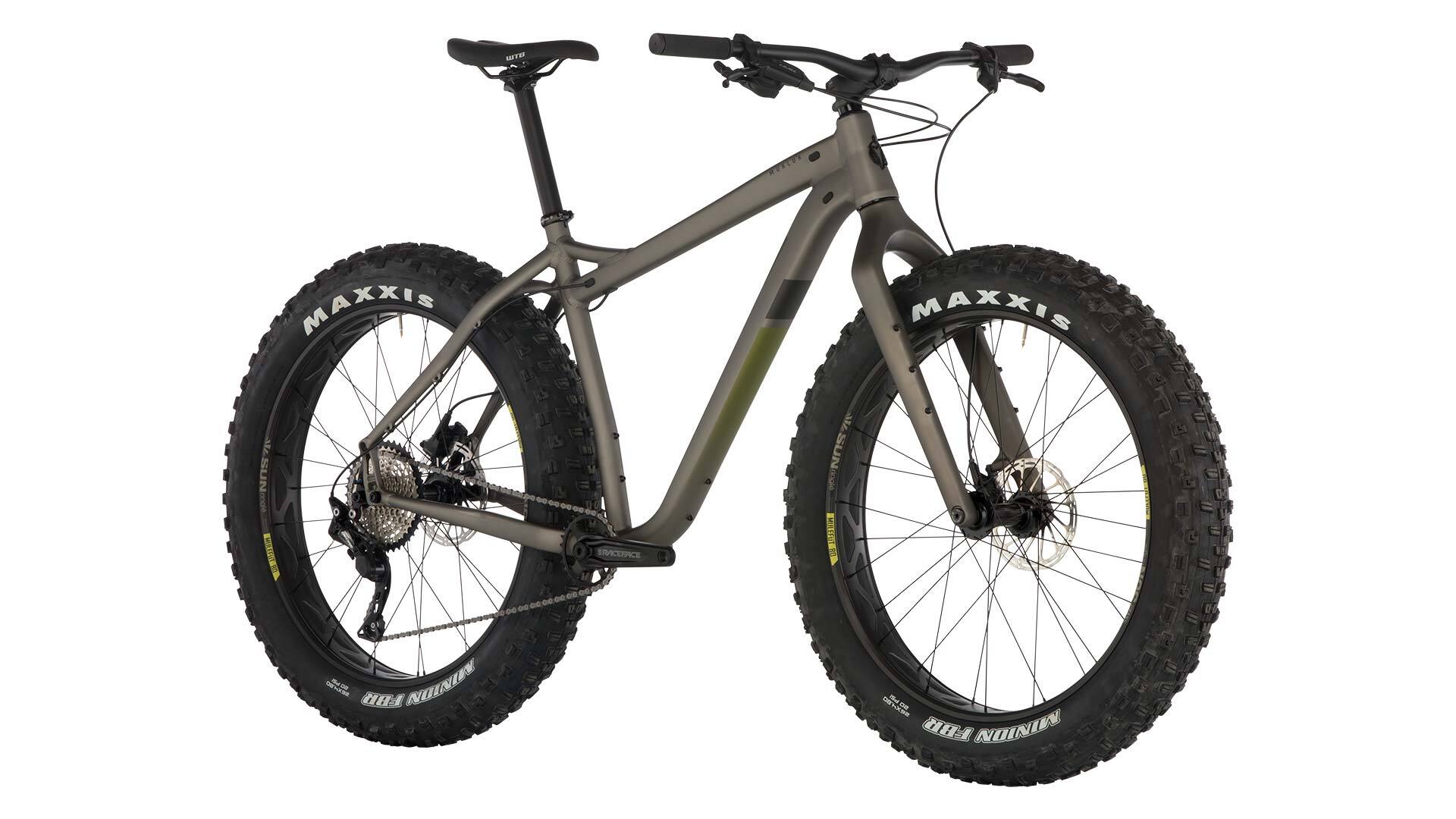

  • Salsa Mukluk Deore bike gray color front three-quarter view

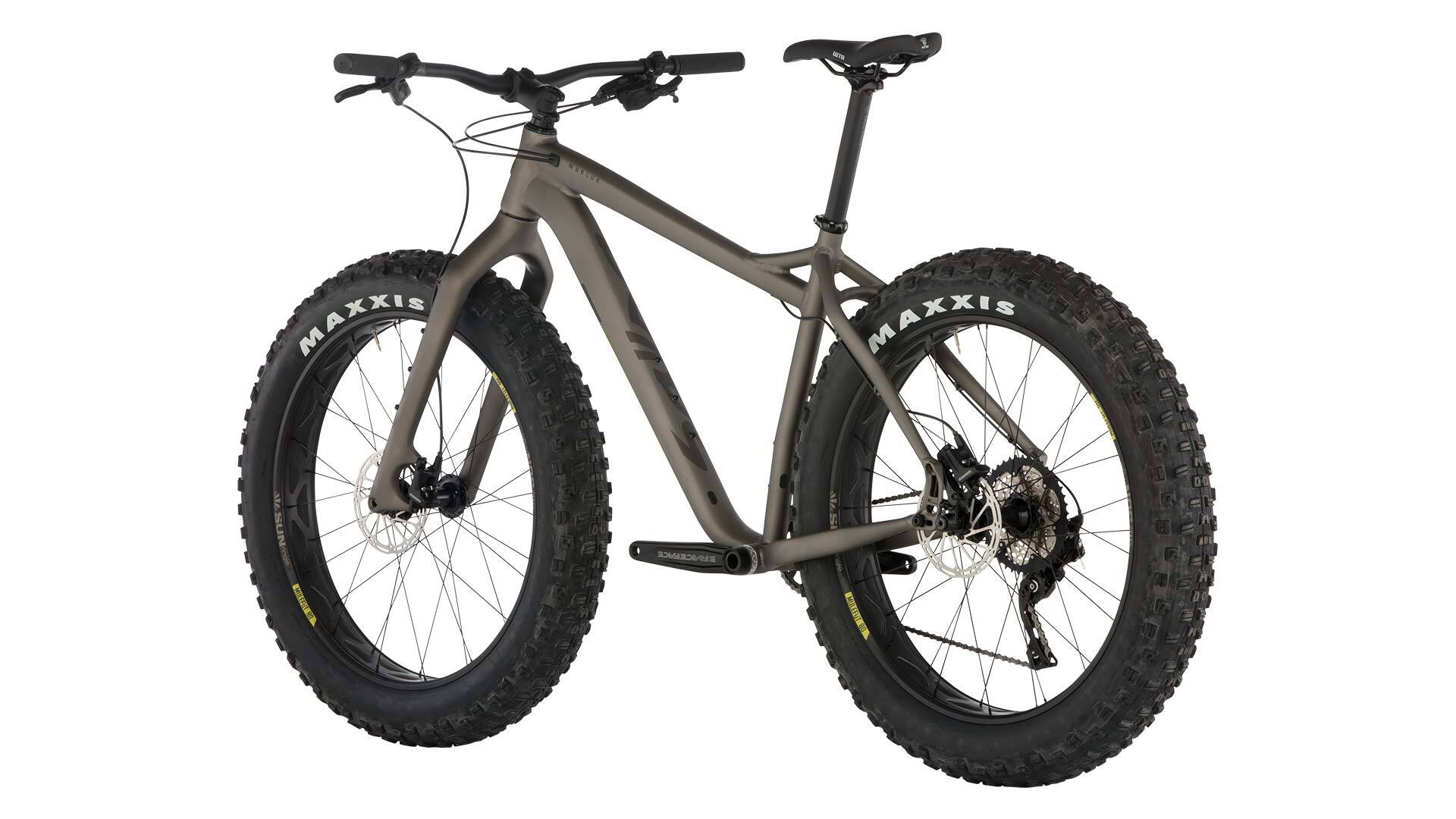

  • Salsa Mukluk Deore bike gray color rear three-quarter view

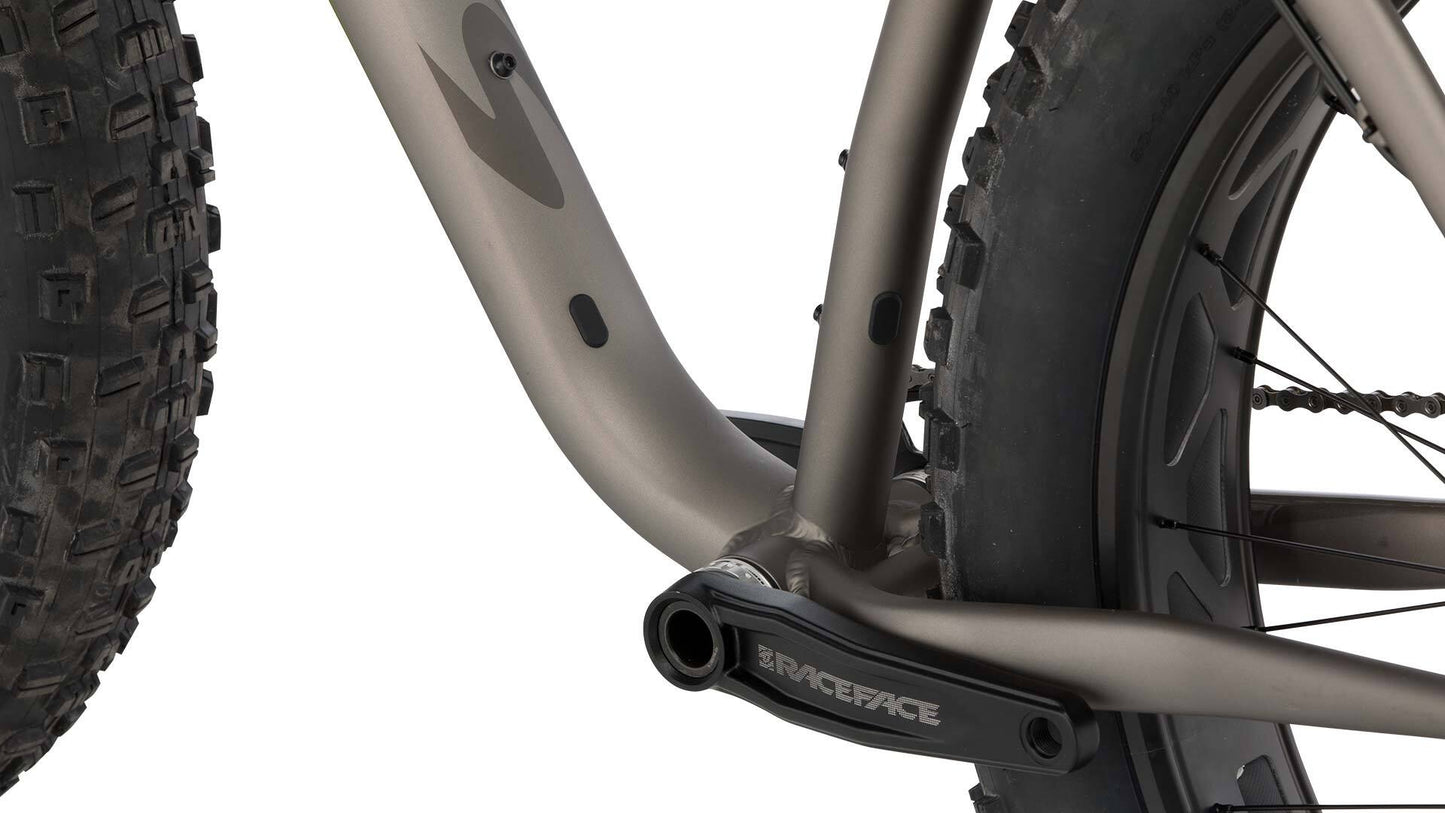

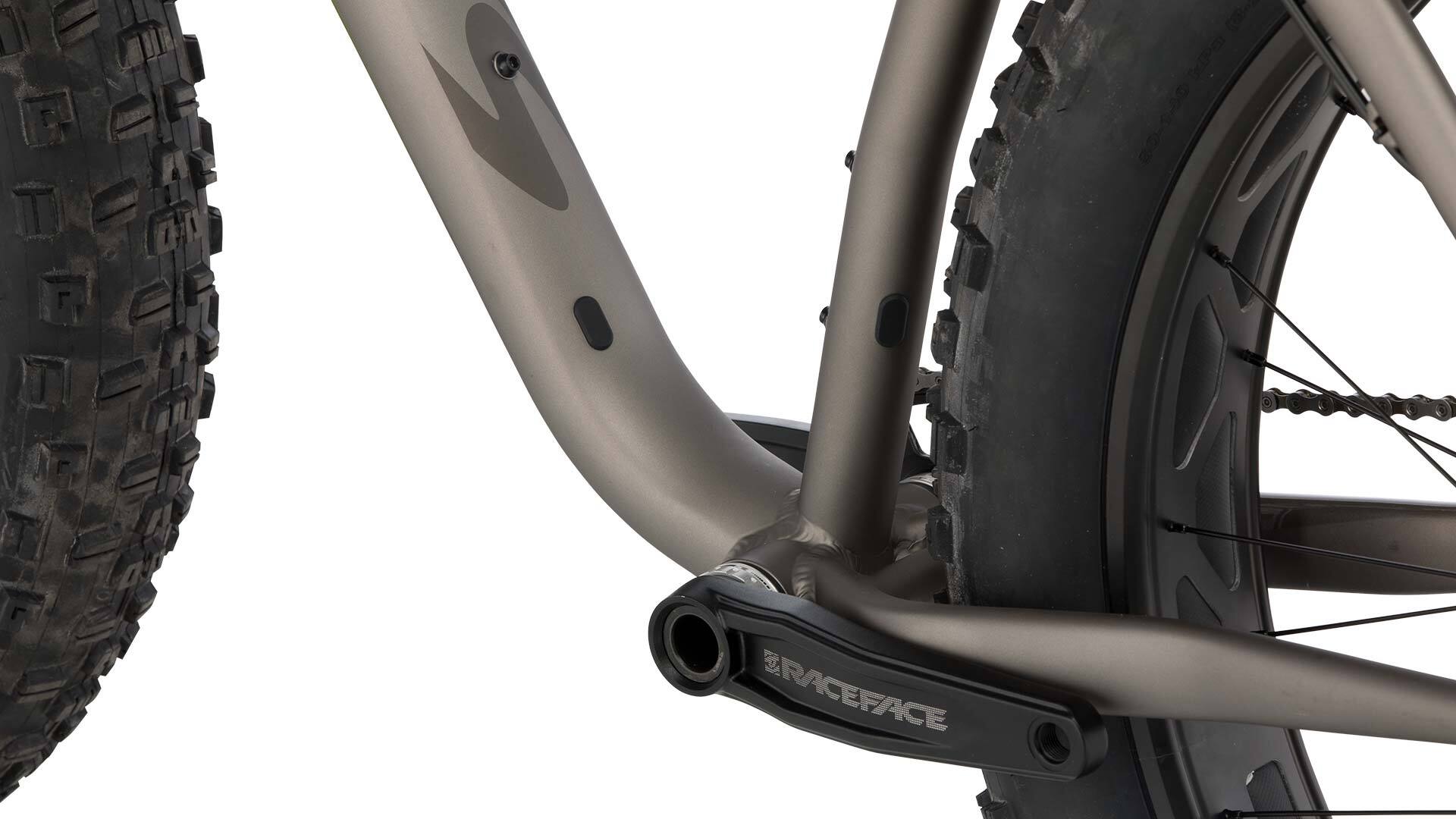

  • Salsa Mukluk Deore bike gray color front bottom bracket area focus

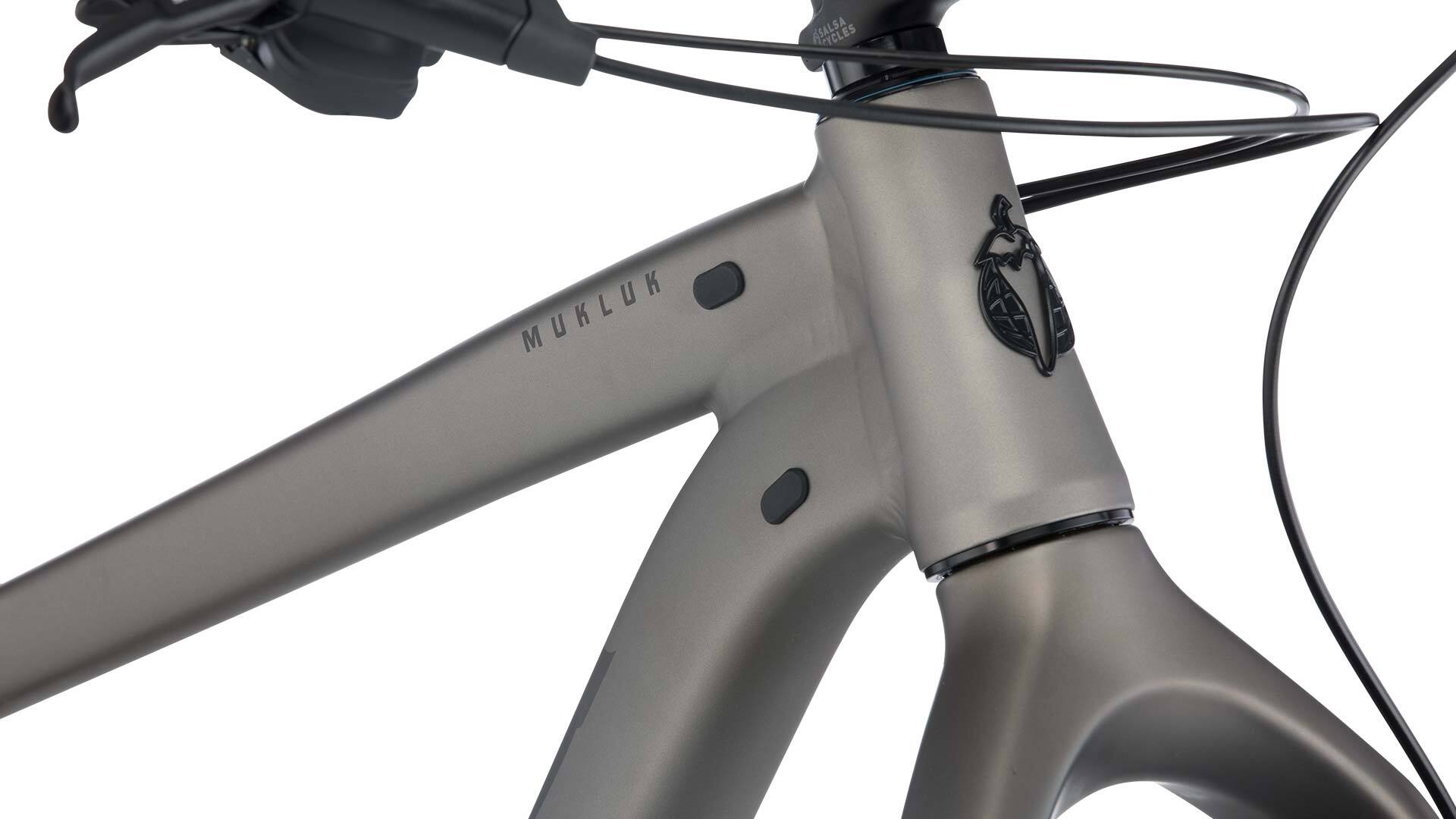

  • Salsa Mukluk Deore bike gray color front headtube area focus
1 5

2019 Mukluk Deore 1x

2019 Mukluk Deore 1x

Archived

Mukluk Deore 1X is perfect for all types of exploration. The Shimano Deore drivetrain provides clean, crisp shifing. Plus, you’ll have the traction and stability to take on any surface with 26’’ Maxxis Minion tires on 80mm rims.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Mukluk Aluminum
  • Fork: Bearpaw
  • Color: Dark Gray
  • Rear Shock: NA
  • Front Der: NA
  • Rear Der: Shimano Deore Shadow Plus
  • Cassette: Shimano Deore 11-42t
  • Chain: Shimano CH-HG54
  • Crankset: Race Face Ride, direct mount 28t
  • Shifter: Shimano Deore 1x
  • Brakes & Rotors: SRAM Level, Centerline 160mm rotors
  • Headset: Cane Creek 40
  • Stem: Salsa Guide Trail
  • Handlebar: Salsa Salt Flat / Rustler (size specific)
  • Grips: Salsa File Tread
  • Seatpost: Salsa Guide
  • Saddle: WTB Volt Sport
  • Front Wheel: SUNringlé Mulefüt SL 80 26" x 80mm w/ SUNringlé SRC 150mm hub
  • Rear Wheel: SUNringlé Mulefüt SL 80 26" x 80mm w/ SUNringlé SRC 197mm hub
  • Tires: Maxxis Minion FBR 26 x 4.8", 60 tpi
  • Complete Bike Weight: MD - 32 lb 8 oz / LG - 33 lb 7 oz

Frame Specs

  • Design Wheel/Tire Size: 26 x 4.33" on up to 100mm rim
  • Alternative Wheel/Tire Sizes: 26 x 3.8–4.8" on up to 100mm rim; 27.5 x 3.0–4.0"; 29 x 2.3–3.0"
  • Rigid Fork Length: 483–486mm
  • Suspension Fork Length (Travel): 511mm (100mm)
  • Fork Offset: 50–51mm
  • Headset-Upper: IS41
  • Headset-Lower: IS52
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm
  • Dropper Compatible (Routing): Yes, internal
  • Front Derailleur Type: Compact 2x top-pull only
  • Front Derailleur Mount: High direct-mount (54mm offset) via removable bracket (included)
  • Bottom Bracket: 100mm, threaded
  • Crankset (Max Ring): 75mm chainline fat bike cranks only 2x: 36/24t max; 1x: 32t max
  • Rear Brake (Rotor): 51mm standard (160–180mm rotors). Must use 160mm rear IS adapter with +20mm post mount adapter for 180mm rotor
  • Rear Spacing: 197 x 12mm thru-axle
  • Rear Axle Size: 12 x 229L, TP = 1.5, TL = 20
  • Derailleur Hanger: Fixed Position - ND: FS2357, D: FS2355; Adjustable - ND: FS2353, D: FS2356
  • Bottle Mounts: 2 per frame
  • Accessory Mounts: 2 per frame
  • Stem Clamp: Ø28.6mm
  • Crown Race: Ø40mm
  • Front Brake (Rotor): 74mm post mount (160–180mm)
  • Front Spacing: 150 x 15mm thru-axle
  • Front Thru-Axle: 15 x 198L, TP = 1.5, TL = 9
  • Fork Bottle Mounts: 2 Three-Pack bosses per fork

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 573 594 615 636 657
Seat Tube Length Metric 406 406 457 508 558
Head Tube Length Metric 100 110 120 130 140
Head Tube Angle 69 69 69 69 69
Seat Tube Angle 73 73 73 73 73
BB Drop Metric 63 63 63 63 63
Chainstay Length Metric 440–457 440–457 440–457 440–457 440–457
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1085.2 1107 1128.7 1150.4 1172.1
Stack Metric 592.7 602.1 611.4 620.7 630.1
Reach Metric 391.8 409.9 428.1 446.2 464.4
Standover Metric 684.5 678.1 719.7 758 773.9
Rider Height Metric 157–168cm 165–175cm 173–183cm 180–191cm 188–UP
Stem Length 40 50 60 70 80
Crank Length 170 170 170 175 175
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Seatpost Offset Metric 0 0 0 0 0

Measurements based on:

  • A Salsa Kingpin fork which is equivalent to a 100mm RockShox Bluto fork at 25% sag
  • 26 x 4.8" tire measuring 759mm in diameter
  • Standover is measured from ground to top of toptube at forward portion of the kink

Supportive Documents

Support Document links

Additional Features

6066-T6 Aluminum Frame

Top-shelf, double and triple-butted, heat-treated 6066-T6 aluminum tubing is used throughout the frame. This 6000-series aluminum has better strength and fatigue characteristics than 6061 and 7000-series aluminums, allowing for a stronger and lighter overall frame. Additionally, the tubing is strategically shaped and formed for additional stiffness and strength optimization in key stress areas

Mukluk Geometry

Mukluk’s geometry works extremely well in all conditions and use cases, whether it be riding groomed singletrack at your local trail, exploring a beach coastline, or embarking across the wild frozen expanses of Alaska. At its core, we use the shortest chainstay possible with a headtube angle and fork offset that place the rider’s center of gravity further over the rear wheel. This location and combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still feels nimble and agile despite the massive wheels and tires. A low bottom bracket is also key, to keep the rider’s center of gravity low, and to make dabbing, dismounting, and remounting easier

26 x 4.8” Wheel & Tire Size

Mukluk rolls on 26 x 4.8” wheels and tires. This huge tire delivers massive traction, stability, and optimum flotation on soft surfaces such as ungroomed snow or loose sand

Bearpaw Carbon Fork

This full-carbon fork features a 150 x 15mm thru-axle that boosts stiffness and improves steering precision. The fork also features our Three-Pack mounts for accessorizing with Anything Cages or water bottle cages

Alternator Dropouts V1.0

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability – the power is yours. See our Alternator page for more info

Front Fork Wheel & Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8 – 4.8” on up to a 100mm rim / 27.5 x 3.0 – 4.0” on an 80mm rim / 29 x 2.3 – 3.0” on a 50mm rim

Rear Wheel & Tire Options

Mukluk is designed for use with up to 26 x 4.8” fat bike tires on rims up to 100mm wide. The frame is also compatible with following wheel and tire combinations: 26 x 3.8 - 4.8" on up to a 100mm rims / 27.5 x 3.0 – 4.0” on an 80mm rim / 29 x 2.25 – 3.0” on a 50mm rim

Optimal 1x or 2x Drivetrain Design w/ Narrow Q-Factor Cranks

The Mukluk frame is 1x and 2x compatible and designed for premium drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197mm symmetrical rear end for modern rim/tire fit / 100mm threaded bottom bracket / Rider-friendly narrow Q-Factor cranks / 1x or 2x frame design / Up to a 32t max chainring for 1x setups; 36/24t max for 2x setups

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Dropper Post Compatible w/ Stealth Routing

Compatible with 31.6mm dropper seatposts for true trail bike riding experiences

Rear Rack Compatible

Designed for use with the Salsa Alternator 190 Rear Rack, with the addition of a Salsa Rack-Lock seat collar

Multiple Accessory Frame Mounts

Mukluk features numerous accessory mounts: 2 water bottle mounts inside frame triangle / 1 accessory mount underneath downtube
