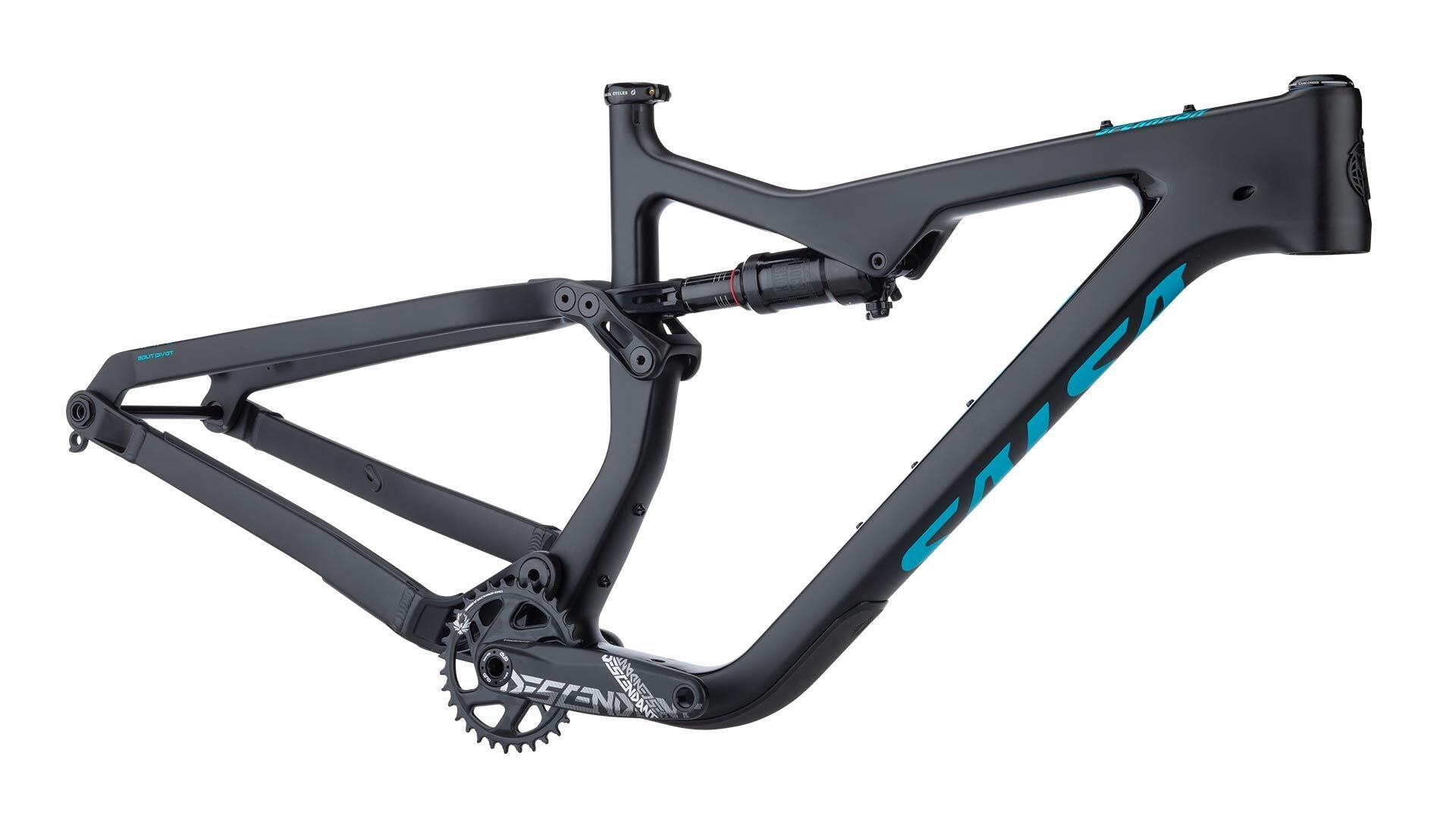

2019 Spearfish Carbon Frame

EPS construction allows for greater manufacturing control, smooth surfacing, a simplified bottom bracket junction, and an integrated shock mount. Carbon fiber material offers improved stiffness, better vibration damping, excellent toughness, and weight savings compared to other materials. 6066-T6 aluminum heat-treated chainstays are paired for durability.

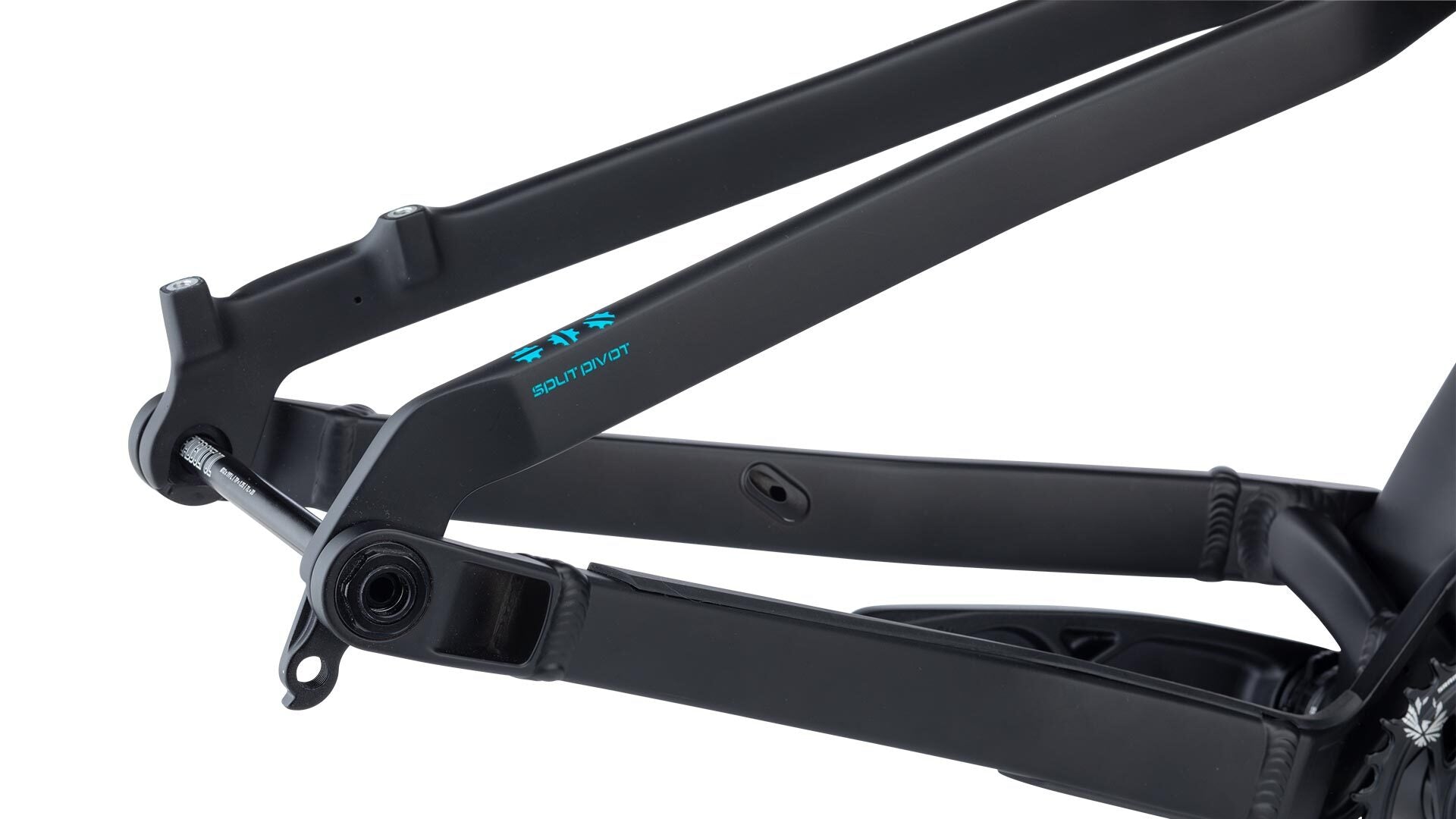

Split Pivot® provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in: Excellent bump compliance / Incredible pedaling efficiency / Smooth and predictable braking throughout travel / Maximum traction

This iteration of Split Pivot® brings with it a host of refinements and improvements: Redesigned leverage rates / Improved braking performance / Improved pedaling performance / Metric shocks standard / Flip Chip adjustability

The leverage rate has been revised to offer more progression and improved bottom out performance at the end of the stroke, promoting more confidence and control on bigger hits and a deeper feel to the total travel. The beginning and mid-stroke remains relatively unchanged, providing extremely supple small bump compliance off the top for a smooth ride and consistent mid-travel support to help combat rider fatigue and maintain bike geometry. A slightly lower overall rate yields lower shock pressures making for easier and quicker initial setup.

The Split Pivot® suspension design allows us to isolate braking forces from the rest of the system. Braking effect on suspension is minimal and is now more consistent throughout the suspension travel.

Revised anti-squat design leads to better pedaling performance. This improved anti squat is partly the result of designing the bike to be 1x specific and optimized around a 32-tooth chainring. The riding result is incredibly efficient pedaling without the need to over dampen the rear shock (thereby hindering small bump compliance) or necessitating the use of a lockout.

This shock standard brings a host of benefits: Increased stiffness in rear triangle/rear suspension frame members / Able to be fine-tuned for improved ride quality and personal preference

Integrated into the shock link mount, the Flip Chip allows simple, quick adjustments to bottom bracket height/headtube angle to account for wheel size, tire diameter, terrain, or the rider’s personal preference.

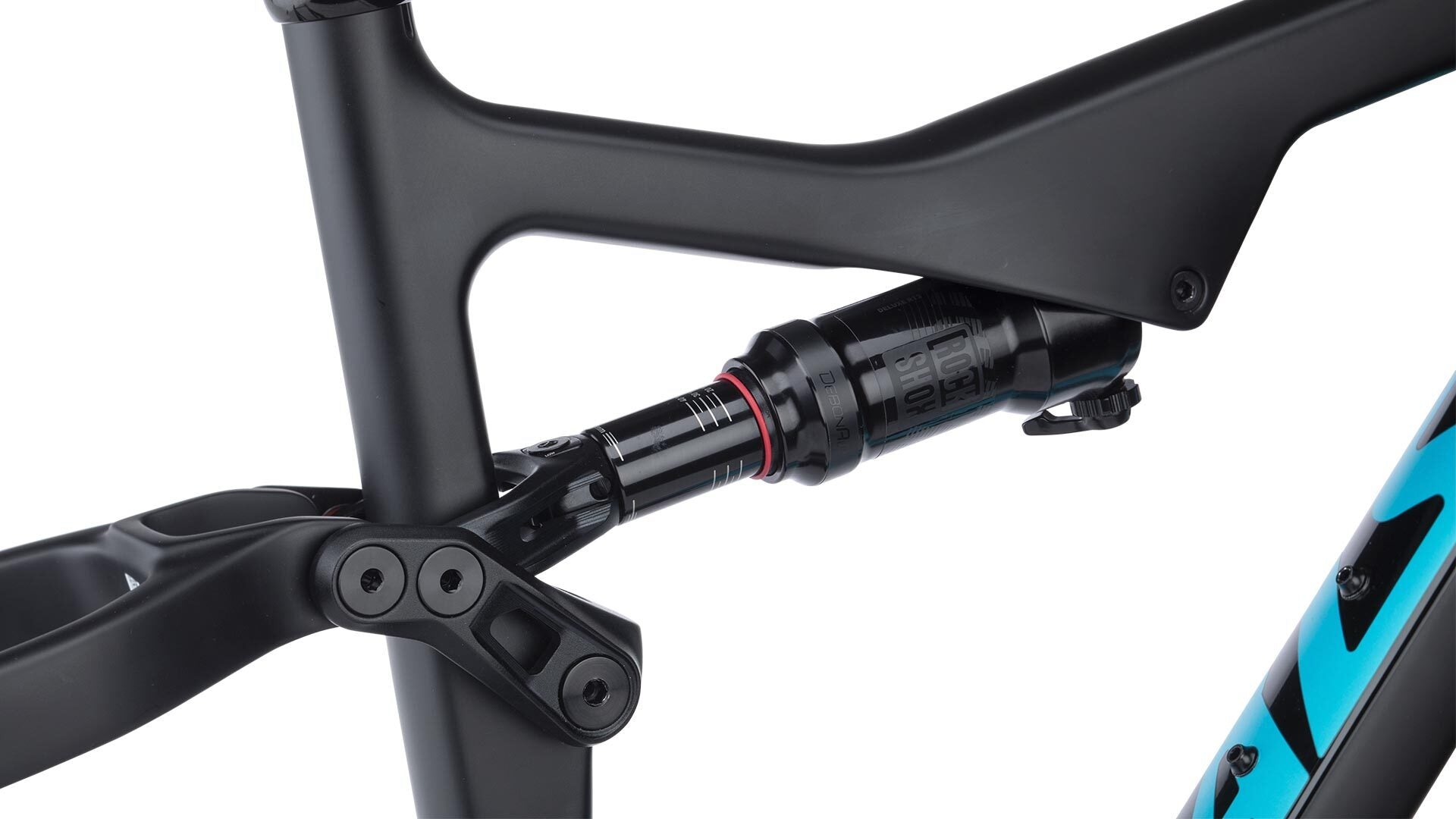

Proven damping and improved ground tracking. Counter Measure™ technology for incredible small bump performance. Rapid Recovery™ so the shock is ready for the next hit. Printed-on Sag Gradients™ and single valve Solo Air™ simplifies setup.

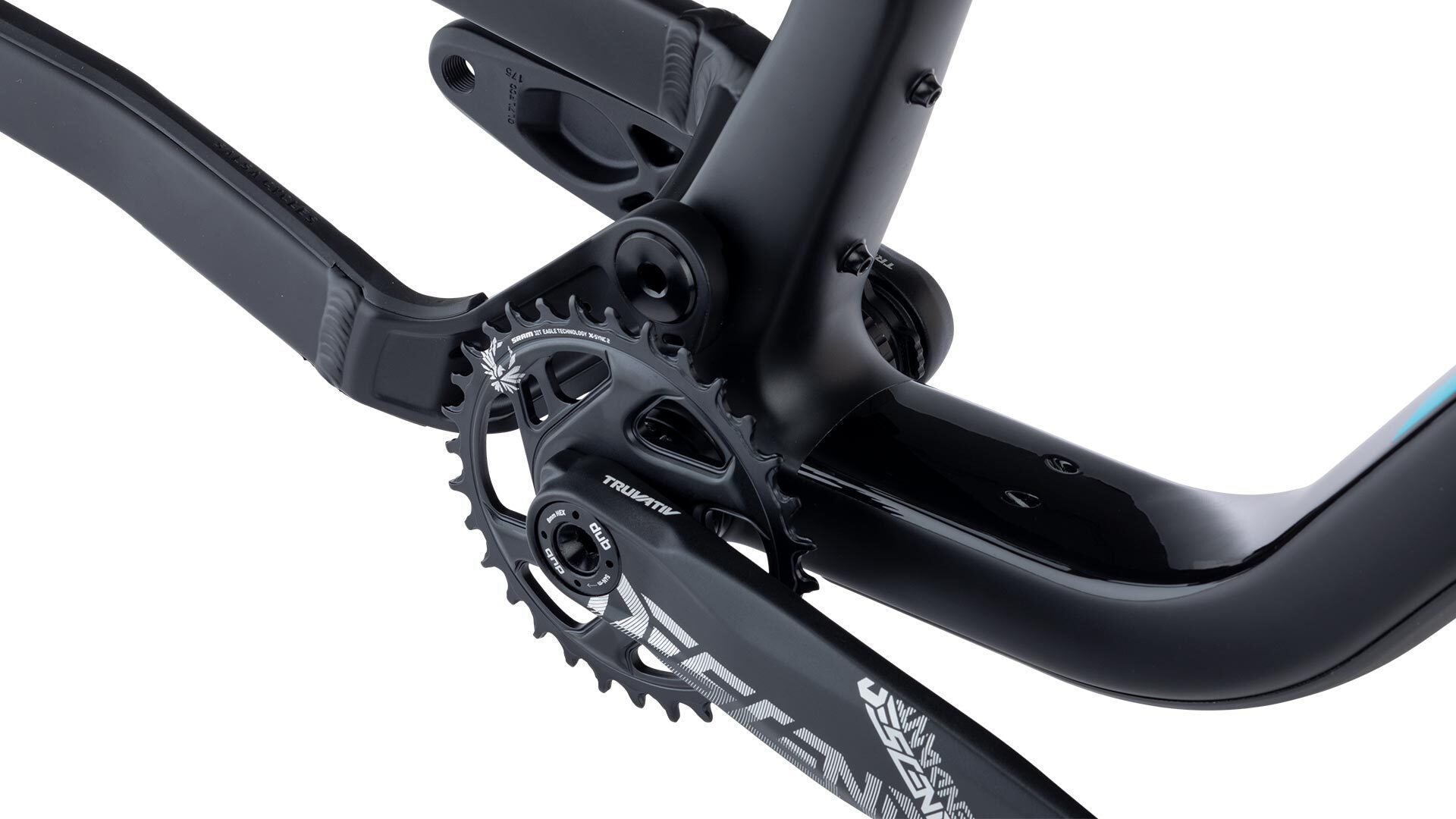

157 x 12mm rear spacing paired with a standard width bottom bracket results in: 432mm chainstays with 29 x 2.6” OR 27.5 X 3.0” max tire fit / Increased wheel stiffness (over 148mm and narrower spaced wheels)

Modular plate cover included if not using ISCG tabs.

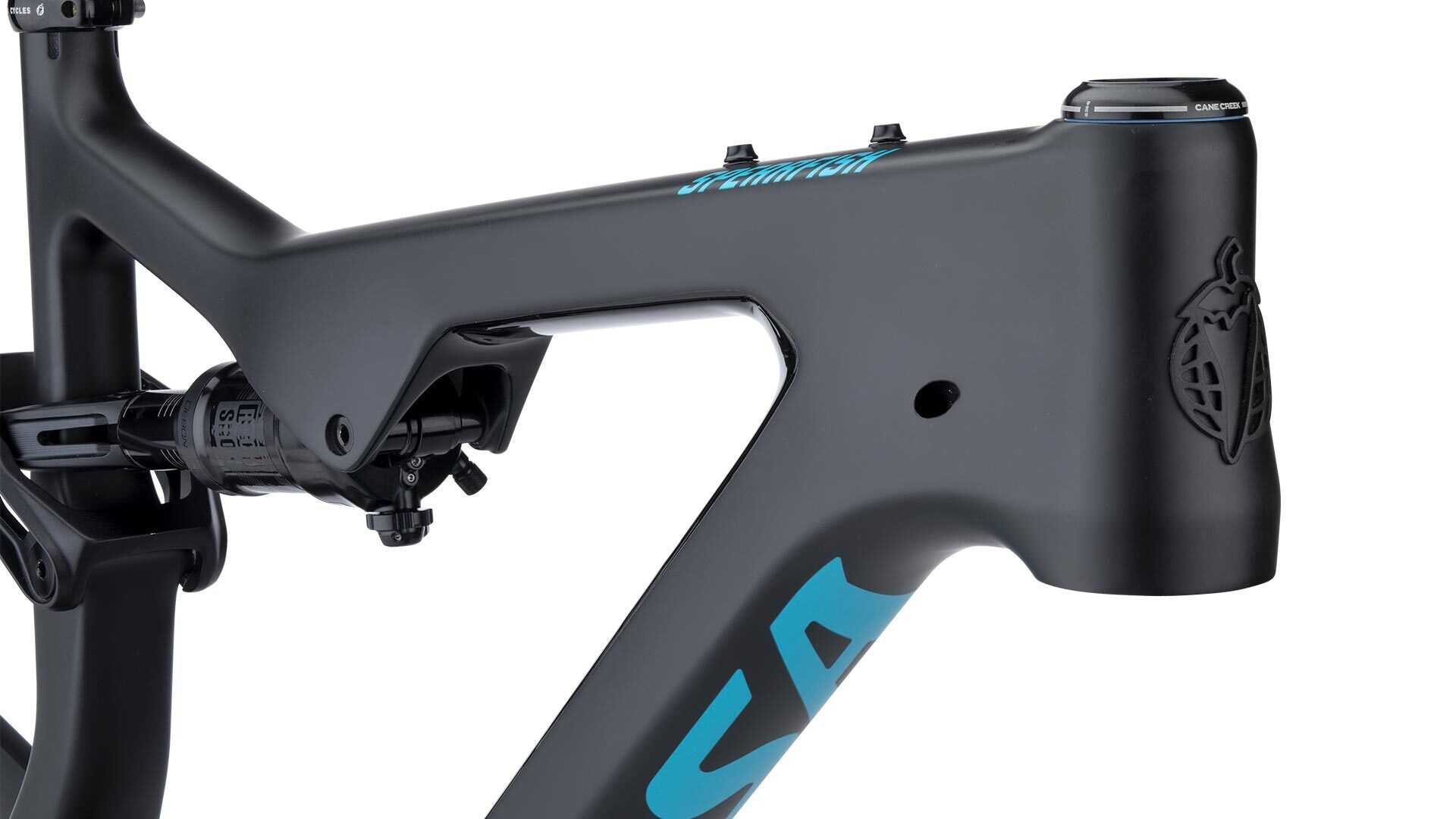

Internal tubes guide housing through the frame, simplifying setup and maintenance, and presenting a clean bike profile.

Compatible with 30.9mm dropper seatposts for true trail bike performance.

Protects your investment from impacts.

Extra hanger sold separately, Salsa Split Pivot® Top Cap Dropout Tool included with frame for field changes without the need to carry a 22mm cone wrench.
