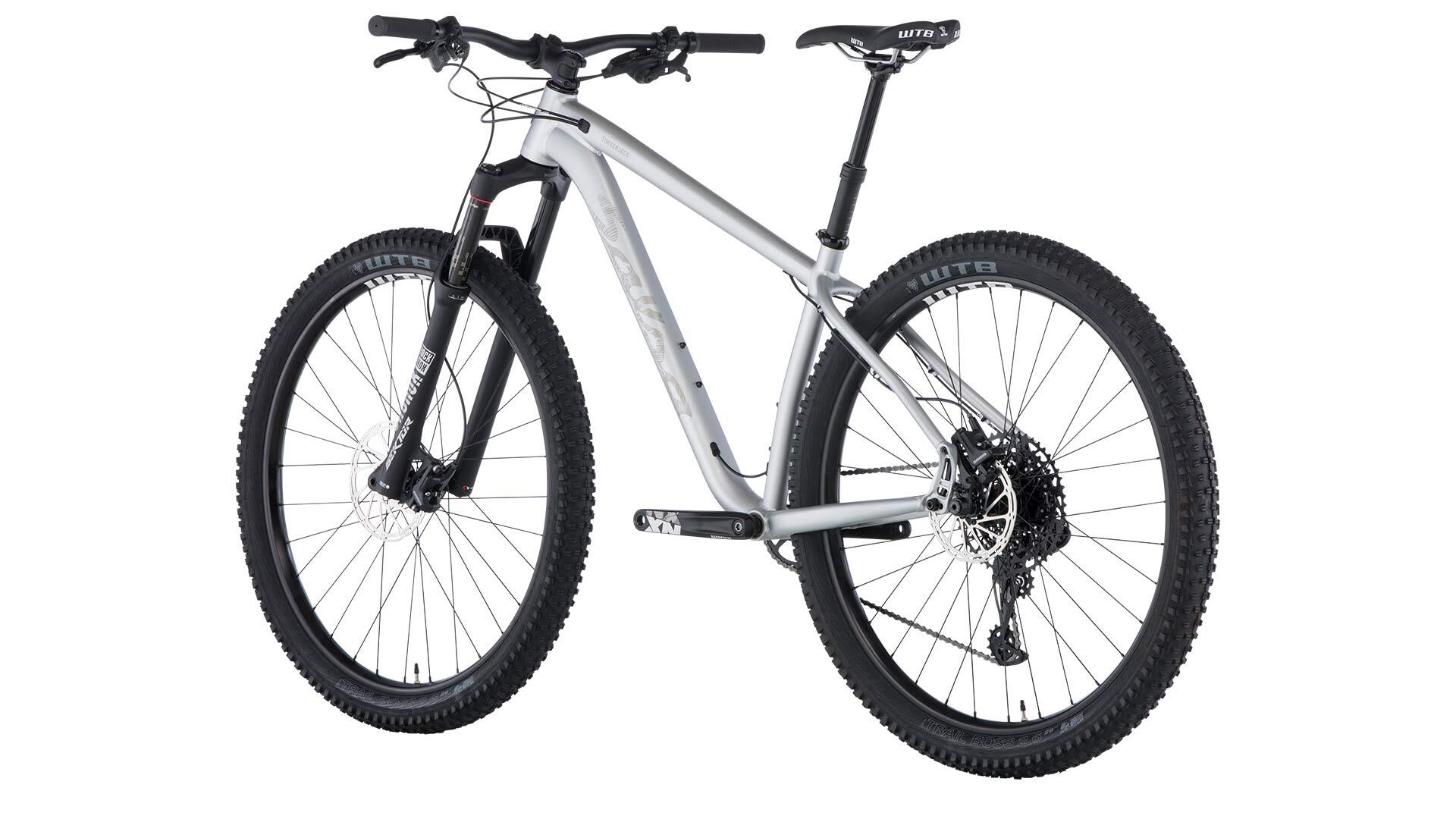

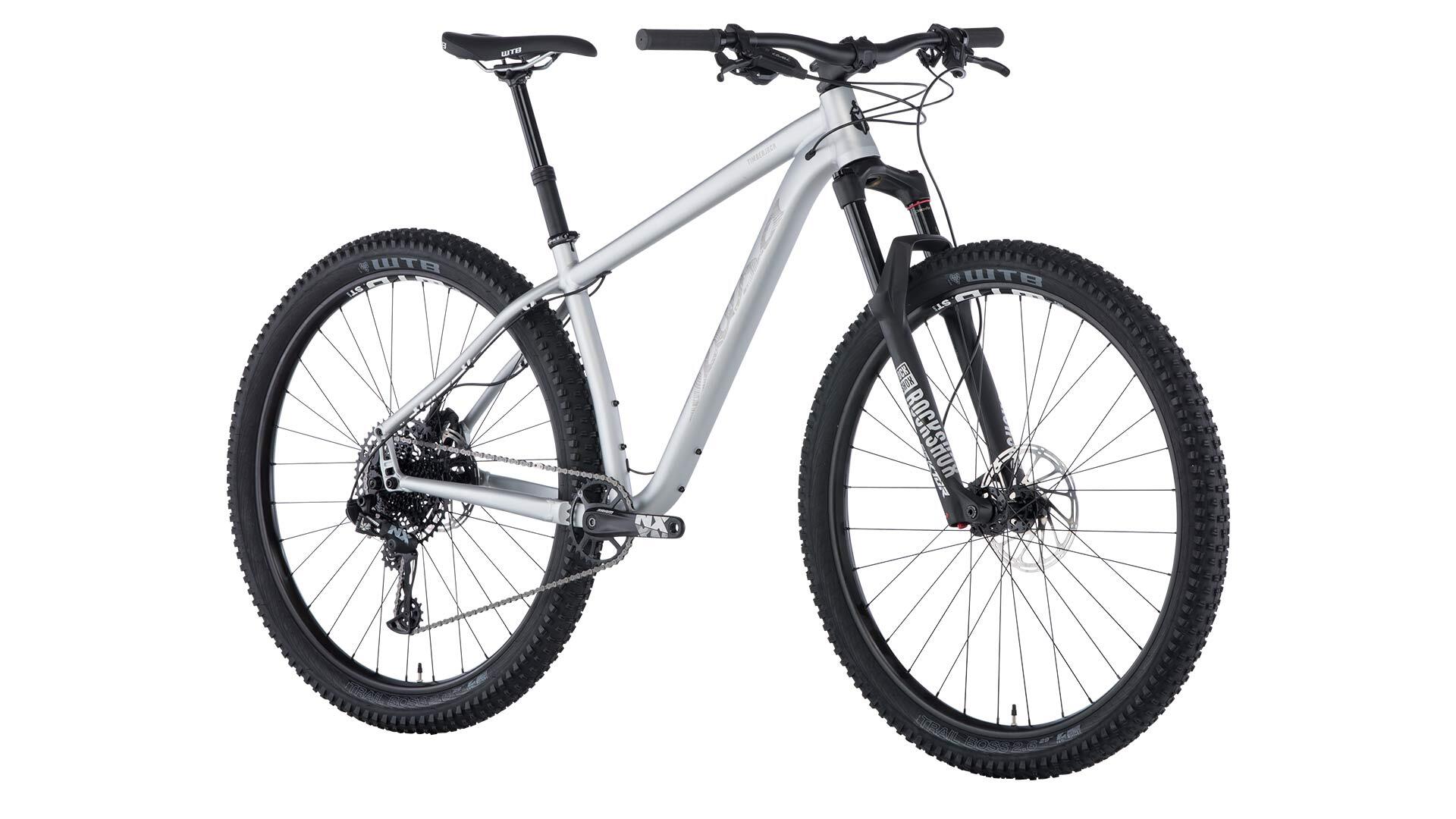

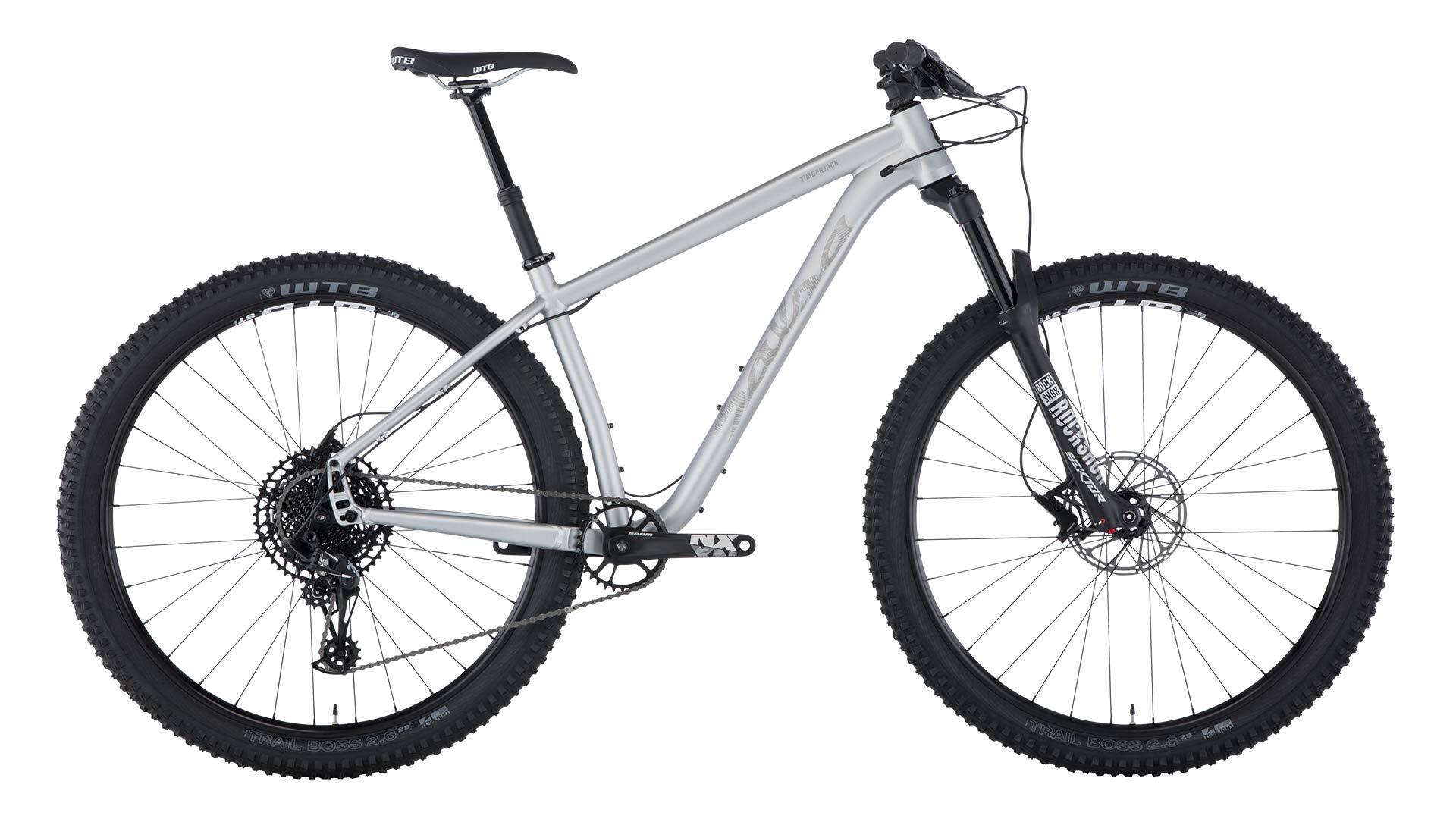

2019 Timberjack NX Eagle 29

Archived

Timberjack NX Eagle 29 makes hard trails a heck of a lot easier with its modern trail bike geometry and short chainstays for nimble scrambling. The SRAM NX Eagle groupset provides light, intuitive 1x12 gearing, while the RockShox Sektor RL fork works with the 29 x 2.6” rubber to smooth the bumps and provide traction. The Timberjack is equally at home pushing the limits on singletrack or bikepacking to places you’ve yet to discover.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

Frame: Timberjack Aluminum
Fork: Rockshox Sektor RL 130mm travel, 15 x 110mm
Color: Silver
Rear Shock: N/A
Front Der: N/A
Rear Der: SRAM NX Eagle
Cassette: SRAM NX Eagle, 11-50t, 12-Speed
Chain: SRAM NX Eagle
Crankset: SRAM NX Eagle PS, 32t
Shifter: SRAM NX Eagle
Brakes & Rotors: SRAM Level, 180mm front and 160mm rear rotors
Headset: Cane Creek 10
Stem: Salsa Guide Trail
Handlebar: Salsa Salt Flat (XS, SM) Rustler (MD, LG, XL)
Grips: Salsa File Tread Lock On
Seatpost: TranzX JD-YSP15L, 0mm offset
Saddle: WTB Volt Comp
Front Wheel: WTB 15 x 110mm, WTB ST i29 TCS 2.0 29"
Rear Wheel: WTB 12 x 148mm, WTB ST i29 TCS 2.0 29"
Tires: WTB Trail Boss 29 x 2.6" TCS Light/Fast Rolling
Complete Bike Weight: 30 lb - MD

Frame Specs

Design Wheel/Tire Size: 29 x 2.6 max. (at 427 rear center)
Alternative Wheel/Tire Size: 27.5 x 3.0" max. (at 427mm rear center)
Suspension Fork Length (Travel): 511–541mm (100–130mm)
Rigid Fork Length: 483–502mm
Fork Offset: 42–51mm
Headset-Upper: ZS44
Headset-Lower: AL: ZS56, Ti: EC44
Seat Collar: 35.0mm
Dropper Compatible (Routing): Yes
Front Derailleur Mount: 148mm rear spaced: high direct mount (29mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1328) 142mm rear spaced: high direct mount (26.5mm offset) via 34.9mm clamp Problem Solvers bracket (FS1323)
Bottom Bracket: 73mm BSA, threaded
Crankset (Max Ring): 1x crankset: 32t max. Boost or 30t max. / Non-Boost, 2x crankset: 36/24t max. / Boost and 36/24t Non-Boost
Rear Brake (Rotor): 51mm I.S., (160–180mm)
Rear Spacing: 148mm; 142/135mm capable w/ Alternator Reduction Plates (FS2360)
Rear Axle Size: 12 x 180L, TP = 1.75, TL = 20
Derailleur Hanger: QR = FS1312; TA = FS1373; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
Rack Mounts: Yes w/ Alternator Rack System
Fender Mounts: No
Stem Clamp: 28.6mm
Crown Race: 40mm
Front Brake (Rotor): N/A
Front Spacing: N/A

Geometry

Metric	XS	SM	MD	LG	XL
Top Tube Effective Metric	571	591	611	641	671
Seat Tube Length Metric	355.6	381	431.8	482.6	533.4
Head Tube Length Metric	100	100	110	120	135
Head Tube Angle	67.6	67.6	67.6	67.6	67.4
Seat Tube Angle	73.2	73.2	73.2	73.2	73.2
BB Drop Metric	55	57	57	57	57
Chainstay Length Metric	420–437	420–437	420–437	420–437	420–437
Fork Length Metric	509	509	509	509	509
Fork Offset Metric	51	51	51	51	51
Wheelbase Metric	1086–1103	1106–1123	1127–1144	1158–1175	1190–1207
Stack Metric	601	602	611	620	634
Reach Metric	389	409	426	454	480
Standover Metric	704	721	760	797	833
Rider Height Metric	157cm–168cm	160cm–175cm	173cm–183cm	180cm–191cm	188cm–UP
Stem Length	60	60	60	60	60
Crank Length	170	170	175	175	175
Handlebar Width	750mm	750mm	750mm	800mm	800mm
Seatpost Offset Metric	0	0	0	0	0

509 x 51 mm offset fork based on 130 mm [541 mm/29/27.5+] fork at 25% sag.
29 x 2.6" tire measuring 757 mm in diameter.
Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

6066-T6 & 6061 Aluminum Tubeset

A blend of our proprietary, top shelf 6066-T6 double and triple-butted tubing to the main triangle with 6061-T6 chain and seatstays creates a light, responsive, and durable frame that provides great trail feel

Timberjack Geometry

Timberjack uses a longer toptube and shorter stem to put the rider ina confidence inspiring position for off-road riding. Using the same stem length, offsets, and angles on each frame size, we provide riders across our size range with the same consistent front-end experience. Combining this front end with super-short chainstays, as short as 420mm, makes Timberjack an extremely agile trail bike

29 x 2.6” Wheel/Tire Spec

29 x 2.6” tires provide excellent speed and incredible rollover

130mm Travel Front Suspension

Smooth out the trail with the 130mm travel RockShox Sektor RL suspension fork

Dropper Seatpost Included

Drop your saddle for steep descents and technical terrain with the included Trans-X dropper seatpost. The frame also provides stealth cable routing

Alternator Dropout Versatility

The Alternator Dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator Dropouts all the way forward for a shorter wheelbase and quick, nimble handling, or set back for more stability. See our Alternator page

Multiple Bottle Cages

X-Small and Small accept 2 bottle cages; Medium, Large, and X-Large accept 3 bottle cages

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Rear Rack Friendly

Designed for use with the Salsa Alternator Rack. NOTE: Requires the use of 35mm Salsa Rack-Lock Seat Collar
