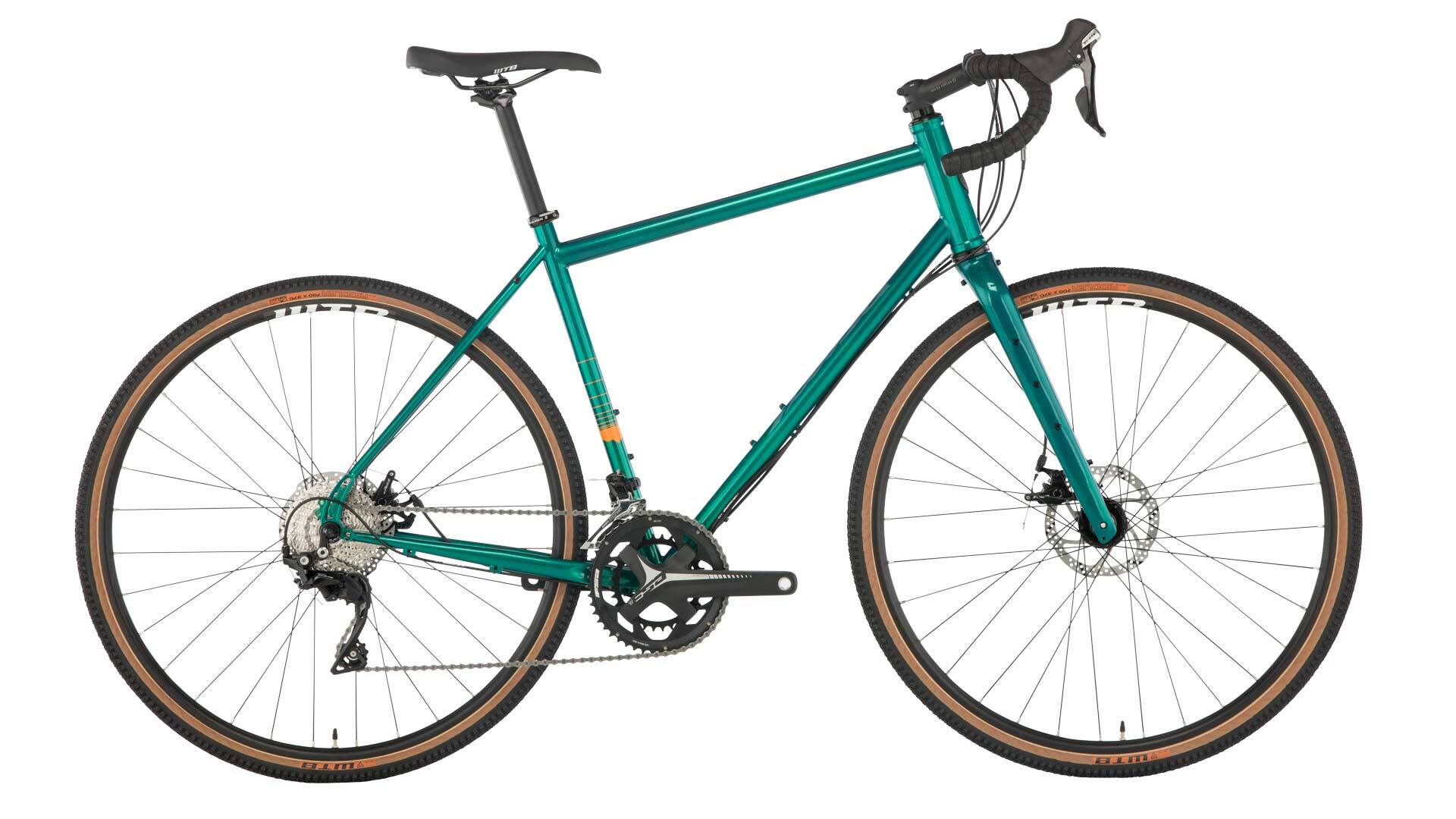

• Salsa Vaya bike teal color side view

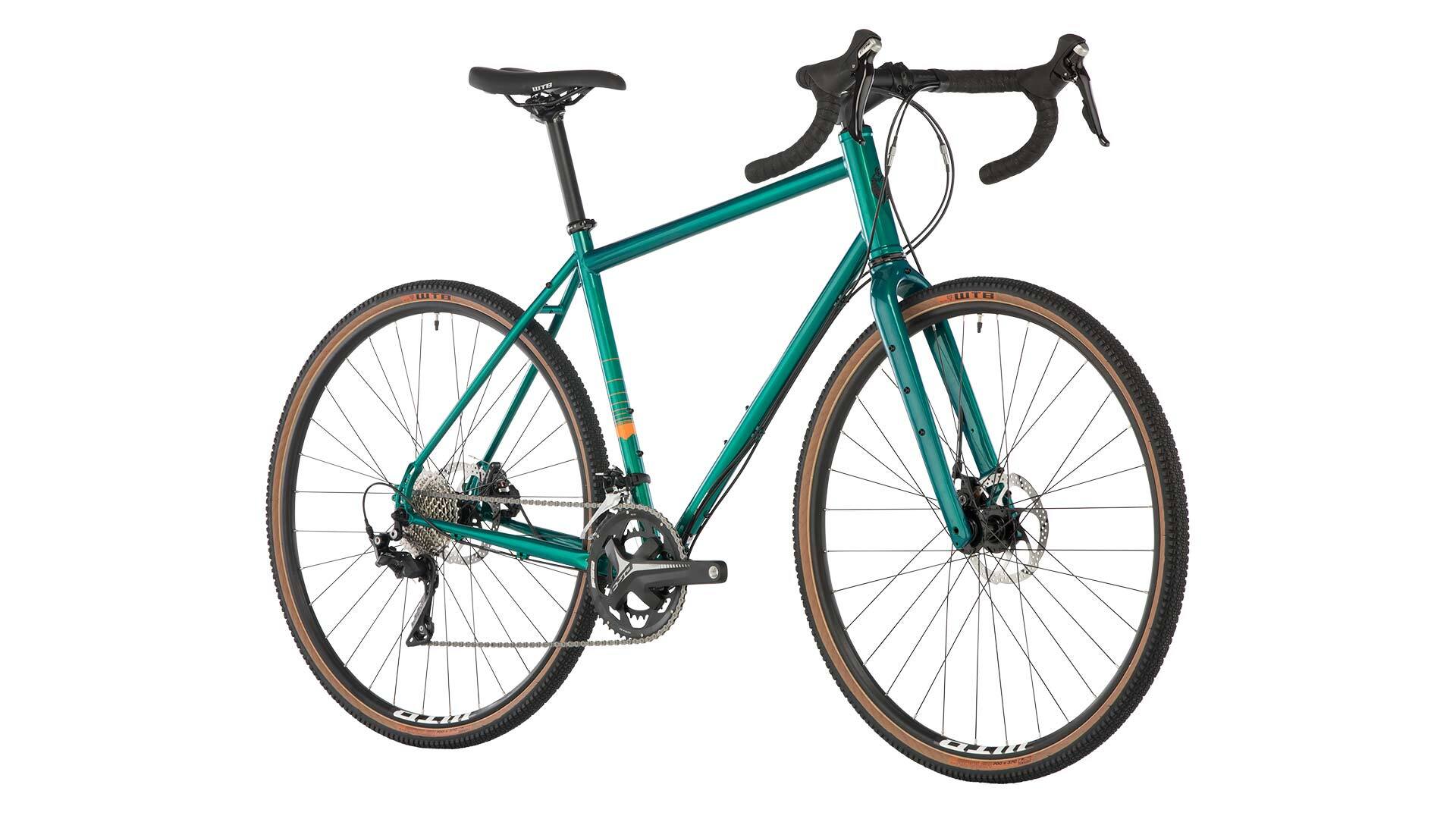

  • Salsa Vaya bike teal color front three-quarter view

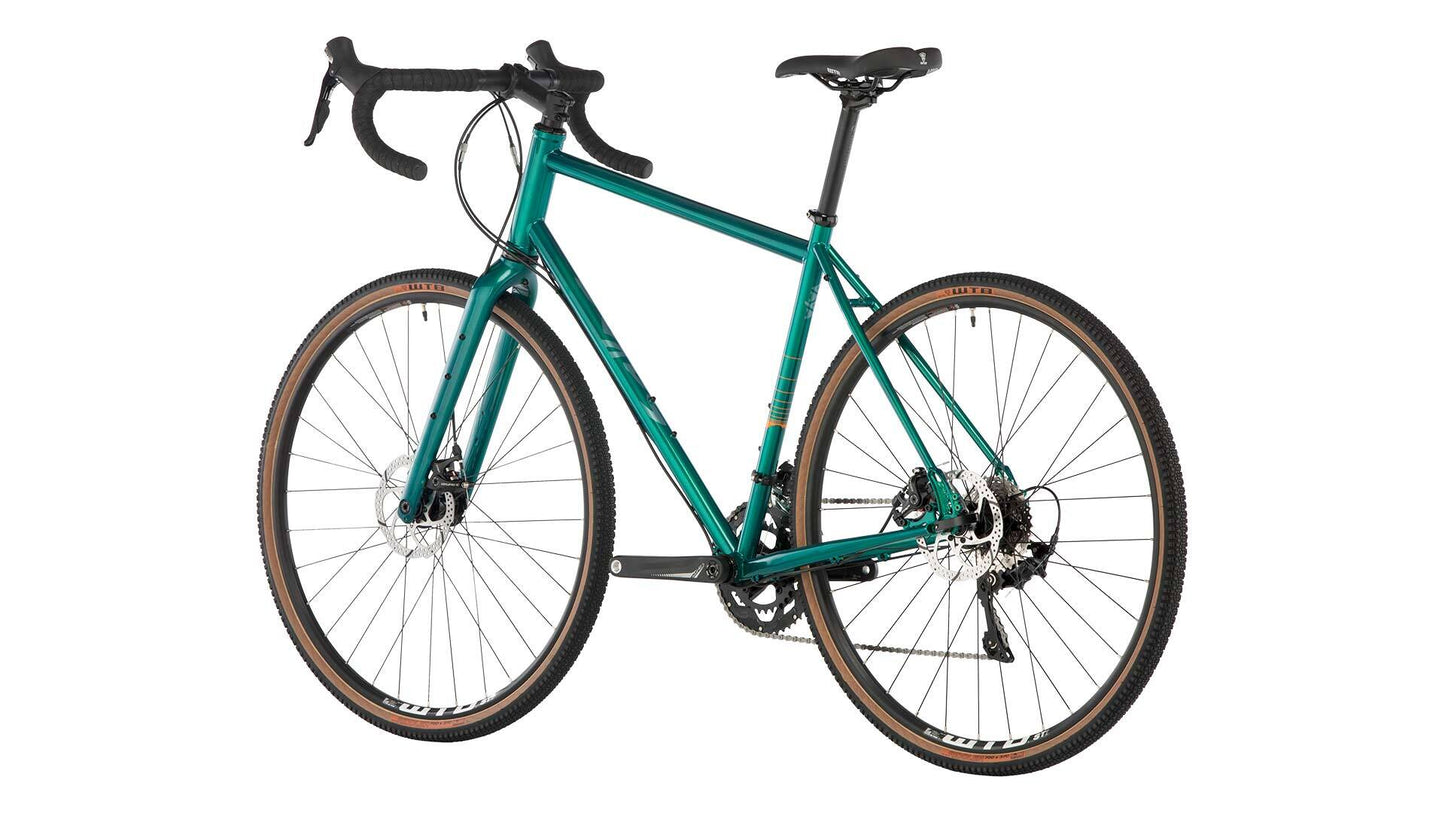

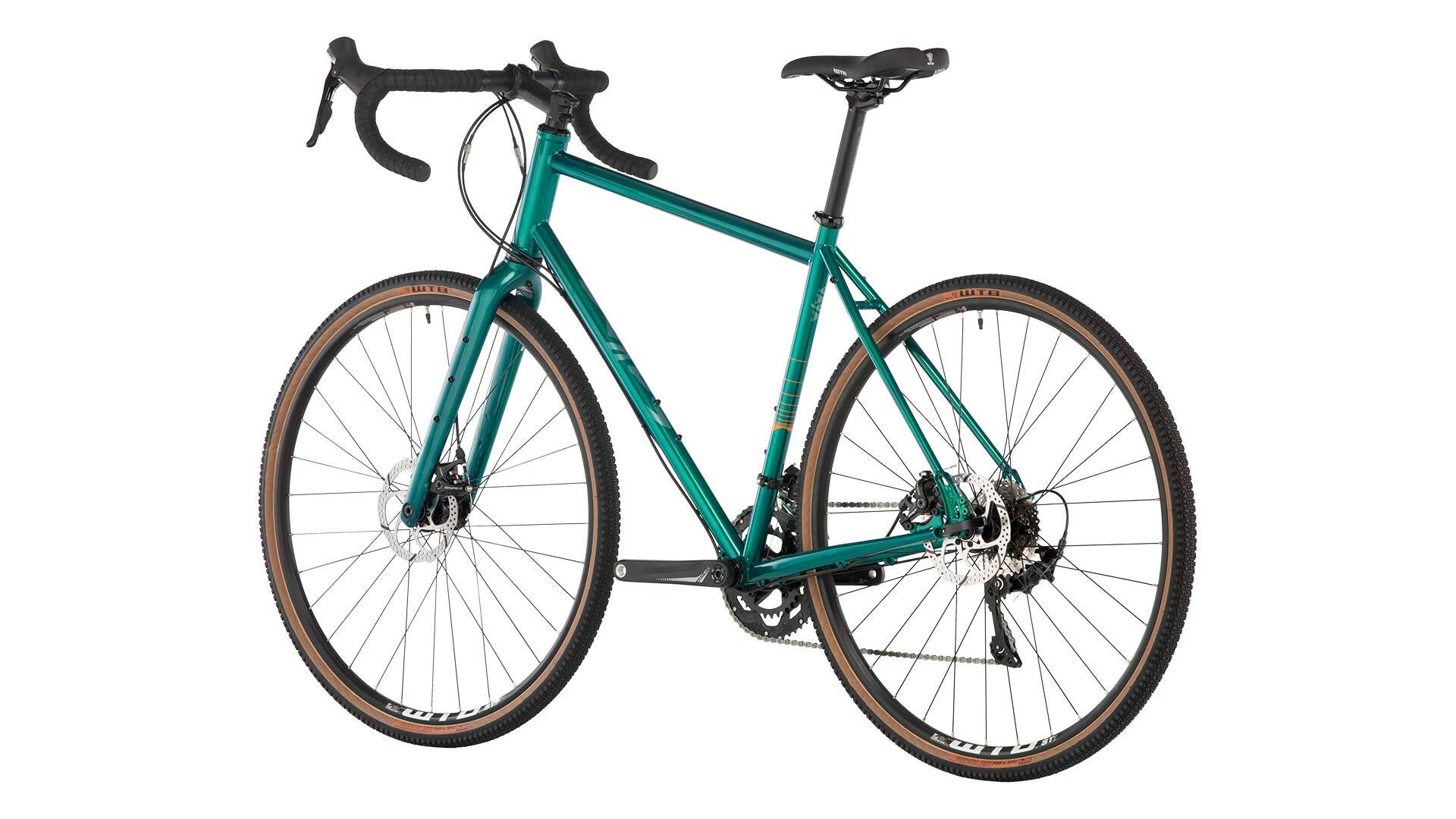

  • Salsa Vaya bike teal color rear three-quarter view
1 3

2019 Vaya 105 Teal

2019 Vaya 105 Teal

Archived

The Vaya 105 is designed to handle any road surface. It has a durable steel frame and a premium Shimano 105 groupset for smooth and confident shifting. Its lightweight carbon Waxwing fork features Three-Pack mounts for extra water bottles or gear, so you’ll be ready for anywhere the road takes you. Whatever your motivation, this all-road adventure and light touring bike is a versatile machine that feels great loaded or unloaded.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Vaya Triple Butted CroMoly
  • Fork: Waxwing
  • Color: Teal or Purple
  • Rear Shock: N/A
  • Front Der: Shimano 105 R7000
  • Rear Der: Shimano 105 R7000
  • Cassette: Shimano HG70011 11-speed, 11-34t
  • Chain: Shimano HG601-11
  • Crankset: FSA Omega Adventure 48/32t
  • Shifter: Shimano 105 R7000
  • Brakes & Rotors: TRP Spyre-C, 160mm rotors
  • Headset: Cane Creek 10
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell
  • Grips: Salsa Gel Bar Tape
  • Seatpost: Salsa Guide
  • Saddle: WTB Volt
  • Front Wheel: Novatec 32h, 12 x 100mm, WTB ST i19 TCS 2.0 700c
  • Rear Wheel: Novatec 32h, 135mm QR, WTB ST i19 TCS 2.0 700c
  • Tires: WTB Riddler 700 x 37c TCS Light/Fast Rolling, tan sidewall
  • Complete Bike Weight: 55cm - 24 lb 10 oz / 57cm - 24 lb 14 oz

Frame Specs

  • Design Wheel/Tire Size: 700c x 32–45mm w/o fenders
  • Alternate Wheel/ Tire Size: 700c x 38mm max. w/ fenders
  • Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30mm
  • Front Derailleur Mount: Band clamp, 28.6mm, bottom pull
  • Bottom Bracket: 68mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 46t max, 2x crankset: 52/36t max, 3x crankset: 53/39/30t max
  • Rear Brake (Rotor): 51mm standard, (140–160mm)
  • Rear Spacing: 135mm
  • Rear Axle Size: 10 x 135mm QR
  • Derailleur Hanger: FS2310
  • Rack Mounts: Yes
  • Fender Mounts: Yes, only compatible with QR fenders
  • Bottle Mounts: 3
  • Stem Clamp: 28.6mm
  • Crown Race: 40mm 36° integrated crown race
  • Front Brake (Rotor): Flat mount 160, 160mm max, flat mount frame standard 35mm thickness, 42mm bolt length
  • Front Spacing: 100mm
  • Front Axle: Steel fork: quick-release / Carbon fork: thru-axle, M12 x 120 L / TP=1.5, TL=20mm

Geometry

Geometry Diagram
Metric 49.5cm 52cm 54cm 55cm 57cm 59.5cm
Top Tube Effective Metric 495 520 540 550 570 595
Seat Tube Length Metric 380 450 470 510 530 560
Head Tube Length Metric 100 100 145 165 185 205
Head Tube Angle 70.25 71.5 71.5 71.5 71.5 71.5
Seat Tube Angle 75.5 74.5 73.5 73 72.5 72
BB Drop Metric 75 75 75 75 75 75
Chainstay Length Metric 450 450 450 450 450 450
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50
Wheelbase Metric 1019.4 1022.7 1034 1038.9 1053.5 1072.6
Stack Metric 542.7 547.4 590.1 609.1 628 647
Reach Metric 354.6 368.2 365.2 363.8 372 384.8
Standover Metric 660.1 713.7 742 776.3 795.6 821
Rider Height Metric 147–158 cm 158–165 cm 165–173 cm 170–178 cm 175–185 cm 188cm–UP5
Stem Length 60 70 80 80 90 100
Crank Length 165 165 170 172.5 175 175
Handlebar Width 38cm 40cm 42cm 42cm 44cm 46cm
Seatpost Offset Metric 12 12 12 12 12 12

Measurements based on:

  • A 700 x 41mm tire measuring 709mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Triple Butted CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Sanko CroMoly tubing

Waxwing Fork

The Waxwing fork features carbon fiber construction with an aluminum steerer tube. The feature-rich fork includes Three-Pack mounts, mid-blade low rider rack mounts, internal dynamo wire routing, and fender mounts

Vaya Geometry

Designed as an any-road or light touring bike, optimized for fit with Salsa drop bars. Stable handling with a light load, and ready to explore on any road surface

Generous Tire Clearance

Clearance for 700c x 45mm tires or 700c x 38mm with fenders

Rear Rack & Fender Mounts

Integrated rear rack and front and rear fender mounts cast into dropout for durability. Designed to work best with the Salsa Wanderlust Rack

Full-Length Cable Housing w/ Salsa Designed Front Derailleur Cable Guide

Improved performance in poor conditions. Full drivetrain-cable housing with a front derailleur BB cable guide to keep muck from entering the housing. Clean routing keeps shifting protected. Brake routing is external for easy maintenance
