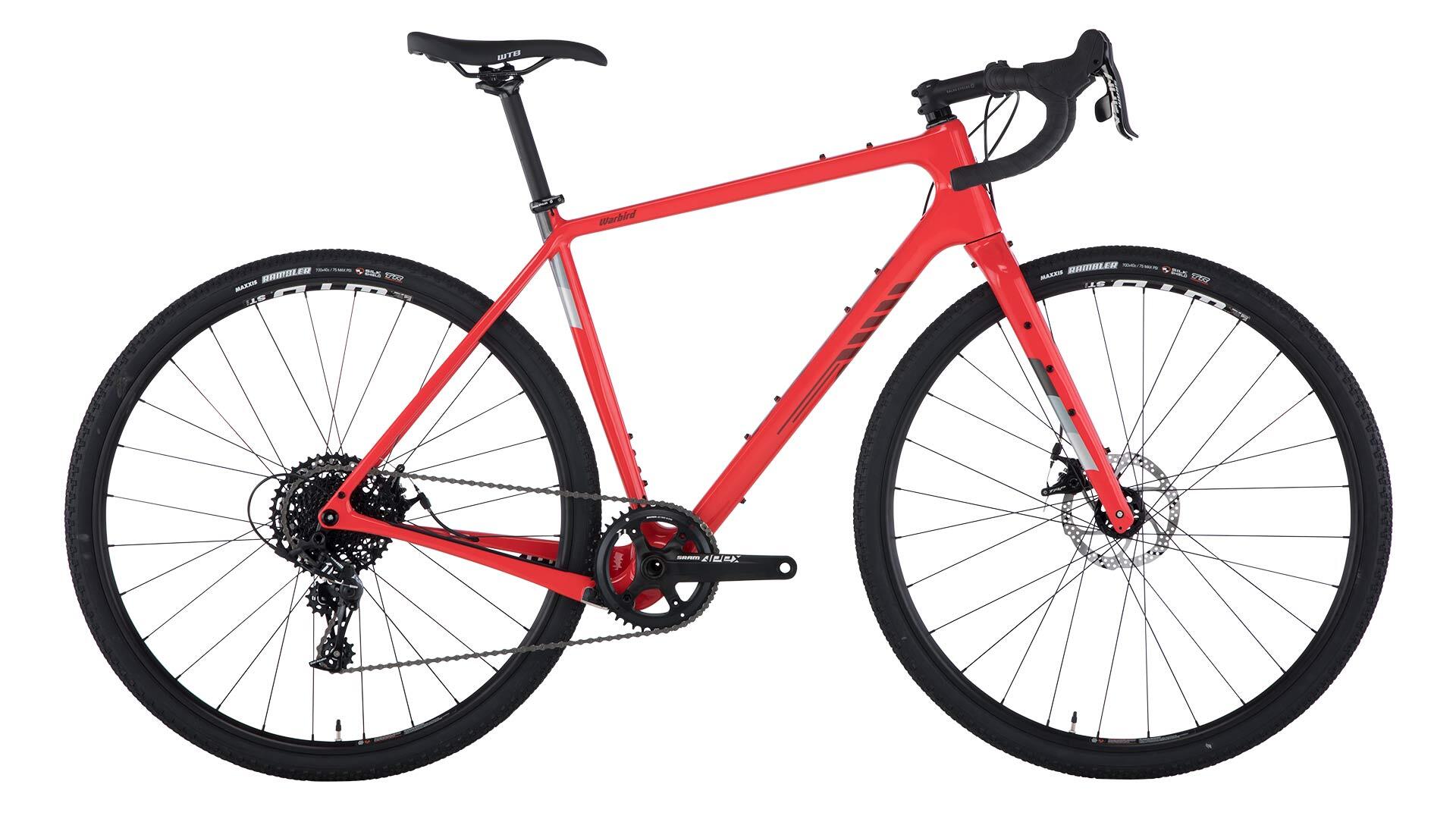

• Salsa Warbird Carbon Apex 1 bike orange color side view

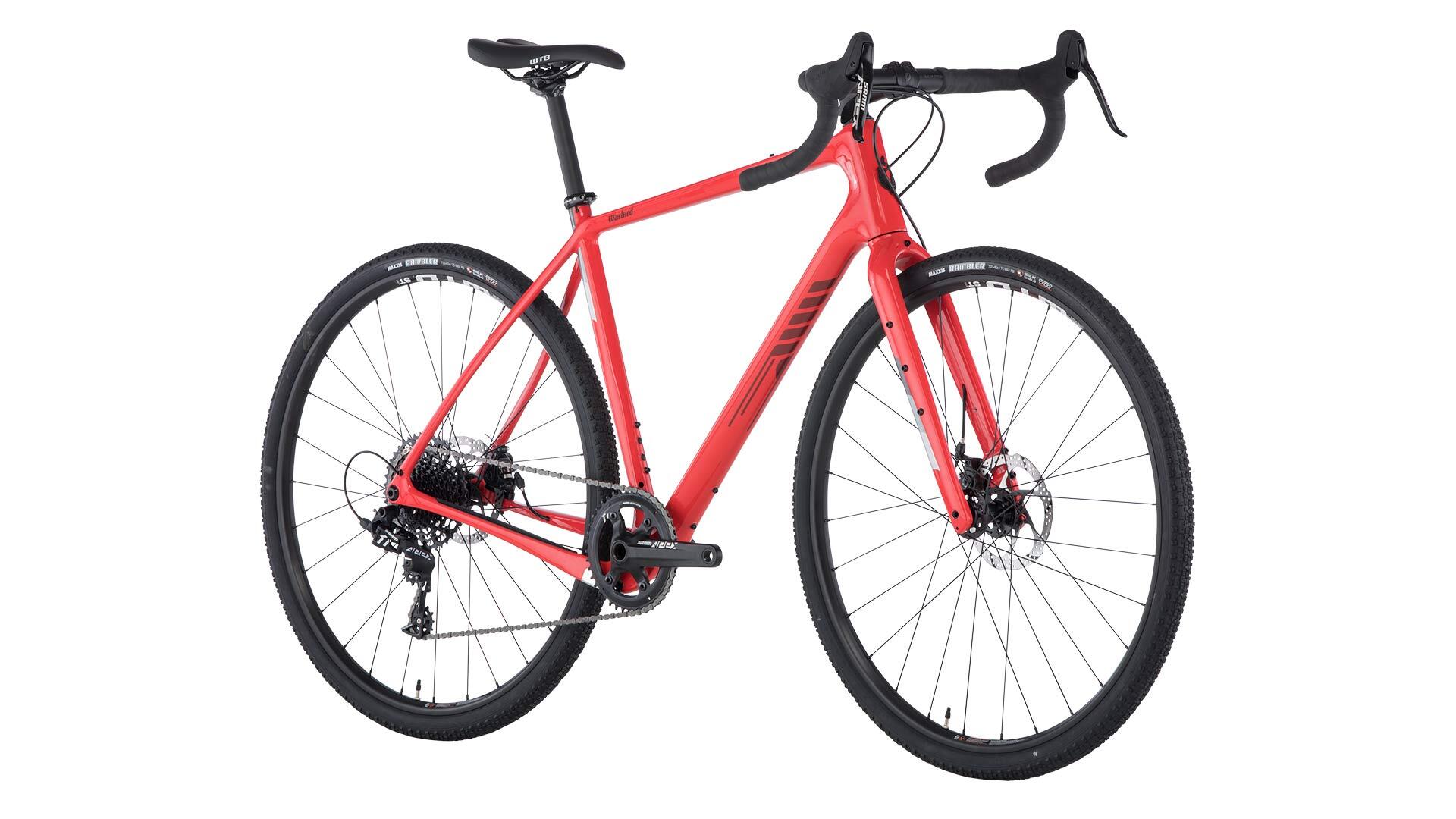

  • Salsa Warbird Carbon Apex 1 bike orange color front three-quarter view

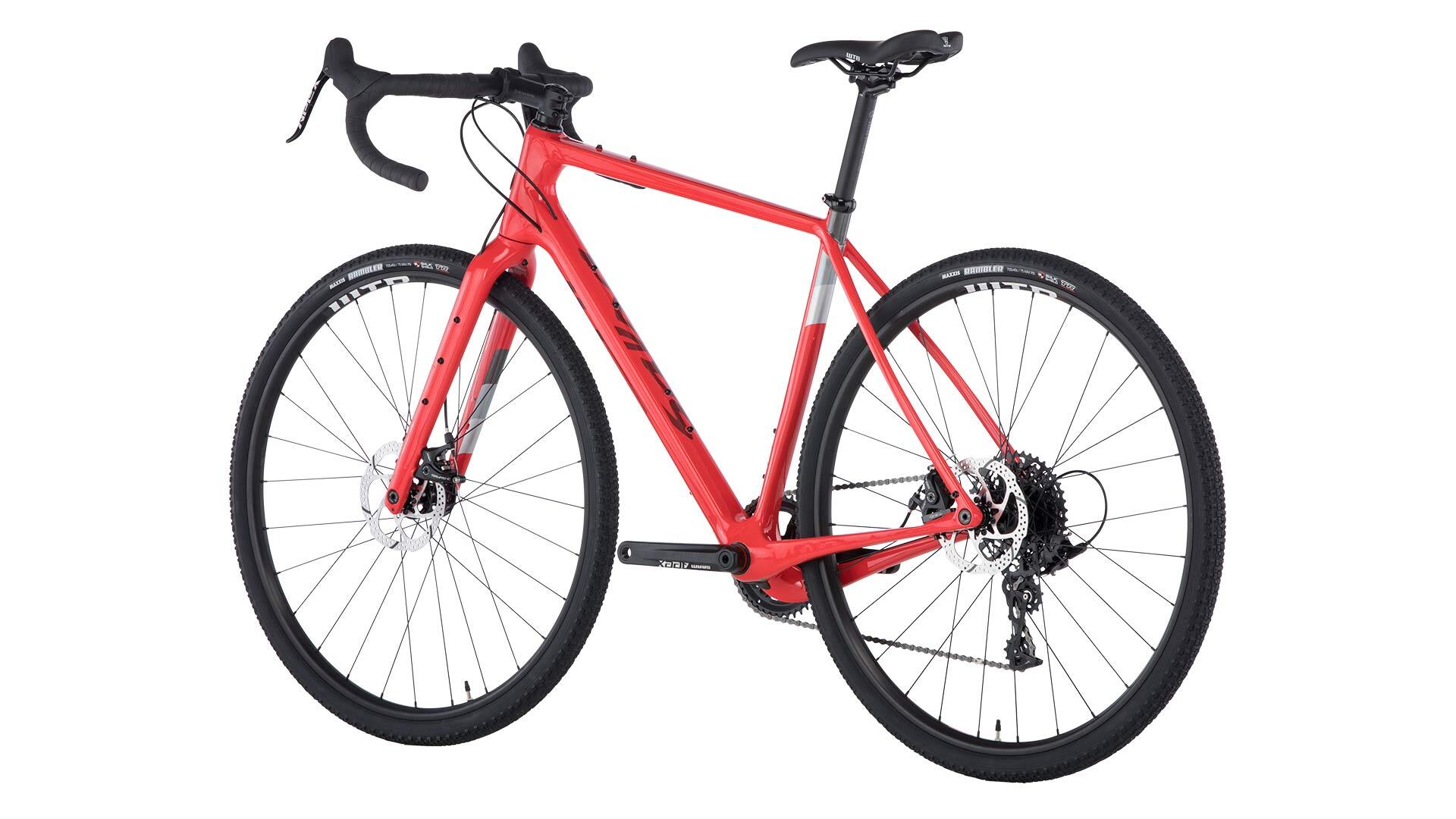

  • Salsa Warbird Carbon Apex 1 bike orange color rear three-quarter view
1 3

2019 Warbird Carbon Apex 1

2019 Warbird Carbon Apex 1

Archived

Warbird Apex 1 700 makes optimum performance for gravel racing or riding easy when the terrain is at its most difficult. The 1x11 SRAM Apex 1 groupset provides quick and intuitive shifting, while the comfortable carbon frame featuring Class 5™ VRS and the Waxwing fork help you pile on the miles.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Warbird Carbon 2.0
  • Fork: Waxwing
  • Color: Red
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: SRAM Apex 1
  • Cassette: SRAM PG 1130, 11-42t
  • Chain: SRAM PC 1110
  • Crankset: SRAM Apex 1 X-Sync, 42t
  • Shifter: SRAM Apex 1
  • Brakes & Rotors: TRP Spyre-C flat mount, 160mm rotors
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell
  • Bar Tape: MSW Anti-Slip Gel
  • Seatpost: Salsa Guide
  • Saddle: WTB Volt Sport
  • Front Wheel: WTB 12 x 100, WTB ST i23 TCS 2.0 28h 700c
  • Rear Wheel: WTB 12 x 142, WTB ST i23 TCS 2.0 28h 700c
  • Tires: Maxxis Rambler 700c x 40mm, 60 TPI/EXO/TR
  • Complete Bike Weight: 20 lb 7 oz - 56cm

Frame Specs

  • Max Tire OD: 700c: 716mm / 650b: 696mm
  • Design Wheel/Tire Size: 622 - 32 (700 x 32mm)
  • Alternate Wheel/Tire Size: 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
  • Suspension Fork Length (Travel): 427mm axle-to-crown (40mm travel)
  • Rigid Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: IS41
  • Headset-Lower: IS52
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Bottom Bracket: BB86 PressFit
  • Crankset: 1x: 44t max; 2x: 52/36t max, 46/30t minimum
  • Rear Brake (Rotor): Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
  • Rear Spacing: 142mm
  • Rear Axle: M12 x 167L, TP = 1.5, TL = 20mm
  • Derailleur Hanger: Hanger 465, QBP# FS2322
  • Fender Mounts: Yes, required fender hardware included
  • Rack Mounts: Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
  • Water Bottle Mounts: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
  • Downtube Accessory Mount: Yes, one pair
  • Toptube Mounts: Yes, compatible with Salsa Toptube bag
  • Stem Clamp: Ø28.6mm
  • Crown Race: Integrated SHIS 40, 36° angle
  • Front Brake (Rotor): Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
  • Front Spacing: 100mm
  • Front Thru-Axle: M12 x 120L, TP = 1.5, TL = 12mm
  • Three-Pack Mounts: One mount per fork leg
  • Rack Mounts: 165mm Lowrider compatible, Salsa Down Under rack recommended

Geometry

Geometry Diagram
Metric 49cm 52.5cm 54.5cm 56cm 57.5cm 59cm 61cm
Top Tube Effective Metric 499 525 545 560 575 590 610
Seat Tube Length Metric 390 440 475 510 520 545 570
Head Tube Length Metric 90 120 140 160 180 200 220
Head Tube Angle 71 70.75 70.75 70.75 70.75 70.75 70.75
Seat Tube Angle 75 74 73 73 73 73 72.5
BB Drop Metric 70 70 70 70 70 70 70
Chainstay Length Metric 430 430 430 430 430 430 430
Fork Length Metric 405 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50 50
Wheelbase Metric 996.14 1011.96 1022.39 1038.21 1054.03 1069.85 1084.54
Stack Metric 517.85 547.09 565.97 584.85 603.73 622.61 641.5
Reach Metric 360.24 368.13 371.97 381.19 390.42 399.65 407.74
Standover Metric 670.2 714.48 744.3 770.11 785.96 808.4 830.55
Rider Height Metric 142cm–157cm 155cm–165cm 162cm–173cm 170cm–180cm 178–188cm 185–193 cm 190cm–UP
Stem Length 70 70 80 90 90 100 110
Crank Length 165 170 170 172.5 172.5 175 175
Handlebar Width 38cm 38cm 40cm 42cm 44cm 44cm 46cm
Seatpost Offset Metric 18 18 18 18 18 18 18
  • A Warbird Carbon Fork which is 405 x 50mm offset
  • A 700c x 32mm tire measuring 698mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Class 5 VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warbird Geometry

Warbird features the latest evolution of our already industry-leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long toptubes, paired with short stems, provide increased stability at high speed and on rough descents

Waxwing Deluxe Fork

This full-carbon fork utilizes a 12 x 100mm thru-axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal Dynamo Hub Cable Routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles

700c x 40mm Wheel/Tire Spec

For faster acceleration and overall speed

Dual Wheel Size Compatible

Warbird fits up to 700c x 45mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand

Integrated Toptube Bag Mount

Bolt on your Salsa EXP Series Toptube Bag for secure connection and elimination of strap wear

Generous Water Bottle Capacity

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Internal tubes guide housing through the frame, simplifying setup and maintenance

Refined Drivetrain Compatibility

Designed to accept 1x, 2x, and current electronic offerings

Stealth Dropper Post Compatible

Accepts 27.2mm dropper posts when running 1x set ups for more confident descending at high speeds on rough, unpredictable gravel roads

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar
