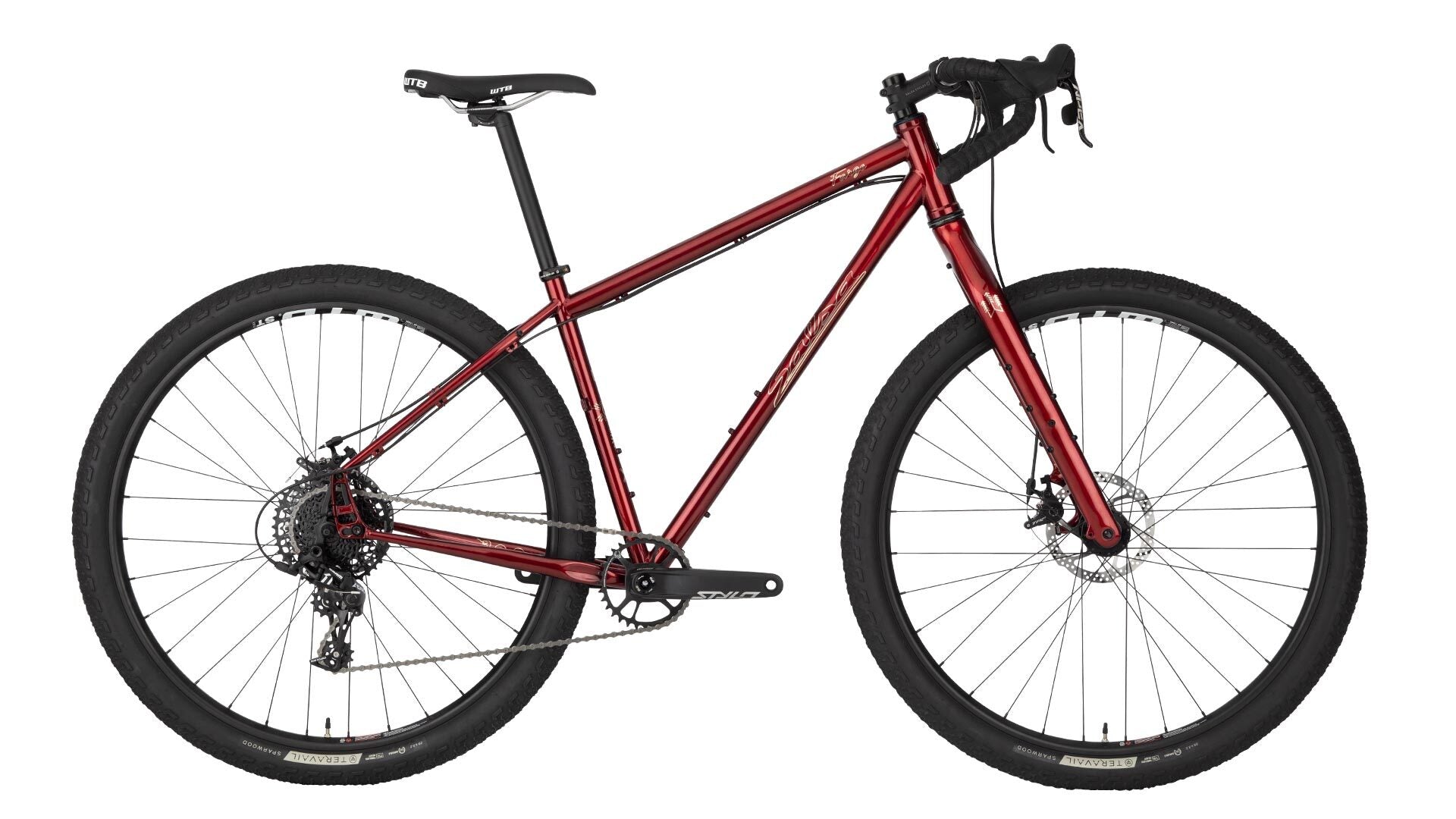

• Salsa Fargo Apex 1 bike red color side view

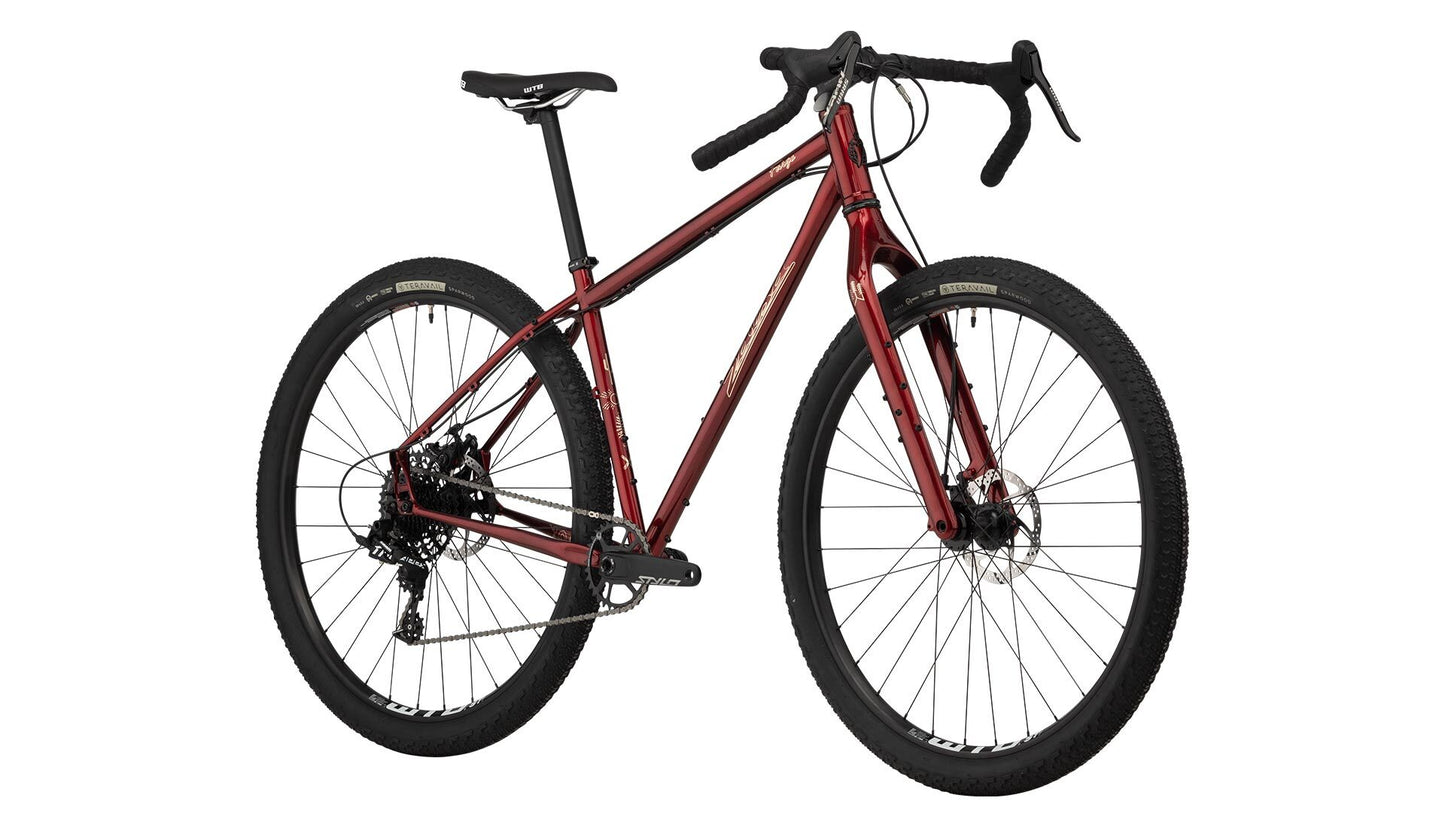

  • Salsa Fargo Apex 1 bike red color front three-quarter view

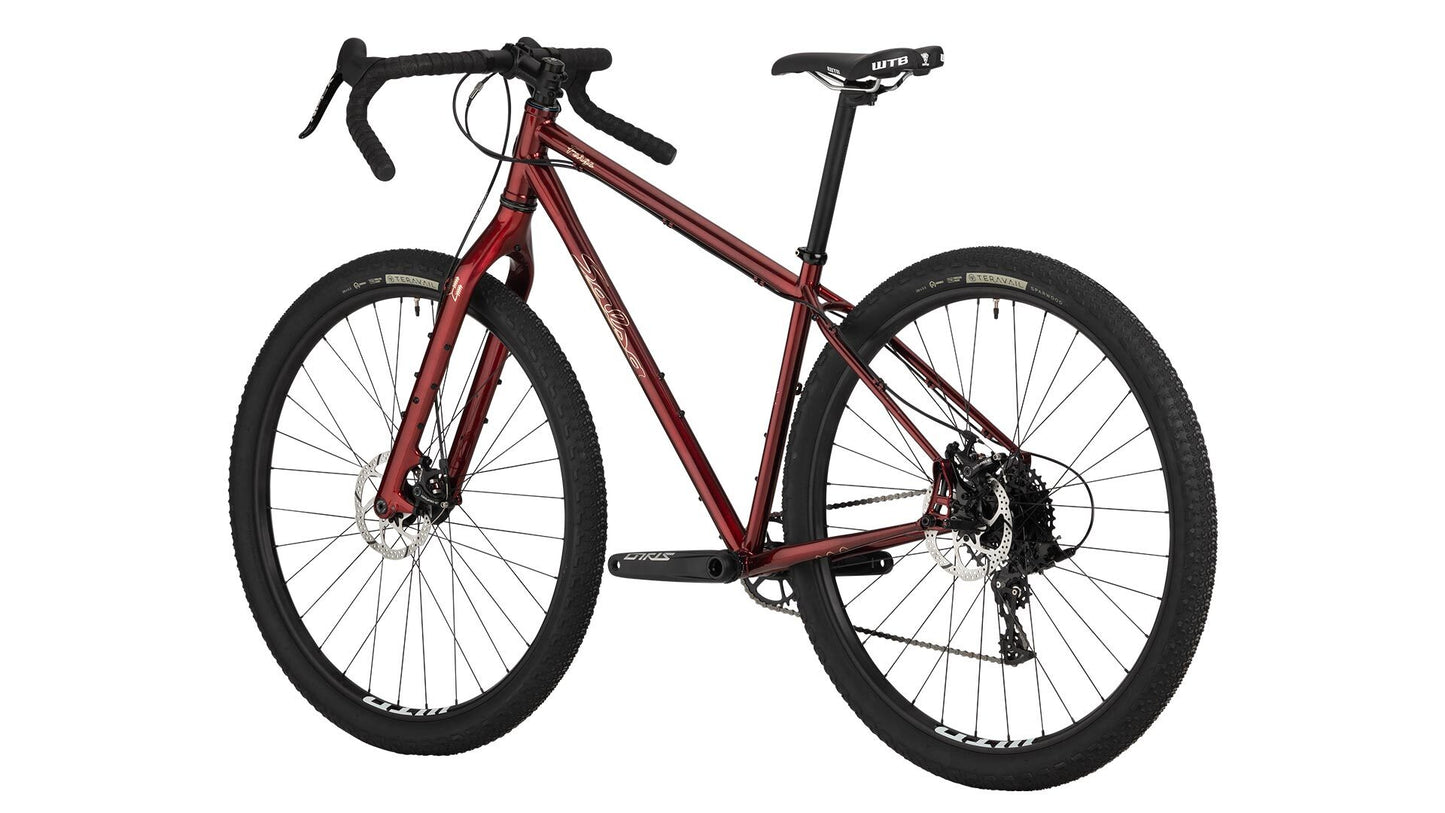

  • Salsa Fargo Apex 1 bike red color rear three-quarter view
1 3

2020 Fargo Apex 1

2020 Fargo Apex 1

Archived

The Fargo Apex 1 features our steel frame and carbon Firestarter 110 fork, paired with a SRAM Apex 1 drivetrain for smooth shifting. The 29 x 2.2” wheel and tire combination provides excellent rollover, low rolling resistance, and great momentum.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo Triple Butted CroMoly
  • Fork: Firestarter 110
  • Color: Red
  • Rear Shock: n/a
  • Front Der: n/a
  • Rear Der: SRAM Apex 1
  • Cassette: SRAM PG 1130, 11-42t
  • Chain: SRAM PC 1110
  • Crankset: Stylo 6K Eagle DUB, 32t
  • Shifter: SRAM Apex 1
  • Brakes & Rotors: TRP Spyre-C, 160mm
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Woodchipper
  • Grips: Salsa Gel Cork Bar Tape
  • Seatpost: Salsa Guide
  • Saddle: WTB Volt Comp
  • Front Wheel: WTB Serra Hubs 15 x 110 mm, WTB ST i25 TCS 2.0, 32h
  • Rear Wheel: WTB Serra Hubs 141mm QR, WTB ST i25 TCS 2.0, 32h
  • Tires: Teravail Sparwood 29 x 2.2" Durable, Tubeless Ready
  • Complete Bike Weight: 24lb 8oz - Large

Frame Specs

  • Design Wheel/ Tire Size: 29 x 2.4"
  • Alternative Wheel/ Tire Size: 27.5 x 3.0", 29 x 2.4" w/ fender (29 x 3.0" only compatible on SM–XL frame sizes)
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: Steel: 30mm / Ti: 32mm
  • Front Derailleur Mount: 148mm rear spaced: high direct mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spaced: high direct mount (26.5mm offset) via 28.6mm clamp Problem Solvers Bracket (FS1326)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 36t max Boost & 34t non-Boost or 46t Gates Belt Drive Sprocket, 2x crankset: 42/28t max Boost & Non-Boost
  • Rear Brake, (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148 or 142mm thru-axle / 135mm QR w/ Alternator reduction plates
  • Rear Axle Size: 148mm rear spaced: 12 x 180L, TP = 1.75, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.75, TL = 20 / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360)
  • Derailleur Hanger: QR = FS1312; TA = FS1385 (1.75TP with fender mount); SS = FS1318; SSTA = FS1375; L Rohloff = FS1371
  • Fender Mounts: Yes
  • Rack Mounts: Yes
  • Bottle Mounts: XS = 2, SM–XL = 3
  • Stem Clamp: 28.6mm
  • Crown Race: 40mm
  • Front Brake (Rotor): 74mm post mount (160–180mm)
  • Front Spacing: 110 x 15mm thru-axle
  • Front Axle: ø15 x 135, TP=1.5, TL=12
  • Bottle Mounts: 4 (3-Pack config)

Geometry

Geometry Diagram
Size XS SM MD LG XL
A. Effective Top Tube 520 540 565 590 620
B. Stand Over 690 732 778 821 859
C. Reach 350 364 368 385 409
D. Stack 594 615 643 671 690
E. Total Seat Tube Length 355.6 406.4 457.2 508 558.8
F. Headtube Length 90 110 140 170 190
G. Headtube Angle 68.5 69 69 69 69
H. Seat Tube Angle 74 74 73 73 73
I. BB Drop 70 70 70 70 70
K. Chainstay Length 445–462 445–462 445–462 445–462 445–462
L. Fork Length Axle to Crown 480 480 480 480 480
M. Fork Offset 51 51 51 51 51
N. Wheelbase 1050–1067 1067–1084 1083–1100 1110–1127 1141–1158
Crank Arm Length 170 170 175 175 175
Handlebar Width 42cm 44cm 44cm 46cm 46cm
Recommended Rider Height 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
Stem Length 60 70 70 80 80

Measurements based on:

  • A Firestarter Deluxe Fork which is 480 x 51 mm offset, this is equivalent to an average 100mm fork at 20% sag.
  • Measurements listed are based on a 29 x 2.4" tire measuring 746 mm in diameter.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

Triple Butted CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless CroMoly tubing

Firestarter 110 Fork

Light, tough, and ultra-versatile, this is our carbon fork for all-terrain riding. Two sets of Three-Pack mounts on each fork leg give you room for extra water or Anything Cages, and mid-blade mounts accommodate low rider racks. Firestarter fits a wide range of tire sizes, from 27.5 x 2.8–3.0" to 29 x 2.2–3.0"

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper or Cowchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff, or Gates Belt Drive. Set Alternator Dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling or set back for more stability. See our Alternator Page for more info

Belt Drive Compatible

Tested and certified for belt drive use

29 x 2.2” Wheel/Tire Spec

This wheel and tire size rolls fast, keeps weight down and offers excellent maneuverability

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 275+, 29:, and, on sizes small to x-large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Plus Rack 135/142/148
