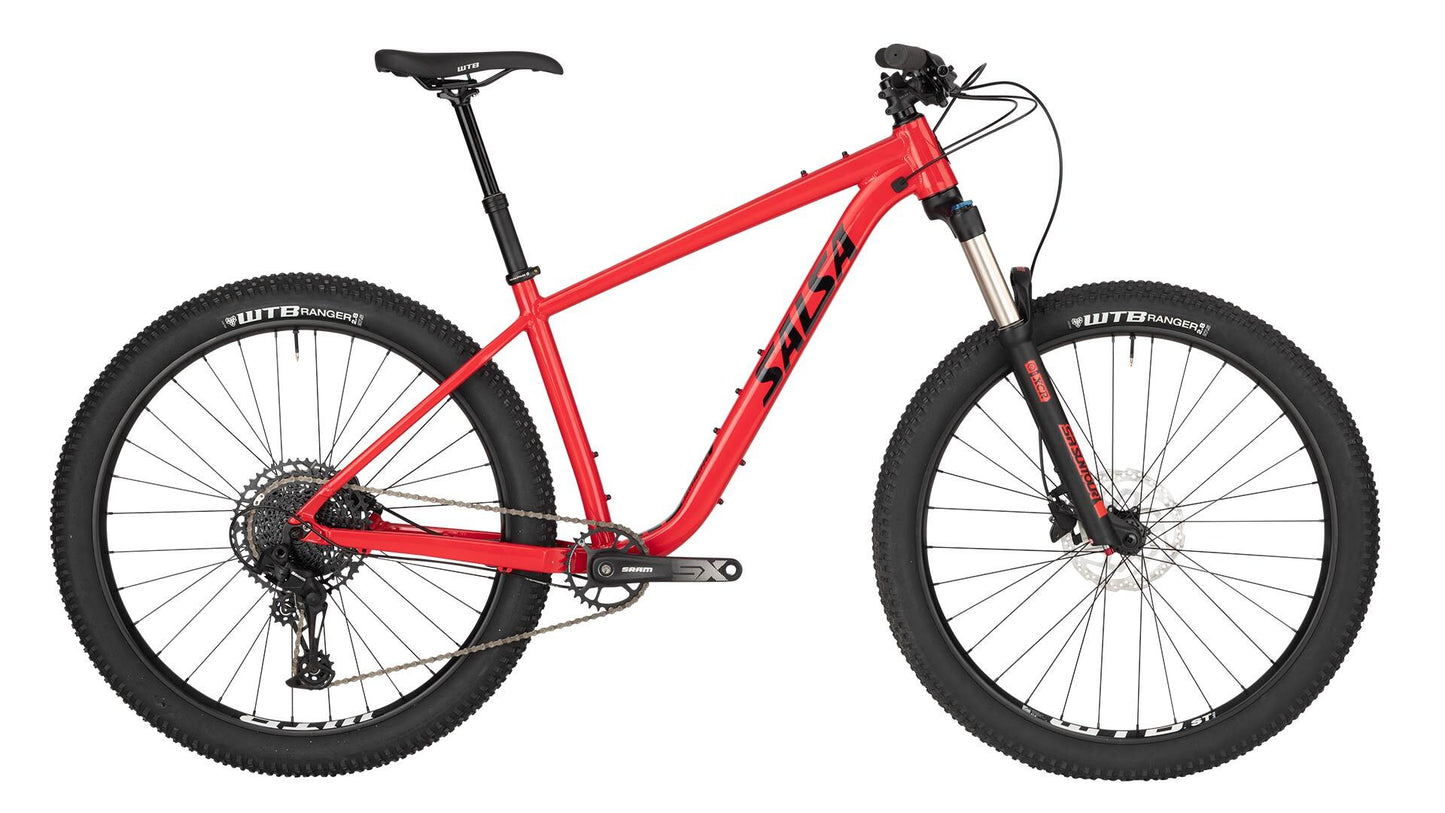

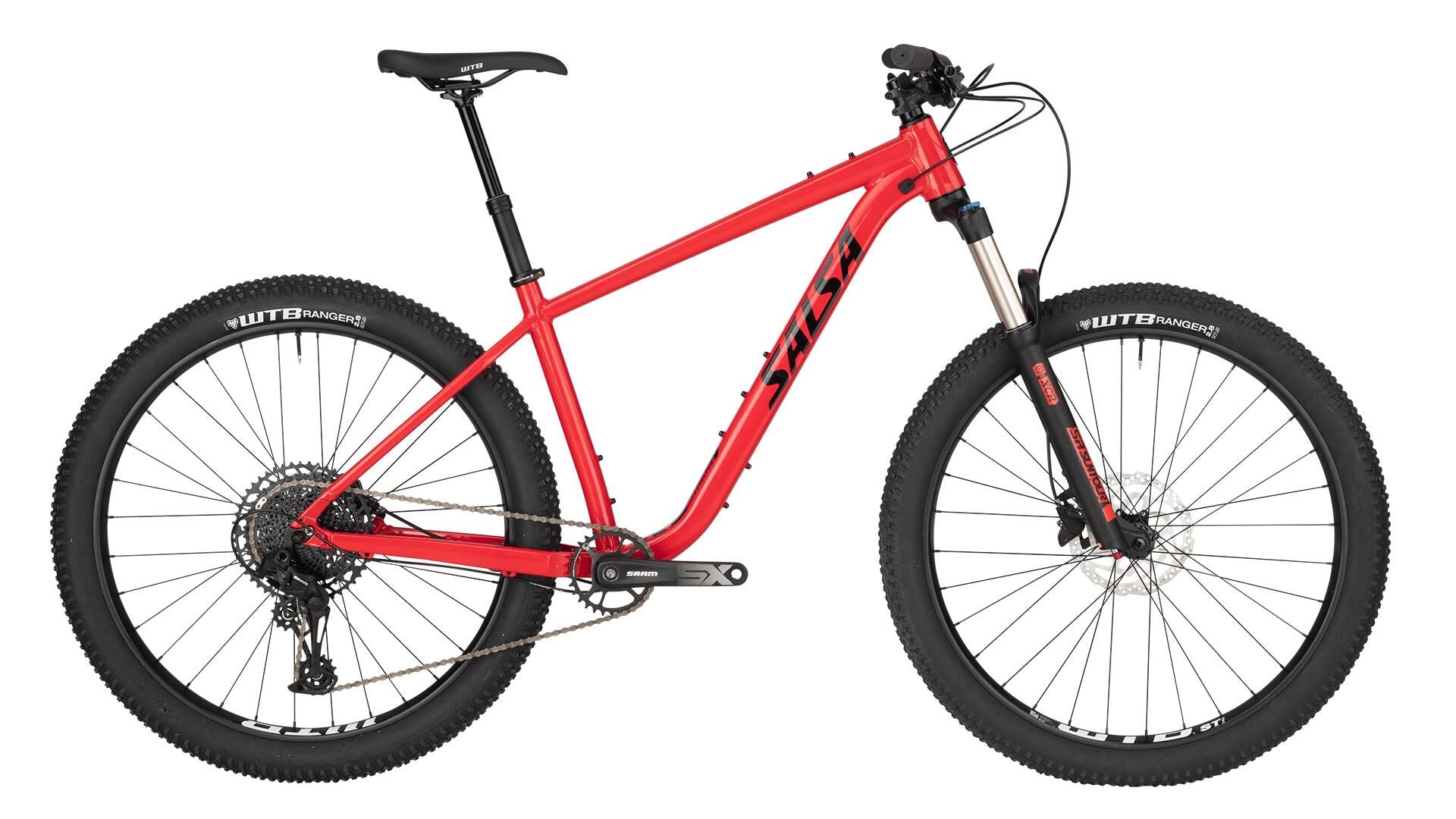

• Salsa Rangefinder SX Eagle bike red color side view

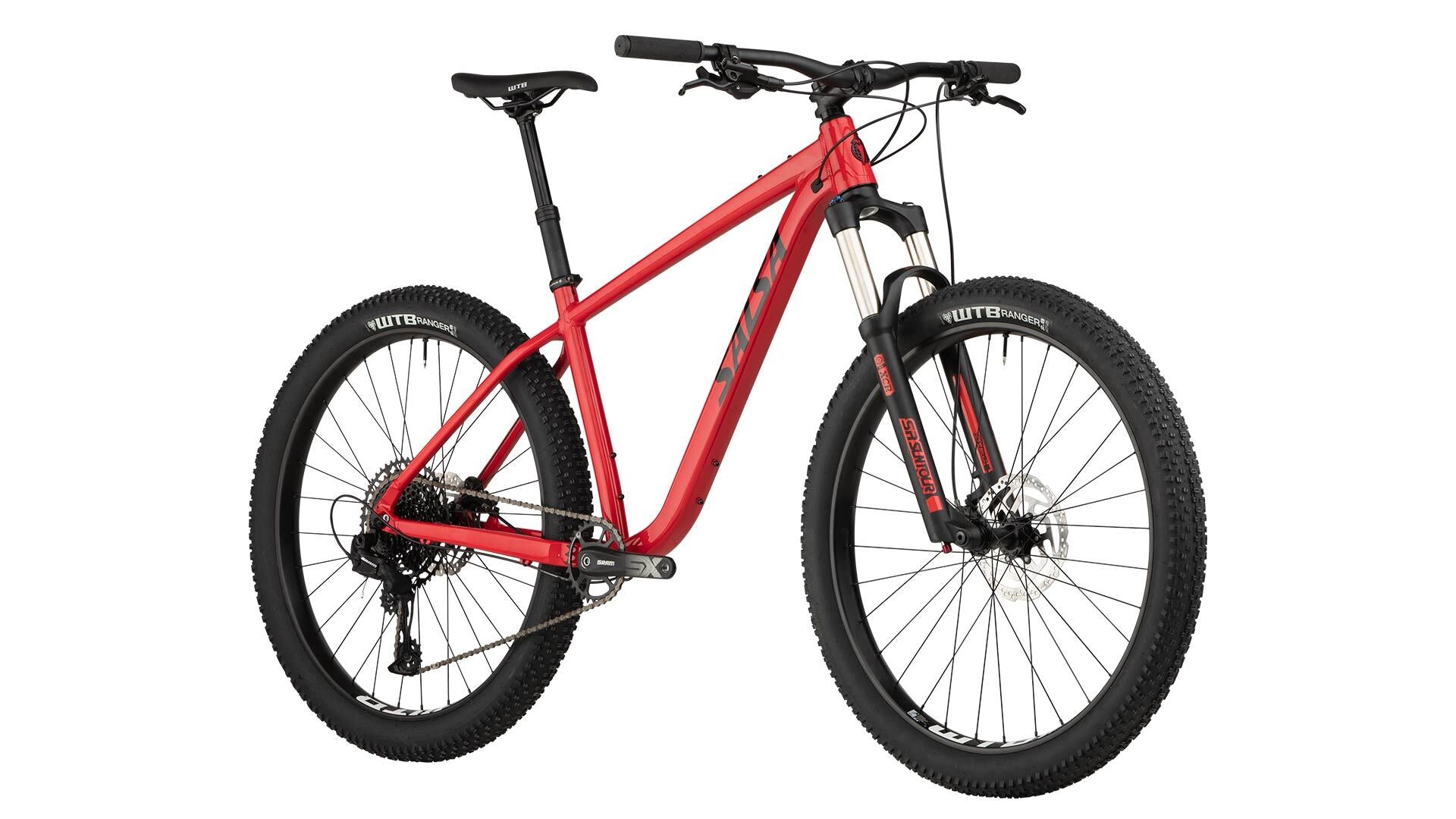

  • Salsa Rangefinder SX Eagle bike red color front three-quarter view

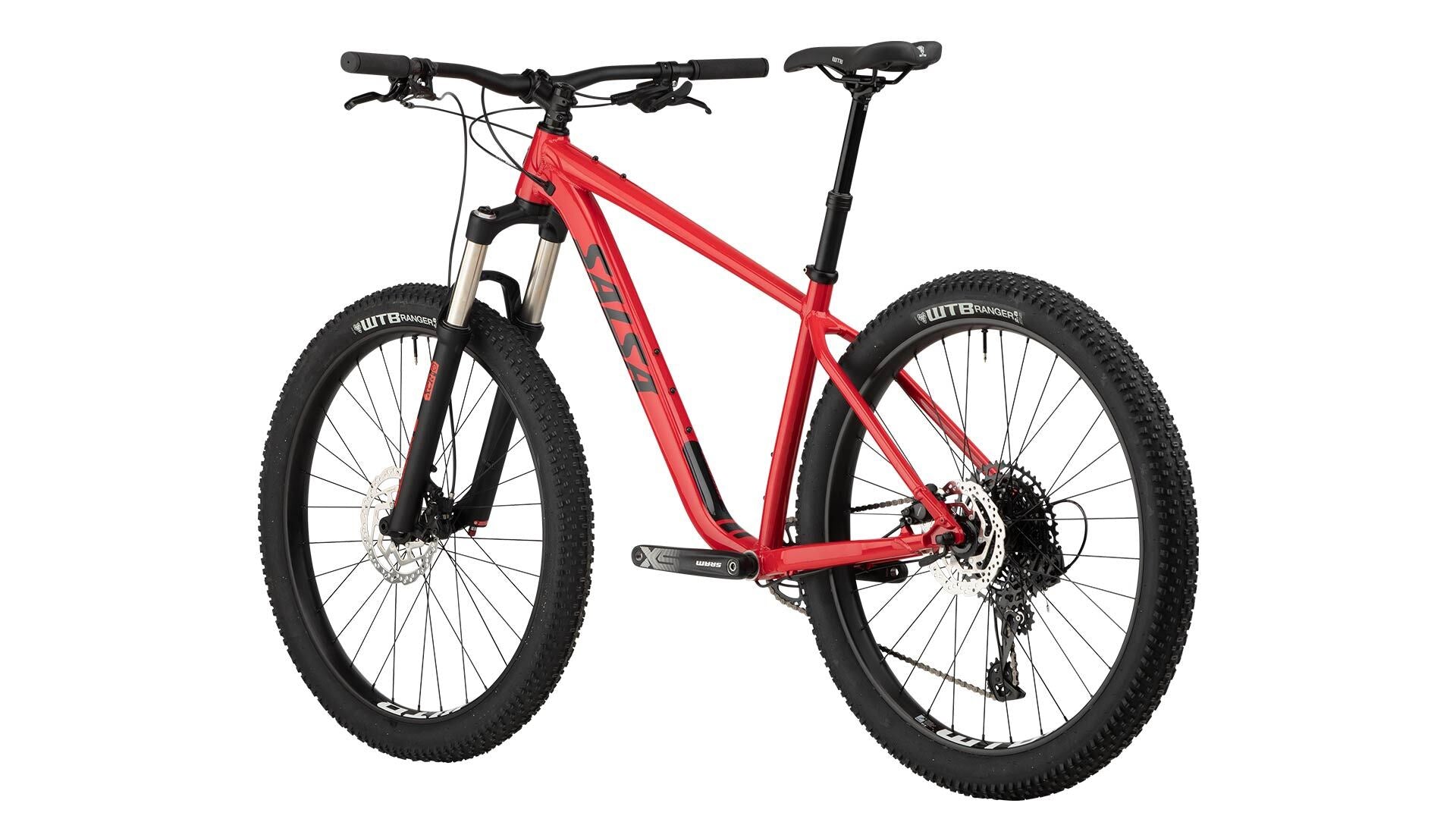

  • Salsa Rangefinder SX Eagle bike red color rear three-quarter view
1 3

2020 Rangefinder SX Eagle 27.5+

2020 Rangefinder SX Eagle 27.5+

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Rangefinder Aluminum
  • Fork: SR Suntour XCR 34 Air LOR 120 mm travel, 15 x 110 mm
  • Color: Red
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: SRAM SX Eagle
  • Cassette: SRAM SX Eagle PG1210, 11-50t 12-speed
  • Chain: SRAM SX Eagle
  • Crankset: SRAM SX Eagle PS, 30t
  • Shifter: SRAM SX Eagle
  • Brakes & Rotors: Shimano MT201, 160 mm rotor
  • Headset: FSA Orbit 1.5E
  • Stem: Salsa Guide 31.8
  • Handlebar: Salsa Salt Flat (XS, SM) Rustler (MD, LG, XL)
  • Grips: Salsa File Tread
  • Seatpost: TranzX YSP18PL, 0 mm offset
  • Saddle: WTB Volt Sport
  • Front Wheel : Shimano MT400 32h 15 x 110 mm, WTB ST i40 TCS 2.0 27.5"
  • Rear Wheel: Shimano MT200 32h 10 x 141 mm QR, WTB ST i40 TCS 2.0 27.5"
  • Tires: WTB Ranger Comp 27.5 x 2.8"
  • Complete Bike Weight: 30lb 9oz - Large

Frame Specs

  • Design Wheel/Tire Sizes: 27.5 x 2.8–3.0"
  • Alternate Wheel/Tire Sizes: 29 x 1.9–2.6"
  • Suspension Fork Length (Travel): 100–130 mm
  • Fork Offset: 46 mm
  • Headset, Upper: ZS44
  • Headset, Lower: ZS56
  • Seatpost: 30.9 mm
  • Seatpost Collar: 35.0 mm
  • Dropper Compatible (Routing): Yes (internal)
  • Front Derailleur Clamp: N/A
  • Front Derailleur Type: N/A
  • Bottom Bracket: 73 mm BSA, threaded
  • Crankset (Max Ring): Boost 148 52 mm chainline only (32t max)
  • Rear Brake (Rotor): 74 mm post mount (160–180 mm rotor)
  • Rear Spacing: 141 x 10 mm QR
  • Derailleur Hanger: FS2361
  • Rear Rack Mounts: Yes. Salsa Post-Lock seatpost collar required.
  • Fender Mounts: No
  • Water Bottle Mounts: 2
  • Downtube Accessory Mounts: 1
  • Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.

Geometry

Geometry Diagram
Metric XS SM MD LG XL
Top Tube Effective Metric 568.2 590.5 614.8 643.5 670.1
Seat Tube Length Metric 355 381 431 470 508
Head Tube Length Metric 95 100 105 115 125
Head Tube Angle 68 68 68 68 68
Seat Tube Angle 74 74 74 74 74
BB Drop Metric 58 58 58 58 58
Chainstay Length Metric 439 439 439 439 439
Fork Length Metric 510 510 510 510 510
Fork Offset Metric 46 46 46 46 46
Wheelbase Metric 1100.6 1123.4 1148.3 1178 1205.8
Stack Metric 605.6 610.2 614.9 624.2 633.4
Reach Metric 395 416 439 465 489
Standover Metric 678.6 698.3 737.2 769.1 798.7
Rider Height Metric 157cm–168cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
Stem Length 60 60 60 60 60
Crank Length 170 170 175 175 175
Handlebar Width 750mm 750mm 800mm 800mm 800mm
Seatpost Offset Metric 0 0 0 0 0
  • OE spec 120mm 29/27.5+ suspension fork at 25% sag
  • 27.5 x 2.8" tire measuring 722mm in diameter
  • Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tube Set

A blend of our proprietary, top-shelf 6061-T6 double and triple-butted tubing creates a light, responsive, and durable frame with great trail feel

Rangefinder Trail Geometry

Rangefinder’s long top tube and short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain

120 mm of Front Suspension Travel

The 120 mm fork soaks up the trail and a 15 x 110 mm thru-axle keeps the front end stiff for precise handling

Dropper Post on All Models

Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included Trans-X dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look

Cargo Capacity

The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP Series Direct-Mount Top Tube Bag. Rear rack mounting bosses are also included at the dropouts, and with the addition of a 35.0mm Rack-Lock seatpost collar, a rear rack can be fitted

Full-Length Cable Routing

Full-length housing improves shifting in poor conditions and increases the time in between maintenance intervals

Dual Wheel Size Compatibility

Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8–3.0") wheels and tires
