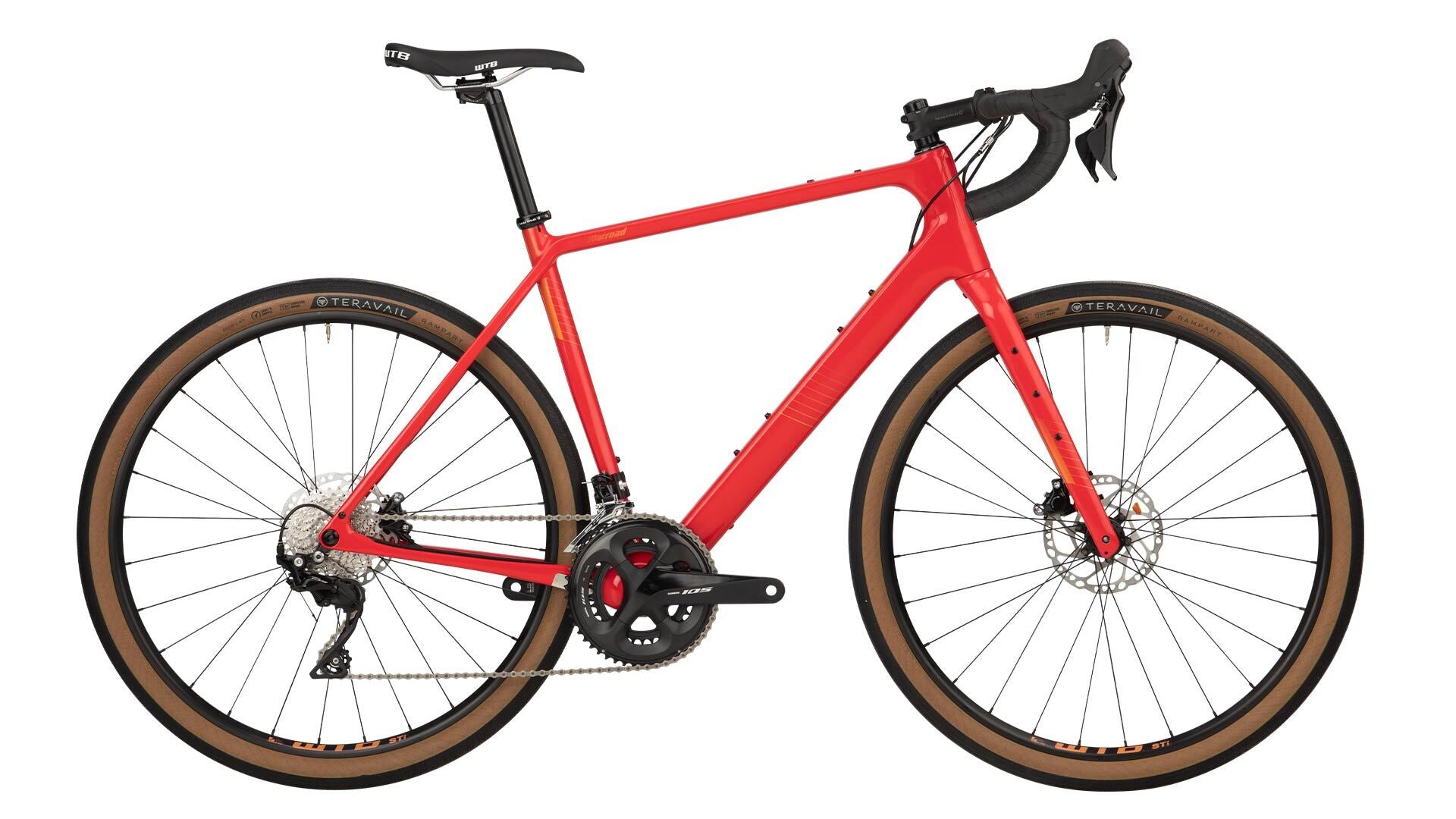

• Salsa Warroad Carbon 105 bike orange color side view

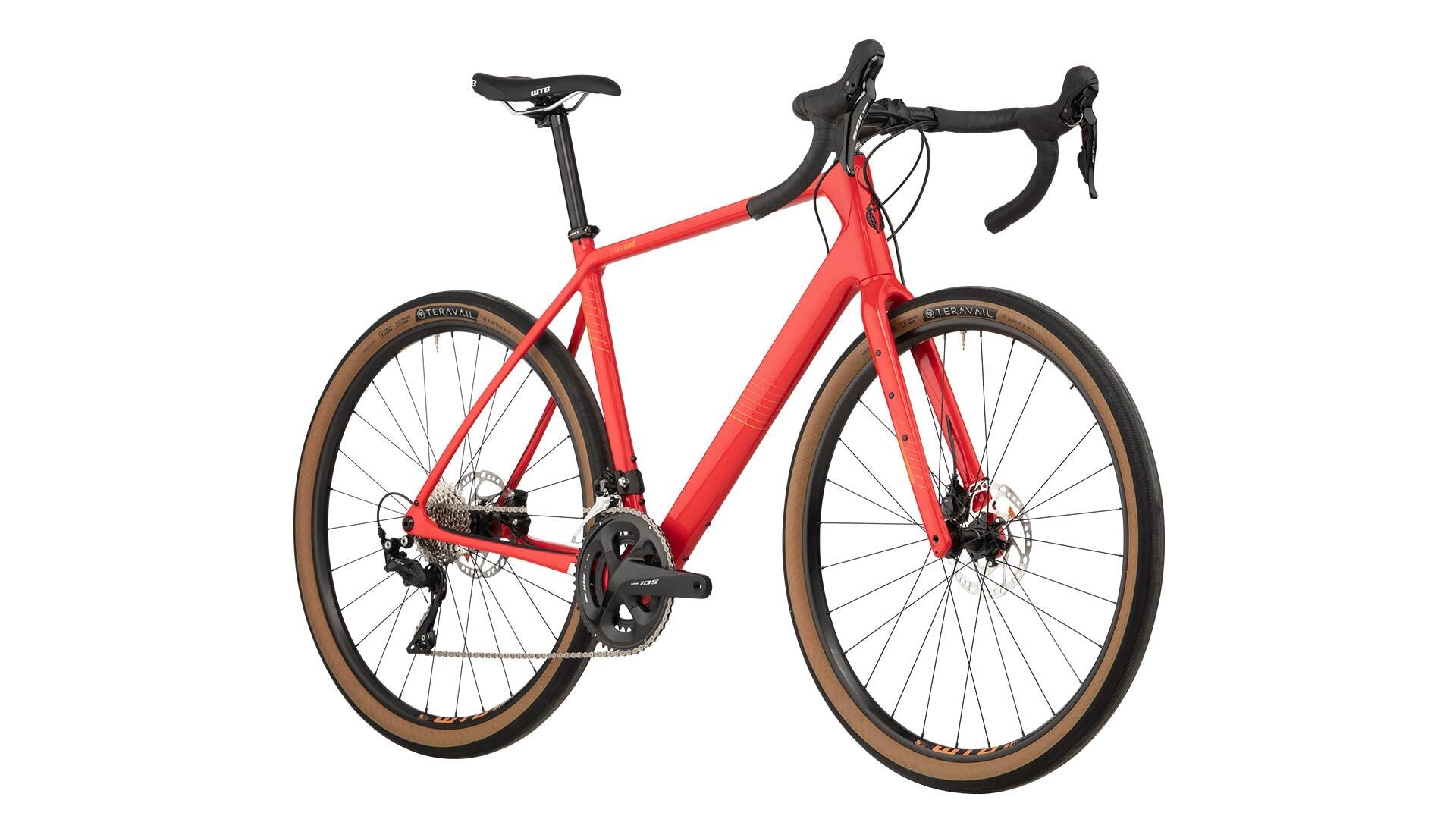

  • Salsa Warroad Carbon 105 bike orange color front three-quarter view

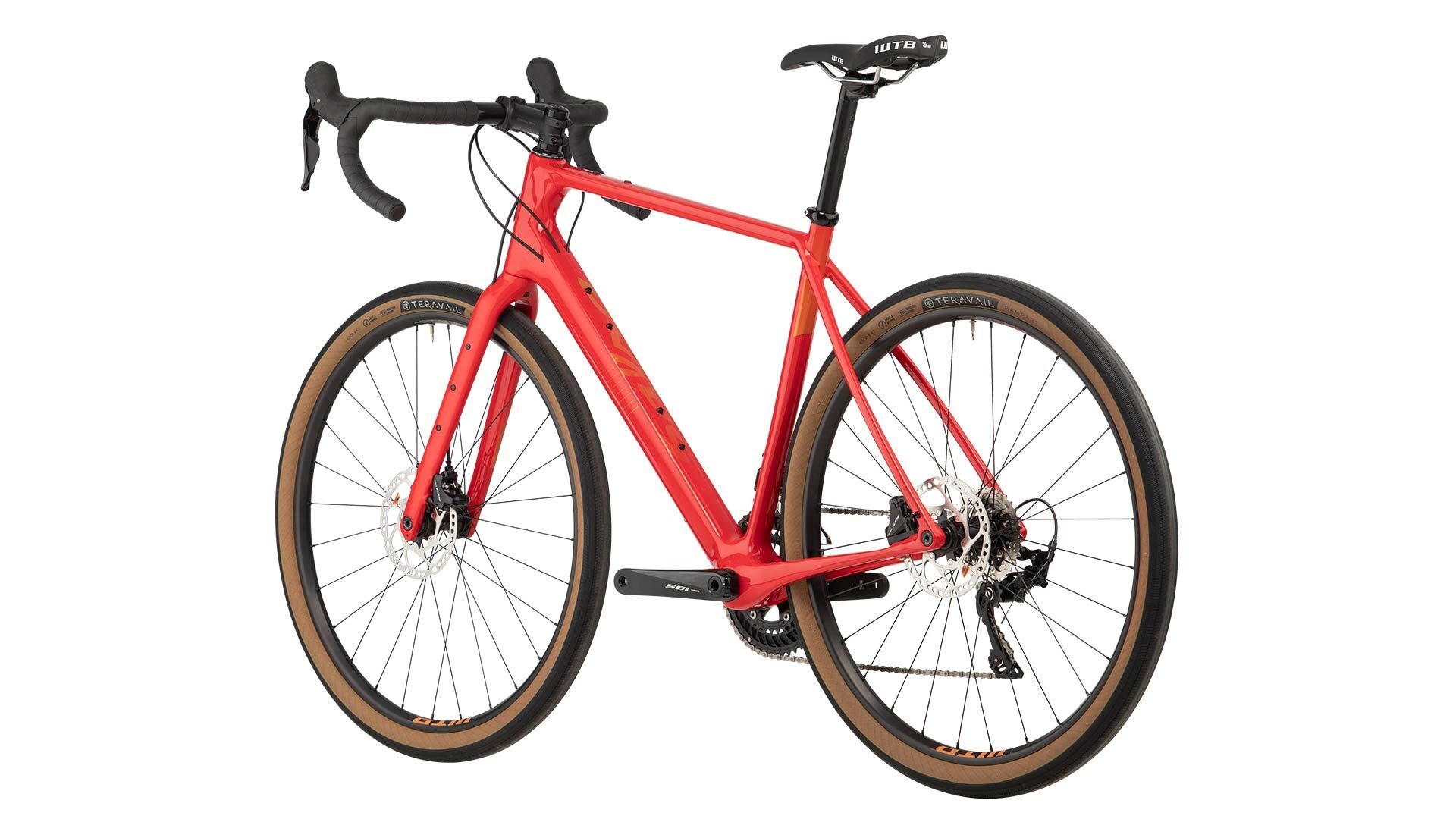

  • Salsa Warroad Carbon 105 bike orange color rear three-quarter view
1 3

2020 Warroad Carbon 105 650

2020 Warroad Carbon 105 650

Archived

Think of Warroad Carbon 105 650b as the road bike you actually want. It’s agile and speedy, but also loves blasting down back-alleys and gravel shortcuts. The carbon frameset with Class 5™ VRS offers the pavement performance of an endurance road bike with a dose of compliance and comfort for your off-road enjoyment. The balanced geometry and extra frame and fork mounts make your all-day outings that much easier. Dual wheel size compatibility means you can set your Warroad up with 700c or 650b wheels. Couple all that with Shimano 105 components to keep everything moving like clockwork, and you’ve got a bike capable of much more than your average road machine.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Warroad Carbon
  • Fork: Warroad Carbon
  • Color: Red
  • Rear Shock: N/A
  • Front Der: Shimano 105
  • Rear Der: Shimano 105
  • Cassette: Shimano 105, 11–32t, 11-speed
  • Chain: Shimano HG701
  • Crankset: Shimano 105, 50/34t
  • Shifter: Shimano 105
  • Brakes & Rotors: Shimano 105 hydraulic, 160 mm rotors
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell Deluxe
  • Grips: MSW HBT-300 Anti-Slip Gel handlebar tape
  • Seatpost: Salsa Guide Deluxe
  • Saddle: WTB SL8 142 Comp
  • Front Wheel: Shimano Tiagra 12 x 100 mm hub, WTB ST i23 TCS 2.0 650b rim
  • Rear Wheel: Shimano Tiagra 12 x 142 mm hub, WTB ST i23 TCS 2.0 650b rim
  • Tires: Teravail Rampart 650b x 47 mm, Tan sidewall, Light & Supple casing
  • Complete Bike Weight: 20lbs 1oz (56cm)

Frame Specs

  • Tire Size Range for 622 / 29" Wheels: 28–35mm (1.1–1.4")
  • Tire Size Range for 584 /27.5" Wheels: 47mm (1.85")
  • Tire Size Range for 559 / 26" Wheels: NOT COMPATIBLE
  • Maximum Wheel/Tire Diameter**: Ø698mm (27.4")
  • Minimum Wheel/Tire Diameter***: Ø684mm (26.9")
  • Rigid Fork Length: 390mm
  • Fork Offset: 51mm
  • Front Brake (Rotor): 160mm, flat mount rear standard, 35mm thickness, 42mm bolt length
  • Headset-Upper: IS41
  • Headset-Lower: IS47
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Dropper Compatible (Routing): Internal, when not running front derailleur
  • Front Derailleur Mount: 06-001369
  • Bottom Bracket: BB86 Pressfit
  • Crankset (Max Ring): 1x crankset: 48t max, 2x crankset: 52/36t max
  • Rear Brake, (Rotor): 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
  • Rear Spacing: 142mm
  • Rear Axle Size: M12 x 167L, TP = 1.5, TL = 20mm
  • Derailleur Hanger: Hanger 465, QBP# FS2322
  • Fender Mounts: Yes, required fender hardware included
  • Frame Rack Mounts: Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
  • Water Bottle Mounts: Frames up to 54.5cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle, 1 under the down tube
  • Toptube Mounts: Yes, compatible with Salsa Toptube bag
  • Downtube Accessory Mounts: Yes, one pair
  • Stem Clamp: Ø28.6mm
  • Crown Race: Integrated SHIS 33, 45° angle
  • Front Spacing: 100mm
  • Front Thru-Axle: M12 x 120L, TP = 1.5, TL = 12mm
  • Three Pack Mounts: One mount per fork leg
  • Fork Rack Mounts: 165mm low-rider compatible, Salsa Down Under Rack recommended

Geometry

Geometry Diagram
Metric 49cm 52.5cm 54.5cm 56cm 57.5cm 59cm 61cm
Top Tube Effective Metric 499 525 545 560 575 590 610
Seat Tube Length Metric 400 450 485 520 530 555 580
Head Tube Length Metric 92 132 152 172 192 212 232
Head Tube Angle 70.5 71 71 71 71 71 71
Seat Tube Angle 75 74 73 73 73 73 72.5
BB Drop Metric 72 72 72 72 72 72 72
Chainstay Length Metric 415 415 415 415 415 415 415
Fork Length Metric 390 390 390 390 390 390 390
Fork Offset Metric 51 51 51 51 51 51 51
Wheelbase Metric 980 994.33 1004.68 1020.41 1036.14 1051.87 1066.47
Stack Metric 507.02 546.64 565.55 584.46 603.73 622.28 641.19
Reach Metric 363.14 368.25 372.1 381.31 390.54 399.75 407.83
Standover Metric 665.27 717.9 747.41 761.44 787.56 809.98 832.12
Rider Height Metric 142cm–157cm 155cm–165cm 162cm–173cm 170cm–180cm 178cm–188cm 185cm–193cm 190cm–UP
Stem Length 70 70 80 90 90 100 110
Crank Length 165 170 170 172.5 172.5 175 175
Handlebar Width 38cm 38cm 40cm 42cm 44cm 44cm 46cm
Seatpost Offset Metric 18 18 18 18 18 18 18
  • A fork which is 390 x 51mm offset
  • Measurements listed are based on a 650b x 47mm tire measuring 685mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
  • Standover for 700c x 32mm tire add 6.5mm to Standover (P) dimension

Supportive Documents

Support Document links

Additional Features

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically-oriented profile that promotes vertical compliance by allowing the seatstays to “flex” outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warroad Geometry

Our endurance all-road geometry pairs a slack head tube angle with a long offset fork to create high mechanical trail, which increases stability on rough surfaces. 415 mm chainstays make for a bike that’s nimble and responsive but smooth on unpredictable surfaces

Warroad Fork

This carbon fork with aluminum steerer utilizes a 12 x 100mm thru-axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal dynamo hub cable routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles

Dual Wheel Size Compatible

Warroad fits up to 700c x 35 mm OR 650b x 47 mm wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warroad is optimized for the ride at hand

Integrated Top Tube Bag Mount

Bolt on your Salsa EXP Series Top Tube Bag for secure connection and elimination of strap wear on your frame

Generous Water Bottle Capacity

Stay hydrated during all-day rides and races. 2–3 bottle mounts inside the main triangle (56cm and larger receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Internal tubes guide housing through the frame, simplifying setup and maintenance

Refined Drivetrain Compatibility

Warroad is designed to accept 1x, 2x and electronic shifting options

Stealth Dropper Post Compatible

Accepts a 27.2mm dropper post when running 1x or Di2 drivetrain for more confident descending at high speeds on rough roads and unpredictable terrain

Fender Mounts

Stay clean and comfortable on wet-weather rides

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar

FAQ

Can I run fenders on the Warroad?

Yes, Warroad will fit up to 700c x 30mm tires or 650b x 42mm tires with fenders.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
