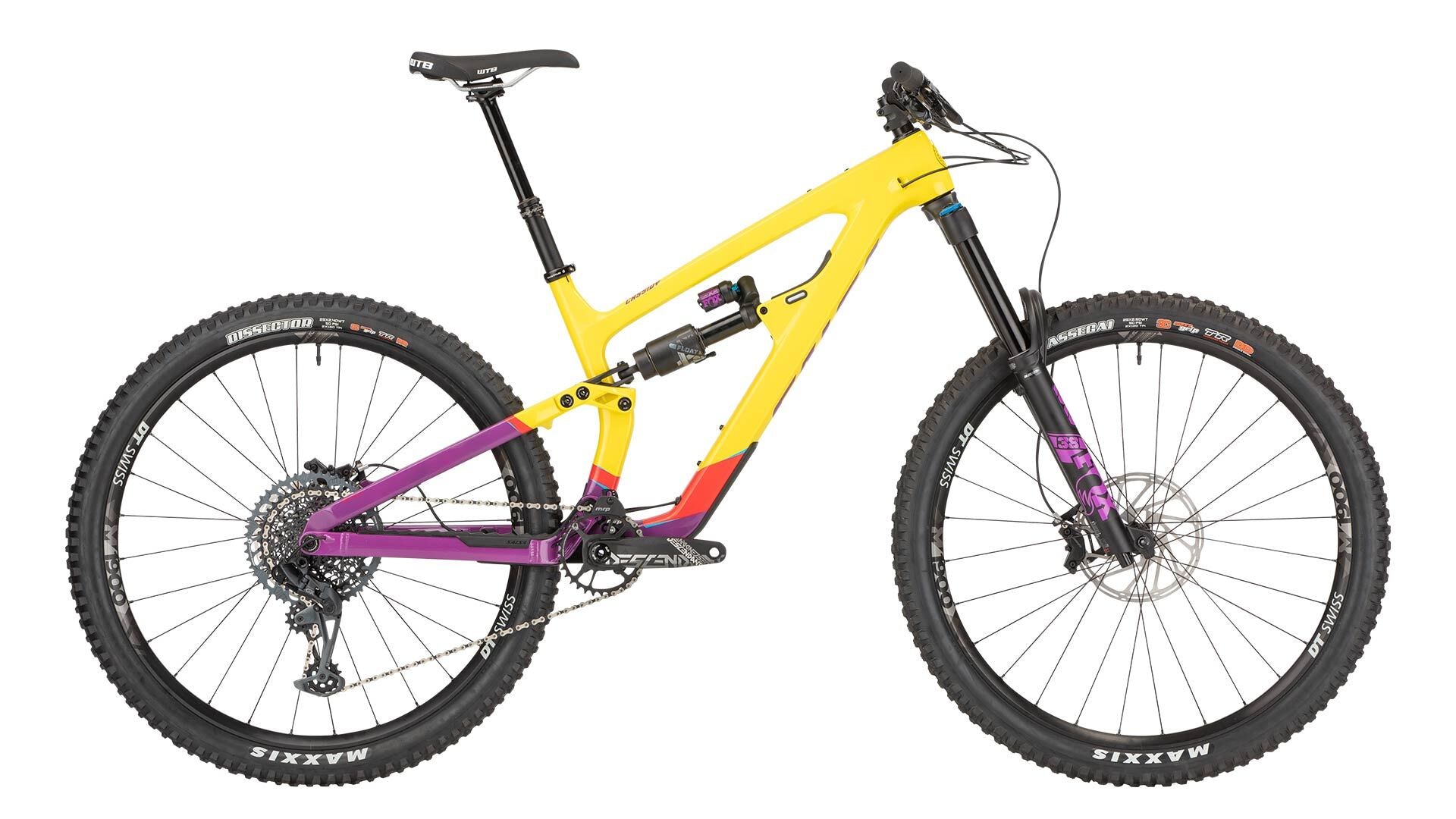

• Salsa Cassidy Carbon GX Eagle bike side view yellow purple and red color

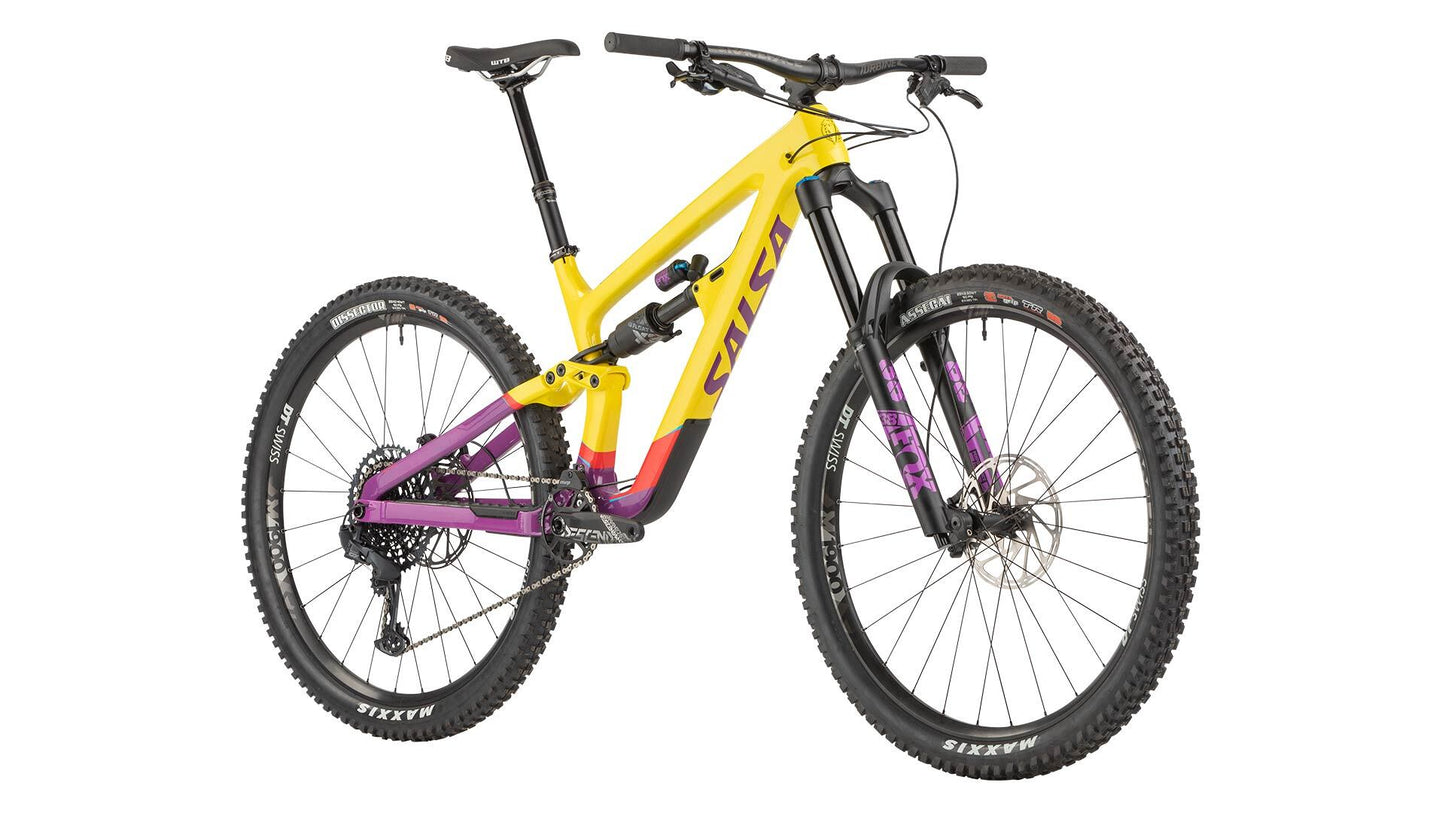

  • Salsa Cassidy Carbon GX Eagle bike front three-quarter view

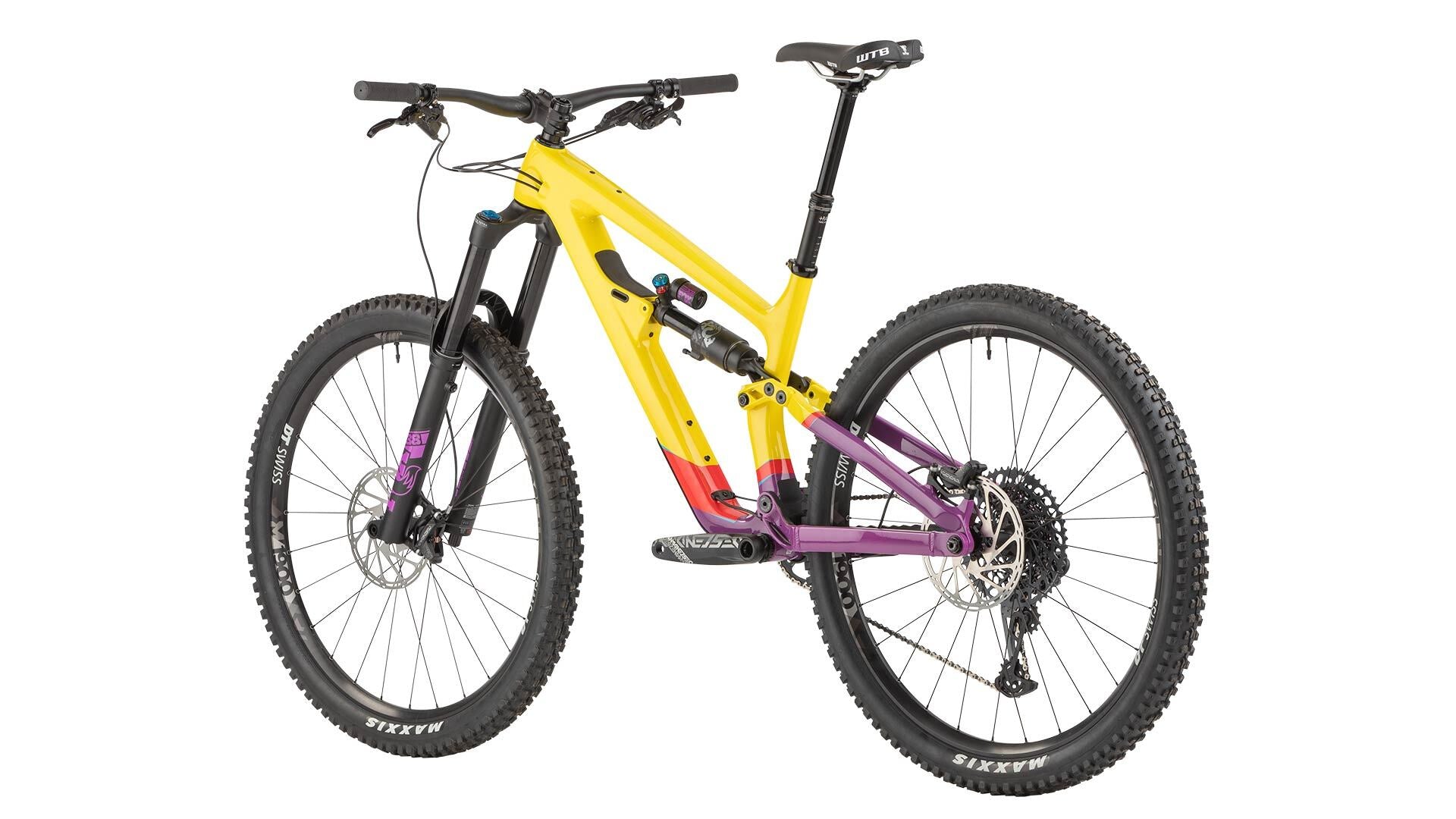

  • Salsa Cassidy Carbon GX Eagle bike rear three-quarter view
1 3

2021 Cassidy Carbon GX Eagle

2021 Cassidy Carbon GX Eagle

Archived

Cassidy Carbon GX Eagle is our carbon enduro bike that’s built for the biggest, boldest lines. With a carbon frame, 165 mm of rear travel and a 180 mm Fox Float 38 Performance Elite GRIP 2 fork, you can say goodbye to gingerly picking your way down descents. The Split Pivot suspension separates braking and pedaling forces for an always-planted rear wheel and climbing prowess that stands out in the enduro category—Cassidy is as comfortable on an EWS course as it is on laidback laps at the bike park. SRAM’s GX Eagle drivetrain offers huge range and the Code R four-piston brakes scrub speed with power and consistency you’ll appreciate when you’re hurtling downhill.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Cassidy Carbon
  • Fork: Fox Float 38 Performance Elite GRIP2, 180 mm, 44 mm offset
  • Color: Yellow
  • Rear Shock: Fox Float X2 Performance
  • Front Derailleur: MRP 1x chain guide
  • Rear Derailleur: SRAM GX Eagle
  • Cassette: SRAM GX Eagle, 10–52t, 12-speed
  • Chain: SRAM GX Eagle
  • Crankset: Truvativ Descendant 7K, DUB, 32t
  • Shifter: SRAM GX Eagle
  • Brakes & Rotors: SRAM Code R four-piston (200 mm rotors)
  • Headset (Upper/Lower): Cane Creek 40
  • Stem: Salsa Guide 35.0
  • Handlebar: Race Face Turbine R 35.0, 800mm
  • Grips/Bar Tape: Salsa File Tread Lock-On
  • Seatpost: TranzX YSI13GL, 30 mm travel height adjustable, travel: SM = 125 mm, MD = 150 mm, LG = 170 mm, XL = 200 mm
  • Saddle: WTB Volt 250 Comp
  • Front Wheel: DT Swiss M 1900, 15 x 110 mm hub, 29" tubeless-ready rims
  • Rear Wheel: DT Swiss M 1900, 12 x 157 mm hub, 29" tubeless-ready rims
  • Tires: Maxxis Assegai 29 x 2.5" front, Maxxis Dissector 29 x 2.4" rear, 120 TPI, 3CG, DoubleDown, Tubeless-Ready
  • Complete Bike Weight: 33.1 lbs for Medium

Frame Specs

  • Design Wheel/Tire Sizes: 29 x 1.9–2.6"
  • Alternate Wheel/Tire Sizes: 27.5 x 2.8–3.0"
  • Suspension Fork Length (Travel): 170–180 mm
  • Fork Offset: 42–51 mm
  • Rear Shock Size: 230 x 62.5 mm
  • Shock Mount, Fore: Ø8 x 30mm
  • Shock Mount, Aft: No Bushing, Ø15
  • Pivot Kit(s): 1215, 1585, 1587, 1589, 1590, 1592, 1594
  • Bearings: 17287 (Qty 4), 6801 (Qty 6)
  • Headset, Upper: ZS44
  • Headset, Lower: ZS56
  • Seatpost: 30.9 mm
  • Max Post Insertion: SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
  • Seatpost Collar: 35.4 mm
  • Dropper Compatible (Routing): Yes (internal)
  • Front Derailleur Clamp: N/A
  • Front Derailleur Type: N/A
  • Bottom Bracket: 73 mm BSA, threaded
  • Crankset (Max Ring): Super Boost 157, 55–57 mm chainline (34t)
  • Rear Brake (Rotor): 74 mm post mount (180–203 mm)
  • Rear Spacing: 157 x 12 mm TA
  • Rear Axle Size: 12 x 197 mm, TP = 1.75, TL = 20 mm
  • Derailleur Hanger: FS2322
  • Front Triangle Bottle Mounts: 1
  • Top Tube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag.

Geometry

Geometry Diagram
SM - 180mm Fork MD - 180mm Fork LG - 180mm Fork XL - 180mm Fork SM - 170mm Fork MD - 170mm Fork LG - 170mm Fork XL - 170mm Fork
Top Tube Effective Metric 596 / 595 619 / 618 642 / 641 665 / 664 595 / 594 617 / 616 641 / 640 664 / 663
Seat Tube Length Metric 405 430 455 480 405 430 455 480
Head Tube Length Metric 95 100 110 120 95 100 110 120
Head Tube Angle 63.8 / 64.1 63.8 / 64.1 63.8 / 64.1 63.8 / 64.1 64.2 / 64.5 64.2 / 64.5 64.2 / 64.5 64.2 / 64.5
Seat Tube Angle 75.7 / 76.0 75.7 / 76.0 75.7 / 76.0 75.7 / 76.0 76.1 / 76.4 76.1 / 76.4 76.1 / 76.4 76.1 / 76.4
BB Drop Metric 19 / 15 19 / 15 19 / 15 19 / 15 22 / 18 22 / 18 22 / 18 22 / 18
Chainstay Length Metric 432 / 431 432 / 431 432 / 431 432 / 431 432 / 431 432 / 431 432 / 431 432 / 431
Fork Length Metric 589 589 589 589 579 579 579 579
Fork Offset Metric 43 43 43 43 43 43 43 43
Wheelbase Metric 1213 / 1212 1236 / 1235 1262 / 1261 1287 / 1286 1209 / 1208 1232 / 1231 1257 / 1257 1283 / 1282
Stack Metric 617 / 615 622 / 619 631 / 628 640 / 637 614 / 612 618 / 616 627/ 625 636 / 634
Reach Metric 439/ 443 460 / 463 481 / 484 502 / 505 444/ 447 465 / 468 486 / 489 507 / 510
Standover Metric 737 / 740 740 / 743 741 / 744 741 / 744 732 / 734 735 / 738 735 / 738 736 / 739
Rider Height Metric 165cm–173cm 173cm–180cm 180cm–188cm 188cm–UP 165cm–173cm 173cm–180cm 180cm–188cm 188cm–UP
BB Center to Center Metric
Stem Length 50 50 50 50 50 50 50 50
Crank Length 170 170 170 170 170 170 170 170
Handlebar Width see build kit see build kit see build kit see build kit see build kit see build kit see build kit see build kit
Seatpost Offset Metric 0 0 0 0 0 0 0 0
  • an unsprung bike (no sag)
  • a 29 x 2.4" tire measuring 746mm in diameter
  • Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket, subtract 9mm (0.3") for 27.5 x 2.8” tires
  • Note: Where two measurements are listed, the first number is with Flip Chip in Low position; the second number is with Flip Chip in High position

Supportive Documents

Support Document links

Additional Features

Split Pivot Rear Suspension

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction

Split Pivot+ Design Methodology

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means that Cassidy riders can swap control and shock links, in addition to the rear shock and fork, to switch travel to Blackthorn’s 140 mm rear and 160 mm front capability. One frame, multiple bikes

Progressive Leverage Rate

Progressive from start to finish, Cassidy’s leverage rate is tuned for speed. It delivers supple small-bump action early for a smooth ride at high speed; a consistent and supportive feel through the mid-stroke for popping, pumping, and holding up to high-G corners; and continued progression through the end-stroke to provide plenty of support for big hits and recovering from poor line choices

Flip Chip 2.0

Integrated into the shock link mount, Flip Chip 2.0 allows simple, quick adjustments to bottom bracket height and head tube angle to account for the rider’s personal preference, terrain, or wheel size and tire diameter

EPS Carbon Main Triangle with Carbon Seatstays and Aluminum Chainstays

EPS construction allows for greater manufacturing control, smooth surfacing, a simplified bottom bracket junction, and an integrated shock mount. Carbon fiber material offers improved stiffness, better vibration damping, excellent toughness and weight savings compared to other materials. 6066-T6 aluminum heat-treated chainstays add durability

Top Tube Accessory Mounts

Top tube mounts accommodate K-Edge Top Tube Mount for bike computers or the Salsa EXP Series Direct Mount Top Tube Bag

Down Tube Three-Pack Mounts

Three-Pack mounts on down tube accommodate a large water bottle on the lower pair and a frame-mounted pump bracket on the upper pair

Integrated Repair Kit Location

Located in front of the rear shock in the front triangle, we provide a dedicated place for a small repair kit, tube, or bag of gummies. No more loading up your pockets or strapping the essentials to random spots on the frame and damaging the frame finish. Carbon frames feature an integrated reinforced slot and frame protection. Aluminum frames feature a machined strap slot. The slot is sized to accommodate most ¾"- to 1"-wide straps. A Salsa Tube Strap is included with each frame (the Salsa Tube Strap is for use with tubes only)

Accommodates a 26 oz Bottle

All Cassidy sizes accept a standard 26 oz water bottle within the front triangle

Internal Sleeved Cable Routing

Internal tubes guide housing through the frame, simplifying setup and maintenance, and creating a clean bike profile

Stealth Dropper Post Routing

Compatible with 30.9mm dropper posts for true trail bike performance

Molded Frame Protection

Molded rubber down tube, seat tube, chainstay, and seatstay guards protect your frame from impacts and abrasion

Versatile Tire Fit

Spec’d with a 29 x 2.5" tire up front and a 29 x 2.4" in the rear, Cassidy is also capable of running up to 29 x 2.6" or 27.5 x 2.8-3.0" wheels and tires

Chain Guide-Compatible

Cassidy frames features ISCG-05 mounts for chain guides (removable on carbon frames)

Remote Lockout Ready

Cassidy C comes equipped for remote lockout, with cable routing to the rear shock via a guided port on the drive side of the downtube that exits under the forward shock mount.

FAQ

How do I convert my Cassidy to a Blackthorn?

Follow these instructions

Can I run a coil shock?

No, the leverage rate of the Cassidy is optimized for the natural progressivity of air spring shocks. A coil shock will not produce enough end-stroke support at the rear wheel, leading to frequent and harsh bottom-outs that will likely result in frame damage. Fitting a coil shock to this frame voids the warranty.

Can I run a mullet setup on this bike?

Yes, for Cassidy mullet setup requirements:

  • Minimum fork travel: 180 mm; minimum fork axle to crown: 596 mm
  • Minimum front tire size: 29 x 2.4"
  • Minimum rear size: 27.5 x 2.5"
  • Maximum crank arm length: 170 mm
  • Flip chip position must be set to high

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
