Marrakesh Alivio

$1,329.99 USD

~~$2,049.00 USD~~ $1,329.99 USD

Sale

Size 50cm 52cm 54cm 55cm 57cm 59cm

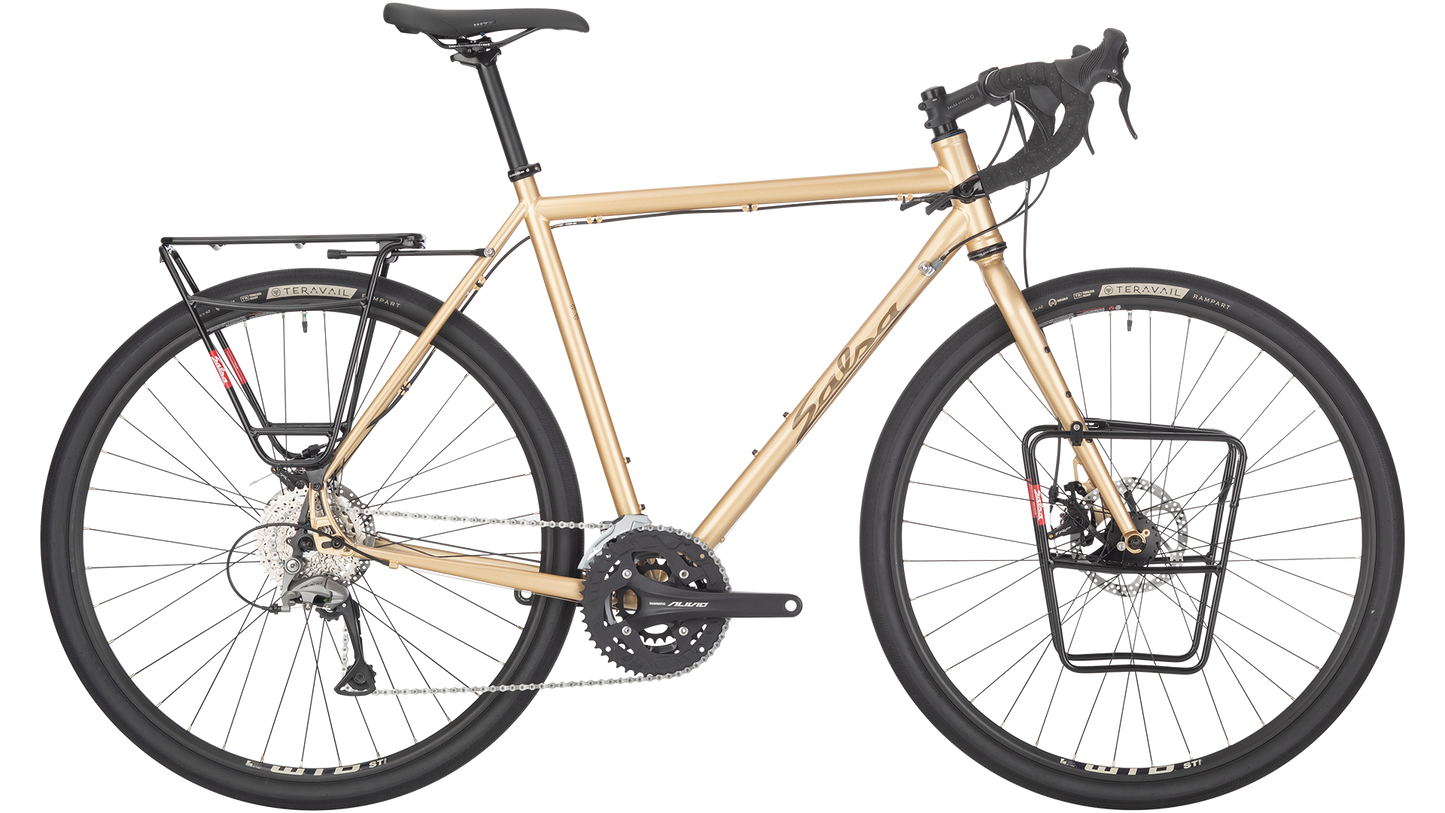

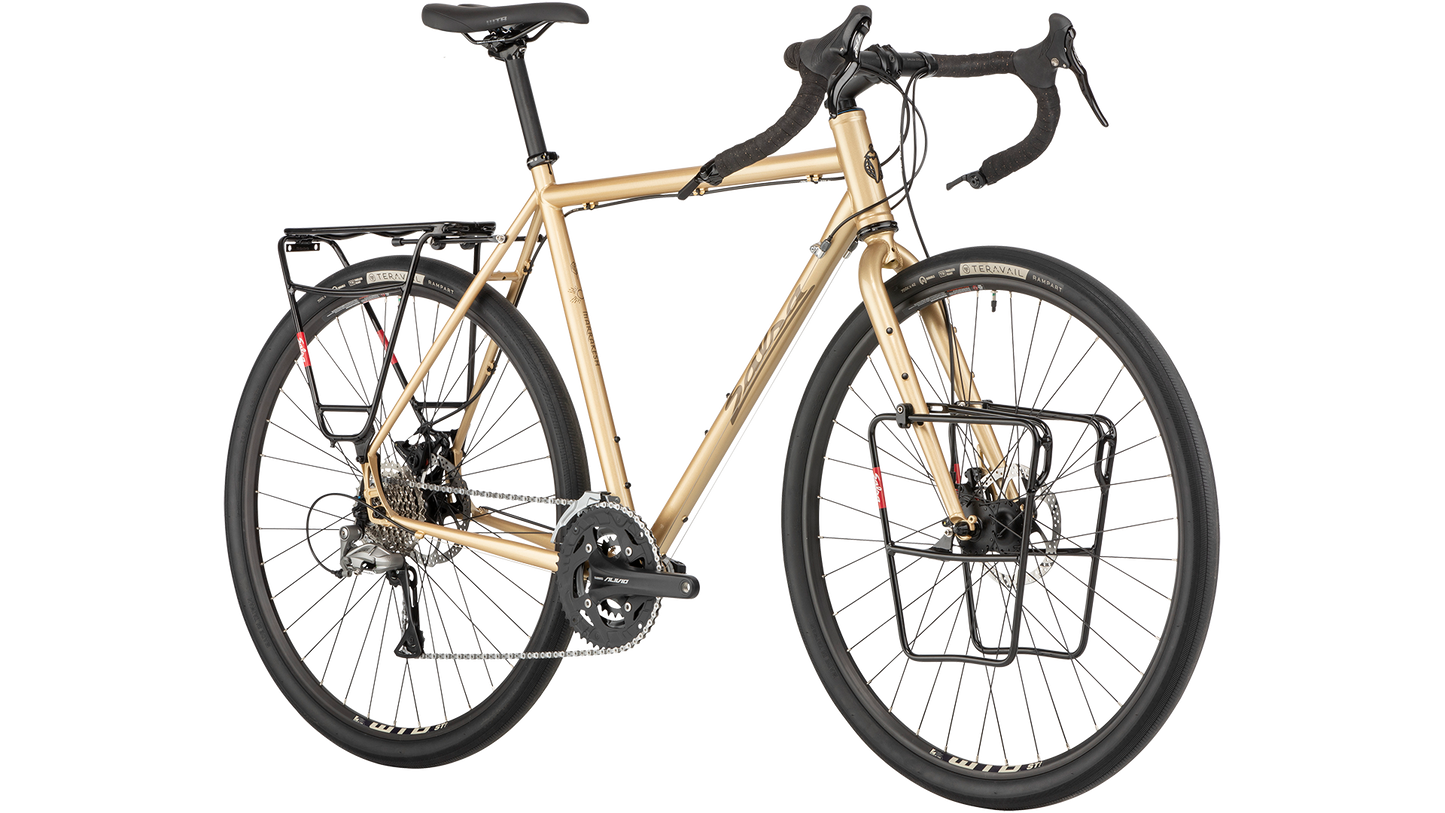

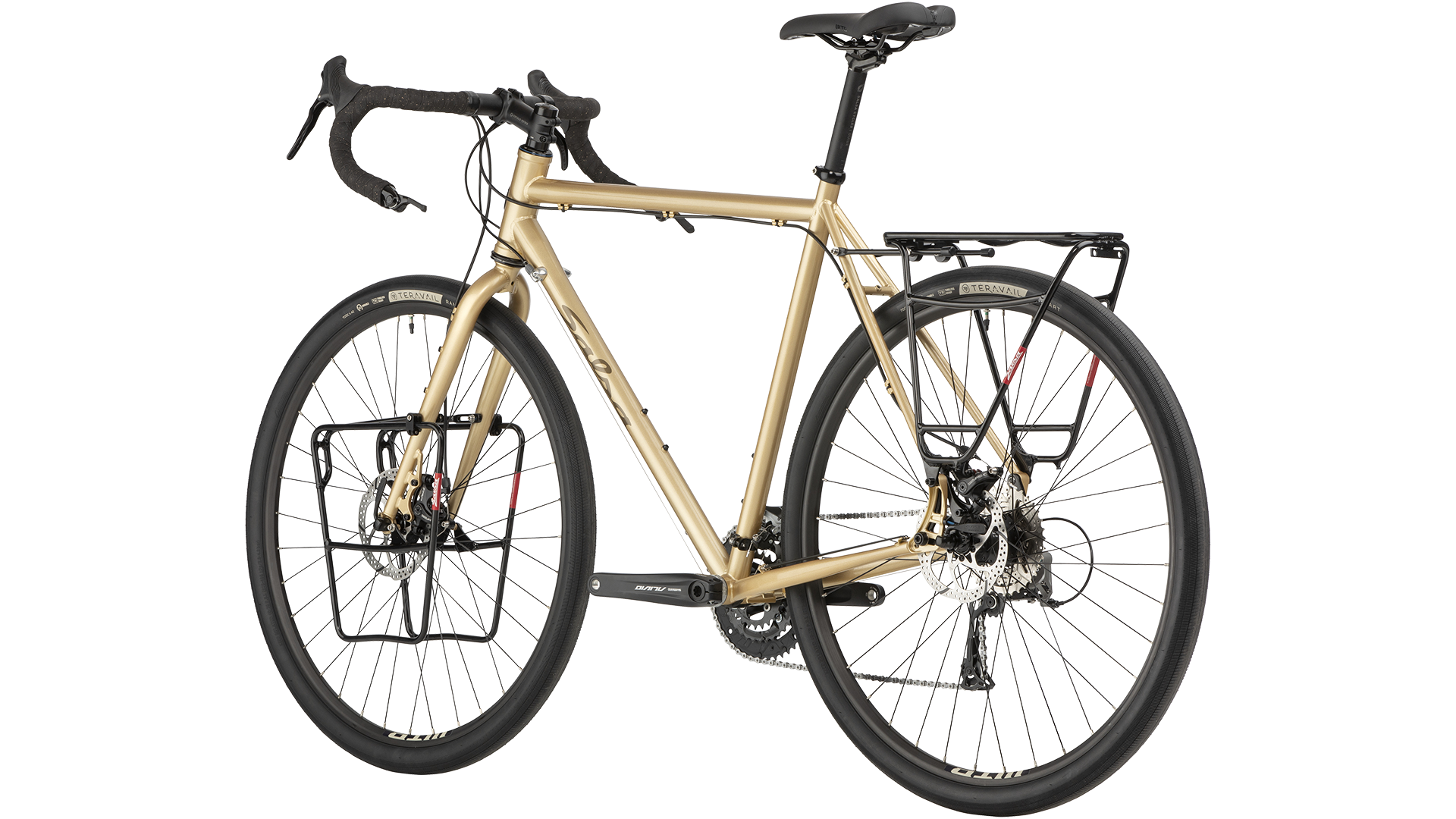

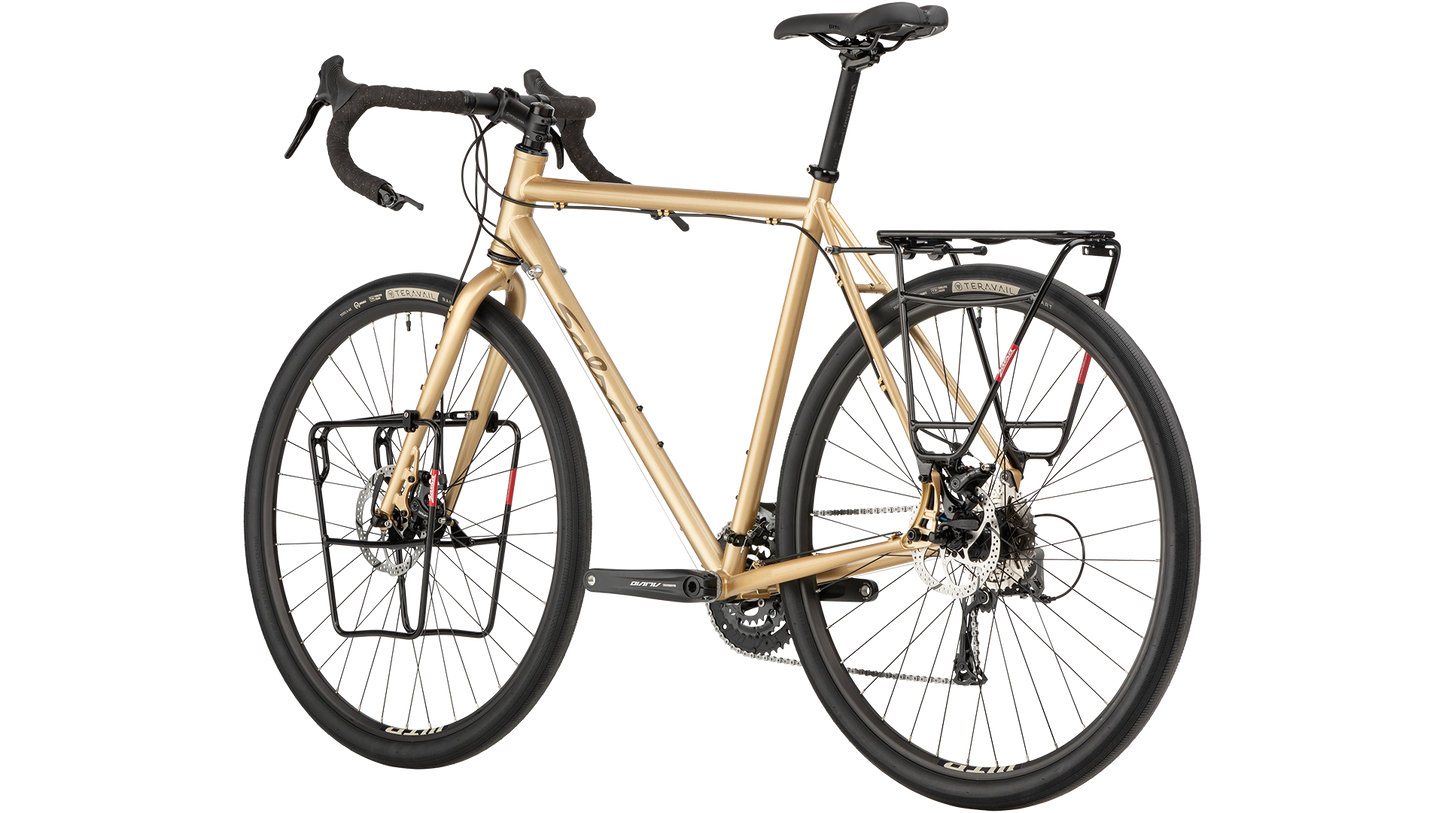

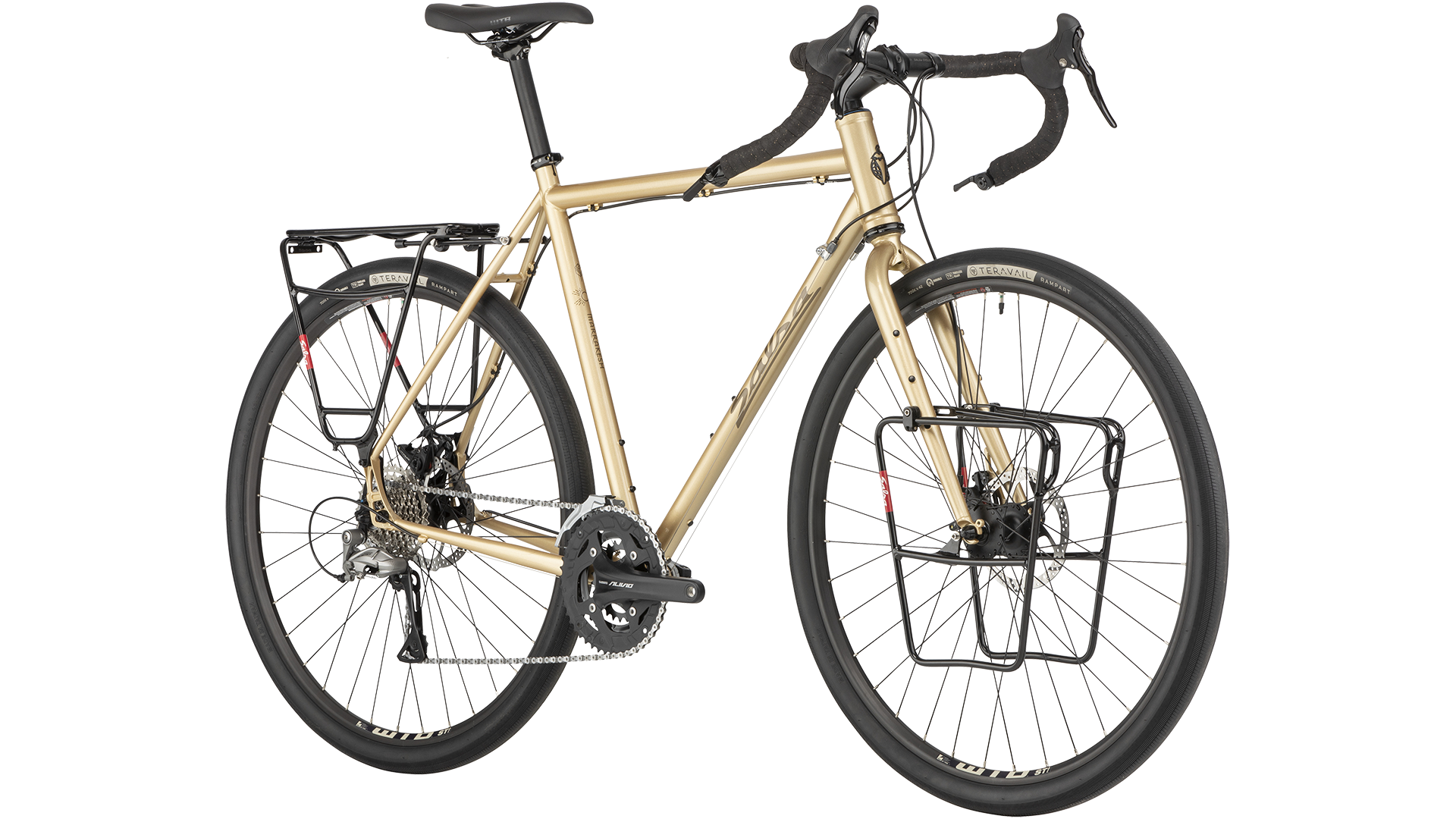

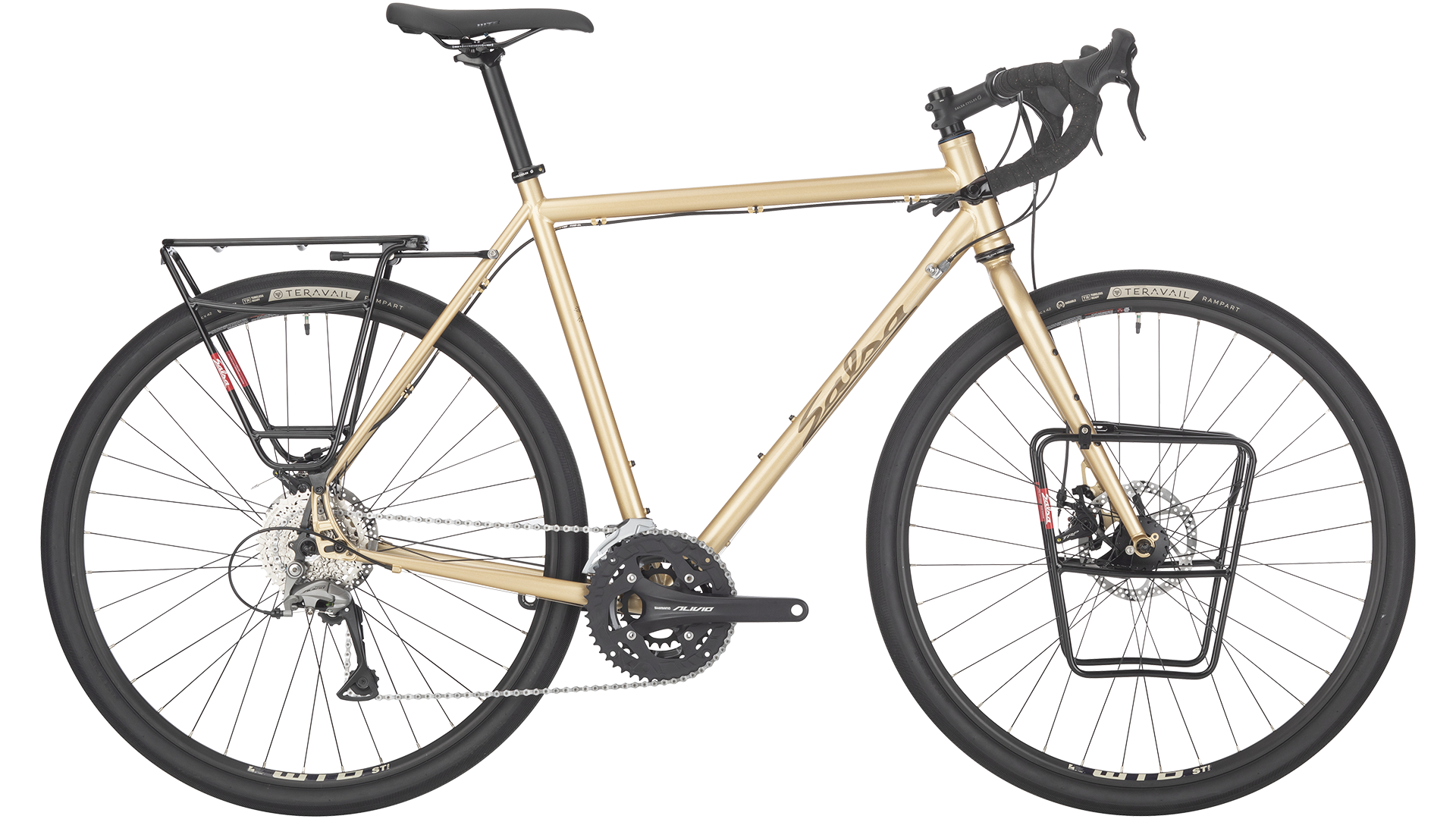

Marrakesh is Salsa’s purpose-built touring bike. The steel frame and fork are comfortable and durable enough for the long haul. Marrakesh comes equipped with every rack, fender, and accessory mount you could find a use for. Features such as a spare spoke mount and Alternator 1.0 dropouts provide peace of mind far from home. See the world on Marrakesh.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
Alternator Dropouts
Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
Ability to tension chain for single speed use
Riders have upgrade options
View More

Use the previous and next buttons to traverse through the carousel.

Product Details

Build Kit

Frameset

Frame

Marrakesh Triple Butted CroMoly
Color

Gold
Fork

Marrakesh CroMoly Steel
Rear Shock

N/A

Components

Headset

Cane Creek 40
Seatpost

Salsa Guide
Stem

Salsa Guide
Grips/Bar Tape

Salsa Gel Cork Bar Tape
Saddle

WTB Volt Steel Medium
Front Rack

Salsa Down Under Rack
Rear Rack

Salsa Alternator 135 Low-Deck Rack
Handlebar

Salsa Cowchipper

Drivetrain

Front Derailleur

Shimano Acera FD-T3000
Rear Derailleur

Shimano Alivio RD-T4000
Cassette

Shimano Alivio, 11–36t, 9-speed
Chain

Shimano HG93
Crankset

Shimano Alivio FC-M4060, 48/36/26t
Shifter

MicroSHIFT BS-T09 bar-end shifters
Brake Levers

TRP RRL alloy levers
Brake Calipers

TRP Spyre-C
Rotors

160mm

Wheels

Front Wheel

Shimano M475 100 mm QR hub, WTB ST i19 TCS 2.0 36h rim
Rear Wheel

Shimano M475 100 mm QR hub, WTB ST i19 TCS 2.0 36h rim
Front Tire

Teravail Rampart 700c x 42 mm, Durable, Tubeless-Ready
Rear Tire

Teravail Rampart 700c x 42 mm, Durable, Tubeless-Ready

Weight

Complete Bike

30 lbs 14 oz for 57cm

*Specifications are subject to change without notice

Geometry

Size	50cm	52cm	54cm	55cm	57cm	59cm
A. Effective Top Tube	500.0	520.0	540.0	550.0	570.0	595.0
B. Stand Over	704.2	735.6	761.2	791.0	817.4	843.5
C. Reach	360.5	366.4	373.1	373.4	380.5	392.0
D. Stack	539.5	553.9	565.3	577.5	601.1	624.7
E. Total Seat Tube Length	440.0	480.0	520.0	560.0	590.0	620.0
F. Headtube Length	90.0	100.0	110.0	125.0	150.0	175.0
G. Headtube Angle	69.5	70.75	70.75	70.75	70.75	70.75
H. Seat Tube Angle	75.5	74.5	73.5	73.0	72.5	72.0
I. BB Drop	77.0	77.0	77.0	77.0	77.0	77.0
K. Chainstay Length	455.0- 472.0	455.0- 472.0	455.0- 472.0	455.0- 472.0	455.0- 472.0	455.0- 472.0
L. Fork Length Axle to Crown	415.0	415.0	415.0	415.0	415.0	415.0
M. Fork Offset	55.0	55.0	55.0	55.0	55.0	55.0
N. Wheelbase	1040.6- 1057.6	1039.6- 1056.6	1049.7- 1066.7	1054.9- 1071.9	1070.2- 1087.2	1090.0- 1107.0
Crank Arm Length	165.0	170.0	170.0	175.0	175.0	175.0
Handlebar Width	38.0	40.0	42.0	44.0	46.0	48.0
Recommended Rider Height	147.0 - 158.0	158.0 - 165.0	165.0 - 173.0	170.0 - 178.0	175.0 - 185.0	185.0
Stem Length	60.0	60.0	70.0	80.0	80.0	80.0

Measurements based on:

A 700 x 42mm tire measuring 710mm in diameter
Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

Design Wheel/Tire Sizes 700 x 40mm max w/ fenders
Alternate Wheel/Tire Sizes 700 x 50.8mm w/o fenders
Rigid Fork Length 415mm
Fork Offset 55mm
Rear Spacing 135 x 10mm QR
Rear Brake (Rotor) 51mm I.S. mount, (160–180mm)
Front Brake (Rotor) 51mm standard, (160–180mm)
Headset - Upper ZS44
Headset - Lower EC44
Front Spacing 100 x 9mm QR
Crown Race Ø30mm
Stem Clamp Ø28.6mm
Seatpost 27.2mm
Seatpost Clamp 30.0mm
Front Derailleur Clamp Band clamp (Ø31.8mm)
Front Derailleur Type Bottom Pull
Derailluer Hanger QR = FS1312 (driveside)/ FS1313 (non-driveside), L Rohloff = FS1371
Bottom Bracket 68mm BSA, threaded
Crankset (Max Ring) Mountain touring triple: 48/38/26t; any mountain 2x or 1x option available
Accessory Mounts 3-Pack boss set on each leg and 165mm standard low rider boss set on each leg (Cannot be used simultaneously)
Bottle Mounts 3

Supportive Documents

Support Document links

Additional Features

Triple Butted CroMoly Tubeset

Our next-generation, Salsa-designed, externally and internally butted 4130 tubeset, engineered from the ground up, provides a strong frame at an impressively low weight. Specifically designed for and found on select Salsa frames

Alternator Dropouts

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling or set back for more stability—the power is yours. See our Alternator Page for more info

Salsa Marrakesh Fork Included

Steel, straight 1-1/8" steerer, with stainless double eyelet dropouts, low rider rack bosses and Three-Pack bosses

Salsa Down Under Front Rack Included (Complete Bike Only)

This low-rider style rack is perfect for hauling a set of touring panniers on the front of your Marrakesh.

Marrakesh Alternator 135 Low-Deck Rack Included

Designed for Marrakesh, the Alternator 135 Low-Deck Rack has a shorter rear axle to deck measurement that keeps weight lower and enhances loaded bike stability

Generous Tire Capacity

Marrakesh is designed around a 700c/29 (622 ISO) disc brake wheel and is compatible with 700c x 40mm tires with fenders or up to 29 x 2.0" tires without fenders. Maximum disc rotor size is 180mm

Touring Geometry

Marrakesh features a low bottom bracket for stability and standover, and adjustable chainstay length to tune wheelbase and turning characteristic. The front end is designed with 62mm of mechanical trail (66mm ground trail) resulting in a stable feel that still allows easy turn initiation when loaded

Drop Bar-Specific Sizing

Marrakesh Drop Bar comes in six sizes designed around drop bar setup and features a more upright and relaxed riding position on the tops or hoods for all-day comfort over varied road surfaces. The drop bar offers multiple hand positions, some of which provide aerodynamic benefits

Downtube Shifter Compatible

Shifter bosses on the downtube allow the Marrakesh to be set up with indexed or friction shift levers directly or adapted with housing stops to allow use of bar end, trigger, or integrated brake/shift road levers on the bars. This versatility increases the odds of cobbling together a shifting drivetrain anywhere you might need to...when the adventure really begins

Multiple Bottle Cages

All frame sizes accept three bottle cages. Three-Pack mounts on the fork legs increase capacity to five bottles per frameset

Fender Mounts

All frameset ship with Alternator swing plates that feature fender mount bosses and the front fork dropouts feature double eyelets

Spare Spoke Mount

Located on the top of the left chainstay, spare spokes mean a temporary slowdown to true a wheel, instead of a longer one

Kickstand Plate

Because kickstands are highly functional and cool when touring, despite what roadies and mountain bikers might have you think

Multiple Cargo Loading Options

Our Alternator 135 Low Deck rack is specifically designed to integrate seamlessly with the Marrakesh frame and keep the load as low and close to center as possible. The Marrakesh fork comes loaded with both Three-Pack bosses and low rider bosses. This allows the use of either Anything Cages or low rider racks if panniers are desired. And don’t forget to consider the use of a frame bag within the front triangle.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
