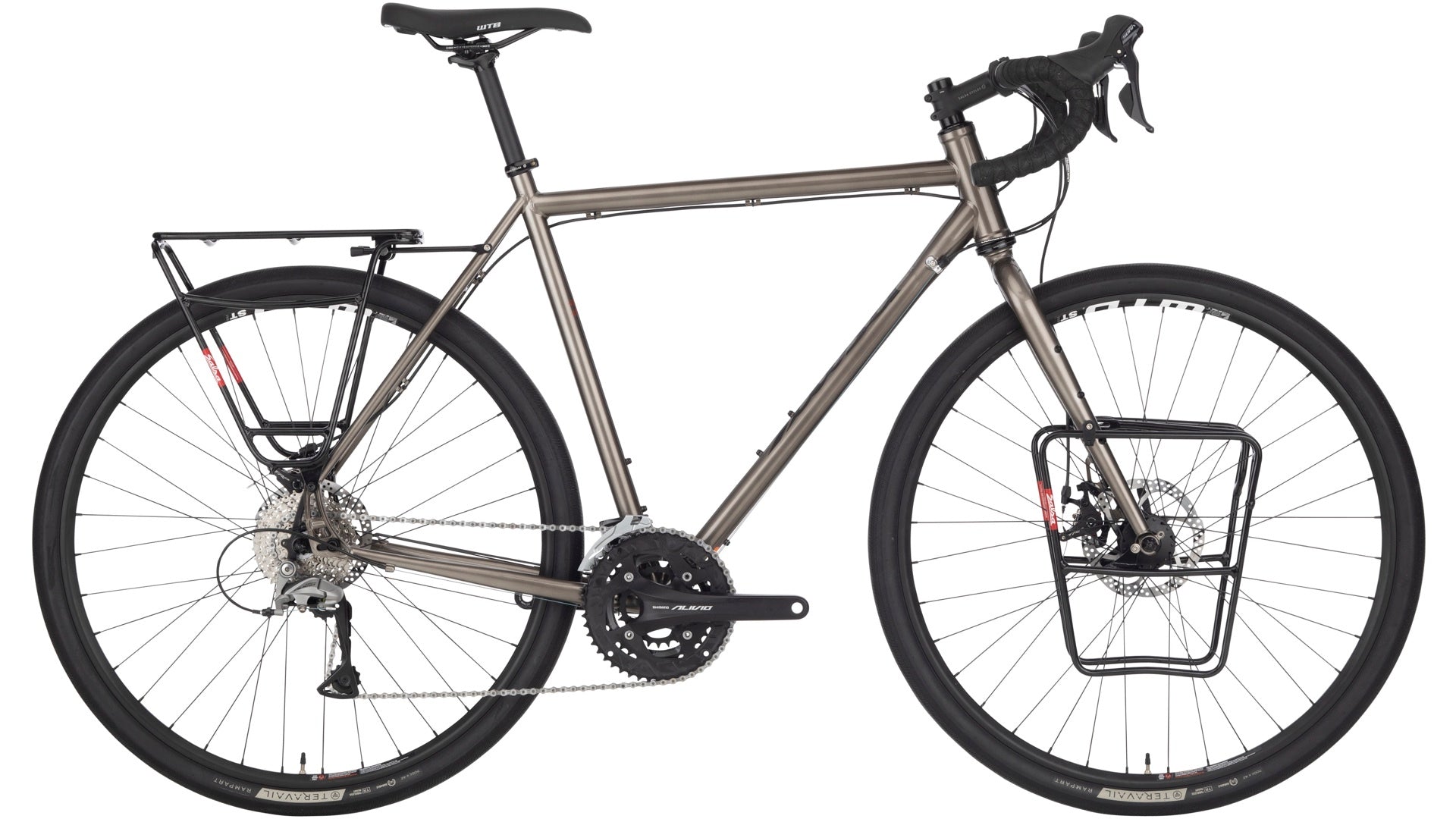

• Salsa Marrakesh Sora bike gray color with front and rear racks side view
1 1

2021 Marrakesh Sora

2021 Marrakesh Sora

Archived

Every decision behind the Marrakesh Sora was made with function and durability in mind. The included front and rear racks let you load it up and go on day one, and its myriad of mounting points mean you don’t have to leave anything at home. Triple-butted steel tubing and high-volume tires let you cover countless miles in comfort, while its touring geometry keeps everything stable when riding loaded. Carefully-selected Shimano drivetrain components deliver ease of use, reliability, and gear range for the longest flats and steepest mountain passes.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Marrakesh Triple Butted CroMoly
  • Fork: Marrakesh CroMoly Steel
  • Color: Warm Gray
  • Rear Shock: N/A
  • Front Derailleur: Shimano FD-T4000 Top Swing Dual Pull
  • Rear Derailleur: Shimano Alivio RD-T4000-SGS
  • Cassette: Shimano Alivio, 11–36t, 9-speed
  • Chain: Shimano HG93
  • Crankset: Shimano Alivio FC-M4060, 48/36/26t
  • Shifters: Shimano ST-R3030
  • Brakes & Rotors: TRP Spyre-C (160 mm rotors), TRP RRL alloy levers
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowchipper
  • Grips: Salsa Gel Cork Bar Tape
  • Seatpost: Salsa Guide
  • Saddle: WTB Volt Steel Medium
  • Front Rack: Salsa Down Under Rack
  • Rear Rack: Salsa Alternator 135 Low-Deck Rack
  • Front Wheel: Shimano M475 100 mm QR hub, WTB ST i19 TCS 2.0 36h rim
  • Rear Wheel: Shimano M475 135 mm QR hub, WTB ST i19 TCS 2.0 36h rim
  • Tires: Teravail Rampart 700c x 42 mm, Durable, Tubeless-Ready
  • Complete Bike: 30 lbs 14 oz for 57cm

Frame Specs

  • Design Wheel/ Tire Size: 700 x 40mm max w/ fenders
  • Alternate Wheel/ Tire Size: 700 x 50.8mm w/o fenders
  • Rigid Fork Length: 415mm
  • Fork Offset: 55mm
  • Headset-Upper: EC44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm
  • Front Derailleur Type: Bottom pull
  • Front Derailleur Mount: Band clamp (Ø31.8mm)
  • Bottom Bracket: 68mm BSA, threaded
  • Crankset: Mountain touring triple: 48/38/26t; any mountain 2x or 1x option available
  • Rear Brake (Rotor): 51mm I.S. mount, (160–180mm)
  • Rear Spacing: 135 x 10mm QR
  • Derailleur Hanger: QR = FS1312 (driveside)/ FS1313 (non-driveside), L Rohloff = FS1371
  • Bottle Mounts: 3
  • Stem Clamp: Ø28.6mm
  • Crown Race: Ø30mm
  • Front Brake (Rotor): 51mm standard, (160–180mm)
  • Front Spacing: 100 x 9mm QR
  • Rack/Bottle Mounts: 3-Pack boss set on each leg and 165mm standard low rider boss set on each leg (Cannot be used simultaneously)

Geometry

Geometry Diagram
Metric 50cm 52cm 54cm 55cm 57cm 59.5cm
Top Tube Effective Metric 500 520 540 550 570 595
Seat Tube Length Metric 440 480 520 560 590 620
Head Tube Length Metric 90 100 110 125 150 175
Head Tube Angle 69.5 70.75 70.75 70.75 70.75 70.75
Seat Tube Angle 75.5 74.5 73.5 73 72.5 72
BB Drop Metric 77 77 77 77 77 77
Chainstay Length Metric 455–472 455–472 455–472 455–472 455–472 455–472
Fork Length Metric 415 415 415 415 415 415
Fork Offset Metric 55 55 55 55 55 55
Wheelbase Metric 1040.6–1057.6 1039.6–1056.6 1049.7–1066.7 1054.9–1071.9 1070.2–1087.2 1090.0–1107.0
Stack Metric 539.5 553.9 563.3 577.5 601.1 624.7
Reach Metric 360.5 366.4 373.1 373.4 380.5 392
Standover Metric 704.2 735.6 761.2 791 817.4 843.5
Rider Height Metric 147–158cm 158–165cm 165–173cm 170–178cm 175–185cm 185–UP
Stem Length 60 60 70 80 80 80
Crank Length 165 170 170 175 175 175
Handlebar Width 38cm 40cm 42cm 44cm 46cm 48cm
Seatpost Offset Metric 12 12 12 12 12 12
  • A Firestarter Deluxe Fork which is 480 x 51 mm offset, this is equivalent to an average 100mm fork at 20% sag.
  • Measurements listed are based on a 29 x 2.4" tire measuring 746 mm in diameter.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

Triple Butted CroMoly Tubeset

Our next-generation, Salsa-designed, externally and internally butted 4130 tubeset, engineered from the ground up, provides a strong frame at an impressively low weight. Specifically designed for and found on select Salsa frames

Alternator Dropouts

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling or set back for more stability—the power is yours. See our Alternator Page for more info

Salsa Marrakesh Fork Included

Steel, straight 1-1/8" steerer, with stainless double eyelet dropouts, low rider rack bosses and Three-Pack bosses

Salsa Down Under Front Rack Included (Complete Bike Only)

This low-rider style rack is perfect for hauling a set of touring panniers on the front of your Marrakesh.

Marrakesh Alternator 135 Low-Deck Rack Included

Designed for Marrakesh, the Alternator 135 Low-Deck Rack has a shorter rear axle to deck measurement that keeps weight lower and enhances loaded bike stability

Generous Tire Capacity

Marrakesh is designed around a 700c/29 (622 ISO) disc brake wheel and is compatible with 700c x 40mm tires with fenders or up to 29 x 2.0" tires without fenders. Maximum disc rotor size is 180mm

Touring Geometry

Marrakesh features a low bottom bracket for stability and standover, and adjustable chainstay length to tune wheelbase and turning characteristic. The front end is designed with 62mm of mechanical trail (66mm ground trail) resulting in a stable feel that still allows easy turn initiation when loaded

Drop Bar-Specific Sizing

Marrakesh Drop Bar comes in six sizes designed around drop bar setup and features a more upright and relaxed riding position on the tops or hoods for all-day comfort over varied road surfaces. The drop bar offers multiple hand positions, some of which provide aerodynamic benefits

Downtube Shifter Compatible

Shifter bosses on the downtube allow the Marrakesh to be set up with indexed or friction shift levers directly or adapted with housing stops to allow use of bar end, trigger, or integrated brake/shift road levers on the bars. This versatility increases the odds of cobbling together a shifting drivetrain anywhere you might need to...when the adventure really begins

Multiple Bottle Cages

All frame sizes accept three bottle cages. Three-Pack mounts on the fork legs inrease capacity to five bottles per frameset

Fender Mounts

All frameset ship with Alternator swing plates that feature fender mount bosses and the front fork dropouts feature double eyelets

Spare Spoke Mount

Located on the top of the left chainstay, spare spokes mean a temporary slowdown to true a wheel, instead of a longer one

Kickstand Plate

Because kickstands are highly functional and cool when touring, despite what roadies and mountain bikers might have you think

Multiple Cargo Loading Options

Our Alternator 135 Low Deck rack is specifically designed to integrate seamlessly with the Marrakesh frame and keep the load as low and close to center as possible. The Marrakesh fork comes loaded with both Three-Pack bosses and low rider bosses. This allows the use of either Anything Cages or low rider racks if panniers are desired. And don’t forget to consider the use of a frame bag within the front triangle

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

What is the warranty for this bike?

View <a href="http://salsacycles.com/support/warranty" target="_blank" rel="noreferrer noopener">Warranty</a>

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
