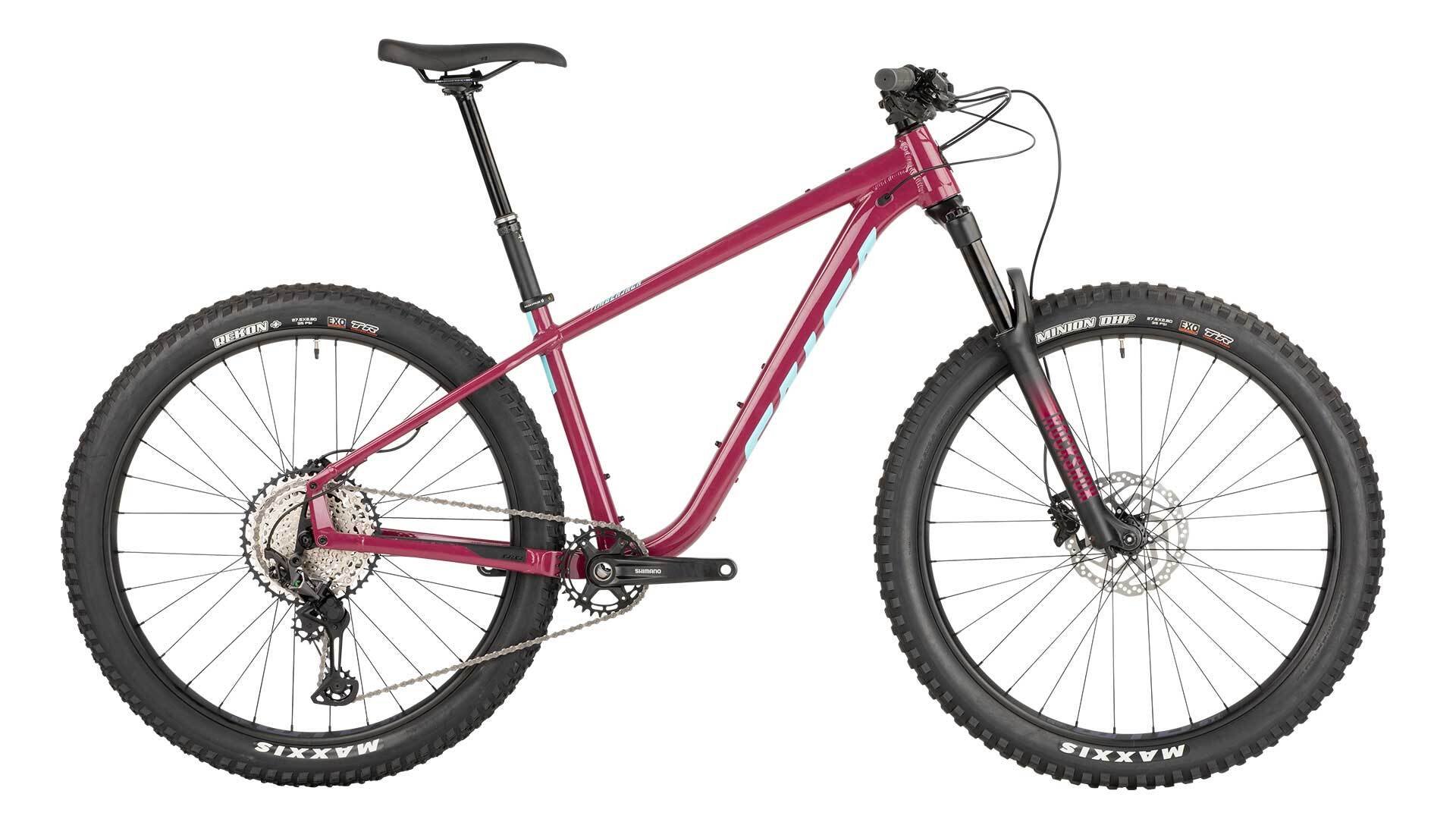

• Salsa Timberjack XT 27.5 bike dark red color side view

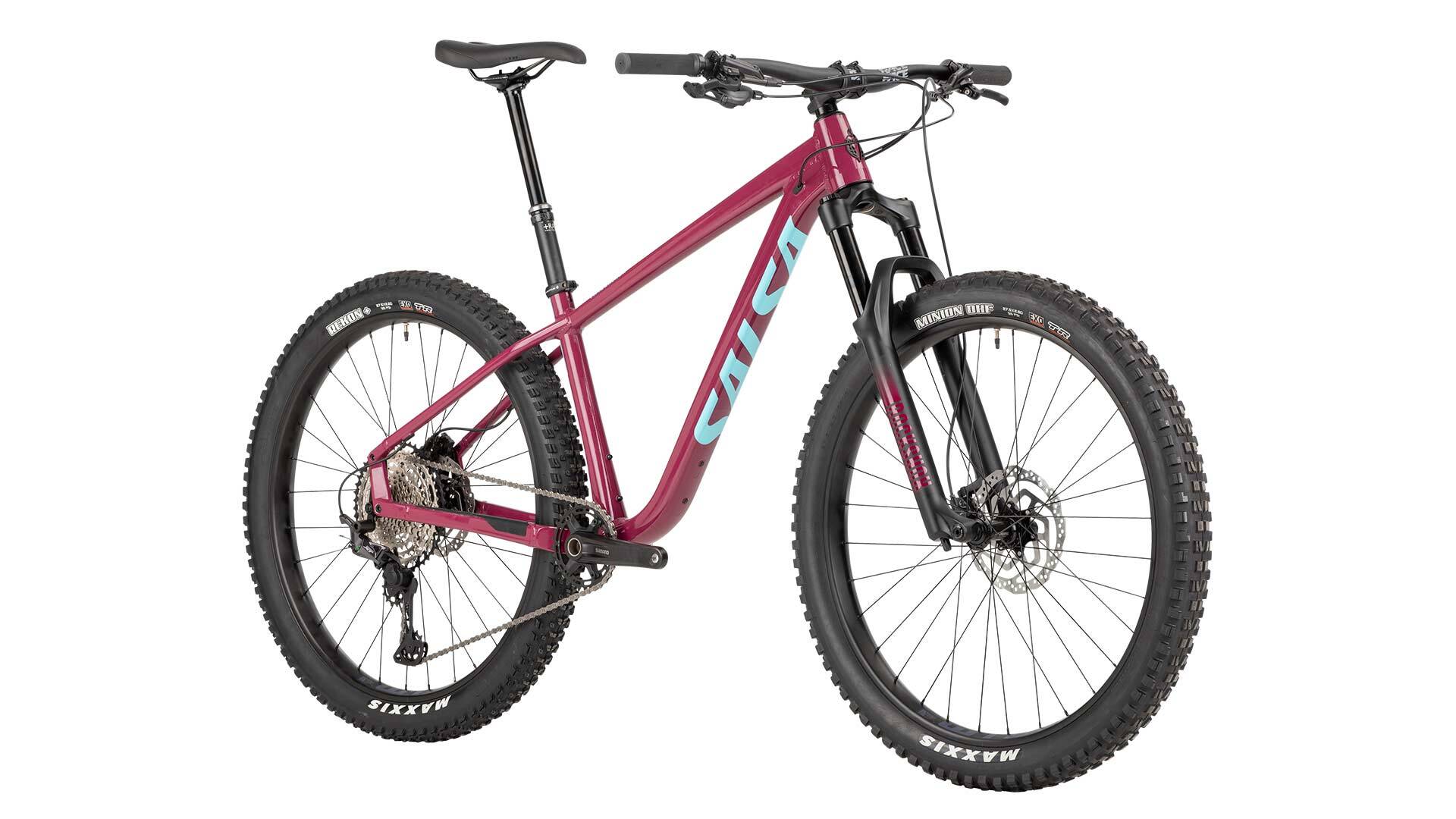

  • Salsa Timberjack XT 27.5 bike dark red color front three-quarter view

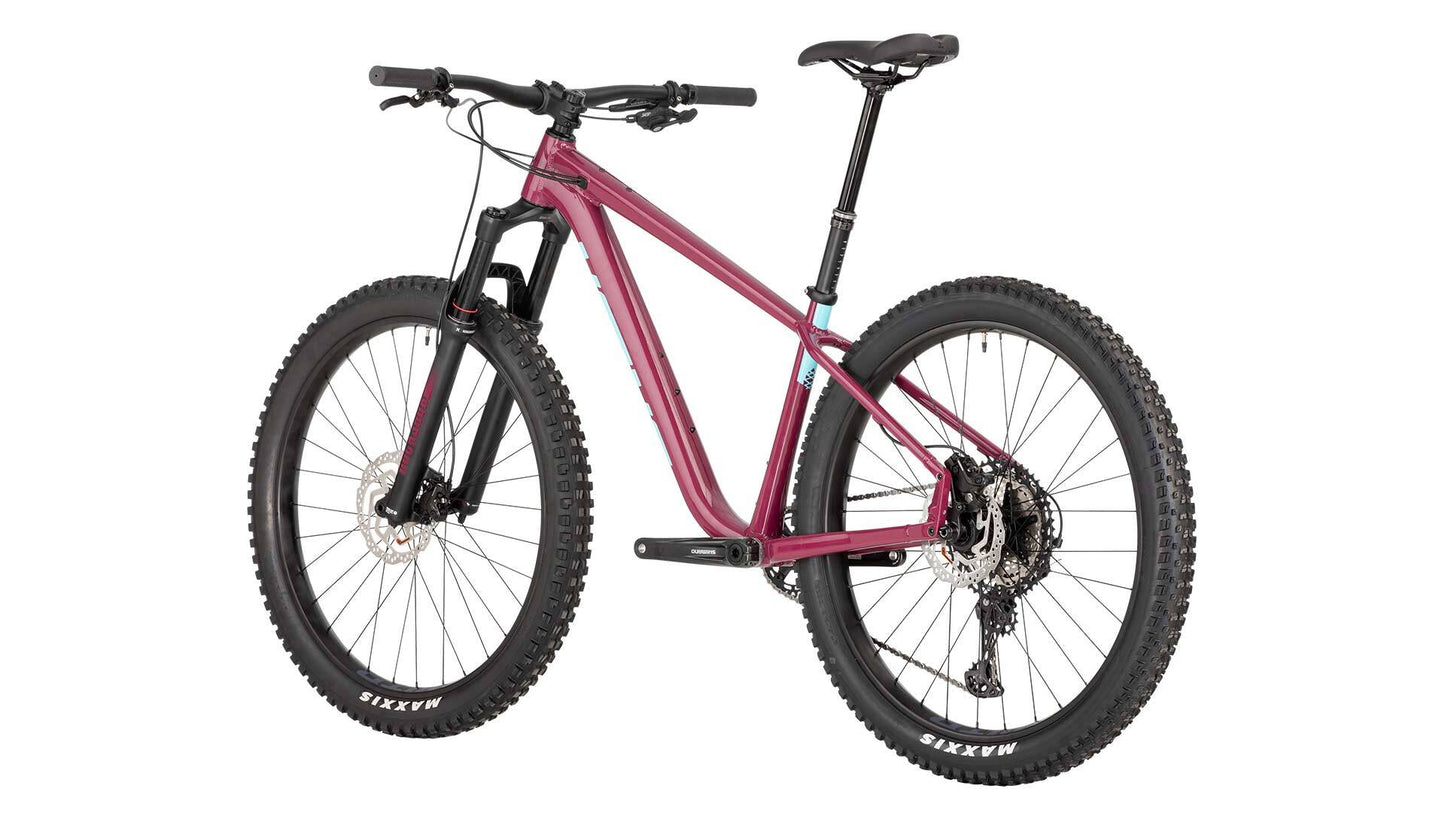

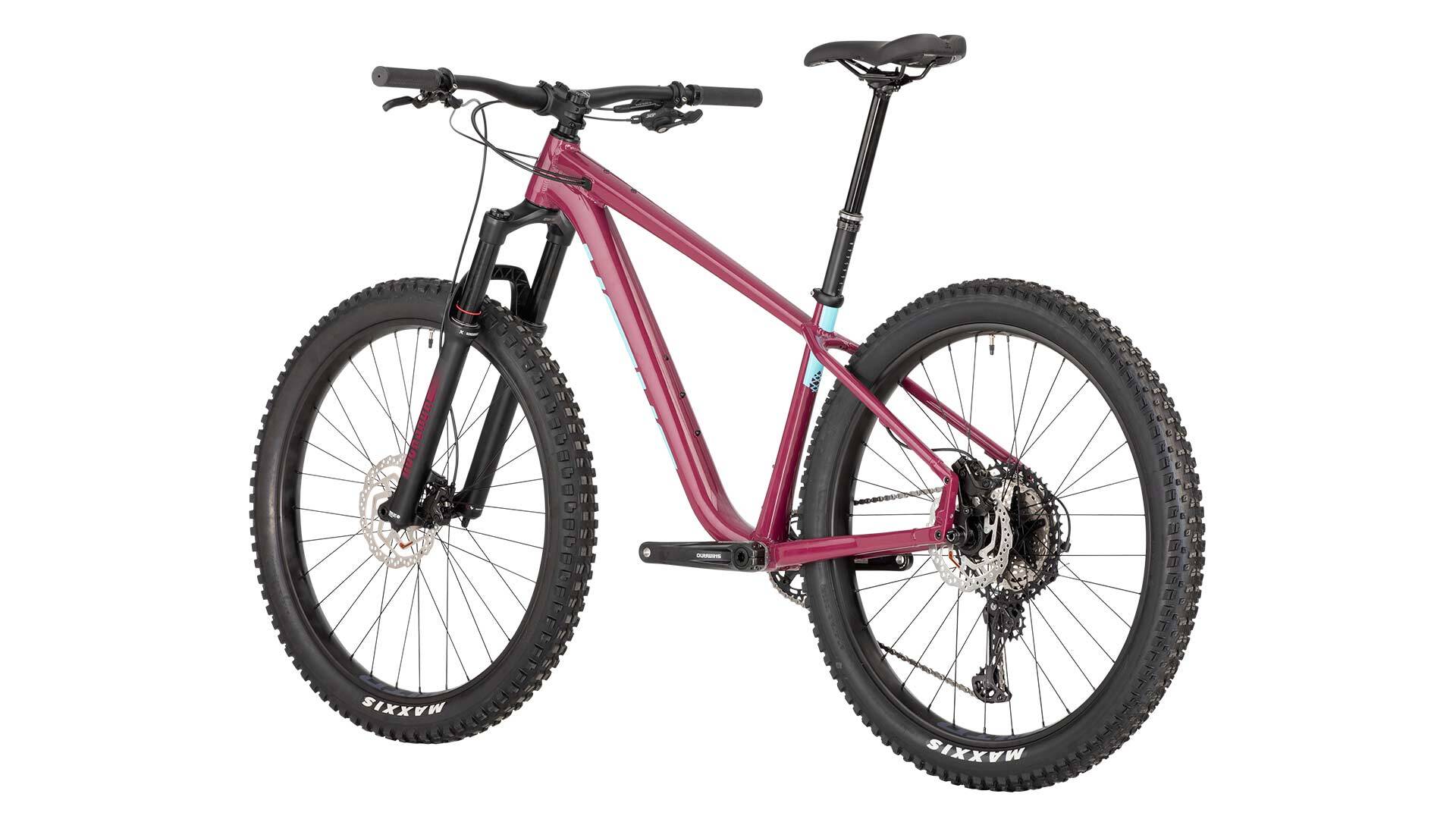

  • Salsa Timberjack XT 27.5 bike dark red color rear three-quarter view
1 3

2021 Timberjack XT 27.5+

2021 Timberjack XT 27.5+

Archived

We’ll let you in on a secret: hardtails can be just as fun as a full-suspension rig, especially when it’s our all-new Timberjack trail hardtail. The updated geometry nudges you to ride bolder lines and push your limits. Mounts for bottles, accessories, and a rear rack extend your riding range and comfort. Our adjustable Alternator 2.0 dropouts let you dial in your preferred ride characteristics and allow for a variety of drivetrain options if you want to change things up. 27.5 x 2.8” wheels and tires bring a playful, nimble trail feel with loads of grip. Shimano’s classic XT group delivers smooth shifting and enough gear range for any elevation profile. The all-new Timberjack is a fun-forward and aggressive hardtail built for your rowdy lunch loops or grander plans.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Timberjack v2 Aluminum
  • Fork: RockShox 35 Gold RL Air, 130 mm
  • Color: Dark Red
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: Shimano XT M8100 SGS
  • Cassette: Shimano SLX M7100 10–51t, 12-speed
  • Chain: Shimano SLX
  • Crankset: Shimano MT510-1, 32t
  • Shifter: Shimano XT M8100
  • Brakes & Rotors: Shimano MT501 or Tektro HD-M745, Shimano RT10 Center Lock rotors (180 mm front, 160 mm rear)
  • Headset (Upper/Lower): FSA Orbit NO.57E 1.5 ZS
  • Stem: Salsa Guide Trail 35.0, 50 mm
  • Handlebar: Race Face Chester 35.0 mm, 780 mm width, 20 mm rise XS–SM; 35 mm Rise MD–XL
  • Grips/Bar Tape: Salsa File Tread
  • Seatpost: TranzX YSP05JL2 30.9 mm, 0 mm offset, 30 mm Travel Adjustable, 125 x 409 mm XS–SM; 150 x 459 mm MD; 170 x 499 mm LG; 200 x 559 mm XL
  • Saddle: WTB Volt Medium, Steel, 142 x 265 mm
  • Front Wheel: Shimano MT400-B Center Lock 15 x 110 mm hub, WTB ST i40 32h 27.5" rim
  • Rear Wheel: Shimano MT410-B Micro Spline Center Lock 12 x 148 mm hub, WTB ST i40 32h 27.5" rim
  • Tires: Maxxis Minion DHF front, Maxxis Rekon rear, 27.5 x 2.8", EXO TR
  • Complete Bike Weight: 32 lbs 11 oz for Medium

Frame Specs

  • Tire Size Range for 622/29" Wheels: 53–66 mm (2.1–2.6")
  • Tire Size Range for 584/27.5" Wheels: 71 mm (2.8")
  • Maximum Wheel/Tire Diameter: 760.5 mm (29.95")
  • Minimum Wheel/Tire Diameter: 728 mm (28.6")
  • Suspension Fork Length (Travel): 511–563 mm (100–150 mm travel)
  • Rigid Fork Length: 483–501 mm
  • Fork Offset: 42–51 mm
  • Headset-Upper: ZS44
  • Headset-Lower: ZS56
  • Seatpost: 30.9 mm
  • Seat Collar: 35 mm
  • Dropper Compatible (Routing): Yes (internal)
  • Front Derailleur Mount: NOT COMPATIBLE
  • Bottom Bracket: 73 mm BSA
  • Crankset (Max Ring): 52 mm Boost chainline 1x only (34t)
  • Rear Brake (Rotor): IS mount (180 mm max)
  • Rear Spacing: 148 mm
  • Rear Axle: M12 x 180L, TP = 1.5, TL = 20
  • Derailleur Hanger: Alternator 2.0 Swing Plate
  • Water Bottle Mounts: XS = 1, SM–XL = 2
  • Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
  • Fender Mounts: NOT COMPATIBLE
  • Accessory Mounts: Yes, one pair
  • TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
  • Downtube Accessory Mounts: Yes, one pair

Geometry

Geometry Diagram
Metric XS SM MD LG XL
Top Tube Effective Metric 570 594.1 615.3 639 659.3
Seat Tube Length Metric 342.9 370 395 432 457.2
Head Tube Length Metric 100 100 105 115 125
Head Tube Angle 66.4 66.4 66.4 66.4 66.4
Seat Tube Angle 75.1 75.1 75.1 75.1 75.1
BB Drop Metric 56.6 56.6 56.6 56.6 56.6
Chainstay Length Metric 420-437 420-437 420-437 420-437 420-437
Fork Length Metric 510.5 510.5 510.5 510.5 510.5
Fork Offset Metric 44 44 44 44 44
Wheelbase Metric 1120 1142.5 1164.5 1180.5 1211.7
Stack Metric 599 599 607.4 613.5 625.5
Reach Metric 410.7 433.6 453.6 475.5 492.6
Standover Metric 685.5 705.2 724.7 754.8 775.5
Rider Height Metric 157cm–163cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
Stem Length 50 50 50 50 50
Crank Length 170 170 175 175 175
Handlebar Width 780mm 780mm 780mm 780mm 780mm
Seatpost Offset Metric 0 0 0 0 0
  • an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
  • a 27.5 x 2.8" tire measuring 724.5mm in diameter
  • Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
  • Wheelbase at 420mm chainstay length

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tubing

Timberjack is built from our proprietary, top-shelf 6061-T6 aluminum tubing, which is double- and triple-butted in the main triangle for a light, responsive, and durable frame with great trail feel.

Timberjack Geometry

Our second-generation Timberjack geometry is longer, lower, and slacker for aggressive riding. A 66-degree head tube and long wheelbase make for a stable ride, while a long reach and steep (75-degree) seat tube balance weight distribution for efficient pedaling. Short chainstays (adjustable from 420–437 mm) keep the rear end nimble for responsive handling.

130 mm Suspension Fork

Soak up the harshness of gnarly roots, rock gardens, drops, or whatever’s in your path with 130 mm of suspension travel up front. Timberjack accommodates forks with up to 150 mm of travel.

Adjustable TranzX dropper post

Get your saddle out of the way for steep descents and technical sections with the included dropper post. 30 mm of tool-free travel adjustment lets you dial in the right travel for your fit and riding style.

Alternator 2.0 Dropouts

Our adjustable Alternator dropout system lets you run Timberjack geared or single-speed and accommodates multiple hub standards. Built-in adjustability gives you 17 mm of wheelbase travel so you can dial in your preferred ride characteristics.

Bottle & Accessory Mounts

SM–XL frames have two bottle mounts—including a Three-Pack mount on the downtube—in the main triangle (XS frames have only the Three-Pack mount on the downtube). All sizes feature an accessory mount on the underside of the down tube, plus top tube mounts for our EXP Series Direct Mount Top Tube Bag means room for more ride essentials. Rear rack mounts open up possibilities for larger loads.

Full-Length Internal Routing

Full-length internal routing for brake lines and shift cable housing means more reliable performance in sloppy conditions, simplified maintenance, and a better fit for frame bags.

Wheel and Tire Options

Timberjack is compatible with both 27.5 x 2.8" and 29 x 2.1–2.6" wheel and tire combinations.
