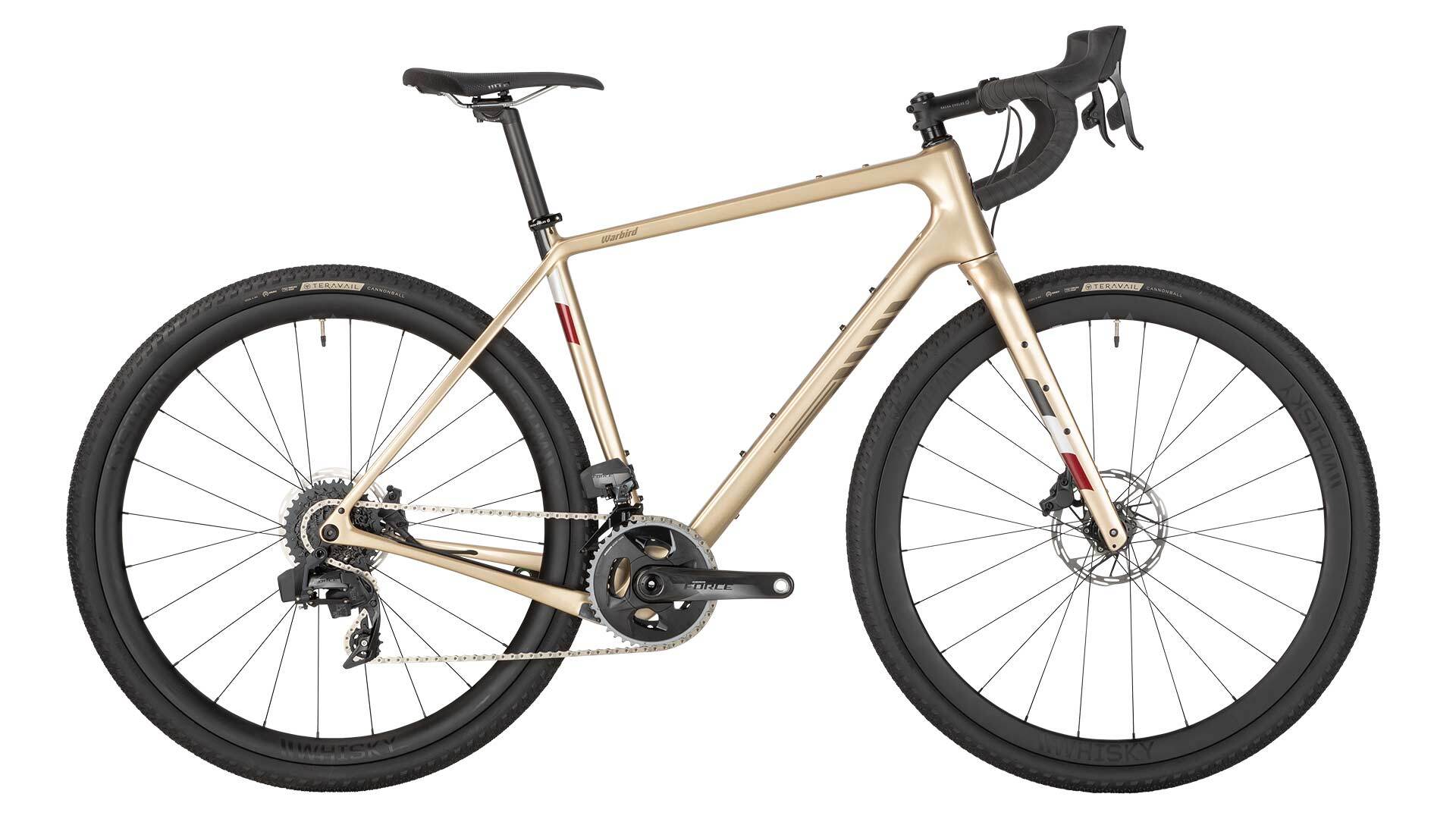

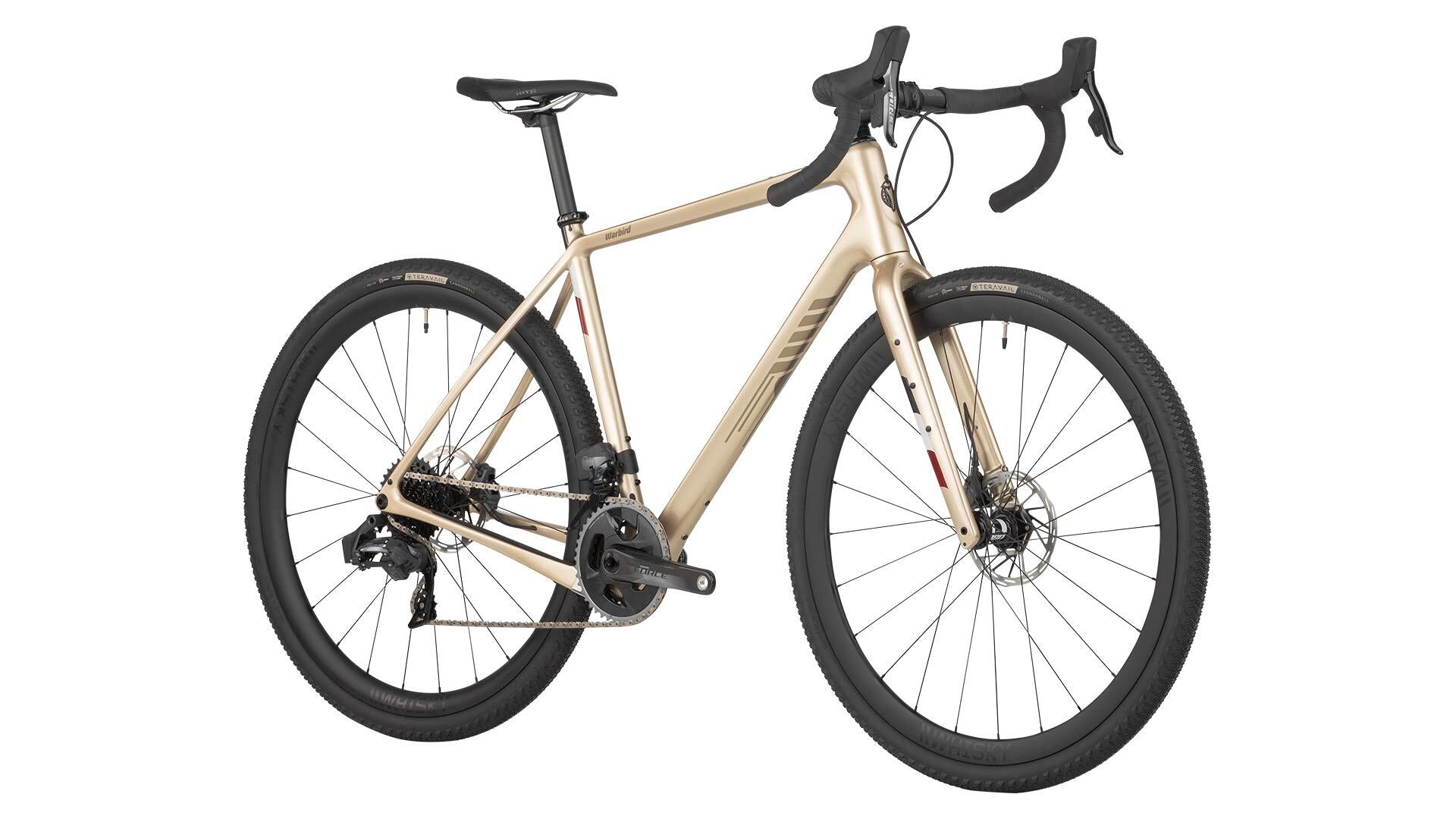

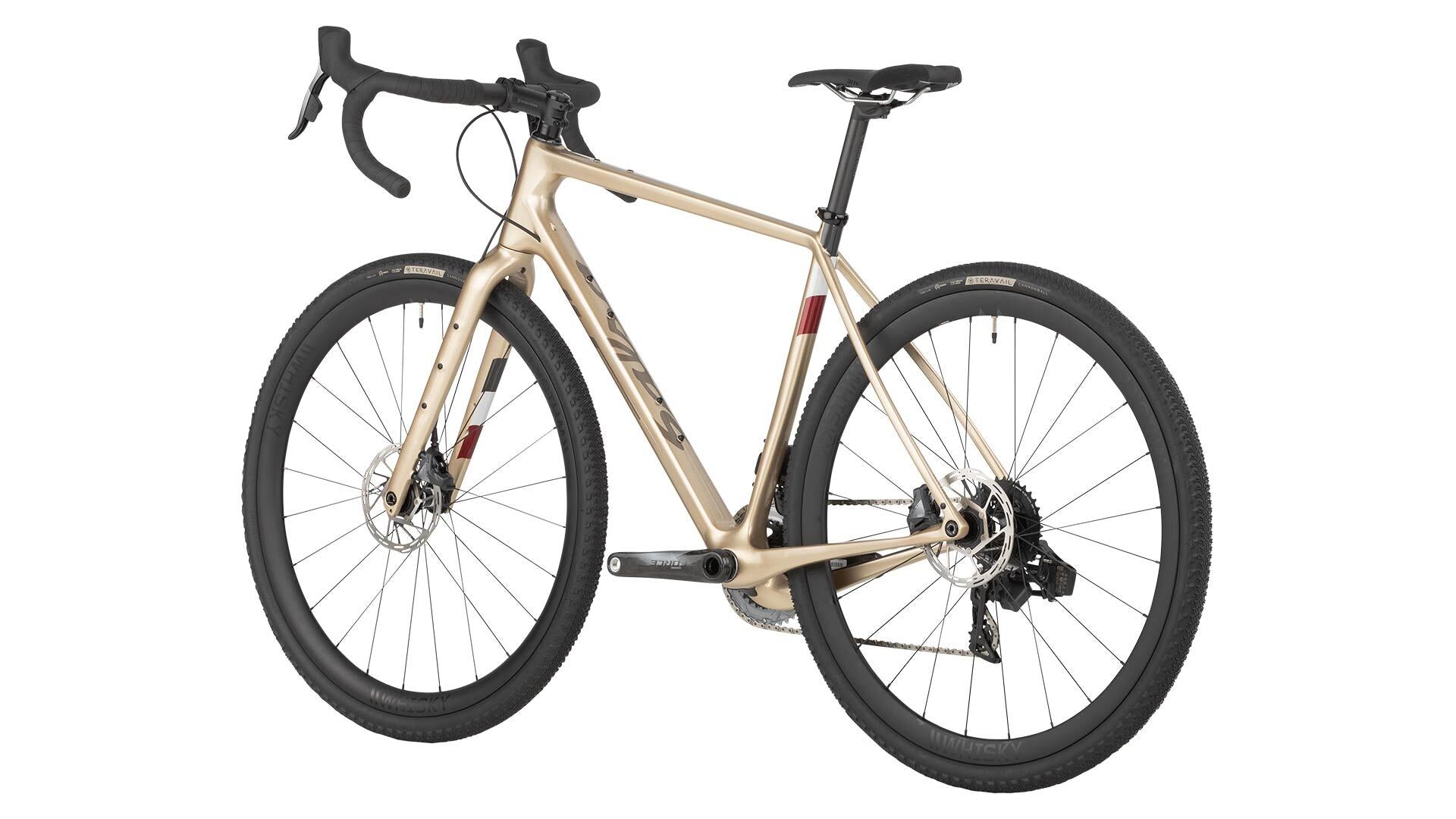

2021 Warbird Carbon AXS Wide

Archived

Warbird Carbon AXS Wide is a high-tech gravel race rig. The carbon frame features our Class 5™ VRS, cutting down on the harsh bumps that take a toll on your body. Warbird’s geometry emphasizes stability and comfort, for a smooth ride feel you’ll be thankful for on long days in challenging conditions. Plentiful frame and fork mounts mean you can bring everything from extra bottles to a bikepacking kit on your rides. SRAM’s AXS Wide group provides a wide-range 2 x 12 system with the ease of wireless electronic shifting. Saddle up and chase podiums on the best gravel race bike we’ve ever made.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

Frame: Warbird Carbon
Fork: Waxwing Deluxe
Color: Gold
Rear Shock: N/A
Front Der: SRAM Force eTap AXS Wide
Rear Der: SRAM Force eTap AXS, Medium Cage
Cassette: SRAM XG-1270-D1 10–33t, 12-speed
Chain: SRAM Force D1
Crankset: SRAM Force D1, DUB, Wide, 43/30t
Shifter: SRAM Force eTap AXS HRD
Brakes & Rotors: SRAM Force Hydraulic, SRAM Paceline rotors (160 mm)
Headset: Cane Creek 40
Stem: Salsa Guide
Handlebar: Salsa Cowbell Carbon
Grips: Anti-Slip Silicone handlebar tape
Seatpost: Salsa Guide Carbon
Saddle: WTB SL8 Medium Cromoly SL
Front Wheel: DT Swiss 350 12 x 100 mm hub, Whisky No.9 GVL Carbon 700c rim, 24h
Rear Wheel: DT Swiss 350 12 x 142 mm hub, Whisky No.9 GVL Carbon 700c rim, 24h
Tires: Teravail Cannonball 700c x 42 mm, Durable casing
Complete Bike Weight: 18.21 lbs for size 56cm

Frame Specs

Max Tire OD: 700c: 716mm / 650b: 696mm
Design Wheel/Tire Size: 622 - 32 (700 x 32mm)
Alternate Wheel/Tire Size: 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
Suspension Fork Length (Travel): 436.7mm axle-to-crown (40mm travel)
Rigid Fork Length: 405mm
Fork Offset: 50mm
Headset-Upper: IS41
Headset-Lower: IS52
Seatpost: 27.2mm
Seat Collar: 32.0mm
Bottom Bracket: BB86 PressFit
Crankset: 1x: 44t max; 2x: 52/36t max, 46/30t minimum
Rear Brake (Rotor): Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing: 142mm
Rear Axle: M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger: Hanger 465, QBP# FS2322
Fender Mounts: Yes, required fender hardware included
Rack Mounts: Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
Water Bottle Mounts: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
Downtube Accessory Mount: Yes, one pair
Toptube Mounts: Yes, compatible with Salsa Toptube bag
Stem Clamp: Ø28.6mm
Crown Race: Integrated SHIS 40, 36° angle
Front Brake (Rotor): Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
Front Spacing: 100mm
Front Thru-Axle: M12 x 120L, TP = 1.5, TL = 12mm
Three-Pack Mounts: One mount per fork leg
Rack Mounts: 165mm Lowrider compatible, Salsa Down Under rack recommended
Front Spacing: 12 x 100 mm TA
Front Axle: M12 x 120L, TP = 1.5, TL = 12 mm
Three-Pack Mounts: One mount per fork leg.
Rack Mounts: 165 mm Low-rider compatible. Salsa Down Under rack recommended.

Geometry

Metric	49cm	52.5cm	54.5cm	56cm	57.5cm	59cm	61cm
Top Tube Effective Metric	499	525	545	560	575	590	610
Seat Tube Length Metric	390	440	475	510	520	545	570
Head Tube Length Metric	90	120	140	160	180	200	220
Head Tube Angle	71	70.75	70.75	70.75	70.75	70.75	70.75
Seat Tube Angle	75	74	73	73	73	73	72.5
BB Drop Metric	70	70	70	70	70	70	70
Chainstay Length Metric	430	430	430	430	430	430	430
Fork Length Metric	405	405	405	405	405	405	405
Fork Offset Metric	50	50	50	50	50	50	50
Wheelbase Metric	996.14	1011.96	1022.39	1038.21	1054.03	1069.85	1084.54
Stack Metric	517.85	547.09	565.97	584.85	603.73	622.61	641.5
Reach Metric	360.24	368.13	371.97	381.19	390.42	399.65	407.74
Standover Metric	670.2	714.48	744.3	770.11	785.96	808.4	830.55
Rider Height Metric	142cm–157cm	155cm–165cm	162cm–173cm	170cm–180cm	178–188cm	185–193 cm	190cm–UP
Stem Length	70	70	80	90	90	100	110
Crank Length	165	170	170	172.5	172.5	175	175
Handlebar Width
Seatpost Offset Metric	18	18	18	18	18	18	18

A Warbird Carbon Fork which is 405 x 50mm offset
A 700c x 32mm tire measuring 698mm in diameter
Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Class 5 VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warbird Geometry

Warbird features the latest evolution of our already industry leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long top tubes paired with short stems provide increased stability at high speed and on rough descents

Waxwing Deluxe Fork

This full-carbon fork utilizes a 12 x 100 mm thru axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal Dynamo Hub Cable / Routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles

700c x 42 mm Wheel/Tire Spec

For faster acceleration and overall speed

Dual Wheel Size Compatible

Warbird fits up to 700c x 45 mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand

Integrated Toptube Bag Mount

Bolt on your Salsa EXP Series Top Tube Bag for secure connection and elimination of strap wear

Generous Water Bottle Capacity

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Internal tubes guide housing through the frame, simplifying setup and maintenance

Refined Drivetrain Compatibility

Designed to accept 1x, 2x, and current electronic offerings

Stealth Dropper Post Compatible

Accepts 27.2 mm dropper posts for more confident descending at high speeds on rough, unpredicatable gravel roads. Internal stealth routing when running 1x setups

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar

FAQ

Can I run fenders on the Warbird?

Yes, Warbird will fit up to 700c x 38mm tires or 650b x 47mm tires with fenders.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a gravel suspension fork with an axle-to-crown length up to 436.7mm (typically 40 mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty andcould result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
