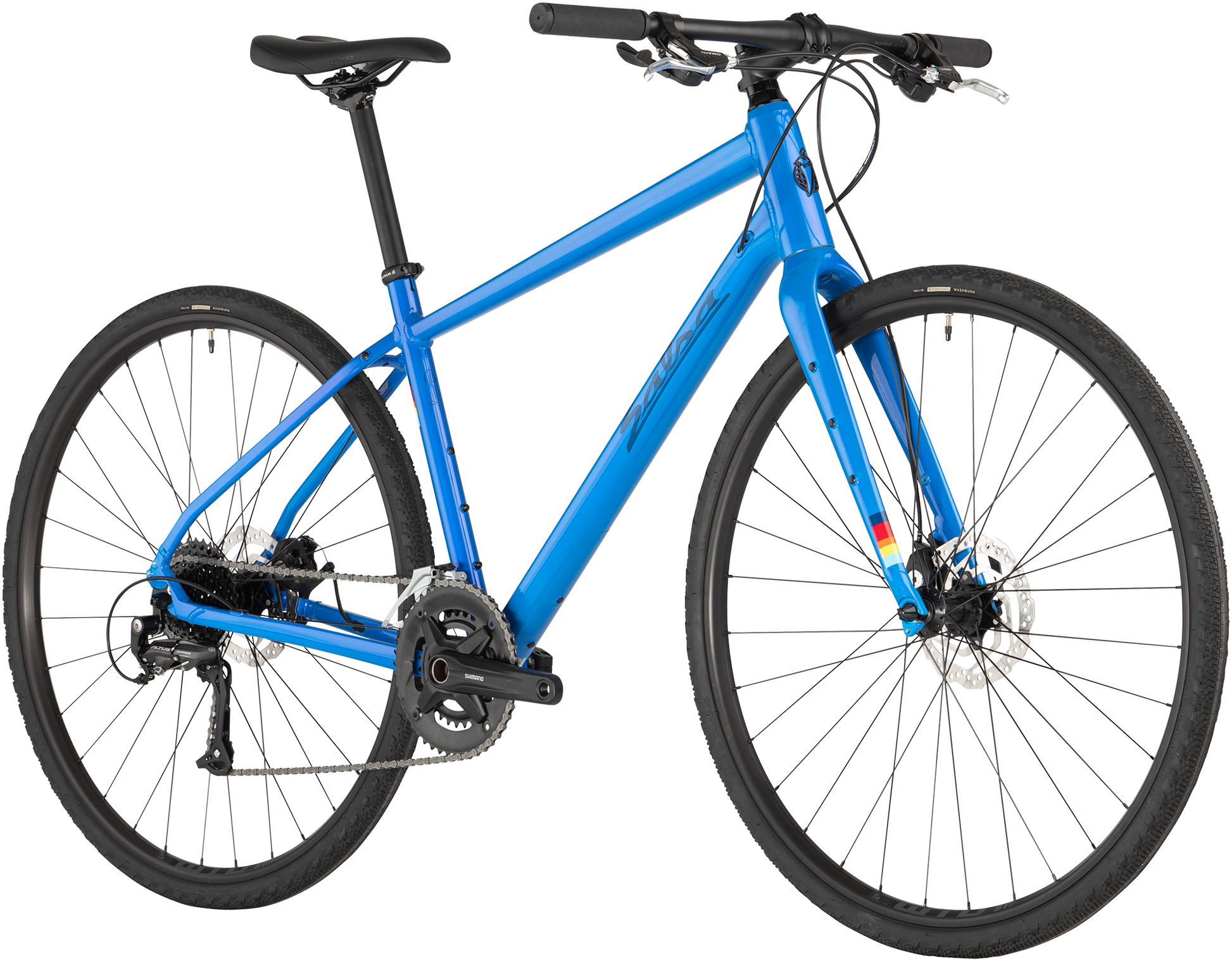

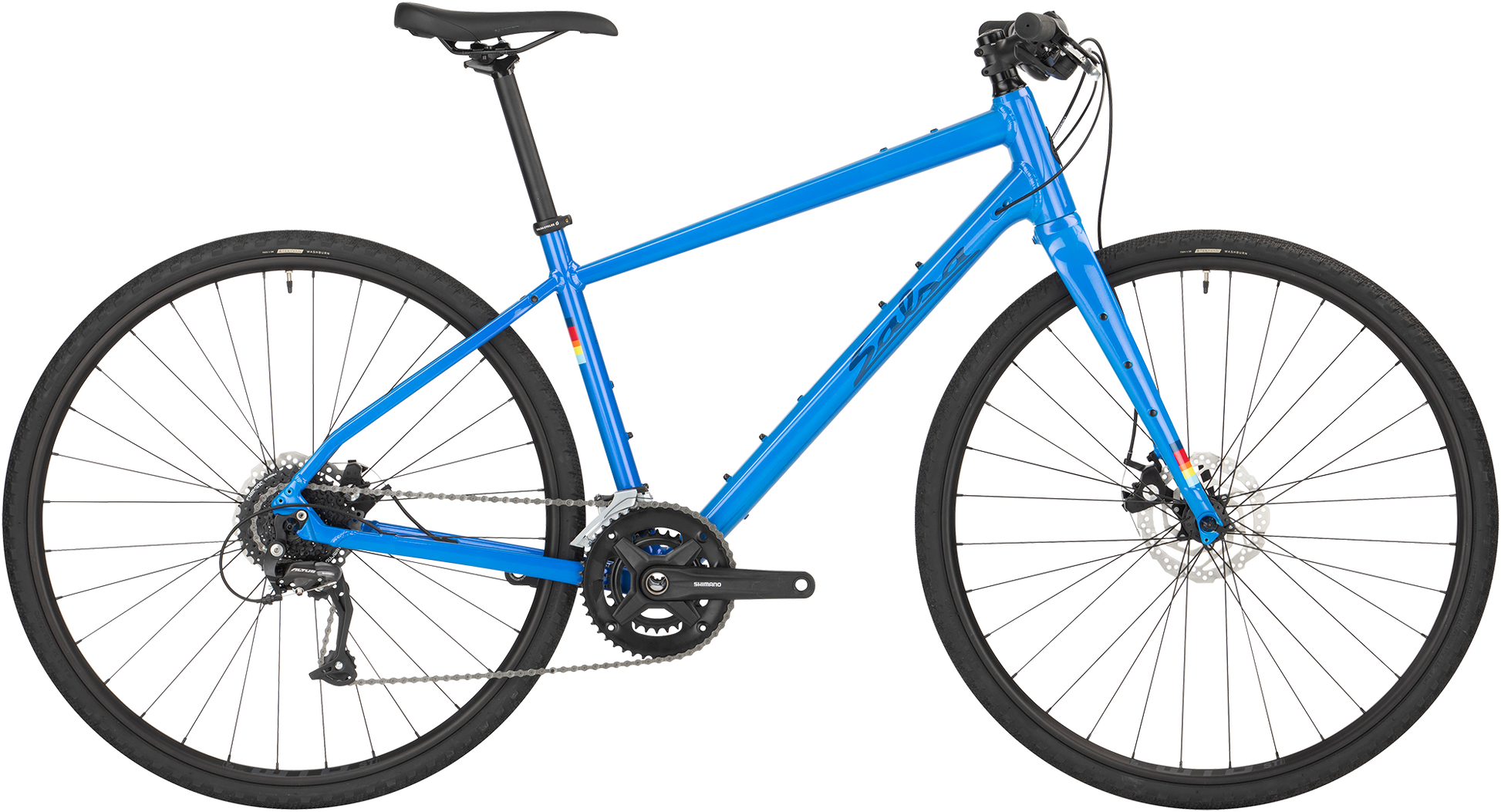

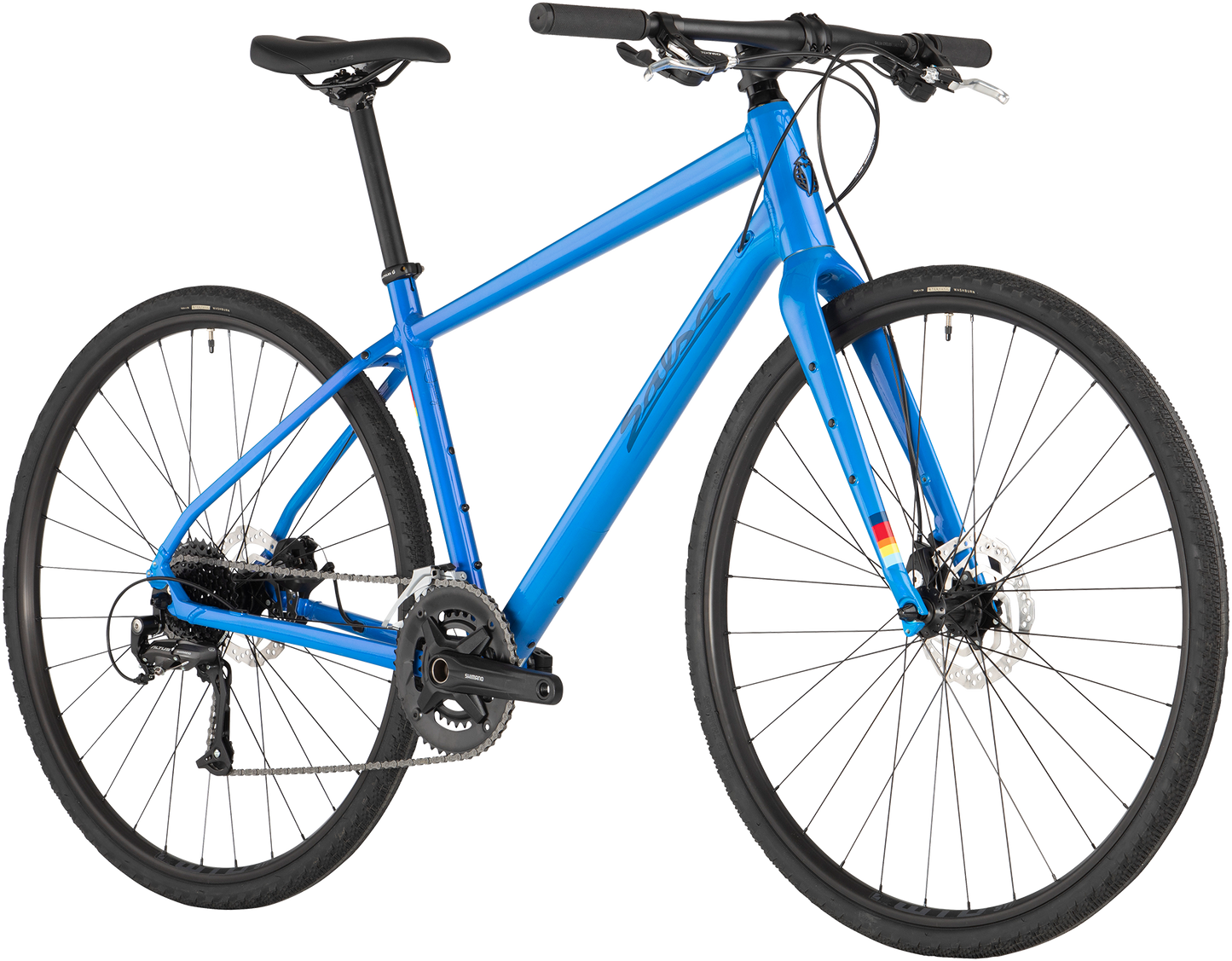

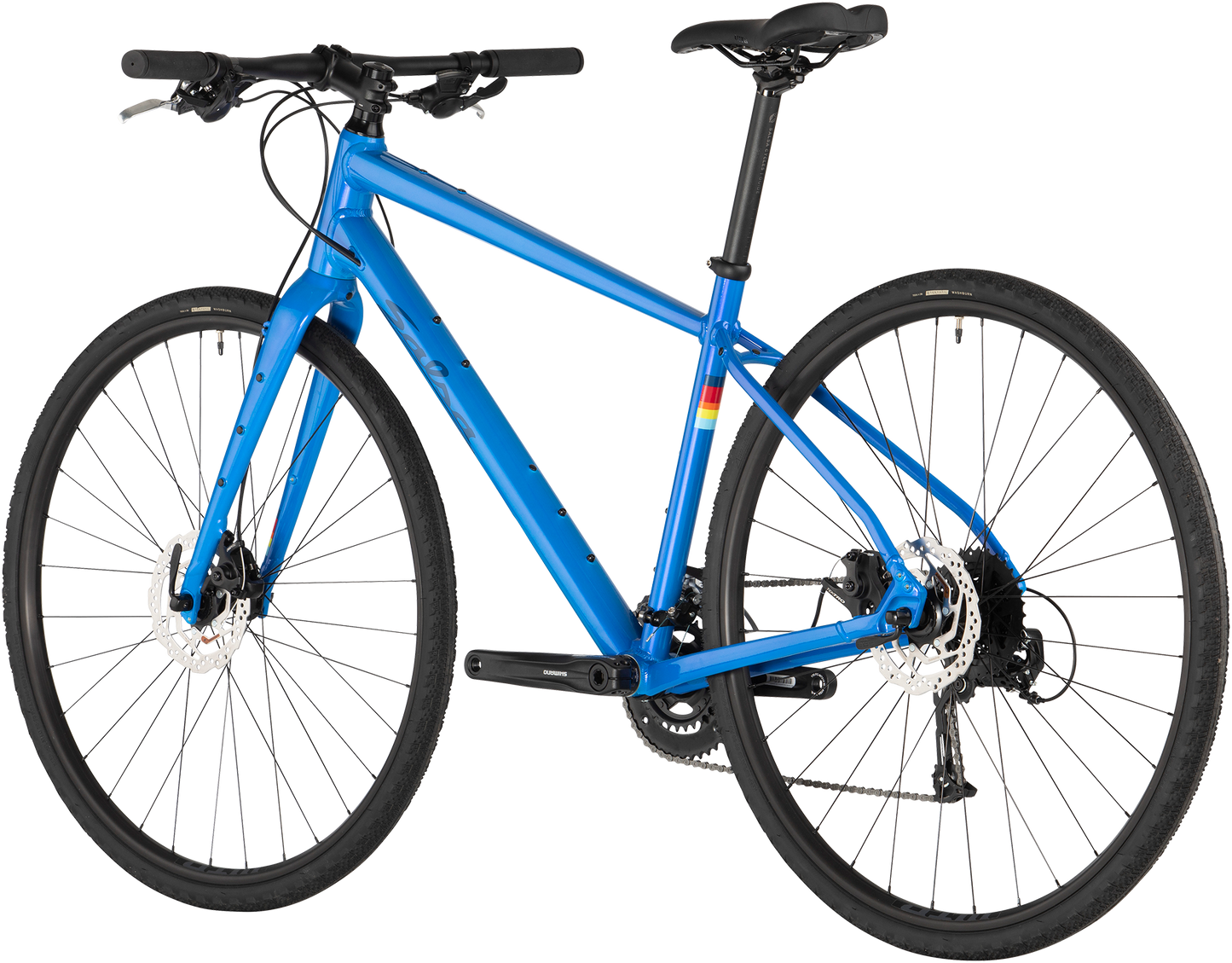

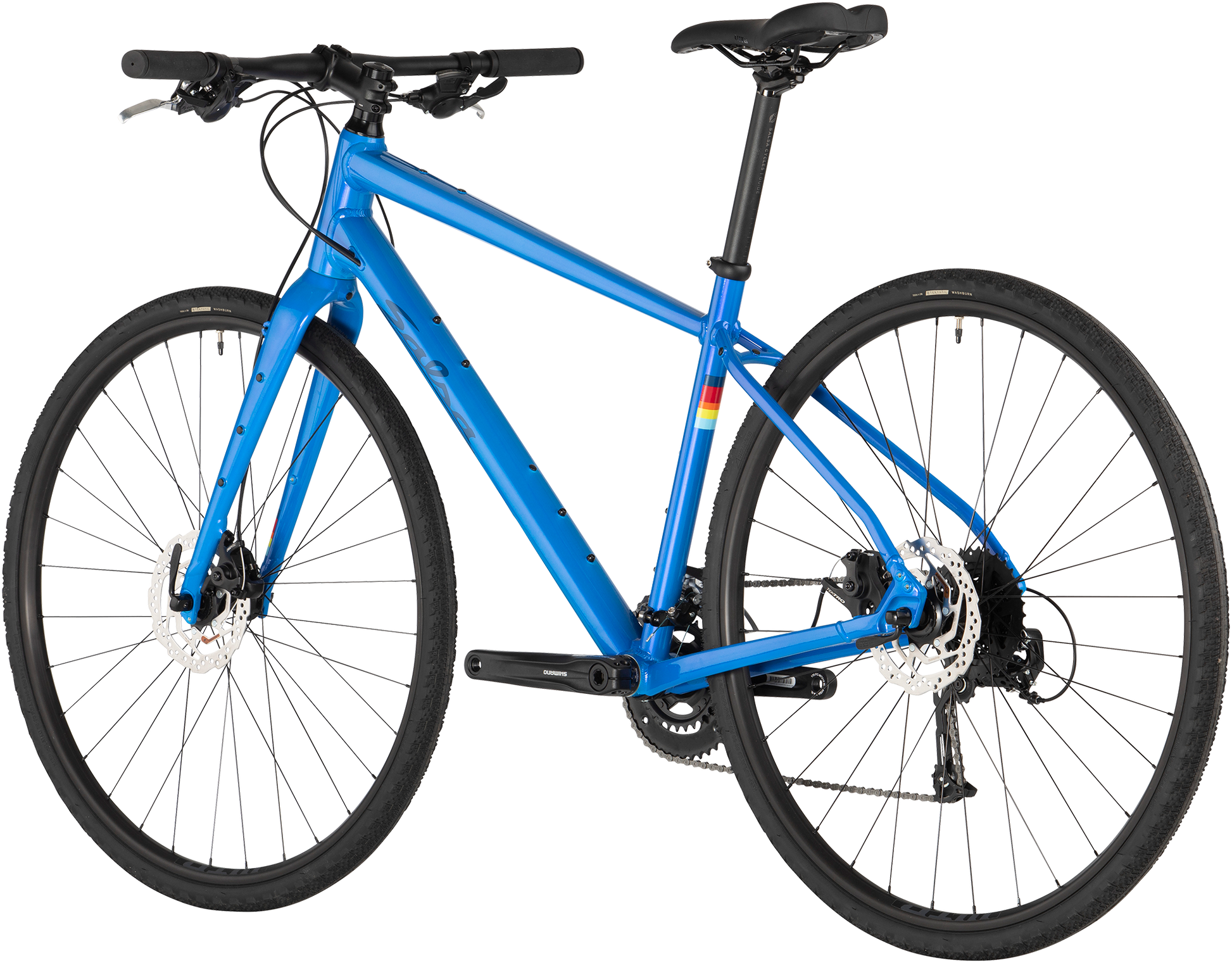

Journeyer Flat Bar Altus 700c

$629.99 USD

~~$899.00 USD~~ $629.99 USD

Sale

Size X-Small Small Medium Large X-Large

Journeyer Flat Bar Altus 700c combines the comfort of an upright riding position with the capability of a gravel bike. Its all-new aluminum frame and Fantail aluminum fork feel right at home on dirt roads and pavement alike. Outfit your Journeyer for any adventure with standard rack and fender mounts, plus Three-Pack, bottle, and accessory mounts for extra carrying capacity.

700c x 38 mm wheels and tires offer a balance of rolling efficiency, grip, and comfort. The sturdy Shimano Altus 2 x 9 components promise many trouble-free miles on rugged roads and paths or just around town. Journeyer’s thoughtful design and features make it the best flat bar gravel bike on the road.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More

Product Details

Build Kit

Frameset

Frame

Journeyer Flat-Bar Quick-Release
Color

Blue
Fork

Fantail

Components

Headset

FSA NO.42 ACB IS-2
Seatpost

Salsa Guide 27.2 x 350 mm, 12 mm offset
Stem

Salsa Guide 31.8, 6-degree
Grips/Bar Tape

Salsa File Tread
Saddle

WTB Volt Medium, Steel, 142 x 265 mm
Handlebar

Salsa Salt Flat 31.8, 700 mm

Drivetrain

Front Derailleur

Shimano Acera T3000-2-TS3
Rear Derailleur

Shimano Altus M370-L SGS
Cassette

Shimano M200, 11–34t, 9 speed
Chain

KMC Z9 OR KMC X8
Crankset

Shimano MT210 46/30t, Shimano MT500 bottom bracket -OR- FSA VERO PRO ML019 46 S.B Black 46/30t 165L
Shifter

Shimano Altus M2010
Brake Levers

Tektro RS360A lever
Brake Calipers

Tektro MD-U310
Rotors

Shimano RT10 (160 mm)

Wheels

Front Wheel

Shimano TX505 9 x 100 mm QR hub, WTB ST i23 700c rim, 32h
Rear Wheel

Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 700c rim, 32h
Front Tire

Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead
Rear Tire

Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	550.0	570.0	600.0	625.0	650.0
B. Stand Over	613.5	648.5	684.5	720.5	756.5
C. Reach	393.0	404.0	423.0	436.0	450.0
D. Stack	514.0	542.0	580.0	617.0	655.0
E. Total Seat Tube Length	340.0	380.0	450.0	490.0	530.0
F. Headtube Length	90.0	120.0	160.0	200.0	240.0
G. Headtube Angle	69.5	69.5	69.5	69.5	69.5
H. Seat Tube Angle	73.0	73.0	73.0	73.0	73.0
I. BB Drop	70.0	70.0	70.0	70.0	70.0
K. Chainstay Length	440.0	440.0	440.0	440.0	440.0
L. Fork Length Axle to Crown	402.0	402.0	402.0	402.0	402.0
M. Fork Offset	50.0	50.0	50.0	50.0	50.0
N. Wheelbase	1047.0	1069.0	1101.0	1129.0	1156.0
Crank Arm Length	165.0	170.0	170.0	172.5	175.0
Handlebar Width	700.0	700.0	700.0	700.0	700.0
Recommended Rider Height	142.0 - 155.0	152.0 - 165.0	163.0 - 175.0	173.0 - 185.0	183.0 - 196.0
Stem Length	60.0	70.0	70.0	80.0	90.0

Measurements based on:

a fork measuring 405mm with 50mm offset
a 700 x 38mm tire measuring 706 mm in diameter
Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Size Guide

Journeyer Flat Bar Size Chart (PDF)

Frame Specs

Design Wheel/Tire Sizes 700c x 38 mm
Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length 405 mm axle-to-crown
Fork Offset 50 mm
Rear Spacing 135 mm
Rear Axle Size 10 x 135 mm quick release
Rear Brake (Rotor) Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Brake (Rotor) Flat mount 140 fork standard (160 mm max.)
Headset - Upper IS41
Headset - Lower IS52
Front Spacing 100 mm
Front Axle Size 9 x 100 mm quick release
Crown Race 40 mm
Stem Clamp 28.6 mm / 1 1/8"
Seatpost 27.2 mm
Dropper Post Compatible Yes, internal
Seatpost Clamp 32.0 mm
Front Derailleur Clamp 31.8 mm OD, bottom pull
Front Derailleur Type 2x, bottom swing
Derailluer Hanger Salsa 959
Bottom Bracket 68 mm BSA
Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max
Accessory Mounts Downtube Accessory Mounts: Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
Bottle Mounts XS frame: 1 in main triangle; SM frame: 2 in main triangle; MD, LG, and XL frames: 3 in main triangle
Front Fender Mounts Yes
Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

Fantail Aluminum Fork

The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Gravel Geometry

Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

700c x 38 mm Wheels and Tires

700c wheels hold their momentum well, and the 38 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Salt Flat Handlebar

Flat handlebars offer excellent leverage and control, especially when riding on surfaces that demand a little extra attention. Flat handlebars also put you in a comfortable upright position. Our Salt Flat handlebar has 11° back sweep, 6° of up sweep, and zero rise for performance that feels natural.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
