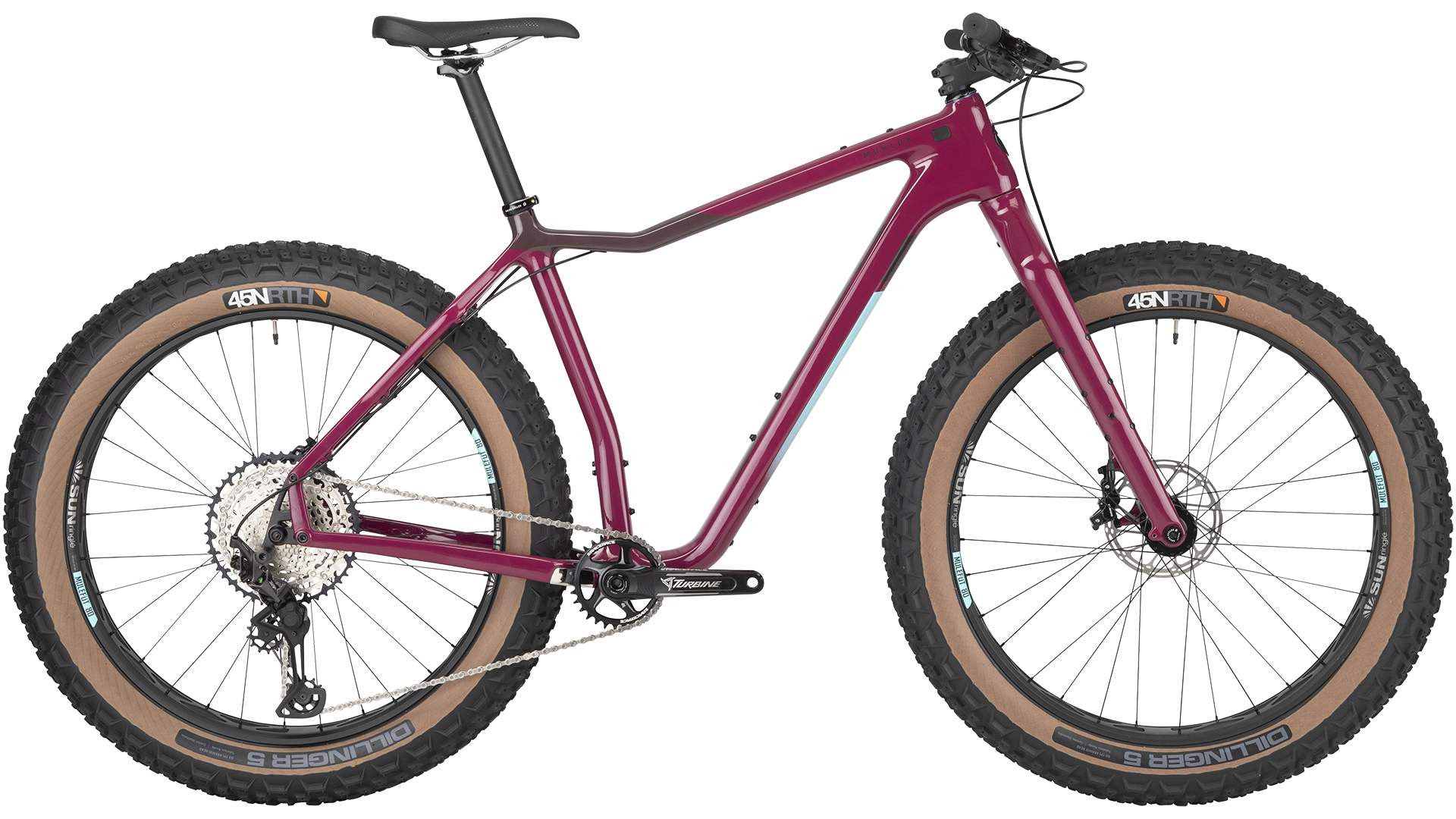

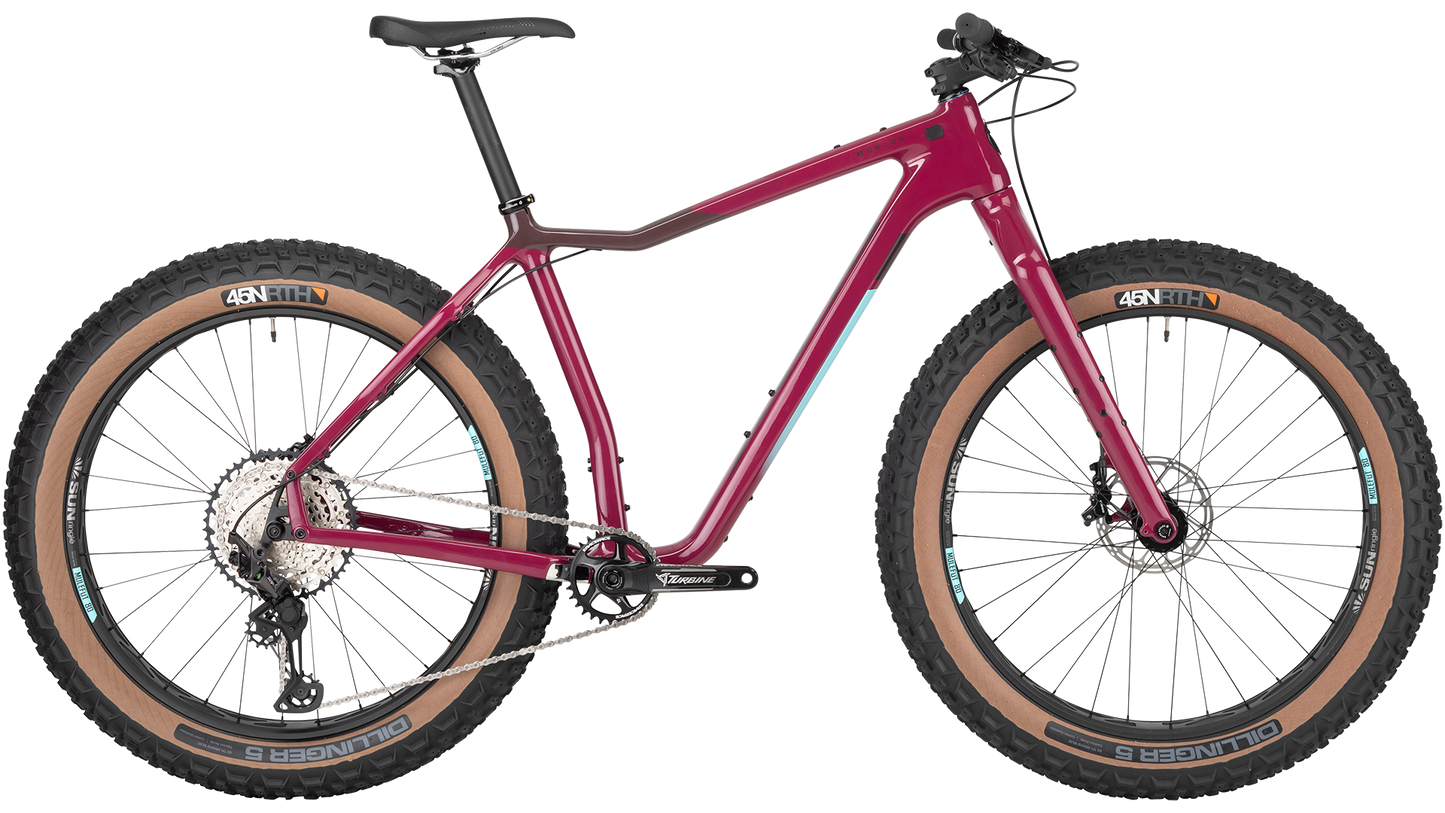

2022 Mukluk C XT
2022 Mukluk C XT
This is an archived bike model. Explore the current range of Salsa bikes here.
Warning for Residents of California
Warning for Residents of California
⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
Bike Key Features
-
On-Bike Storage
View More- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Alternator Dropouts
View More- Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
- Ability to tension chain for single speed use
- Riders have upgrade options
Use the previous and next buttons to traverse through the carousel.
Product Details
Build Kit
Frameset
-
Frame
Mukluk Carbon
-
Color
Purple
-
Fork
Kingpin Deluxe
-
Rear Shock
N/A
Components
-
Headset
Cane Creek 40
-
Seatpost
Salsa Guide
-
Stem
Salsa Guide Trail, 35.0 mm clamp
-
Grips/Bar Tape
Salsa File Tread Lock-On
-
Saddle
WTB Volt Cromoly Medium
-
Handlebar
Race Face Aeffect R 35
Drivetrain
-
Front Derailleur
N/A
-
Rear Derailleur
Shimano XT M8100
-
Cassette
Shimano SLX M7100, 10–51t, 12-speed
-
Chain
Shimano SLX M7100
-
Crankset
Race Face Turbine, 30t
-
Shifter
Shimano XT M8100
-
Brake Levers
SRAM G2 RS
-
Brake Calipers
SRAM G2 RS
-
Rotors
SRAM Centerline rotors (160 mm, 6-bolt)
Wheels
-
Front Wheel
SUNRinglé SRC 15 x 150 mm hub, SUNRinglé Mulefüt SL 80 mm rim
-
Rear Wheel
SUNRinglé SRC 12 x 197 mm hub, SUNRinglé Mulefüt SL 80 mm rim
-
Front Tire
45NRTH Dillinger 5, 26 x 4.6" 60 TPI, Tubeless-Ready, Folding , Tan Wall, Custom Studdable
-
Rear Tire
45NRTH Dillinger 5, 26 x 4.6" 60 TPI, Tubeless-Ready, Folding , Tan Wall, Custom Studdable
*Specifications are subject to change without notice
Geometry
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 573.0 | 594.0 | 615.0 | 636.0 | 657.0 |
| B. Stand Over | 656.5 | 678.0 | 722.8 | 799.8 | 765.3 |
| C. Reach | 391.8 | 409.9 | 428.1 | 446.2 | 464.4 |
| D. Stack | 592.7 | 602.1 | 611.4 | 620.7 | 630.1 |
| E. Total Seat Tube Length | 381.0 | 406.0 | 457.0 | 508.0 | 558.0 |
| F. Headtube Length | 103.0 | 113.0 | 123.0 | 133.0 | 143.0 |
| G. Headtube Angle |
69.0
|
69.0
|
69.0
|
69.0
|
69.0
|
| H. Seat Tube Angle |
73.0
|
73.0
|
73.0
|
73.0
|
73.0
|
| I. BB Drop | 63.0 | 63.0 | 63.0 | 63.0 | 63.0 |
| K. Chainstay Length | 432.0- 449.0 | 432.0- 449.0 | 432.0- 449.0 | 432.0- 449.0 | 432.0- 449.0 |
| L. Fork Length Axle to Crown | 483.0 | 483.0 | 483.0 | 483.0 | 483.0 |
| M. Fork Offset | 51.0 | 51.0 | 51.0 | 51.0 | 51.0 |
| N. Wheelbase | 1077.1 | 1098.9 | 1120.6 | 1164.1 | 1142.3 |
| Crank Arm Length | 170.0 | 170.0 | 170.0 | 175.0 | 175.0 |
| Handlebar Width | 780.0 | 780.0 | 780.0 | 780.0 | 780.0 |
| Recommended Rider Height | 157.0 - 168.0 | 165.0 - 175.0 | 173.0 - 183.0 | 180.0 - 191.0 | 188.0 |
| Stem Length | 40.0 | 50.0 | 60.0 | 70.0 | 70.0 |
Measurements based on:
- A Salsa Kingpin fork which is equivalent to a 100mm RockShox Bluto fork at 25% sag
- A 26 x 4.8" tire measuring 759mm in diameter
- Standover is measured from ground to top of toptube at forward portion of the kink
Frame Specs
Supportive Documents
Support Document links
Additional Features
High-Modulus Carbon Fiber Frame
This material offers the best blend of stiffness, vibration damping, durability, and weight savings
Mukluk Geometry
Mukluk’s geometry works extremely well in all conditions and use cases, whether it's riding groomed singletrack at your local trail, exploring a coastline, or embarking across the wild frozen expanses of Alaska. We use the shortest chainstays possible with a headtube angle and fork offset that place the rider’s center of gravity farther back. This combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still feels nimble despite the massive wheels and tires. A low bottom bracket also keeps the rider’s center of gravity low and makes dabbing, dismounting, and remounting easier
26 x 4.6" Wheel & Tire Size
Mukluk rolls on 26 x 4.6" tires on 80 mm rims. This huge tire delivers massive traction, stability, and optimum floatation on soft surfaces such as ungroomed snow or loose sand
Kingpin Deluxe Fork
Featuring full-carbon construction, the Kingpin Deluxe Fork is lightweight and durable, with an amazing array of accessory mounts to help you make the most of your Mukluk: Two sets of Three-Pack mounts on each fork leg for water bottles or Anything Cages / Lowrider rack mounts work with our Down Under front rack for a traditional touring setup / Internal dynamo hub wire routing keeps the front end looking clean
Alternator Dropouts V2.0
Mukluk Carbon is spec'd with a two-position fixed plate. The first of the two openings allows room for a 4.7" tire on a 70 mm rim and keeps chainstay length to 432 mm. The second position sets the wheel farther back, giving you options for larger rim and tire combinations. Adjustable dropout plates are available separately for single speed setups or finer adjustments
Front Wheel and Tire Options
The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8–5.0” on up to a 100mm rim / 27.5 x 3.0–4.0” on an 80mm rim / 29 x 2.3–3.0” on a 50mm rim
Rear Wheel & Tire Options
The Mukluk frame is designed for use with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.25–3.0" on a 50 mm rim
Optimal 1x or 2x Drivetrain Design with Narrow Q-Factor Cranks
The Mukluk frame is 1x and 2x-compatible and designed for premium drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197 mm symmetrical rear end for modern rim and tire fit / 100 mm threaded bottom bracket / Rider-friendly narrow Q-factor cranks / Designed for 1x or 2x drivetrains / Up to a 32t max chainring for 1x setups; 36/24t max for 2x setups
Full-Length Internal Housing Cable Routing
Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals
Stealth Dropper Post Routing
Compatible with 31.6 mm dropper posts for a true trail bike experience
Rear Rack Compatible
Designed for use with the Salsa Alternator Rack 190/197 (Salsa Rack-Lock seatpost collar required)
Multiple Accessory Frame Mounts
Mukluk Carbon features numerous accessory mounts: Top tube mounts for use with Salsa EXP Series Direct Mount Top Tube Bag / 2 water bottle mounts inside frame triangle / 1 accessory mount on under-side of down tube
FAQ
Will the Manitou Mastadon fork fit on my Mukluk?
Mukluk Carbon = Yes, but customer needs to check crown clearance if less than 3mm. (If less than 3mm, Salsa offers a Cane Creek spacer part # HD8880); Mukluk Aluminum = No
What wheel and tire sizes can I use on this frame?
Mukluk Carbon and Aluminum frames are designed to work with:
26 x 3.8–5.0" on up to 100mm rim
27.5 x 3.0–4.0" on an 80mm rim
29 x 2.3–3.0" on a 50mm rim
Can I use a suspension fork on this frame?
Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 51mm offset are strongly recommended, but 45mm offset is also acceptable (increases mechanical trail by 6mm).
How do I take care of the alternator dropouts?
Periodically, we recommend that you remove the bolts, and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly regrease the threaded parts and re-assemble.
Do you offer touch-up paint?
No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.
I crashed and dented (or cracked) my frame. Is it safe to ride?
Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
What is the warranty for this bike?
View Warranty
Warranty Information
All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.
