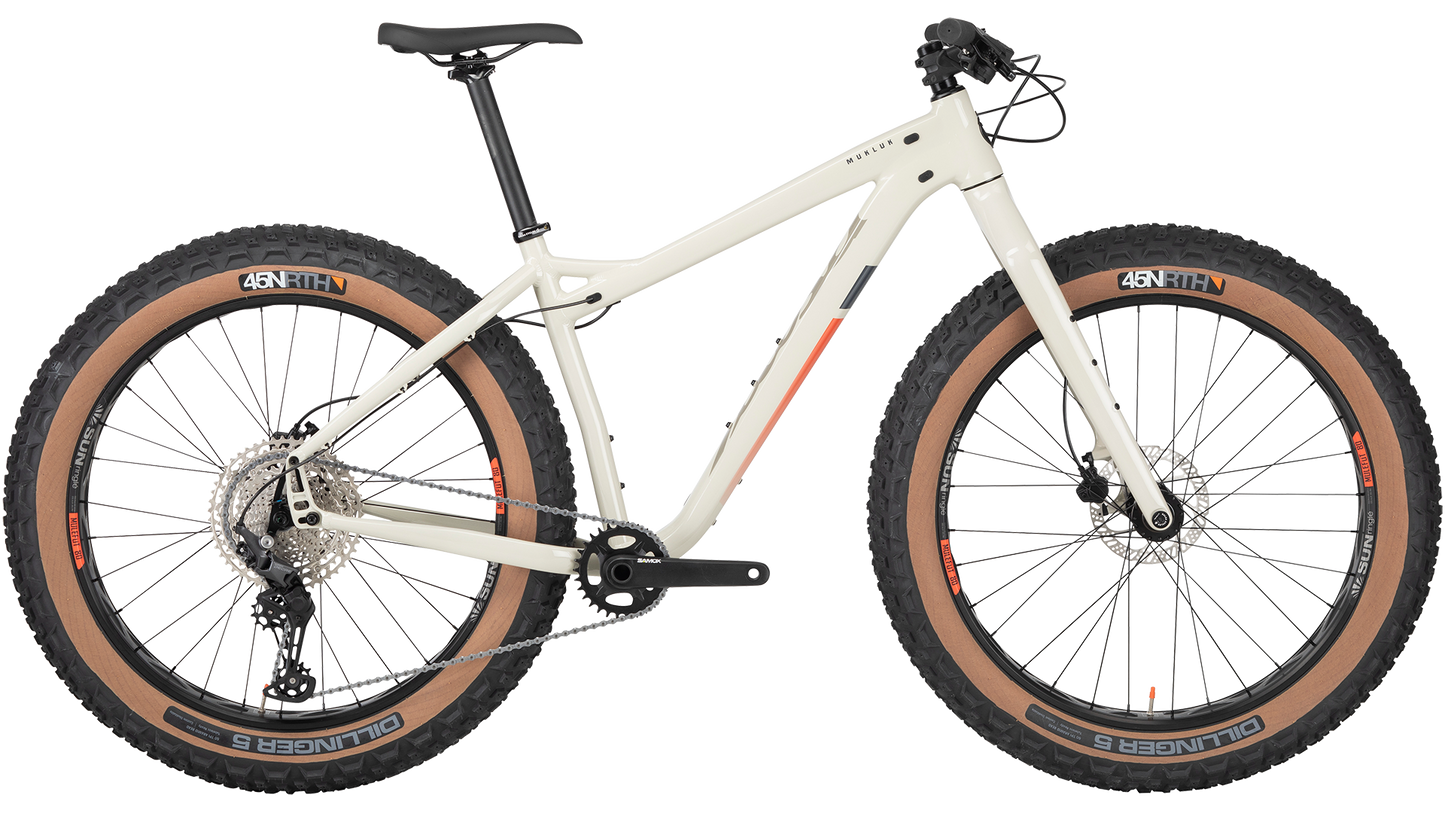

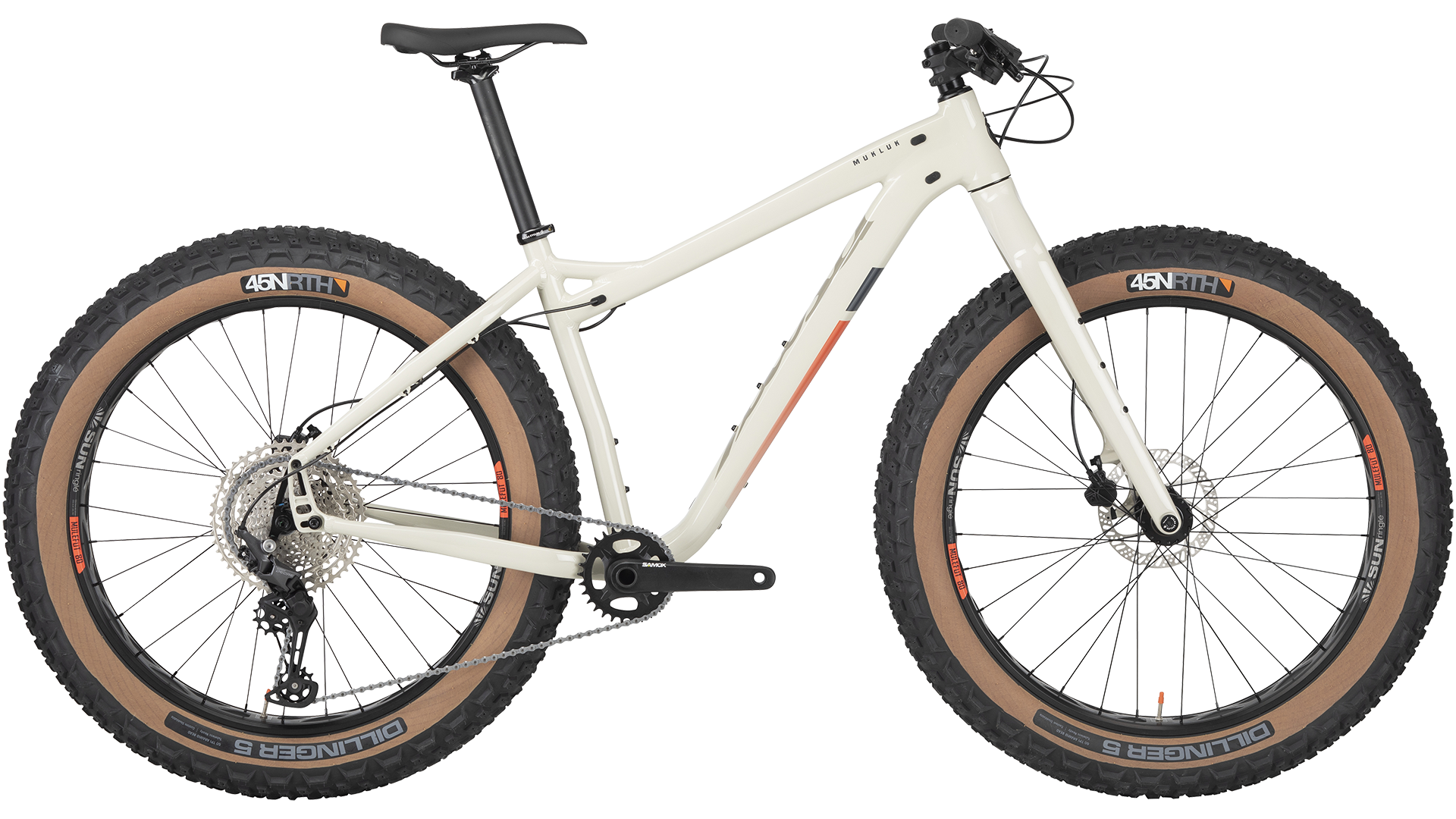

• Salsa Mukluk Deore 11 Fat Bike - Tan, Side View
1 1

2023 Mukluk Deore 11

2023 Mukluk Deore 11

Size

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Use the previous and next buttons to traverse through the carousel.

Product Details

Build Kit

Frameset

  • Frame

    Mukluk Aluminum

  • Fork

    Bearpaw

  • Rear Shock

    N/A

Components

  • Headset

    FSA Orbit 1.5E NO.57E-T

  • Seatpost

    Salsa Guide

  • Stem

    Salsa Guide Trail, 35.0 mm clamp

  • Grips/Bar Tape

    Salsa File Tread Lock-On

  • Saddle

    WTB Volt Steel Medium 142x265mm

  • Handlebar

    RaceFace Chester 35 20mm rise, 780mm

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano Deore M5100

  • Cassette

    Shimano Deore M5100, 11–51t, 11-speed

  • Chain

    KMC X11 EPT Anti-Rust

  • Crankset

    Samox Direct Mount, 30t

  • Shifter

    Shimano Deore M5100

  • Brake Levers

    SRAM Level

  • Brake Calipers

    SRAM Level

  • Rotors

    SRAM CenterLine rotors (160 mm, 6-bolt)

Wheels

  • Front Wheel

    SUNRinglé SRC 15 x 150 mm hub, SUNRinglé Mulefüt SL 80 mm rim

  • Rear Wheel

    SUNRinglé SRC 12 x 197 mm hub, SUNRinglé Mulefüt SL 80 mm rim

  • Front Tire

    45NRTH Dillinger 5, 26 x 4.6" 60 TPI, Tubeless-Ready, Folding, Tan Wall, Custom Studdable

  • Rear Tire

    45NRTH Dillinger 5, 26 x 4.6" 60 TPI, Tubeless-Ready, Folding, Tan Wall, Custom Studdable

Weight

  • Complete Bike

    33lbs for Medium

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 573.0 594.0 615.0 636.0 657.0
B. Stand Over 678.1 684.5 719.7 758.0 773.9
C. Reach 391.8 409.9 428.1 446.2 464.4
D. Stack 592.7 602.1 611.4 620.7 630.1
E. Total Seat Tube Length 406.0 406.0 457.0 508.0 558.0
F. Headtube Length 100.0 110.0 120.0 130.0 140.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 63.0 63.0 63.0 63.0 63.0
K. Chainstay Length 440.0- 457.0 440.0- 457.0 440.0- 457.0 440.0- 457.0 440.0- 457.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1085.2 1107.0 1128.7 1150.4 1172.1
Crank Arm Length 170.0 170.0 170.0 175.0 175.0
Handlebar Width 780.0 780.0 780.0 780.0 780.0
Recommended Rider Height 157.0 - 168.0 165.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length 40.0 50.0 60.0 70.0 70.0

Measurements based on:

  • A Salsa Kingpin fork which is equivalent to a 100mm RockShox Bluto fork at 25% sag
  • A 26 x 4.8" tire measuring 759mm in diameter
  • Standover is measured from ground to top of toptube at forward portion of the kink

Frame Specs

Supportive Documents

Support Document links

Additional Features

6066-T6 Aluminum Frame

Top-shelf, double and triple-butted, heat-treated 6066-T6 aluminum tubing is used throughout the frame. This 6000-series aluminum has better strength and fatigue characteristics than 6061 and 7000-series aluminums, allowing for a stronger and lighter overall frame. Additionally, the tubing is strategically shaped and formed for additional stiffness and strength optimization in key stress areas

Mukluk Geometry

Mukluk’s geometry works extremely well in all conditions and use cases, whether it's riding groomed singletrack at your local trail, exploring a coastline, or embarking across the wild frozen expanses of Alaska. We use the shortest chainstays possible with a headtube angle and fork offset that place the rider’s center of gravity farther back. This combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still feels nimble despite the massive wheels and tires. A low bottom bracket also keeps the rider’s center of gravity low and makes dabbing, dismounting, and remounting easier

26 x 4.6” Wheel & Tire Size

Mukluk rolls on 26 x 4.6" tires on 80 mm rims. This huge tire delivers massive traction, stability, and optimum floatation on soft surfaces such as ungroomed snow or loose sand

Bearpaw Fork

This carbon fork features a 150 x 15 mm thru-axle that boosts stiffness and improves steering precision. The fork also features our Three-Pack mounts for accessorizing with Anything Cages or water bottle cages

Alternator Dropouts V1.0

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability—the power is yours. See our Alternator page for more info

Front Wheel and Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.3–3.0" on a 50 mm rim

Rear Wheel & Tire Options

The Mukluk frame is designed for use with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.25–3.0" on a 50 mm rim

Optimal 1x or 2x Drivetrain Design with Narrow Q-Factor Cranks

The Mukluk frame is 1x and 2x-compatible and designed for premium drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197 mm symmetrical rear end for modern rim and tire fit / 100 mm threaded bottom bracket / Rider-friendly narrow Q-factor cranks / Designed for 1x or 2x drivetrains / Up to a 32t max chainring for 1x setups; 36/24t max for 2x setups

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Stealth Dropper Post Routing

Compatible with 31.6 mm dropper posts for a true trail bike experience

Rear Rack Compatible

Designed for use with the Salsa Alternator Rack 190/197 (Salsa Rack-Lock seatpost collar required)

Multiple Accessory Frame Mounts

Mukluk features numerous accessory mounts: 2 water bottle mounts inside frame triangle / 1 accessory mount on under-side of down tube

FAQ

Will the Manitou Mastadon fork fit on my Mukluk?

Mukluk Carbon = Yes, but customer needs to check crown clearance if less than 3mm. (If less than 3mm, Salsa offers a Cane Creek spacer part # HD8880); Mukluk Aluminum = No

What wheel and tire sizes can I use on this frame?

Mukluk Carbon and Aluminum frames are designed to work with:

26 x 3.8–5.0" on up to 100mm rim

27.5 x 3.0–4.0" on an 80mm rim

29 x 2.3–3.0" on a 50mm rim

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 51mm offset are strongly recommended, but 45mm offset is also acceptable (increases mechanical trail by 6mm).

How do I take care of the alternator dropouts?

Periodically, we recommend that you remove the bolts, and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly regrease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
