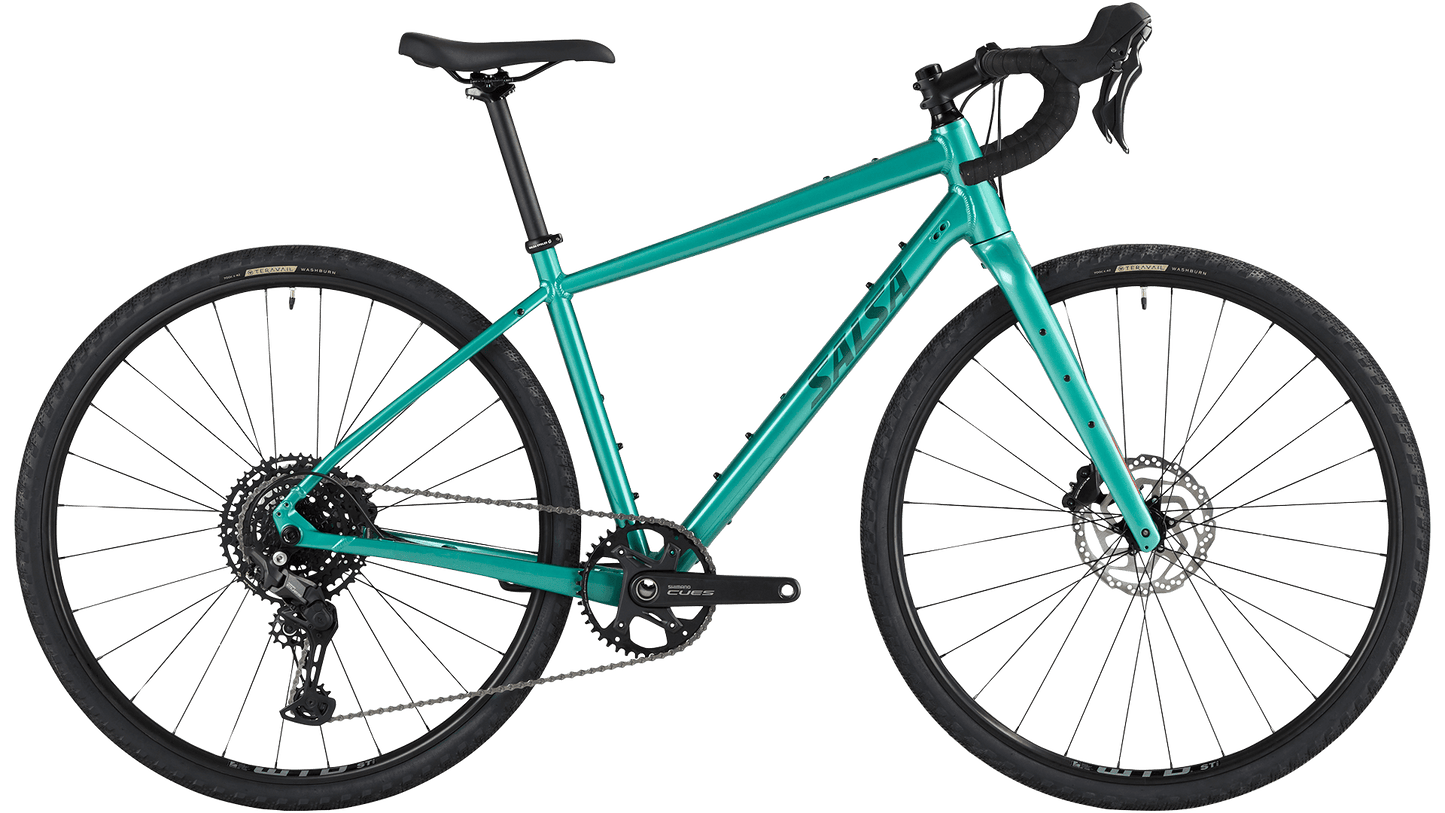

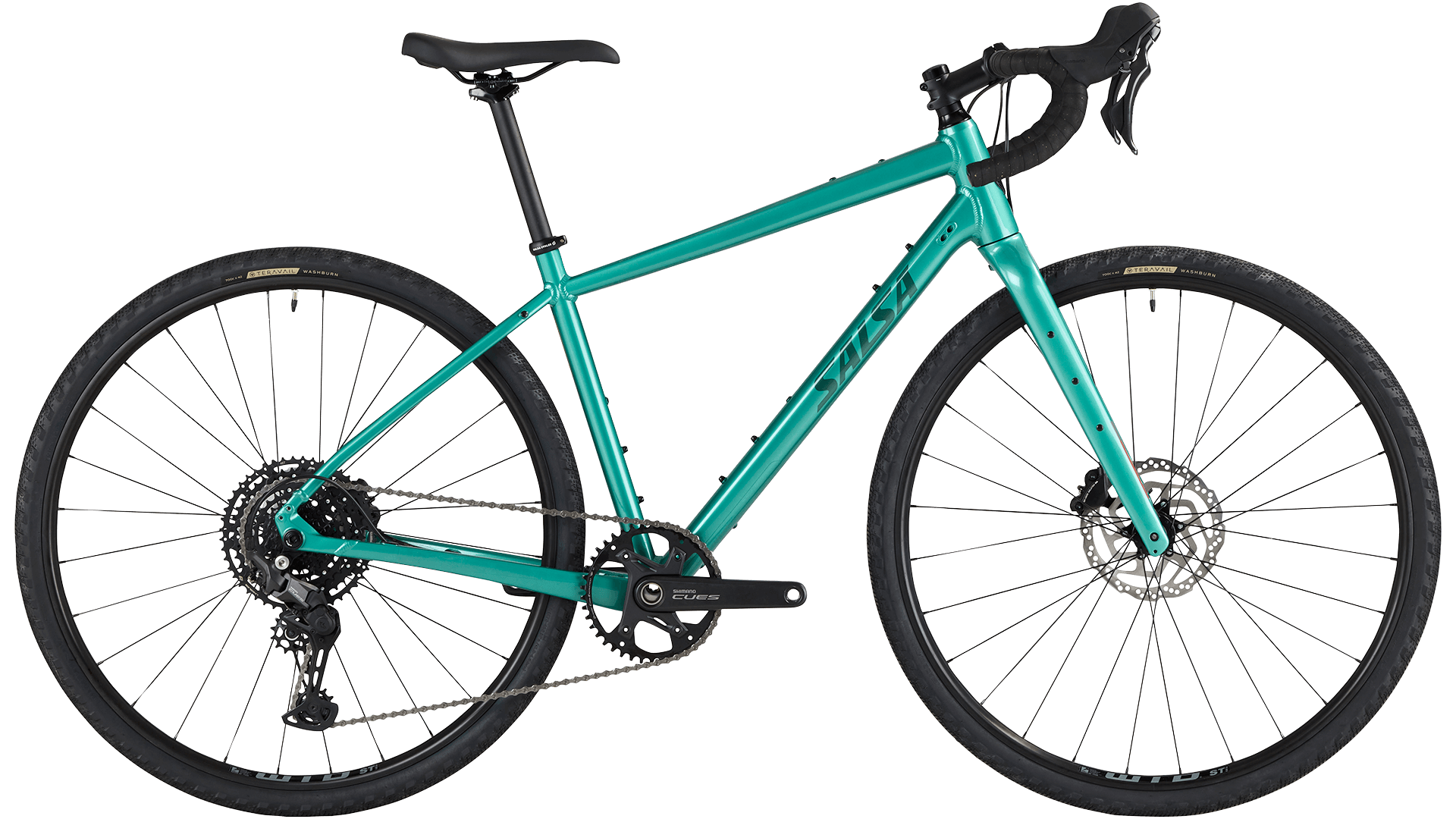

• Salsa Journeyer Gravel Bike - CUES 1x10 - Green - Side View

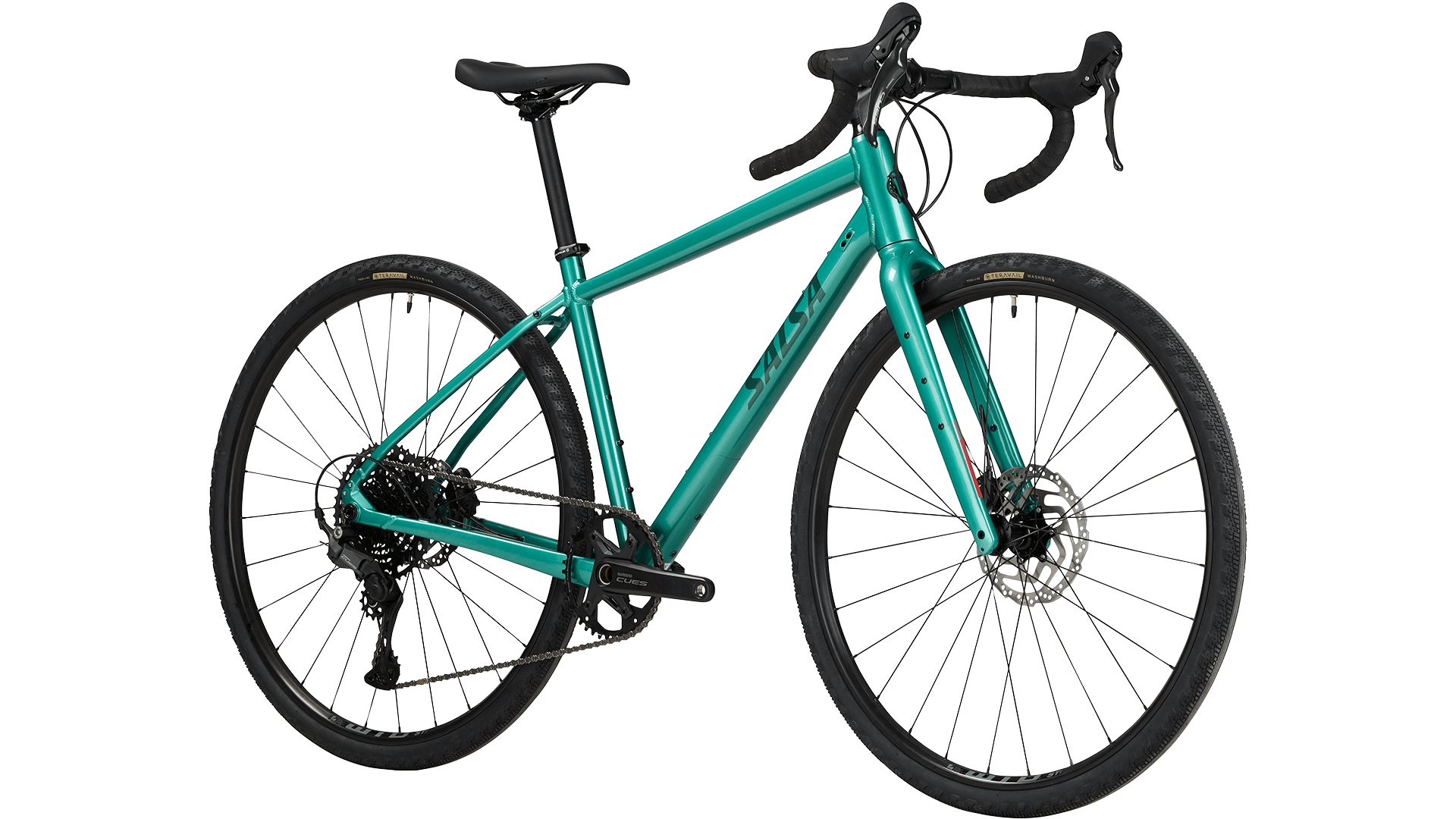

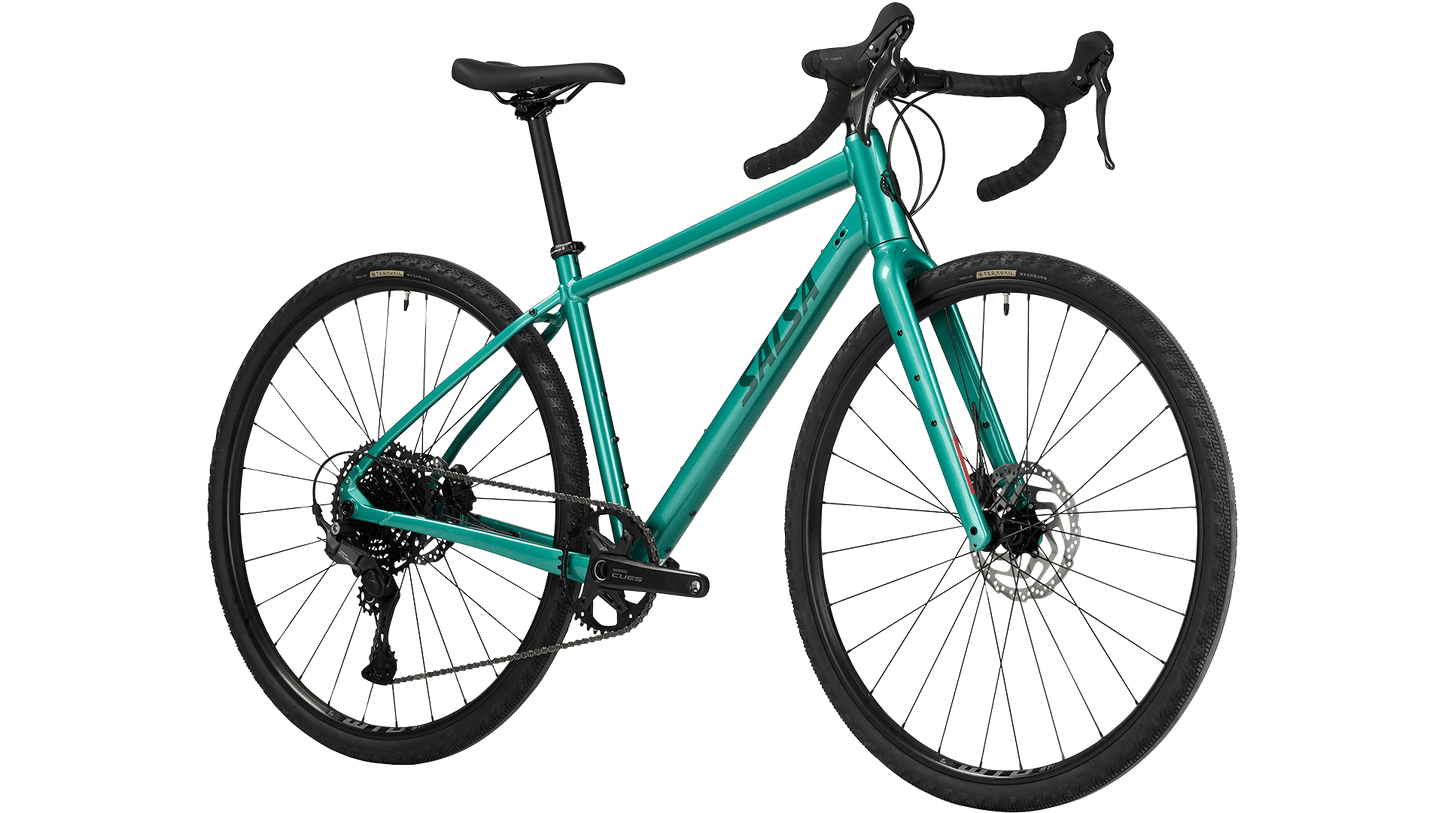

  • Salsa Journeyer Gravel Bike - CUES 1x10 - Green - Front three quarter view

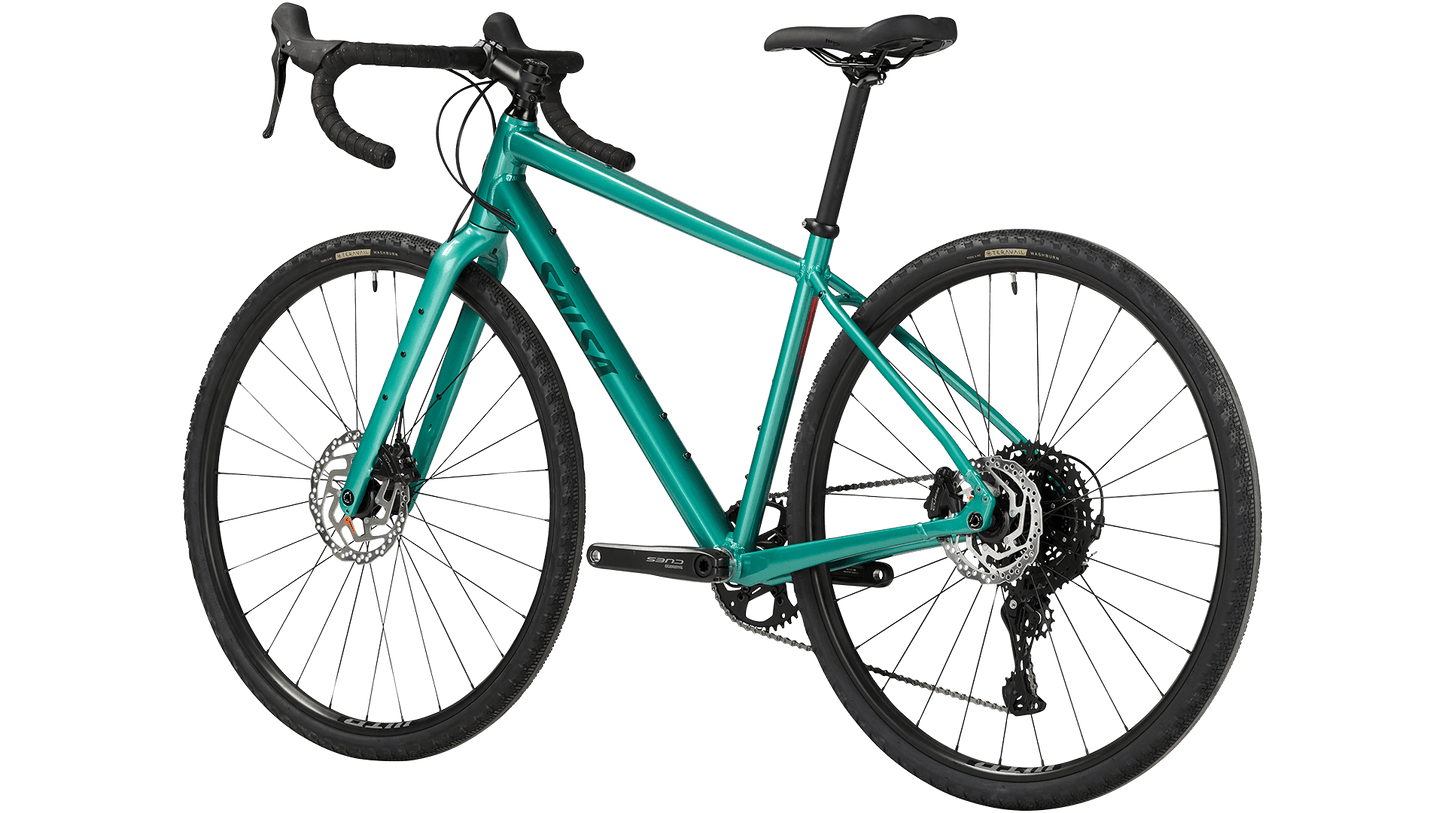

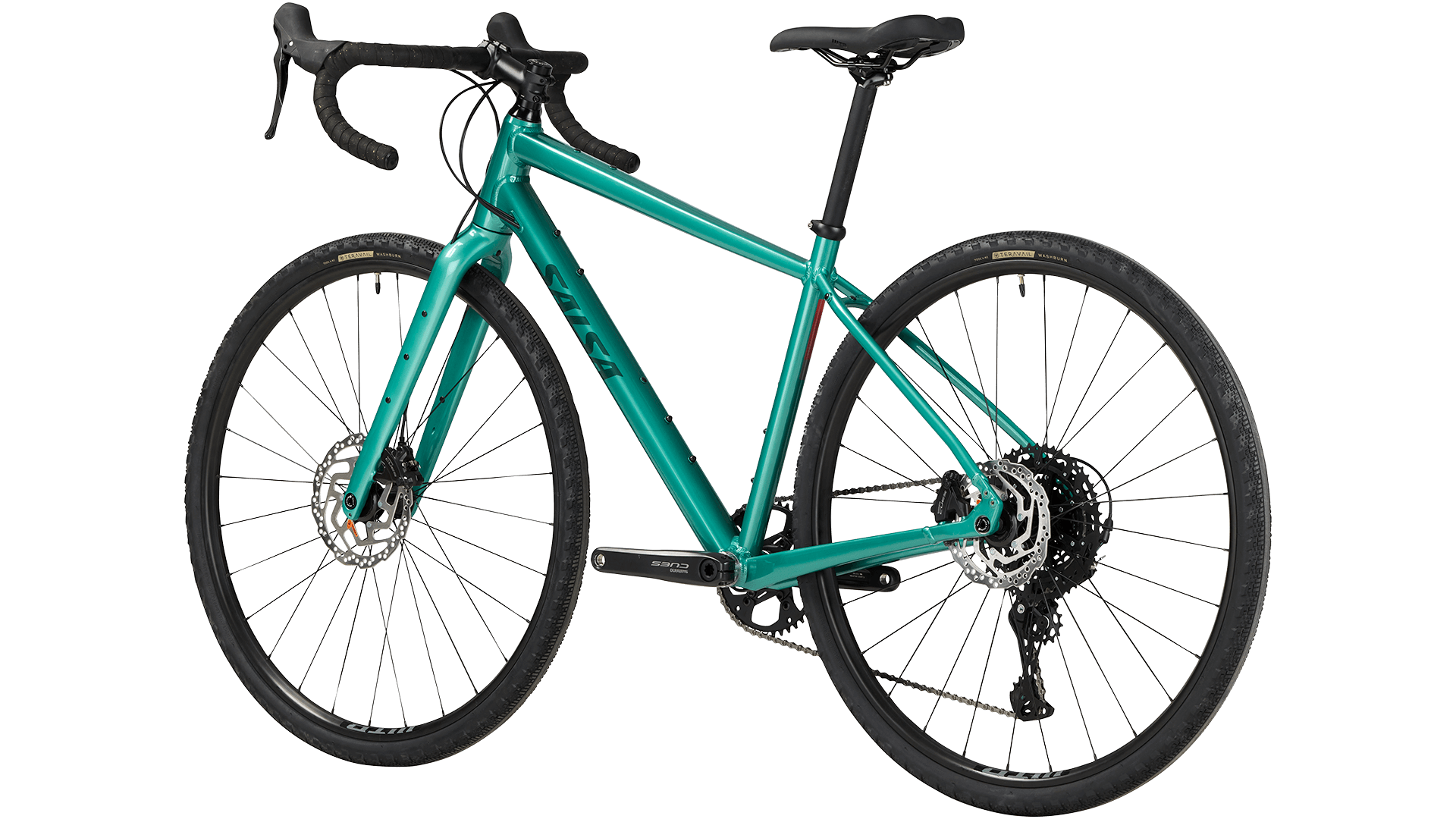

  • Salsa Journeyer Gravel Bike - CUES 1x10 - Green - Rear three quarter View
1 3

Journeyer CUES 1x10 700c

Journeyer CUES 1x10 700c

$1,699.00 USD
$1,699.00 USD $1,699.00 USD
Size

What makes Journeyer one of the most popular gravel bikes? Its aluminum frame and carbon fork put you in a position for comfort and control on any road surface. Set it up for all your adventures with fender, rack, and accessory mounts. Take on any gravel terrain with 700c x 45mm front and 700c x 50mm rear tire clearance. Shimano’s CUES 1x10 drivetrain delivers reliable shifting and braking and has enough gear range to get you through the ups and downs of any route. Start your gravel journey with Journeyer and you’ll see why it’s one of the most popular gravel bikes out there.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 2

Product Details

Build Kit

Frameset

Frame

Journeyer Drop-Bar Thru-Axle

Color

Teal Green

Fork

Waxwing Carbon (aluminum steerer)

Components

Headset

FSA NO.42/ACB

Seatpost

Salsa Guide

Stem

Salsa Guide

Grips/Bar Tape

Black cork

Saddle

Volt Medium Steel

Handlebar

Salsa Cowbell 3

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano CUES U6000, 10/11-speed

Cassette

Shimano CUES LG300, 11–48t, 10-speed

Chain

Shimano CUES LG500 LINKGLIDE

Crankset

Shimano CUES U6030, 42t

Shifter

Shimano CUES U6030

Brake Levers

Shimano CUES U6030

Brake Calipers

Shimano CUES U6030

Bottom Bracket

Shimano CUES, 68mm, BSA

Rotors

Shimano RT54 (Center Lock, 160mm front and rear)

Wheels

Front Tire

Teravail Washburn 700c x 42mm, wire-bead

Rear Tire

Teravail Washburn 700c x 42mm, wire-bead

Front Hub

Shimano RS470 12 x 100mm

Rear Hub

Shimano RS470, 12 x 142mm

Spoke

14g, black

Rim

WTB ST i23, TCS 2.0, 28h, 700c

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size49cm51cm53cm55cm57cm60cm
A. Effective Top Tube 493.0 510.0 530.0 550.0 570.0 600.0
B. Stand Over 617.0 652.0 688.0 724.0 760.0 807.0
C. Reach 366.0 369.0 372.0 376.0 387.0 409.0
D. Stack 510.0 528.0 552.0 570.0 599.0 627.0
E. Total Seat Tube Length 340.0 380.0 410.0 450.0 490.0 520.0
F. Headtube Length 90.0 105.0 130.0 150.0 180.0 210.0
G. Headtube Angle
68.5
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
76.0
75.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0
J. BB Height 283.0 283.0 283.0 283.0 283.0 283.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1027.0 1028.0 1040.0 1051.0 1072.0 1104.0
Crank Arm Length 170.0 170.0 170.0 172.5 172.5 175.0
Handlebar Width 380.0 400.0 420.0 440.0 460.0 460.0
Recommended Rider Height 142.0 - 152.0 150.0 - 160.0 157.0 - 170.0 165.0 - 178.0 173.0 - 185.0 183.0 - 196.0
Stem Length 60.0 70.0 80.0 80.0 90.0 100.0

Measurements based on:

  • a fork measuring 402mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 700c x 38mm
  • Alternate Wheel/Tire Sizes 700c x 32–50mm; 650b x 47–50mm
  • Frame Construction Aluminum
  • Fork Construction Carbon
  • Rigid Fork Length 402mm length on axis
  • Fork Offset 50mm
  • Rear Spacing 142mm
  • Rear Axle Size 12 x 142mm thru-axle
  • Rear Brake (Rotor) Flat mount 140 frame standard (160mm max.), 20mm thickness, 27mm bolt length
  • Front Brake (Rotor) Flat mount 160 frame standard (180mm max.), 35mm thickness, 42mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100mm
  • Front Axle Size M12 x 120mm thru-axle, TP=1.5, TL=12mm
  • Steerer Tube 28.6mm / 1 1/8"
  • Crown Race 40mm
  • Seatpost 27.2mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32.0mm
  • Front Derailleur Clamp 31.8mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger SRAM UDH
  • Bottom Bracket 68mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max
  • Accessory Mounts Downtube Accessory Mounts: One
    Rack Mounts Frame: Yes
    Rack Mounts Fork: Yes, low rider
  • Bottle Mounts 49cm frame: one in main triangle
    51–56cm frames: two in main triangle
    57–60cm frames: three in main triangle
    Fork bottle mounts: two
  • Front Fender Mounts Fender Mounts Fork: Yes
  • Rear Fender Mounts Fender Mounts Frame: Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

12 x 142 mm Thru-Axle Rear

A thru-axle keeps the frame stiff for improved tracking and allows for consistent wheel placement.

Waxwing Carbon Fork

The Waxwing fork features carbon construction with an aluminum steerer. The 12 x 100 mm thru-axle keeps the front end stiff, so it goes where you point it. We designed Waxwing to carry a load, with two sets of Three-Pack mounts and mid-blade rack mounts. Internal Dynamo Hub Cable Routing and fender mounts make it easier to ride in all conditions. 700c x 45mm or 650b x 56.5mm (27.5 x 2.25") tire clearance lets you run a wide range of wheels and tires. An abrasion-resistant plate on the inside of the fork prevents wear from mud and other road debris.

Gravel Geometry

Journeyer feels comfortable and stable whether you're entering your first gravel race, exploring dirt paths around town, or venturing into unfamiliar terrain. It's spirited when you want it to be but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

700c x 42mm Wheels and Tires

700c wheels hold their momentum well, and the durable 42mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Cowbell Drop Handlebar

Drop bars provide multiple hand positions, increasing comfort and efficiency on long rides. They also provide the rider a more aerodynamic position when stiff headwinds arise. Our Cowbell bars feature a 12° flare that puts your hands, wrists, and arms into a position that feels natural when you’re in the drops.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes so you can adapt it for any type of gravel or all-road ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
