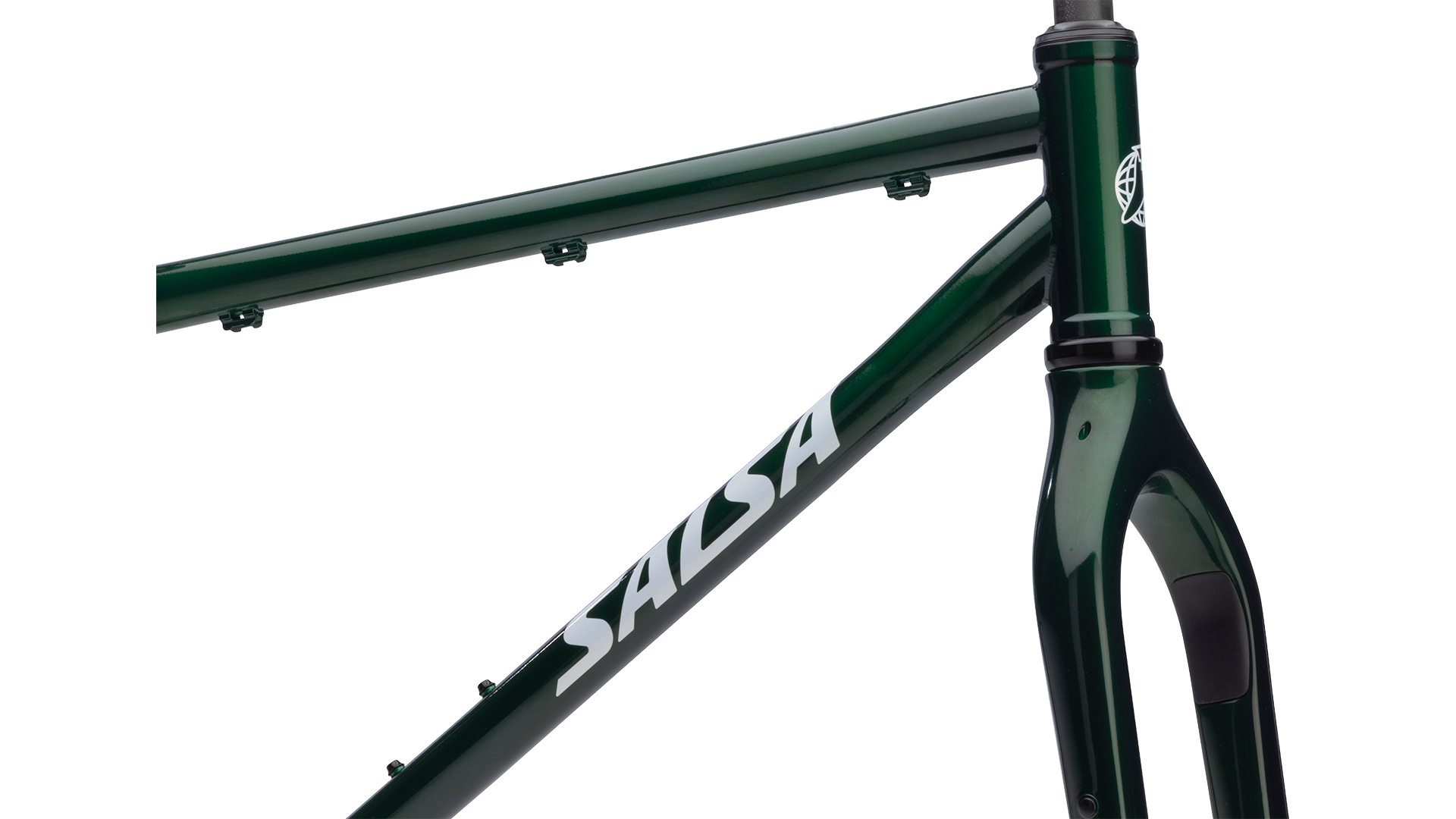

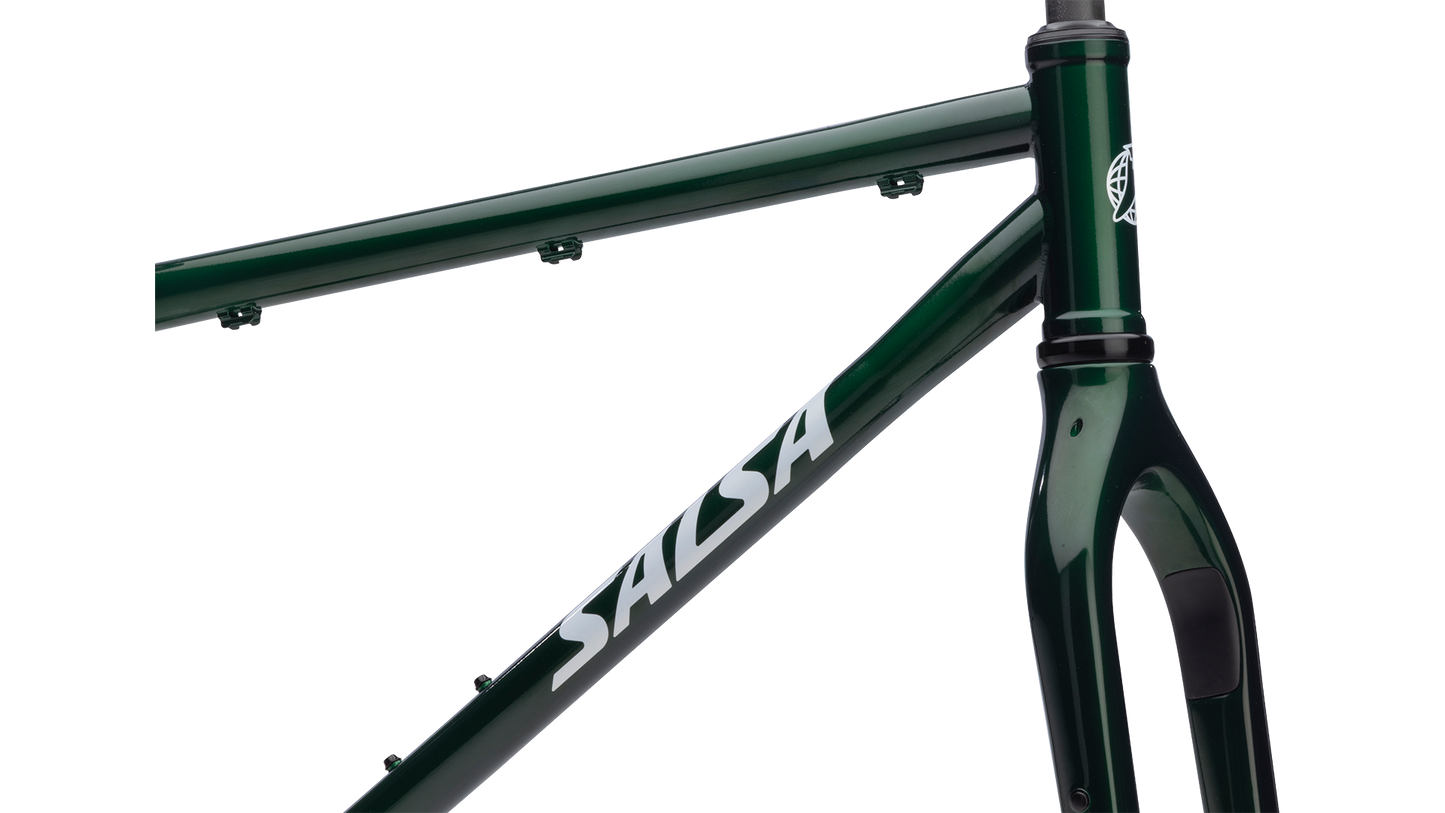

  • Salsa Fargo Gravel Bike Frameset - Peat Moss - Front steerer tube closeup

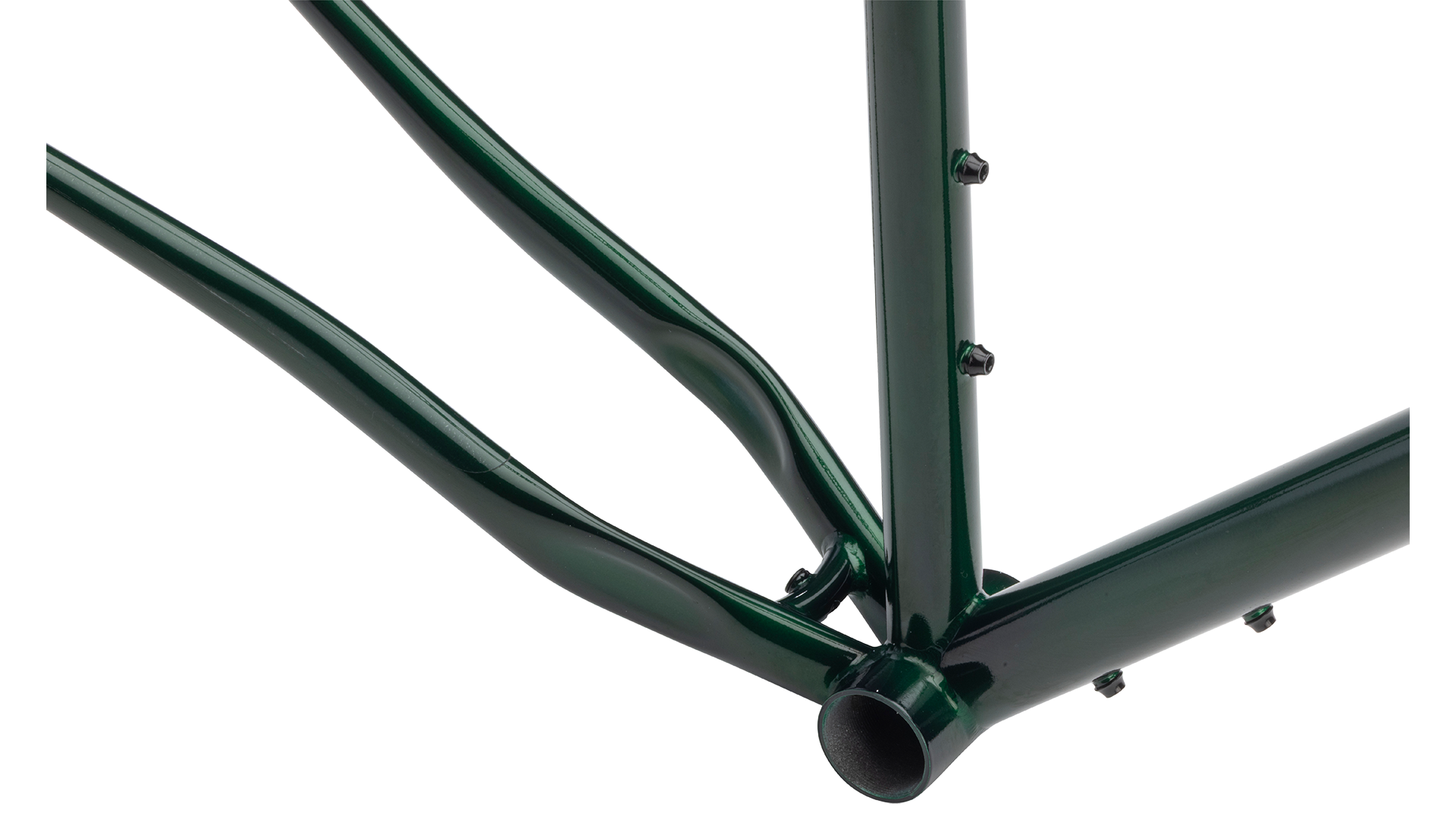

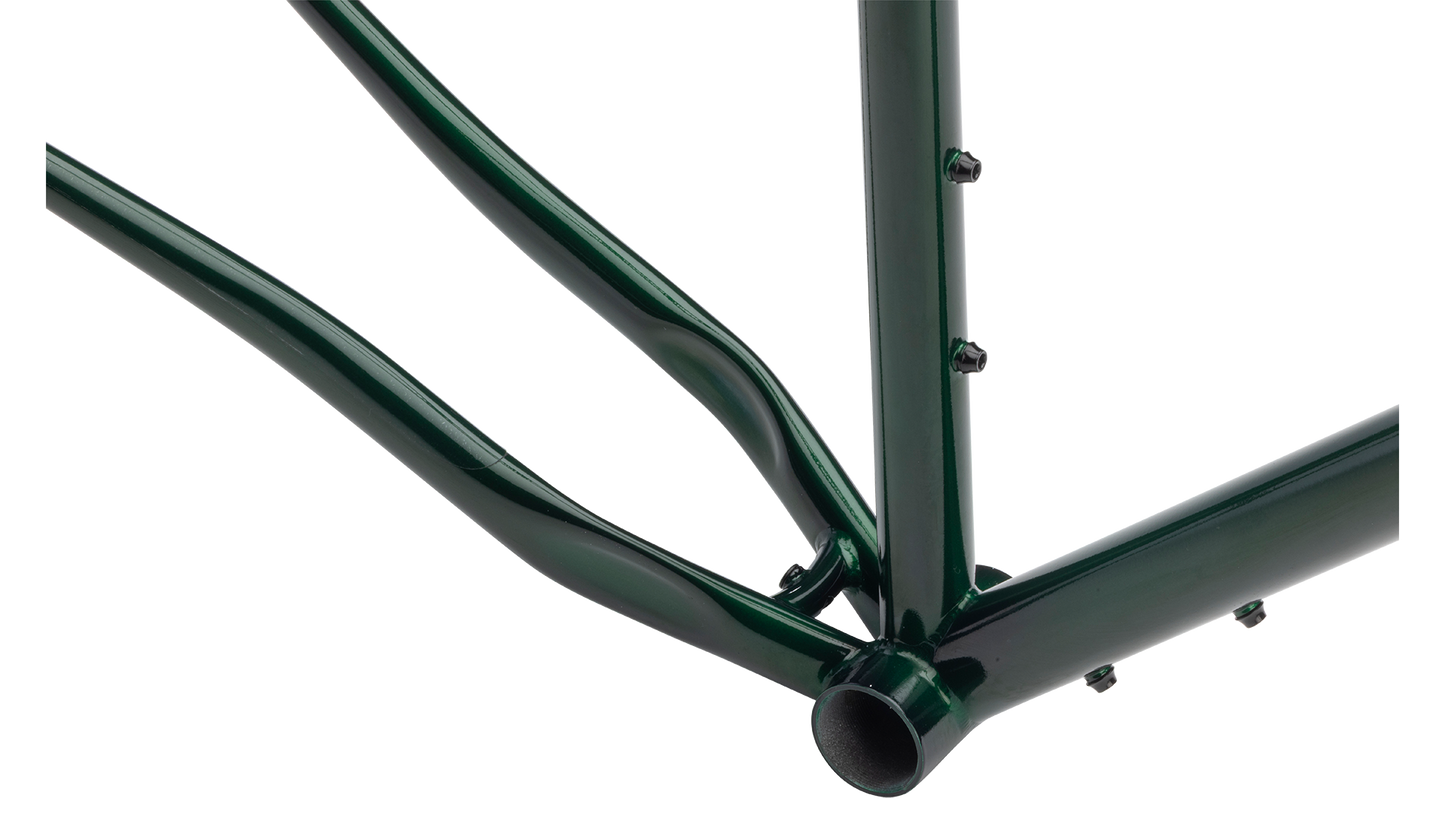

  • Salsa Fargo Gravel Bike Frameset - Peat Moss - Lower half of frame view

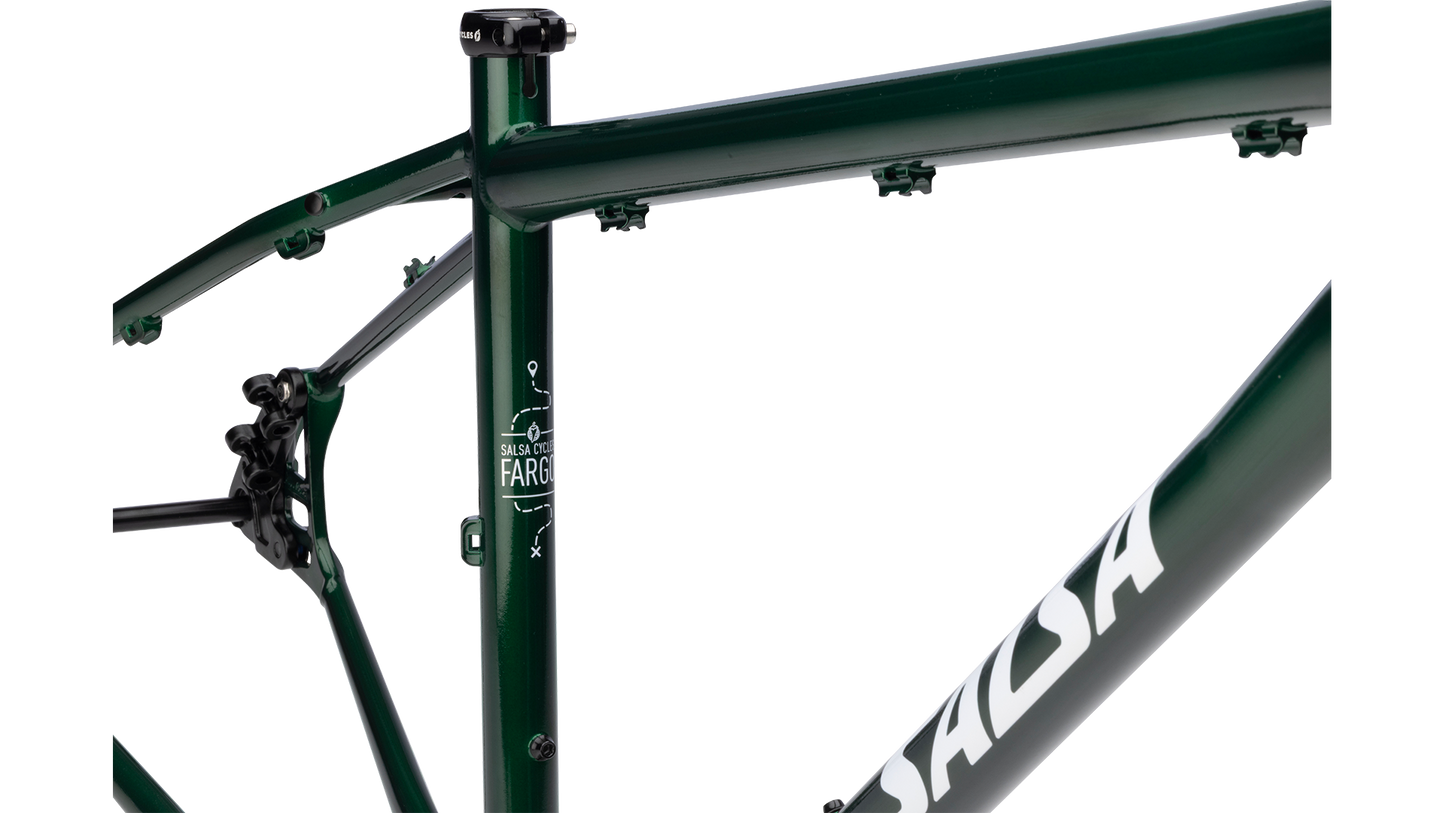

  • Salsa Fargo Gravel Bike Frameset - Peat Moss - Seat tube closeup with "Fargo" branding

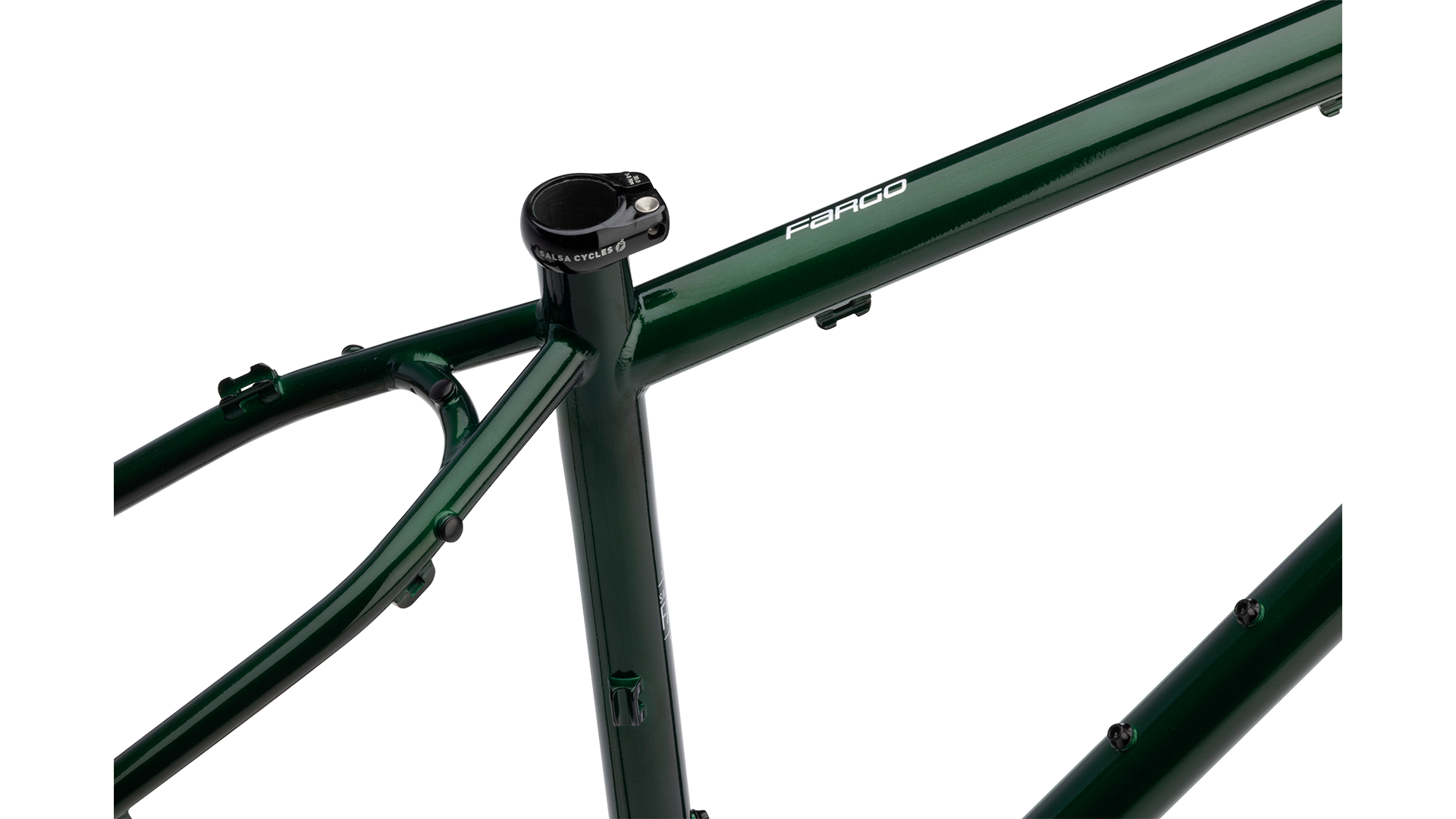

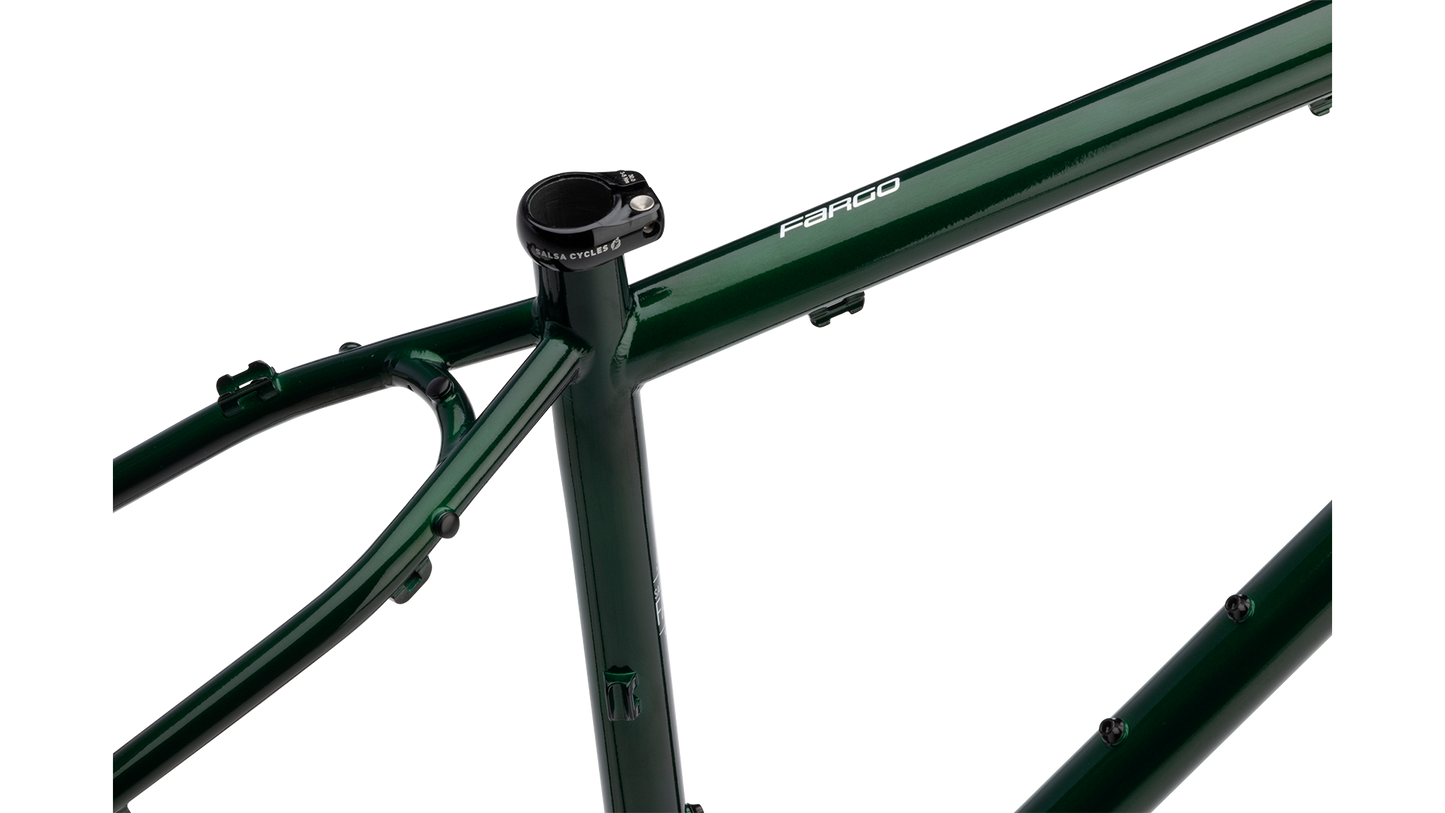

  • Salsa Fargo Gravel Bike Frameset - Peat Moss - Top half of frame closeup

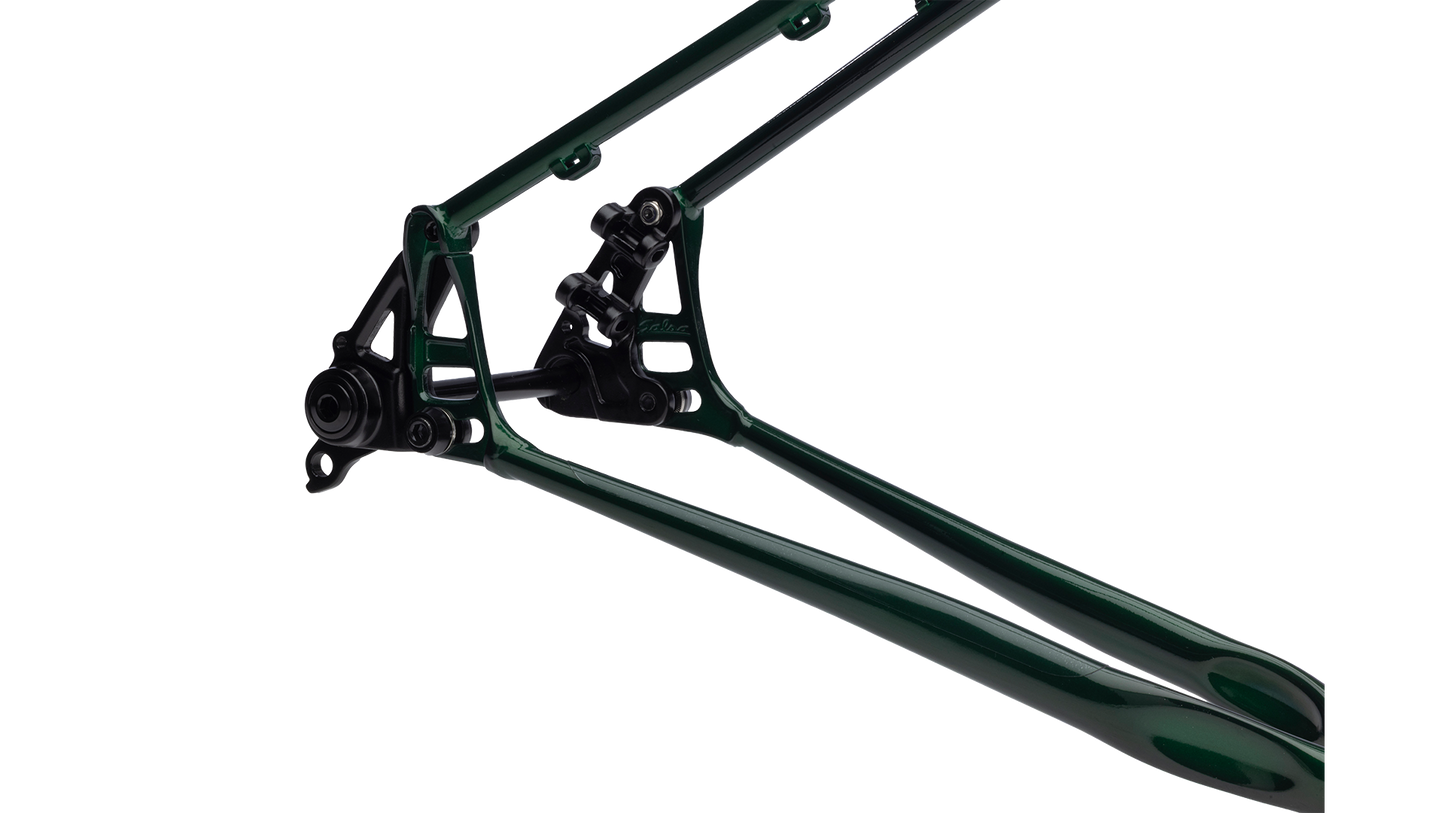

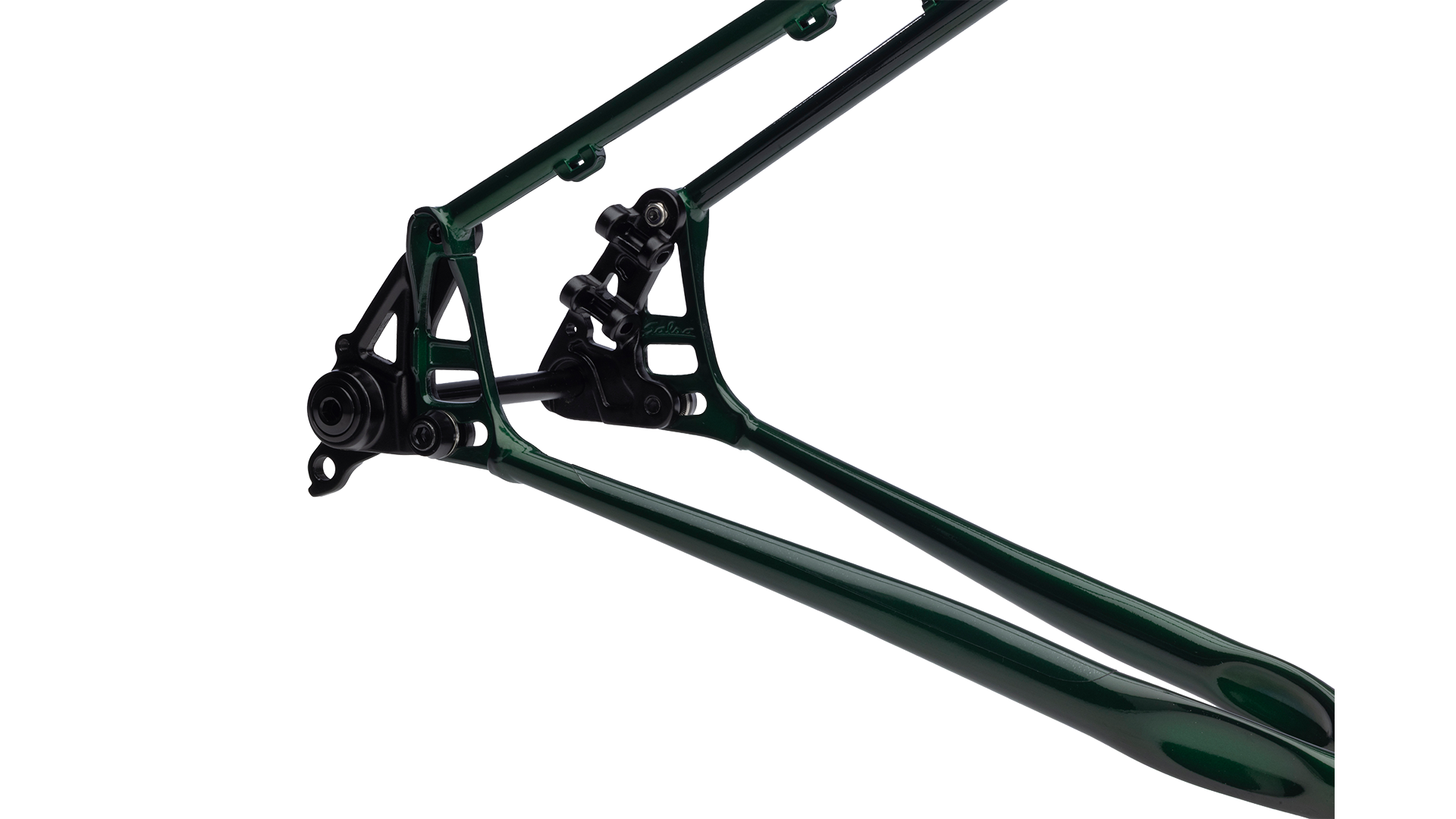

  • Salsa Fargo Gravel Bike Frameset - Peat Moss - Rear axle closeup
1 6

Fargo Steel Frameset

Fargo Steel Frameset

$1,599.00 USD
$0.00 USD $1,599.00 USD
Size

Let your imagination roam wild with the Fargo Steel Frameset. Fargo’s triple-butted steel tubing is supportive and comfortable, yet durable enough to ride singletrack in Montana or strap to a bus in Argentina. The Cutthroat Carbon Deluxe fork offers compliance, cargo capacity, and abrasion-resistant plates to reduce wear and tear. Alternator 1.0 Flat Mount dropouts open up more build options than ever before. Fargo’s smooth ride and endless adaptability make this steel bikepacking frame one of the finest options out there. Build it up and wander.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Fargo Steel

  • Color

    Peat Moss

  • Fork

    Cutthroat Deluxe

Components

  • Headset

    FSA Orbit ITA

Drivetrain

Wheels

Weight

  • Frame

    7 lbs. 15 oz with fork, front and rear axle, seat collar, and headset

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 520.0 540.0 565.0 590.0 620.0
B. Stand Over 690.0 732.0 778.0 821.0 859.0
C. Reach 352.0 366.0 371.0 388.0 412.0
D. Stack 584.0 605.0 633.0 661.0 680.0
E. Total Seat Tube Length 355.6 406.4 457.2 508.0 558.8
F. Headtube Length 90.0 110.0 140.0 170.0 190.0
G. Headtube Angle
68.5
69.0
69.0
69.0
69.0
H. Seat Tube Angle
74.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0
J. BB Height 303.0 303.0 303.0 303.0 303.0
K. Chainstay Length 462.0 462.0 462.0 462.0 462.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1067.0 1083.0 1099.0 1126.0 1158.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 147.0 - 160.0 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0 - 201.0
Stem Length

Measurements based on:

  • A Salsa Cutthroat Carbon Deluxe 483 x 51 mm offset fork
  • A 29 x 2.4" tire measuring 746mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Size Guide

Fargo Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 29" Wheels: 41–76mm (1.6"–3.0") SM–XL, 41–66mm (1.6"–2.6") XS
  • Alternate Wheel/Tire Sizes 27.5" wheels: 47–76mm (1.85"–3.0") all sizes
    26" wheels: 2.75"–3.0" all sizes
  • Max Tire Outer Diameter Tire Clearance Frame: 29 x 3.0" (29 x 2.6" on XS size)
    Tire Clearance Fork: 29 x 3.0"
  • Frame Construction Triple-butted CroMoly Steel
  • Fork Construction Carbon
  • Suspension Fork Length (Travel) 506mm (100mm travel)
  • Rigid Fork Length 483mm
  • Fork Offset 51mm
  • Rear Spacing Boost 148mm; 142mm thru-axle or 135mm quick-release with Alternator Reduction Plates
  • Rear Axle Size 148mm, 12 x 175L, TP = 1.0, TL = 14
  • Rear Brake (Rotor) Flat mount (140–160mm rotor), flat-mount frame standard (35mm thickness), 42mm bolt length
  • Front Brake (Rotor) Flat mount (160–180 mm rotor), flat-mount frame standard (35 mm thickness), 42 mm bolt length
  • Headset - Upper ZS44
  • Headset - Lower EC44
  • Front Spacing Boost 110mm
  • Front Axle Size 110mm, 15 x 135L, TP=1.5, TL=12
  • Steerer Tube 28.6mm, tapered
  • Crown Race Integrated crown race SHIS 40, 36-degree angle
  • Seatpost 27.2mm
  • Dropper Post Compatible No
  • Seatpost Clamp 30mm
  • Front Derailleur Clamp 148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 28.6mm clamp Problem Solvers Bracket (FS1326)
  • Derailluer Hanger Salsa Alternator UDH Right, thru-axle M12 x 1.0 TP, with fender mount. Salsa Alternator 1.0 Flat Mount left, thru-axle, (35mm), with fender mount
  • Bottom Bracket 73mm BSA, threaded
  • Crankset (Max Ring) 1x crankset: 36t max Boost, 34t non-Boost, 46t Gates Belt Drive Sprocket; 2x crankset: 42/28t max Boost and non-Boost
  • Accessory Mounts Downtube Accessory Mounts: 1
    Rack Mounts Frame: Yes, Salsa Alternator Plus Rack recommended
    Rack Mounts Fork: Yes, lowrider compatible. Salsa Down Under rack recommended
  • Bottle Mounts Frame: Size XS=2, Sizes SM-XL=3
    Fork: One set of 3-pack mounts on each fork leg
  • Front Fender Mounts Fender Mounts Fork: Bolt-on only
  • Rear Fender Mounts Fender Mounts Frame: Yes

Supportive Documents

Support Document links

Additional Features

Triple Butted CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless CroMoly tubing

Cutthroat Carbon Deluxe fork

With trail-taming compliance and abrasion-resistant plates in high-wear areas, the Cutthroat Carbon Deluxe fork is designed for the rigors of rides that cover multiple road surfaces in unpredictable conditions.

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper or Cowchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator 1.0 Flat Mount dropouts

Our renowned Alternator rear dropout grants you ultimate drivetrain versatility. Go geared or single speed, QR or thru-axle, freehub, Rohloff, or Gates Belt Drive. Fargo comes equipped with a Boost-spaced thru-axle plates that are compatible with flat-mount brakes and ready for a rack and fenders. Different plates may be required for other drivetrain setups. Alternator also lets you adjust your wheelbase: set them all the way forward for a shorter wheelbase that results in quick and nimble handling or set them back for more stability.

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheel Size Versatility

Fargo geometry and spacing can accommodate 275+, 29:, and, on sizes small to x-large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Cargo-friendly

Designed for use with Salsa Alternator Plus Rack 135/142/148 in the rear. The fork is compatible with Salsa Down Under Rack or Anything Cage HD using the Three-Pack mounts.

FAQ

Can I run 27.5+ rims and tires on this frameset?

Yes, you can. To maintain appropriate geometry we recommend using 27.5 x 3.0" tires.

Can I run 27.5" (650b) rims and tires on this frameset?

No, you cannot. That wheel size is significantly smaller than the 29er wheels the bike is designed for.

Can I run 29+ rims and tires on this frameset?

Yes, on sizes Small through X-Large. 29+ is not possible on size X-Small due to toe overlap.

Can I run flat bars on my Fargo?

Yes, but it is important to keep in mind that the Fargo is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 45mm offset are recommended, but 51mm offset is also acceptable (decreases mechanical trail by 6mm).

How do I take care of the Alternator Dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
