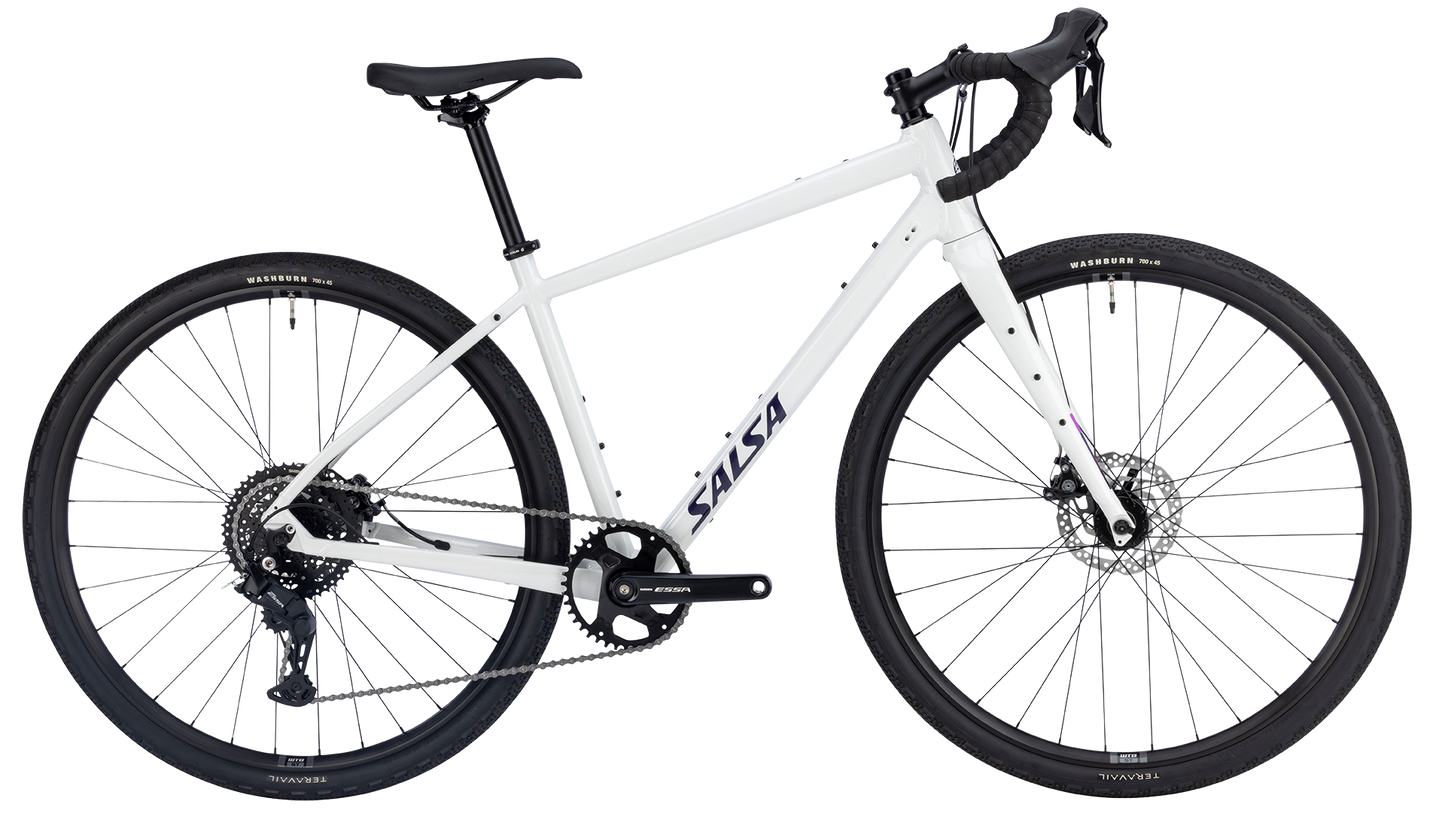

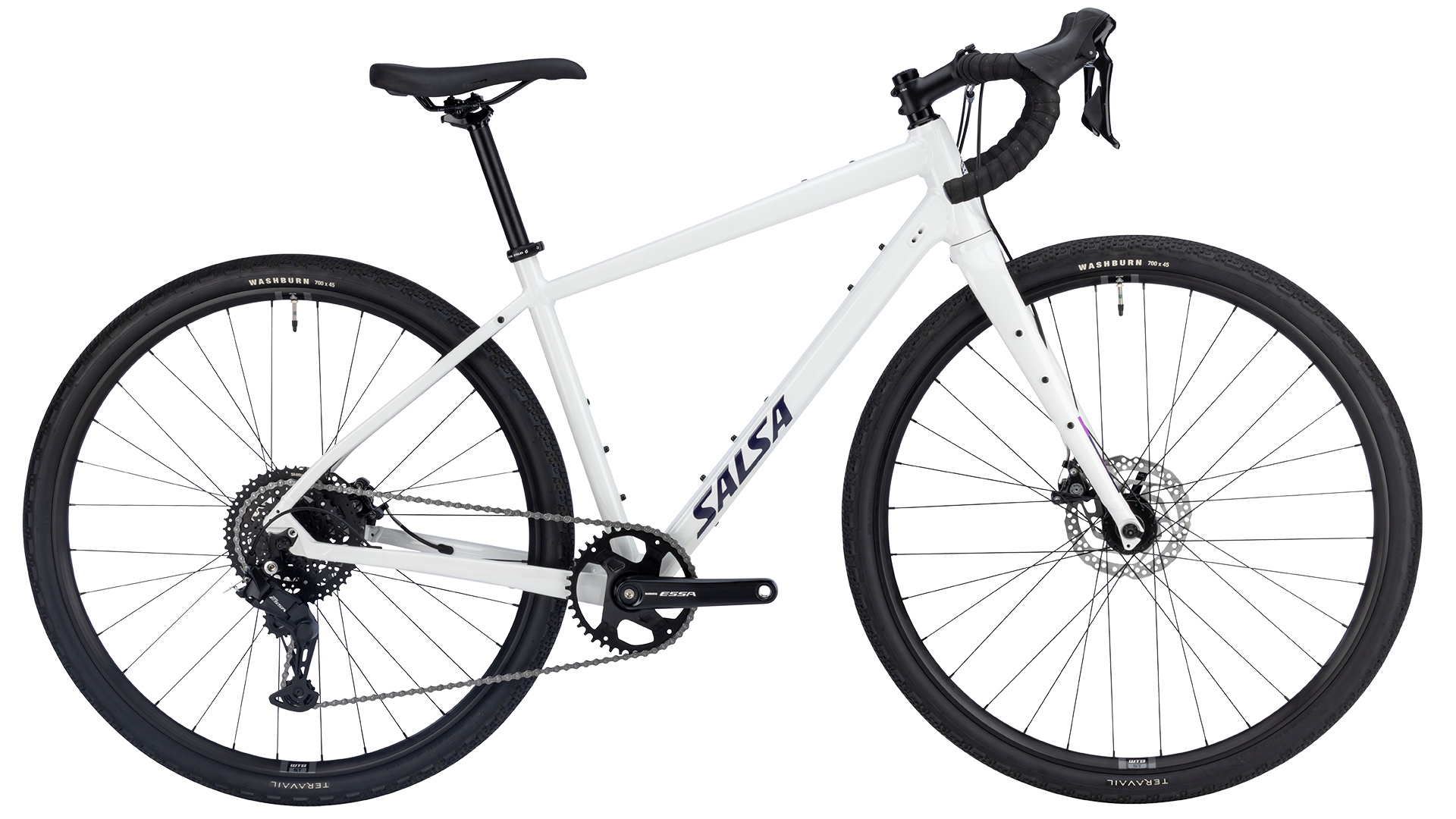

• Salsa Journeyer ESSA 8 Gravel Bike - Vapor Gray - Side profile view

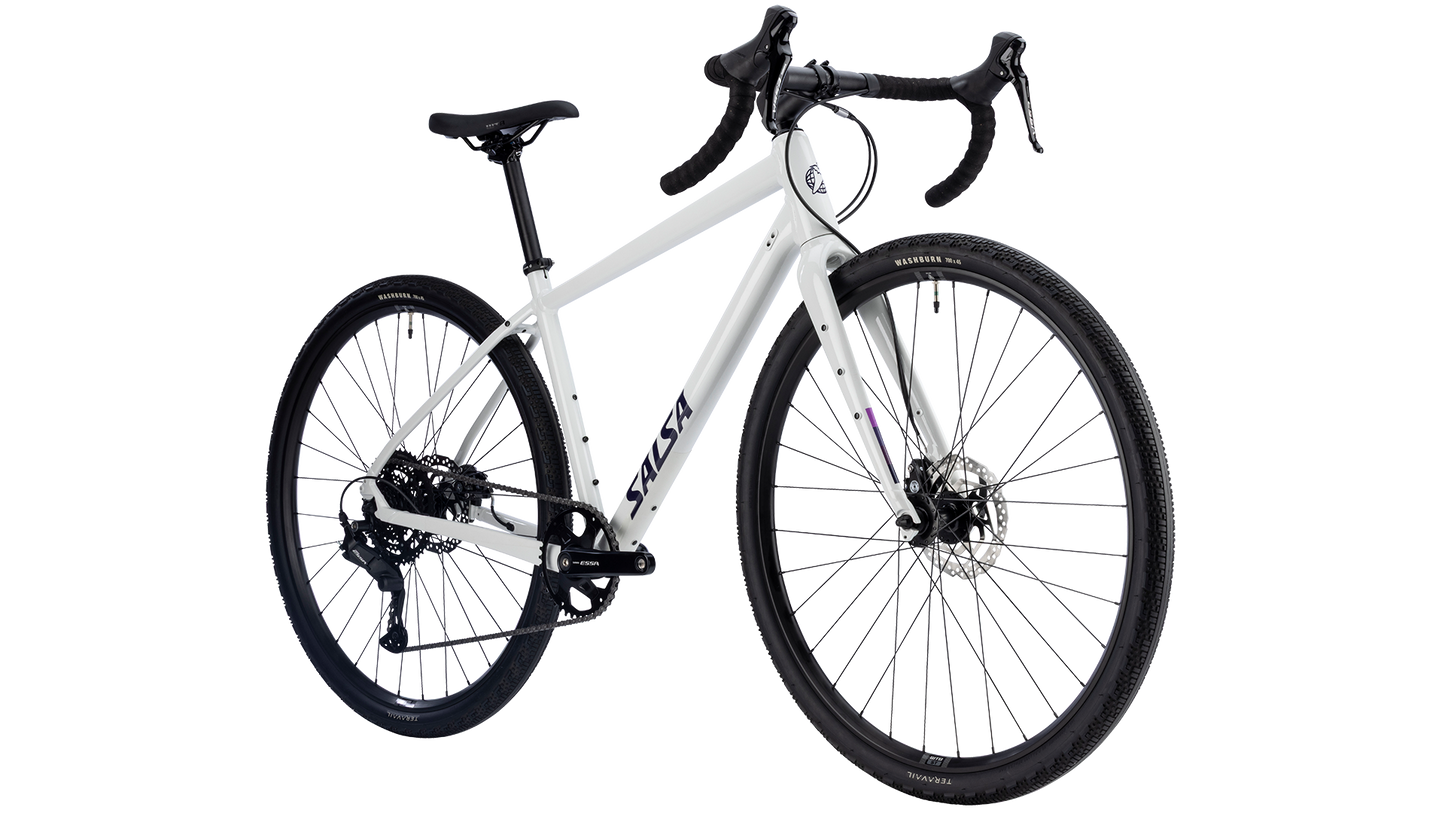

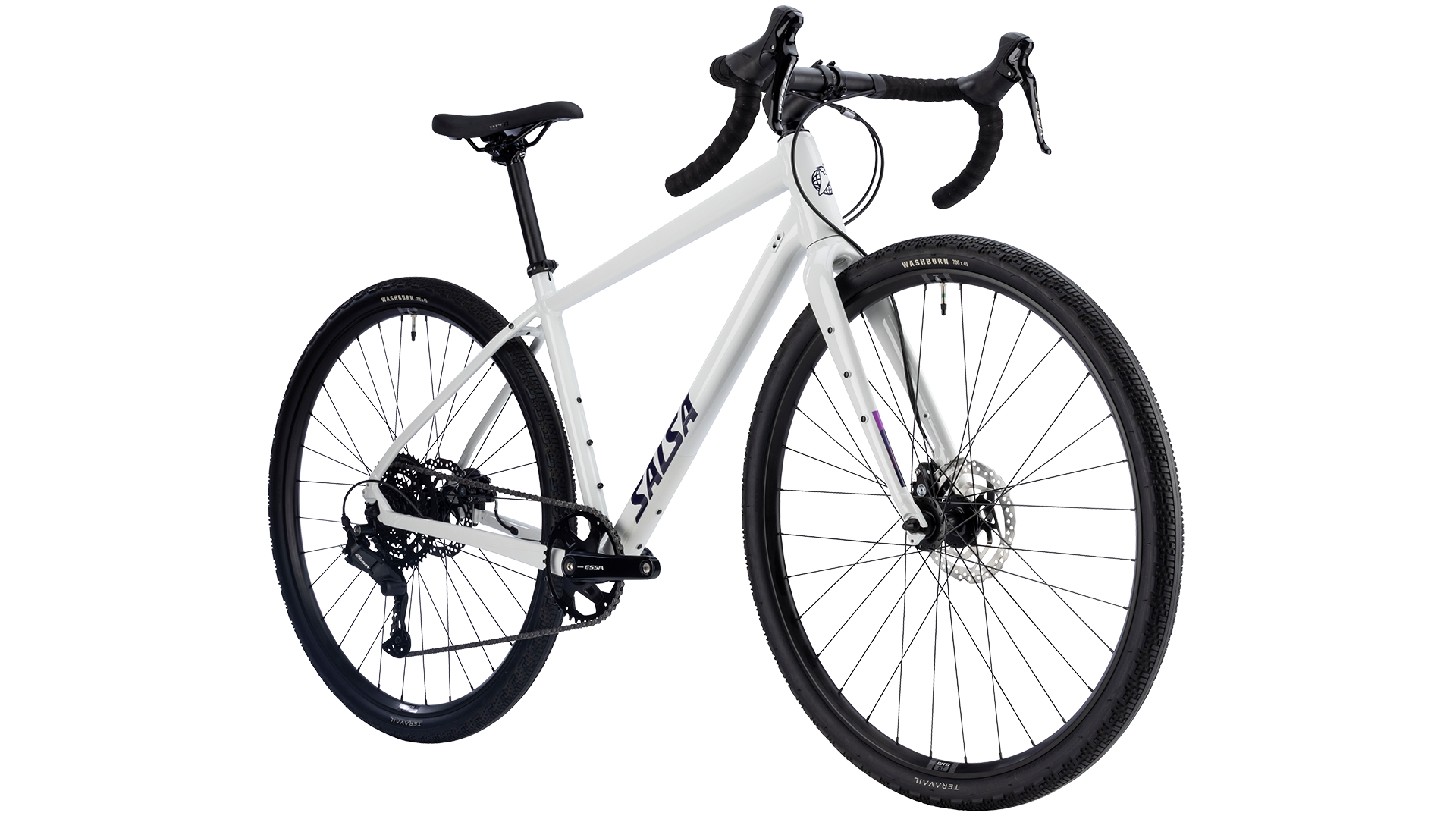

  • Salsa Journeyer ESSA 8 Gravel Bike - Vapor Gray - Front three quarter view

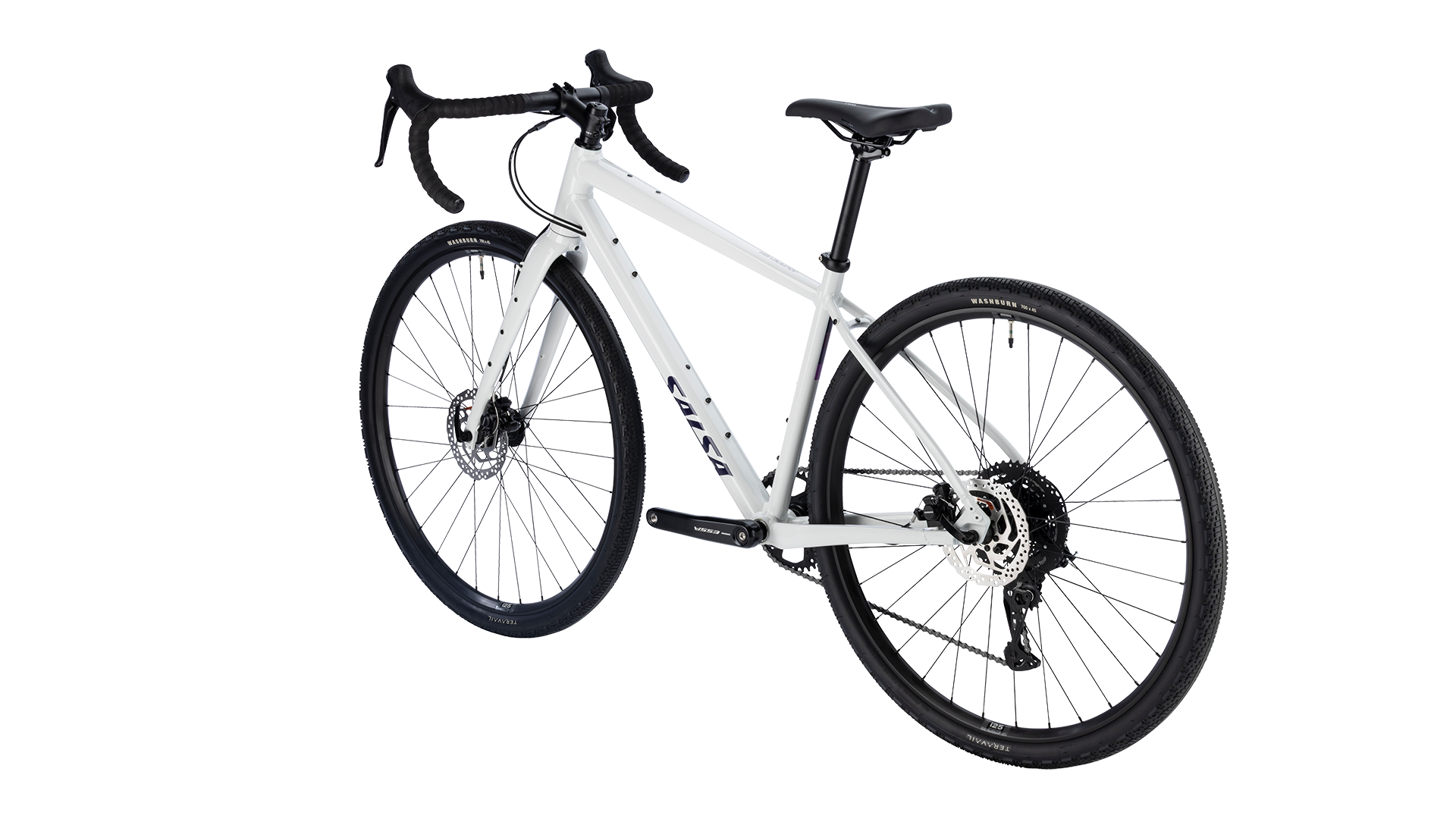

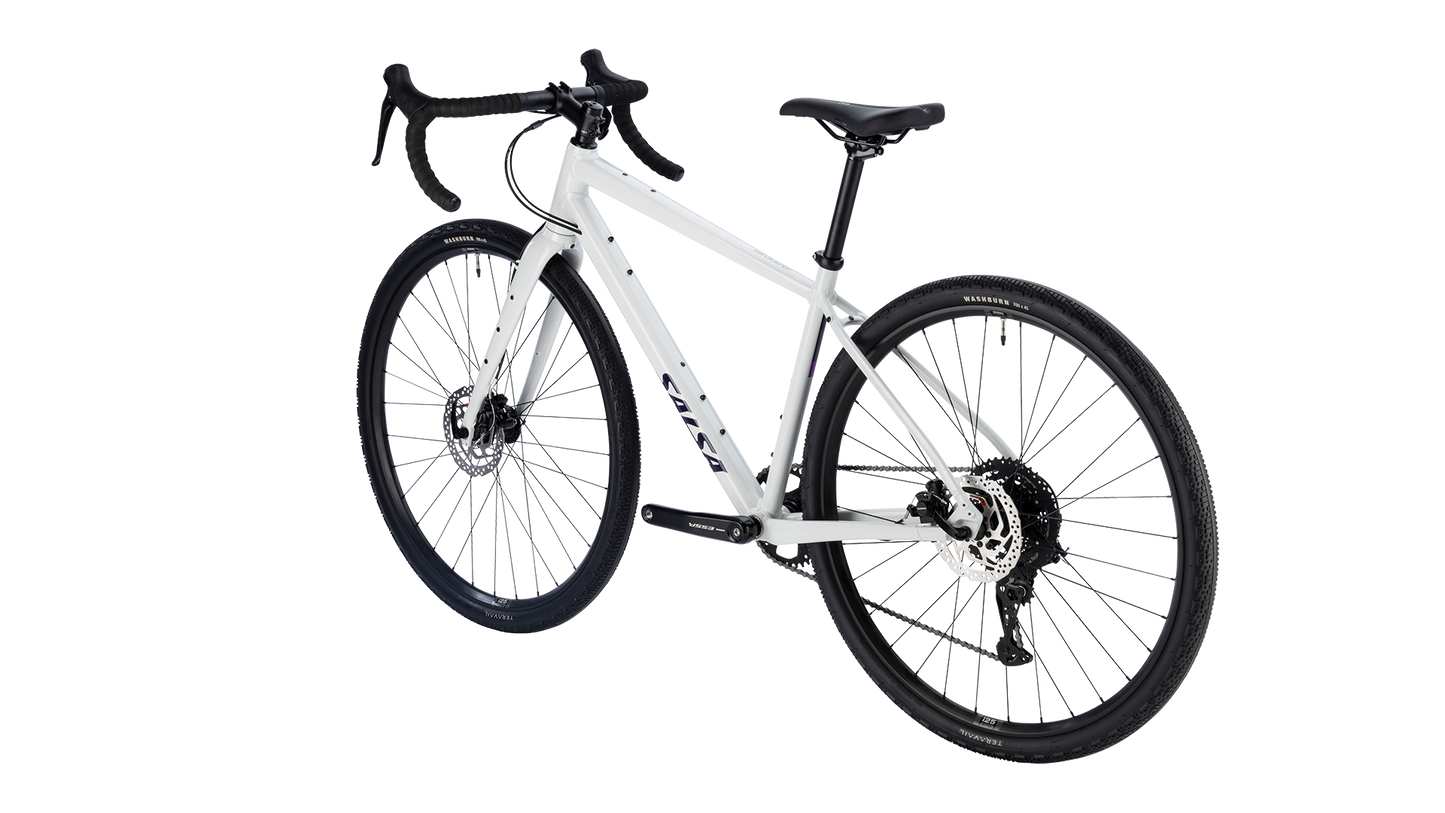

  • Salsa Journeyer ESSA 8 Gravel Bike - Vapor Gray - Rear three quarter view
1 3

Journeyer ESSA 1x8

Journeyer ESSA 1x8

$1,299.00 USD
$0.00 USD $1,299.00 USD
Size

Journeyer ESSA 1x8 is made to be your gateway to gravel riding; it's a versatile gravel adventure bike that can keep up with your gravel races, backroad wandering, and even a little light bikepacking. Journeyer is designed around comfortable upright geometry that feels confident and comfortable even on rough gravel roads (and gives you a better view of the scenery). The aluminum frame and fork feature mounts for fenders, racks, and accessories like our EXP-R Series Trillium Top Tube Bag, so you can adapt it for any adventure. The Shimano ESSA 1x8 components are reliable enough for your most remote rides and have plenty of gear range for comfortable pedaling on steep climbs and long flats. Journeyer’s versatility and comfort make it the best gravel adventure bike for riders starting to explore lesser-traveled roads.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Journeyer

  • Color

    Vapor Gray

  • Fork

    Fantail Aluminum

Components

  • Headset

    FSA

  • Seatpost

    Salsa Guide, 12mm offset

  • Stem

    TranzX

  • Grips/Bar Tape

    Cork tape

  • Saddle

    WTB Volt

  • Handlebar

    TranzX alloy

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano ESSA U2000

  • Cassette

    Shimano HG300-8, 11–45t, 8-speed

  • Chain

    KMC Z8

  • Crankset

    Shimano ESSA U2000, 40t

  • Shifter

    Shimano ESSA U2030

  • Brake Levers

    Shimano ESSA U2030

  • Brake Calipers

    Shimano RS305

  • Bottom Bracket

    Shimano UN300, square taper, 122.5mm spindle

  • Rotors

    Shimano (6-bolt, 160mm front and rear)

Wheels

  • Front Tire

    Teravail Washburn, 700c x 45mm, Durable casing, wire bead

  • Rear Tire

    Teravail Washburn, 700c x 45mm, Durable casing, wire bead

  • Front Hub

    Novatec 9 x 100mm QR

  • Rear Hub

    Novatec 10 x 135mm, HG, QR

  • Spoke

    Straight-gauge, 14g

  • Rim

    WTB ST i25, 32h

Weight

  • Complete Bike

    26 lbs. 04 oz

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size49cm51cm53cm55cm57cm60cm
A. Effective Top Tube 493.0 510.0 530.0 550.0 570.0 600.0
B. Stand Over 617.0 652.0 688.0 724.0 760.0 807.0
C. Reach 366.0 369.0 372.0 376.0 387.0 409.0
D. Stack 510.0 528.0 552.0 570.0 599.0 627.0
E. Total Seat Tube Length 340.0 380.0 410.0 450.0 490.0 520.0
F. Headtube Length 90.0 105.0 130.0 150.0 180.0 210.0
G. Headtube Angle
68.5
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
76.0
75.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0
J. BB Height 283.0 283.0 283.0 283.0 283.0 283.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1027.0 1028.0 1040.0 1051.0 1072.0 1104.0
Crank Arm Length 170.0 170.0 170.0 170.0 175.0 175.0
Handlebar Width 400.0 420.0 440.0 440.0 460.0 460.0
Recommended Rider Height 142.0 - 152.0 150.0 - 160.0 157.0 - 170.0 165.0 - 178.0 173.0 - 185.0 183.0 - 196.0
Stem Length 60.0 70.0 80.0 80.0 90.0 100.0

Measurements based on:

  • a fork measuring 402mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Size Guide

Journeyer Drop Bar Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 700c x 38mm
  • Alternate Wheel/Tire Sizes 700c x 32–50mm; 650b x 47–50mm
  • Frame Construction Aluminum
  • Fork Construction Aluminum
  • Rigid Fork Length 402mm length on axis
  • Fork Offset 50mm
  • Rear Spacing 135mm
  • Rear Axle Size 10 x 135mm quick-release
  • Rear Brake (Rotor) Flat mount 140 frame standard (160mm max.), 20mm thickness, 27mm bolt length
  • Front Brake (Rotor) Flat mount 140 fork standard (160mm max.)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100mm
  • Front Axle Size 9 x 100mm quick-release
  • Steerer Tube 28.6mm / 1 1/8"
  • Crown Race 40mm
  • Seatpost 27.2mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32.0mm
  • Front Derailleur Clamp 31.8mm OD, bottom pull
  • Front Derailleur Type 2x, bottomg swing
  • Derailluer Hanger Salsa 959
  • Bottom Bracket 68mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts Downtube Accessory Mounts: Yes, one
    Rack Mounts Frame: Yes
    Rack Mounts Fork: Yes, low rider
  • Bottle Mounts 49cm frame: one in main triangle
    51–56cm frames: two in main triangle
    57–60cm frames: three in main triangle
    Fork bottle mounts: two
  • Front Fender Mounts Fender Mounts Fork: Yes
  • Rear Fender Mounts Fender Mounts Frame: Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

Fantail aluminum fork

The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Gravel Geometry

Journeyer feels comfortable and stable whether you're entering your first gravel race, exploring dirt paths around town, or venturing into unfamiliar terrain. It's spirited when you want it to be but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes so you can adapt it for any type of gravel or all-road ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
