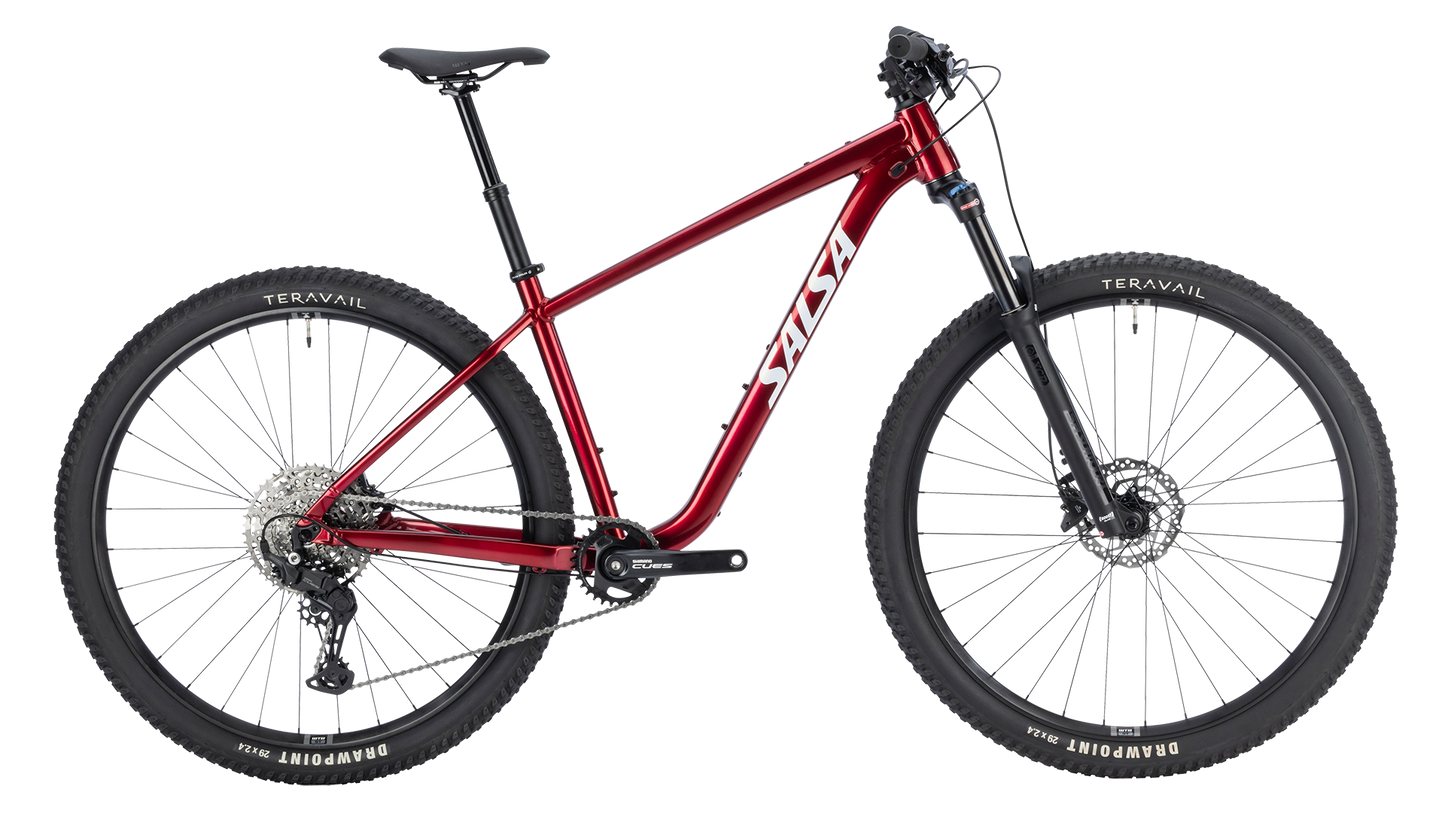

• Salsa Rangefinder CUES 10 - Canyon Red - Side profile view

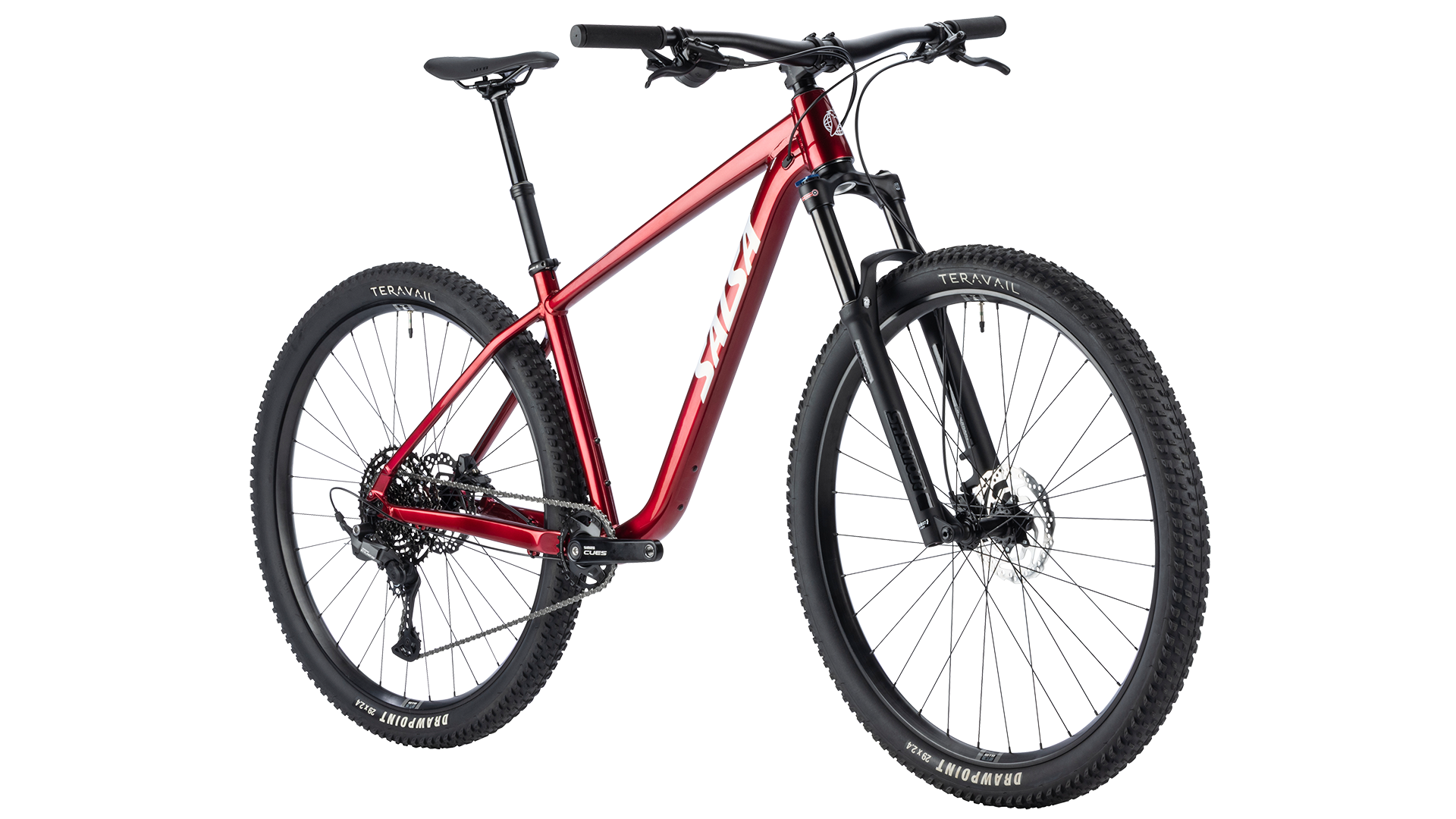

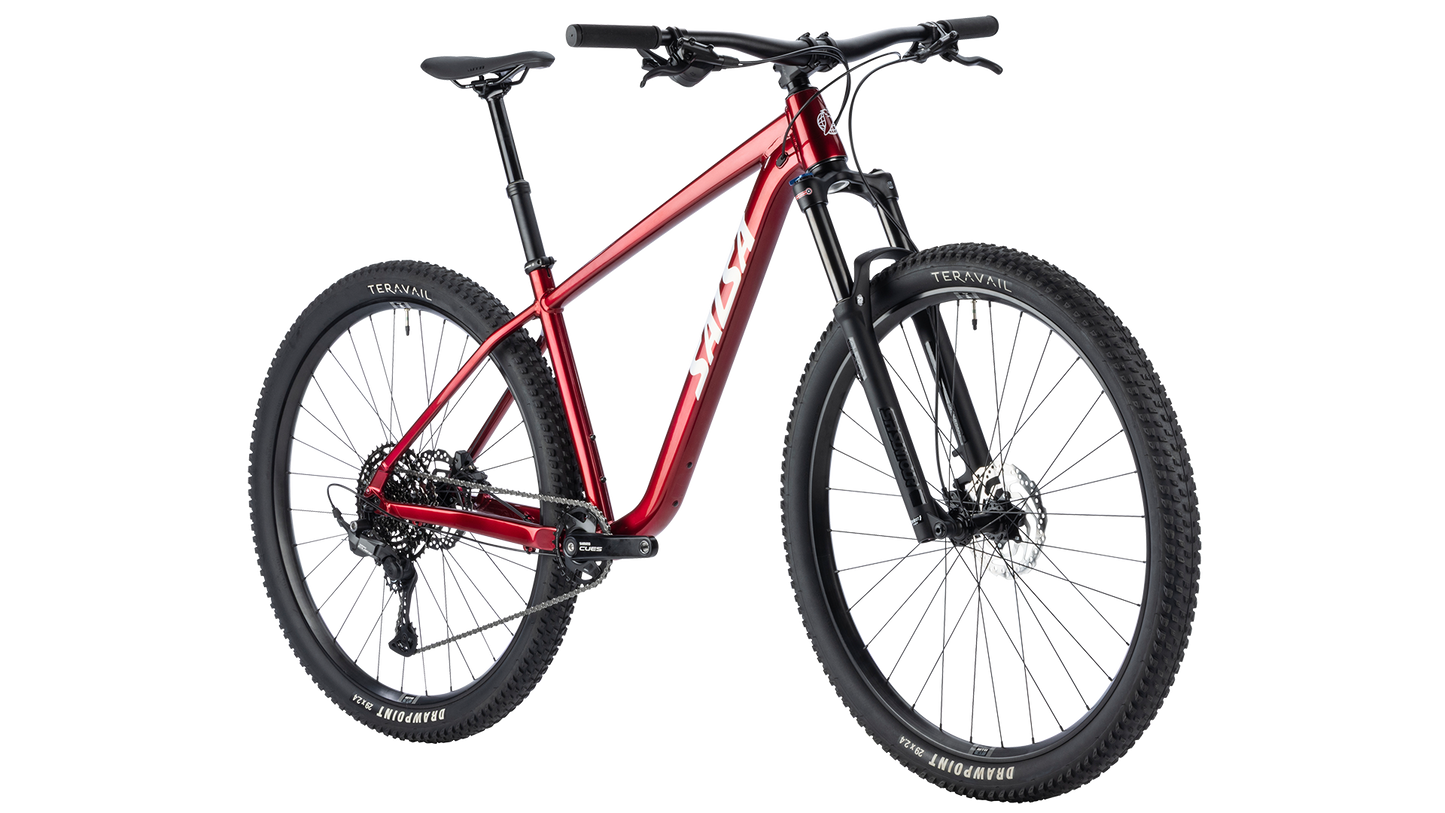

  • Salsa Rangefinder CUES 10 - Canyon Red - Front three quarter view

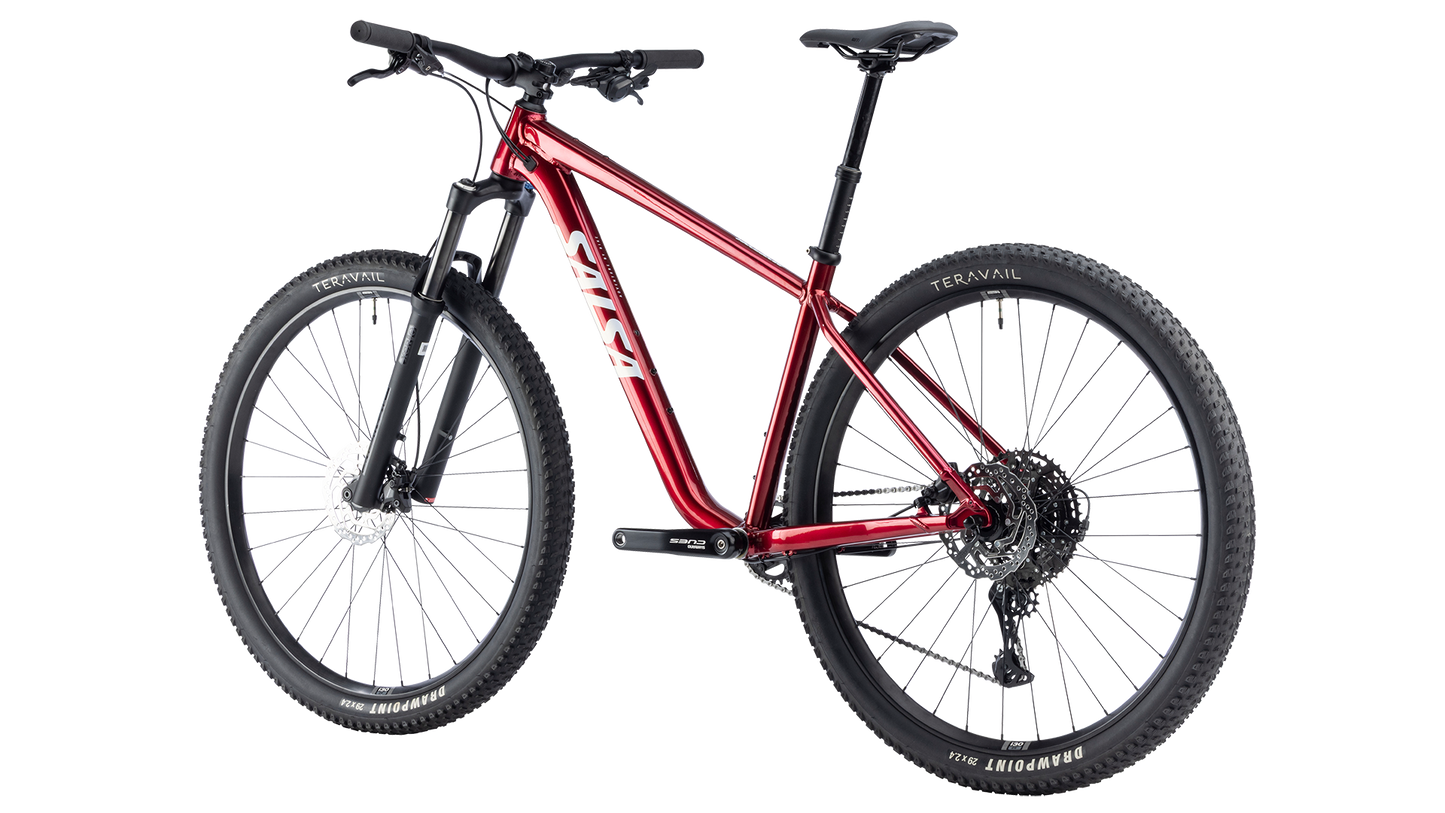

  • Salsa Rangefinder CUES 10 - Canyon Red - Rear three quarter view
1 3

Rangefinder CUES 10 29

Rangefinder CUES 10 29

$1,099.00 USD
$0.00 USD $1,099.00 USD
Size

Rangefinder CUES 10 is a hardtail trail bike that welcomes you to the world of mountain biking with a responsive, durable aluminum frame and geometry that puts you in a confident position for navigating the ups and downs of your local trails. Cargo mounts on the frame let you load up plenty of water, snacks, tools, and other ride essentials so you can spend more time riding or even explore bikepacking.

Rangefinder’s 120mm-travel fork absorbs trail bumps for a more comfortable, controlled ride, and 29 x 2.4″ tires grant you the traction you’ll want for rock gardens, loose surfaces, and other terrain. A Shimano CUES 10-speed drivetrain is simple and reliable, with a wide-range cassette for easier climbing.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Rangefinder Aluminum

  • Color

    Canyon Red

  • Suspension Fork

    SR Suntour XCR32, 120mm

  • Rear Shock

    N/A

Components

  • Headset

    FSA Orbit B

  • Seatpost

    TranzX YSI34, 100mm travel XS–SM; 125mm travel MD–XL

  • Stem

    Salsa Guide 35.0

  • Grips/Bar Tape

    Salsa file tread

  • Saddle

    WTB Solano, medium, steel hybrid fusion

  • Handlebar

    TranzX alloy

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano CUES U6000

  • Cassette

    Shimano CUES LG400, 11–48t, 10-speed

  • Chain

    Shimano LG500

  • Crankset

    Shimano CUES U4000, 30t

  • Shifter

    Shimano CUES U6000

  • Brake Levers

    Shimano MT401

  • Brake Calipers

    Shimano MT410

  • Bottom Bracket

    Shimano UN101 square taper

  • Rotors

    Shimano RT10 (Center Lock, 160mm front and rear)

Wheels

  • Front Tire

    Teravail Drawpoint 29 x 2.4"

  • Rear Tire

    Teravail Drawpoint 29 x 2.4"

  • Front Hub

    Shimano TC500 15 x 110mm

  • Rear Hub

    Shimano MT2000 10 x 141 mm

  • Spoke

    14 gauge, black

  • Rim

    WTB ST i30, 32h, 29"

Weight

  • Complete Bike

    31 lbs 10 ounces

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 566.7 589.0 613.3 641.9 668.5
B. Stand Over 688.6 708.3 747.2 779.1 808.7
C. Reach 400.6 421.5 444.4 470.4 494.3
D. Stack 601.9 606.4 611.0 620.1 629.3
E. Total Seat Tube Length 355.0 381.0 431.0 470.0 508.0
F. Headtube Length 95.0 100.0 105.0 115.0 125.0
G. Headtube Angle
68.6
68.6
68.6
68.5
68.5
H. Seat Tube Angle
74.6
74.6
74.6
74.5
74.5
I. BB Drop 62.0 62.0 61.9 61.8 61.7
K. Chainstay Length 439.0 439.0 439.0 439.0 439.0
L. Fork Length Axle to Crown 501.0 501.0 501.0 501.0 501.0
M. Fork Offset 46.0 46.0 46.0 46.0 46.0
N. Wheelbase 1101.9 1124.7 1149.6 1179.4 1207.1
Crank Arm Length 170.0 170.0 170.0 170.0 170.0
Handlebar Width 760.0 760.0 780.0 780.0 800.0
Recommended Rider Height 157.0 - 168.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length 50.0 50.0 50.0 50.0 50.0

Measurements based on:

  • OE spec 120mm 29/27.5+ suspension fork at 25% sag
  • 27.5 x 2.8" tire measuring 722mm in diameter
  • Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires

Size Guide

Rangefinder Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 29 x 1.9–2.6"
  • Alternate Wheel/Tire Sizes 27.5 x 2.8–3.0"
  • Suspension Fork Length (Travel) 100–130 mm
  • Fork Offset 46 mm
  • Rear Spacing 141 x 10 mm QR
  • Rear Brake (Rotor) 74 mm post mount (160–180 mm rotor)
  • Headset - Upper ZS44
  • Headset - Lower ZS56
  • Seatpost 30.9 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.0 mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger FS2361
  • Bottom Bracket 73 mm BSA, threaded
  • Crankset (Max Ring) Boost 148 52 mm chainline only (32t max)
  • Accessory Mounts Rear Rack Mounts: Yes. Salsa Post-Lock seatpost collar required; Downtube Accessory Mounts: 1; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.
  • Bottle Mounts 2
  • Front Fender Mounts No
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tube Set

A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel

Rangefinder Trail Geometry

Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain

120mm front suspension travel

A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling

Dropper Post

Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look

Cargo Capacity

The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP-R Series Trillium Top Tube Bag

Full-length Cable Housing

Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals

Dual Wheel Size Compatiblity

Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8–3.0") wheels and tires

FAQ

What size wheels/tires can I use on this frame?

Rangefinder is designed around 27.5 x 2.8–3.0" or 29 x 1.9–2.6" wheels and tires

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 541mm (typically a 130 mm-travel 29/27.5+ fork). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
