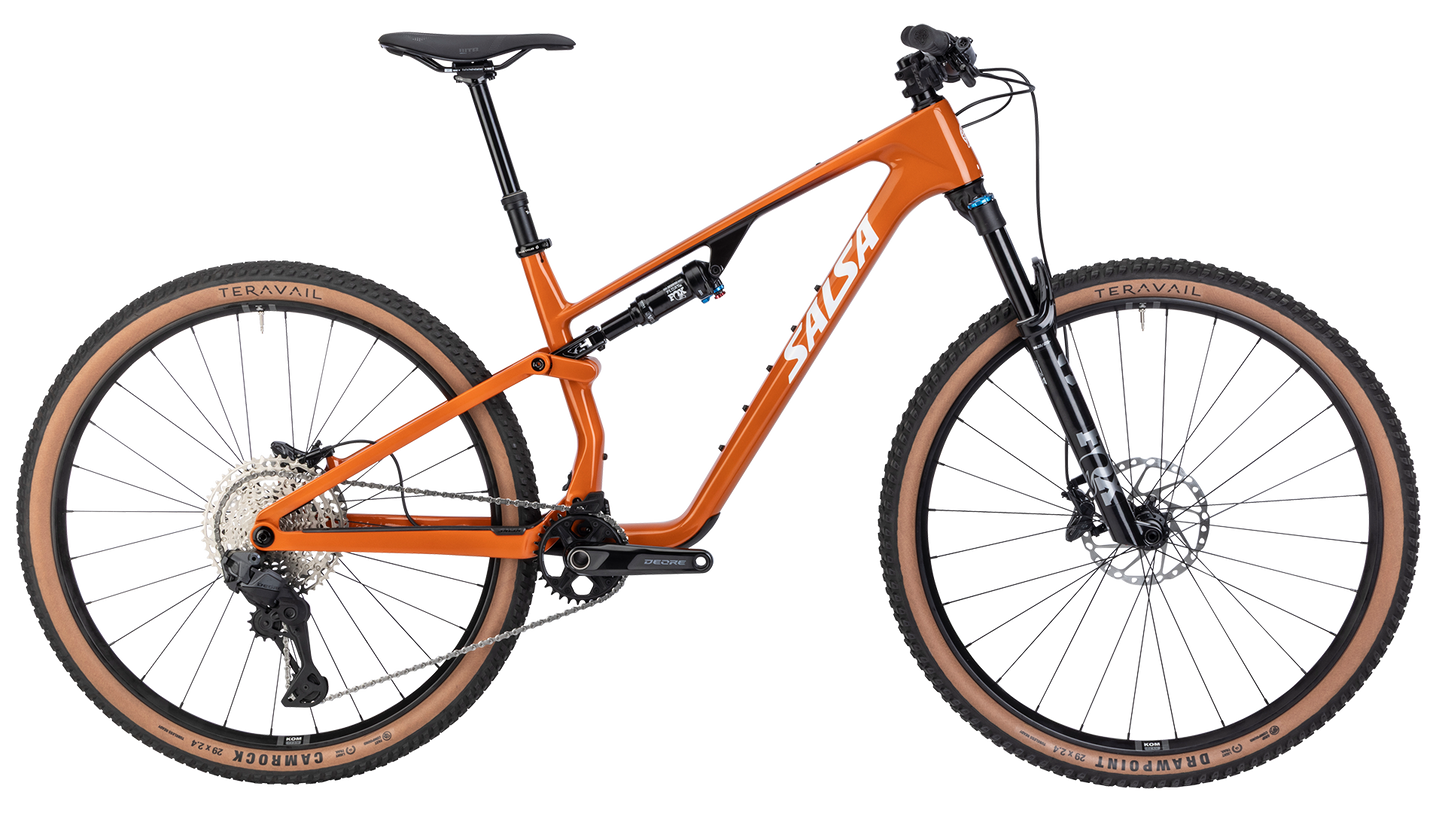

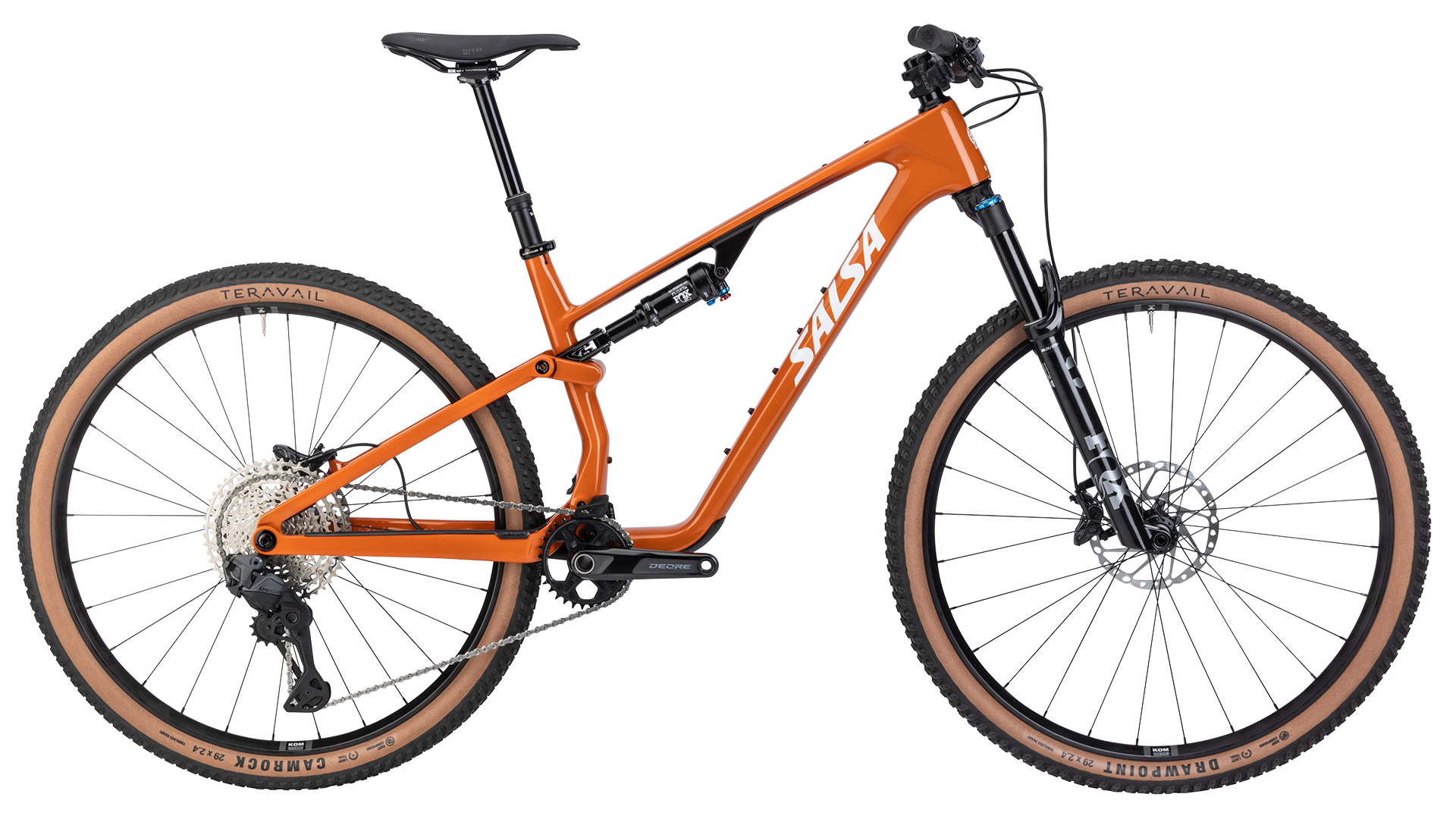

• Salsa Spearfish Carbon MTB - Amber - Side profile view

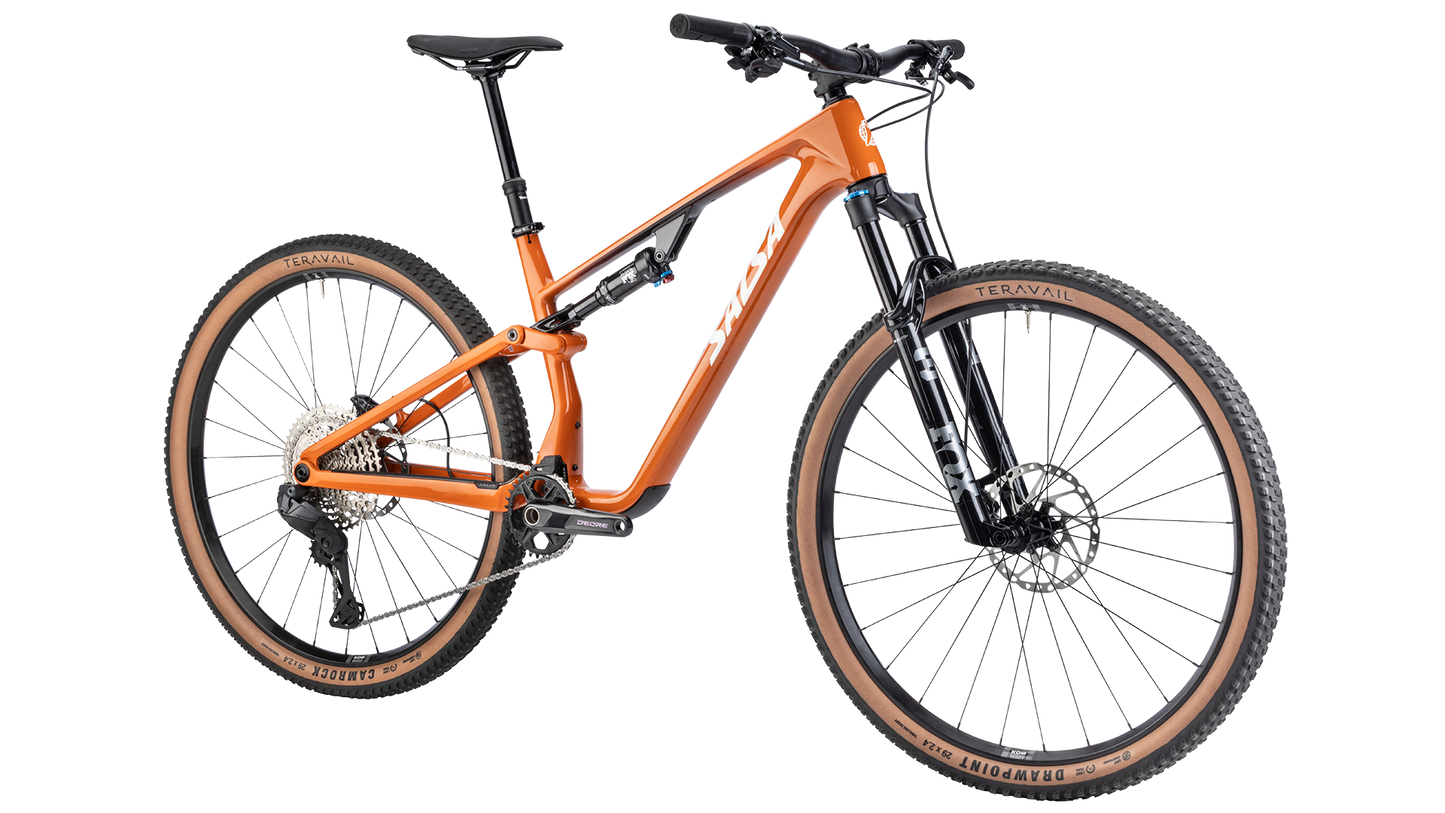

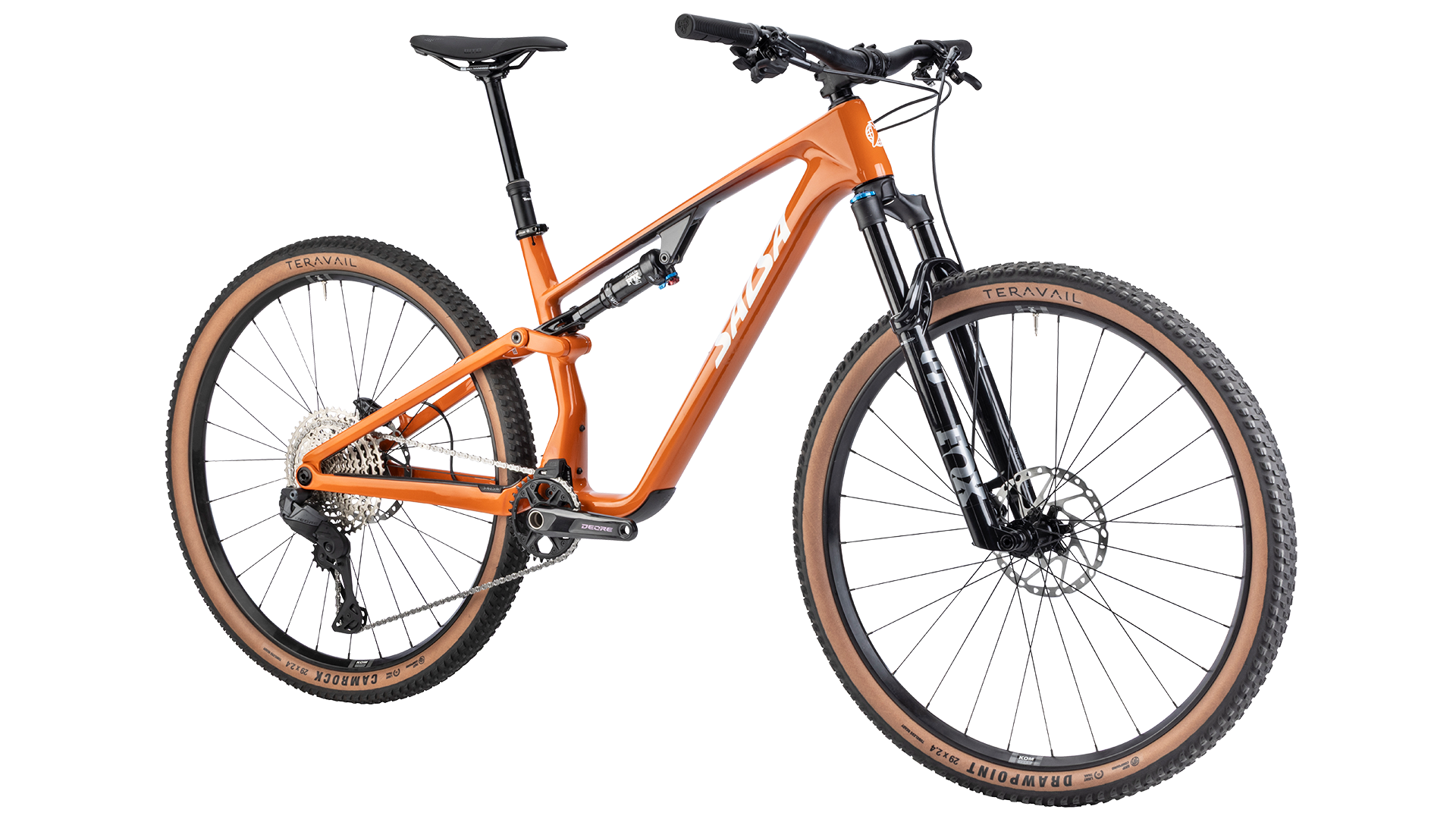

  • Salsa Spearfish Carbon MTB - Amber - front three quarter view

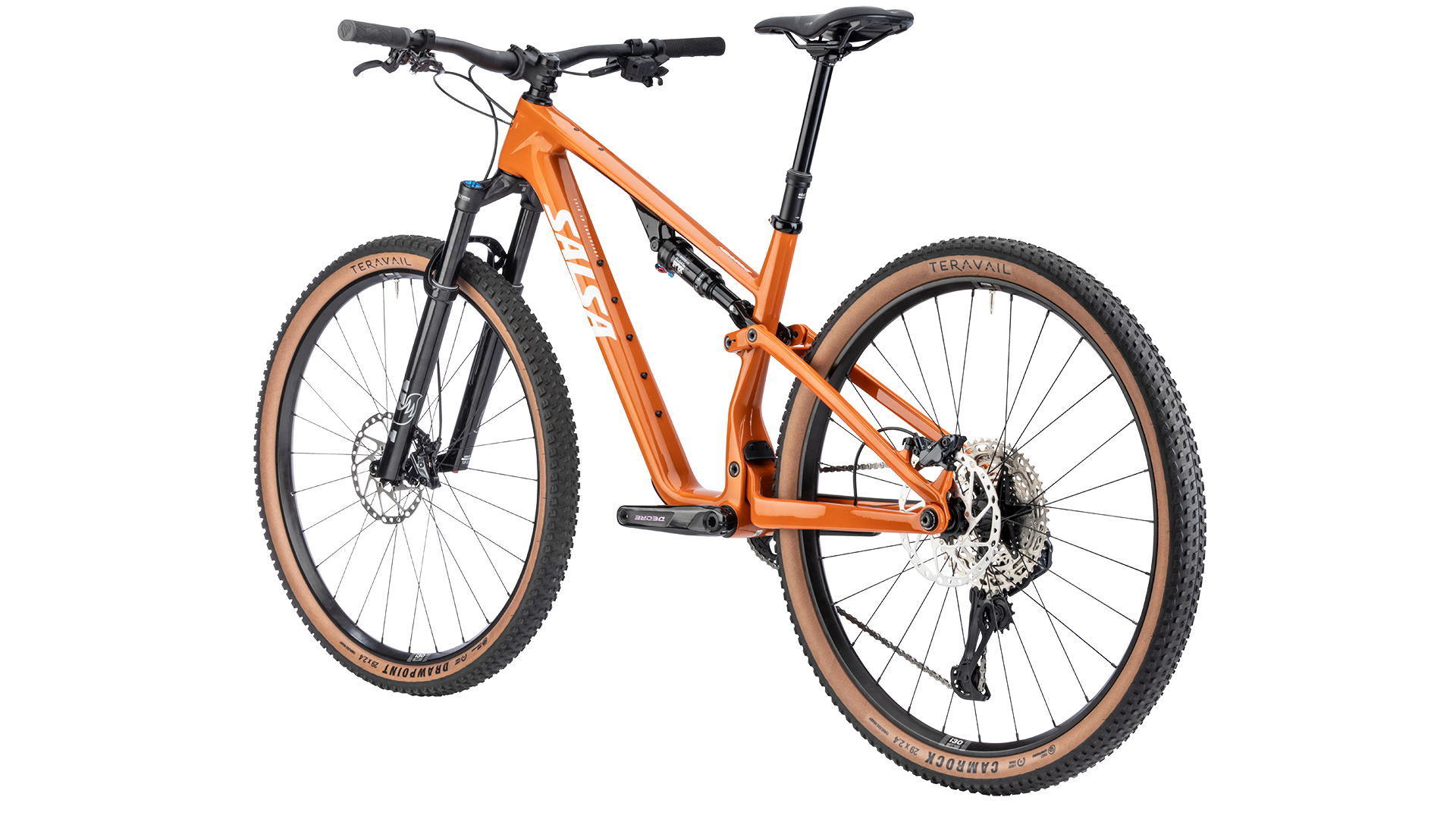

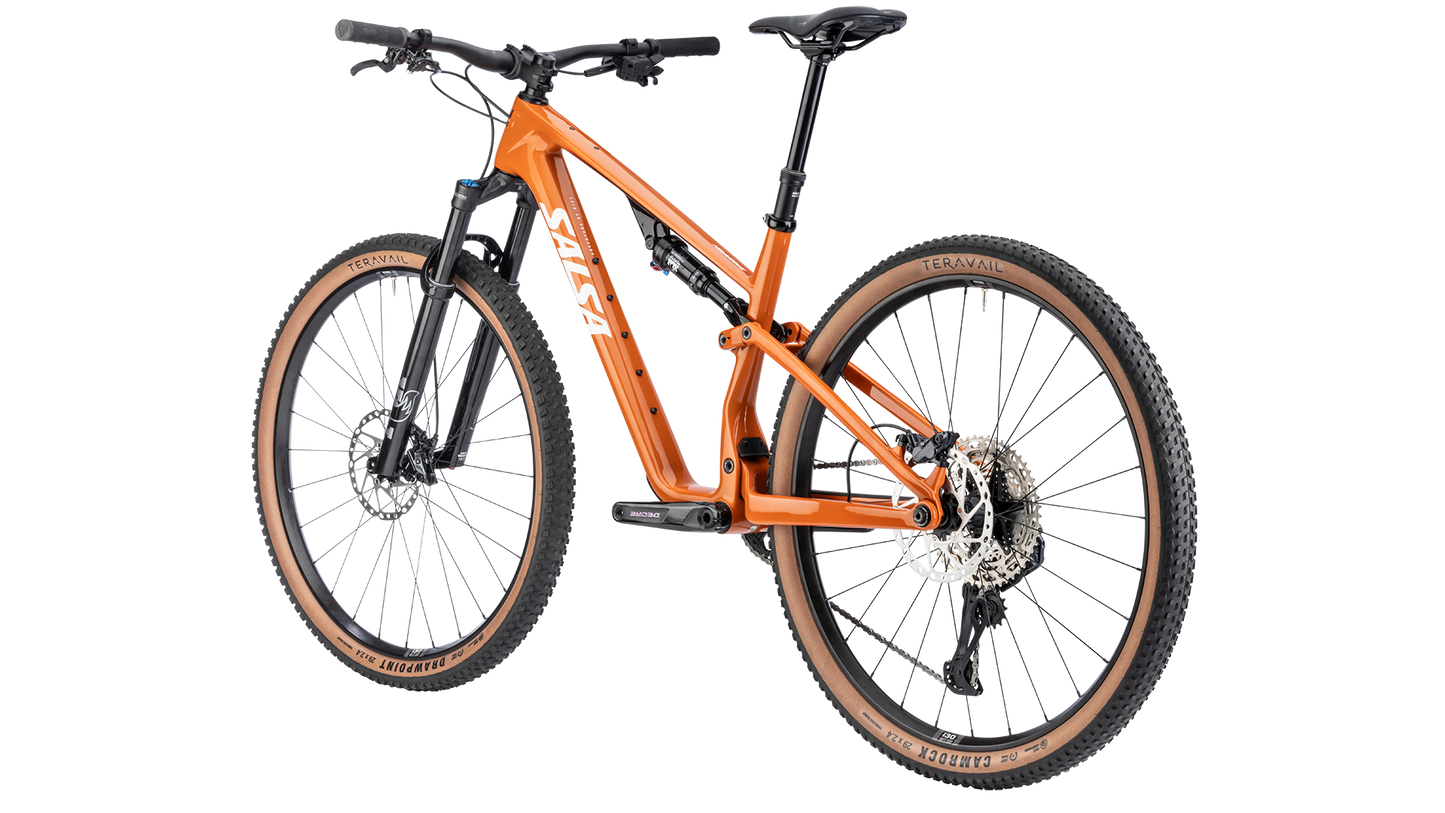

  • Salsa Spearfish Carbon MTB - Amber - Rear three quarter view
  • 2025 Bikepacking Awards - Gear of the Year 2025 Winner - Salsa Spearfish Mountain Bike. In the background a cyclist rides their Spearfish through a desert landscape.
1 4

Spearfish C Deore Di2

Spearfish C Deore Di2

$5,999.00 USD
$0.00 USD $5,999.00 USD
Size

Spearfish C Deore Di2 is an endurance XC MTB built to cover as much ground as possible, no matter how challenging. Its light, responsive carbon fiber frame meshes perfectly with the efficiency of our Split Pivot suspension design for finely balanced pedaling and braking performance. 120mm of front and rear travel soaks up all the technical terrain you’ll find on your local loop, bikepacking race, and beyond. The geometry allows efficient pedaling for chasing FKTs, and grants a boost of confidence on terrain that wants to throw you off your game.

Spearfish makes it easy to pack for big days out, with space for up to three bottles (sizes MD–XL), and cargo and accessory mounts that can also accommodate a sizeable direct-mount frame bag if that’s your jam. Shimano’s Deore Di2 groupset offers effortless, speedy electronic shifting so you can preserve every ounce of mental and physical energy as you push your limits.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Use the previous and next buttons to traverse through the carousel.

1 6

Product Details

Build Kit

Frameset

  • Frame

    Spearfish Carbon

  • Color

    Amber

  • Suspension Fork

    Fox 34 SL Performance Elite GRIP X, 44mm offset, 120mm

  • Rear Shock

    Fox Float SL Performance Elite, LV, 190 x 45mm

Components

  • Headset

    FSA Orbit 1.5E ZS NO.57E

  • Seatpost

    TranzX YSI08 RAD+ adjustable-travel dropper, Shimano MT500 lever, XS: 125mm; SM–MD: 150mm; LG: 170mm; XL: 200mm

  • Stem

    Salsa Guide 35.0

  • Grips/Bar Tape

    WTB Wavelength lock-on

  • Saddle

    WTB Silverado Steel Fusion Form, medium

  • Handlebar

    Race Face Aeffect 35.0mm

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano Deore M6260 SGS Di2

  • Chain guide

    MRP 1x SL TR2 integrated chainguide

  • Cassette

    Shimano Deore M6100-12, Hyperglide+, 10–51t, 12-speed

  • Chain

    Shimano Deore M6100

  • Crankset

    Shimano Deore M6120-1, 32t

  • Shifter

    Shimano Deore M6250-R

  • Brake Levers

    Shimano Deore M6100

  • Brake Calipers

    Shimano Deore M6120 4-piston

  • Bottom Bracket

    Shimano MT500-PA

  • Rotors

    Shimano RT64 (Center Lock, 180mm front and rear)

Wheels

  • Front Tire

    Teravail Drawpoint 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included)

  • Rear Tire

    Teravail Camrock 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included)

  • Front Hub

    Shimano TC500 15 x 110mm

  • Rear Hub

    Shimano TC500 12 x 148mm

  • Rim

    WTB KOM Team i30 TCS, 28h, 29"

Weight

  • Complete Bike

    29 lb. 4 oz.

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 567.8- 568.6 584.9- 585.7 606.9- 607.7 629.0- 629.8 651.1- 651.9
B. Stand Over 719.1- 716.4 719.2- 716.3 719.2- 716.3 719.3- 716.2 719.3- 716.2
C. Reach 435.0- 431.4 450.0- 446.5 470.0- 466.5 490.0- 486.4 510.0- 506.5
D. Stack 589.3- 591.9 598.4- 601.1 607.6- 610.3 616.7- 619.6 625.9- 628.8
E. Total Seat Tube Length 380.0 405.0 430.0 455.0 480.0
F. Headtube Length 95.0 105.0 115.0 125.0 130.0
G. Headtube Angle
66.3
-
66.0
66.3
-
66.0
66.3
-
66.0
66.3
-
66.0
66.3
-
66.0
H. Seat Tube Angle
77.3
-
77.0
77.3
-
77.0
77.3
-
77.0
77.3
-
77.0
77.3
-
77.0
I. BB Drop 31.0- 35.4 31.0- 35.5 31.0- 35.5 31.0- 35.6 31.0- 35.6
J. BB Height 342.0- 337.6 342.0- 337.5 342.0- 337.5 342.0- 337.4 342.0- 337.4
K. Chainstay Length 430.0- 431.2 430.0- 431.2 430.0- 431.2 430.0- 431.2 430.0- 431.2
L. Fork Length Axle to Crown 530.0 530.0 530.0 530.0 530.0
M. Fork Offset 44.0 44.0 44.0 44.0 44.0
N. Wheelbase 1157.0- 1157.7 1176.1- 1176.7 1200.0- 1200.7 1224.1- 1224.7 1248.1- 1248.7
Crank Arm Length 165.0 165.0 165.0 165.0 165.0
Handlebar Width 760.0 760.0 780.0 780.0 780.0
Recommended Rider Height 146.0 - 159.0 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0
Stem Length 50.0 50.0 50.0 50.0 50.0

Measurements based on:

  • an unsprung bike (no sag)
  • a 29 x 2.4" tire measuring 746mm in diameter
  • Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
  • Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position

Size Guide

Spearfish Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.0–2.4"
  • Max Tire Outer Diameter Frame: 29 x 2.4"
    Fork: Max. tire diameter: 758mm, Max. tire width 66mm
  • Frame Construction Carbon
  • Suspension Fork Length (Travel) 120
  • Fork Offset 44mm
  • Axle to Crown 530mm
  • Rear Spacing 12 x 148mm
  • Rear Axle Size 12 x 188mm, TP=1.0, TL=13mm
  • Rear Brake (Rotor) 74mm post mount (180–200mm)
  • Front Brake (Rotor) 74mm post mount (180–200mm)
  • Headset - Upper ZS44/28.6
  • Headset - Lower ZS56/40
  • Rear Shock Size 190 x 45mm
    Forward Shock Mount: Ø8 x 20mm
    Rearward Shock Mount: Standard Ø15MM, no bushing
  • Front Spacing 15 x 110mm
  • Front Axle Size Kabolt SL: 15x155, TP=M14x1.5, TL=14mm
  • Steerer Tube 1.125–1.5" tapered
  • Crown Race 59mm
  • Seatpost 30.9mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.4mm
  • Max Post Insertion SM: 215mm; MD: 240mm; LG: 265mm; XL: 290mm
  • Derailluer Hanger SRAM UDH (w/ Ø30mm washer)
  • Bottom Bracket BB92 press-fit
  • Crankset (Max Ring) 34t, 55mm Chainline
  • Accessory Mounts XS–SM: downtube accessory mount; MD–XL: Three-Pack downtube mount; Top tube accessory mounts on all sizes
  • Bottle Mounts XS–SM: two full size bottles; MD–XL: three bottles

    XS-XL Configuration For 2 Water Bottles

    MD Configuration For 3 Water Bottles

    LG-XL Configuration For 3 Water Bottles

Supportive Documents

Support Document links

Additional Features

Split Pivot rear suspension design

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction.

Split Pivot + design methodology

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means that Spearfish riders can adjust rear travel from 100–120mm rear and fit forks from 100–130mm.

Carbon fiber frame

High-modulus carbon fiber frame, seatstays, and chainstays with carbon fiber shock and control links for weight, stiffness, and durability.

Endurance XC geometry

Spearfish is designed on the premise that precision and efficiency equal speed. Spearfish’s renowned pedigree in ultra-endurance racing has informed every geometry choice here. The sub 66.3-degree head tube angle combined with 430mm chainstays provide confidence at speed without sacrificing agility, with a flip chip to further tune to your liking. A 77.3-degree seat tube angle maintains a comfortable pedaling position for long days in the saddle.

Flip chip

A flip chip allows a simple and quick 5mm adjustment to bottom bracket height and 0.3-degree adjustment to head tube angle to account for your personal preference, terrain, or tire diameter.

Purpose-tuned suspension

Spearfish-specific control link and shock links optimize the frame geometry and kinematics for its suspension travel, delivering a precise, efficient ride feel.

Maximum bottle capacity

Stay hydrated on long rides with space for two bottles on sizes XS–SM; sizes MD–XL fit three bottles.

Accessory mounts

Spearfish's main triangle features accessory mounts for bolting your repair kit.

Top tube accessory mounts

Top tube mounts accommodate the Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount for bike computers.

Molded frame protection

Molded rubber down tube, seat tube, chainstay, and seatstay guards protect your frame from impacts and abrasion

FAQ

What travel configurations can I run on the Spearfish?

Spearfish is capable of running rear travel between 100-120mm and fork travels between 100-130mm of travel. Spearfish uses metric rear shocks in the 190mm eye-to-eye length with strokes between 37.5mm and 45mm to adjust the rear travel in roughly 6.5mm increments with each 2.5mm change in stroke length starting at 100mm rear wheel travel for a 37.5mm stroke shock. We recommend pairing fork travel to match rear travel or over forked by 10mm.

What is the difference between the Deluxe Carbon layup and the Standard Carbon layup?

The Deluxe Carbon layup uses higher modulus carbon fiber in key areas of the front triangle, seatstays, and chainstays so reduce weight. We focused the Deluxe layup on weight reduction only, a MD Deluxe frame is about 250g ligher than a MD frame in the standard carbon layup. The Deluxe layup still has the same great ride quality as the standard layup as we did not want to jeopardize that as part of reducing weight.

Can I run a mixed-wheel setup on this bike?

We do not recommend the use of 27.5" rear wheels on Spearfish.

What length dropper post can I fit?

Dropper post length depends on multiple factors. Our friends at Park Tool have created a guide to help you determine the right size for your bike. Read the guide here.

How does the geometry change if I use a suspension fork with 130mm of travel?

See the Spearfish alternate fork travel geometry chart.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View warranty

How many water bottles can I fit on my frame?

XS & SM frames can fit two 26oz water bottles inside the front triangle. The MD can fit either two 26oz water bottles utilizing the seat tube and middle or lower two down tube bottle bosses or one 26oz water bottle and two 20oz water bottles for a total of three. The LG & XL frames can fit either two 26oz water bottles utilizing the seat tube and middle or lower two down tube bottle bosses or two 26oz water bottle and one 20oz waterbottles for a total of three.

XS-XL Configuration For 2 Water Bottles

MD Configuration For 3 Water Bottles

LG-XL Configuration For 3 Water Bottles

Where can I mount my tool roll and pump?

If you want to use a tool/tube mount like the Salsa Anything Bracket Mini or similar two bottle mounting attachment it is best to run it on the lower set of down tube bottle bosses and push the water bottle up to the next pair of water bottle bosses. For mounting a pump bracket we recommend running it up one bottle boss from the bottom on the downtube to provide clearance so it doesn't hang below the downtube. This will mean it is often offset to the water bottle cage or accessory mount.
