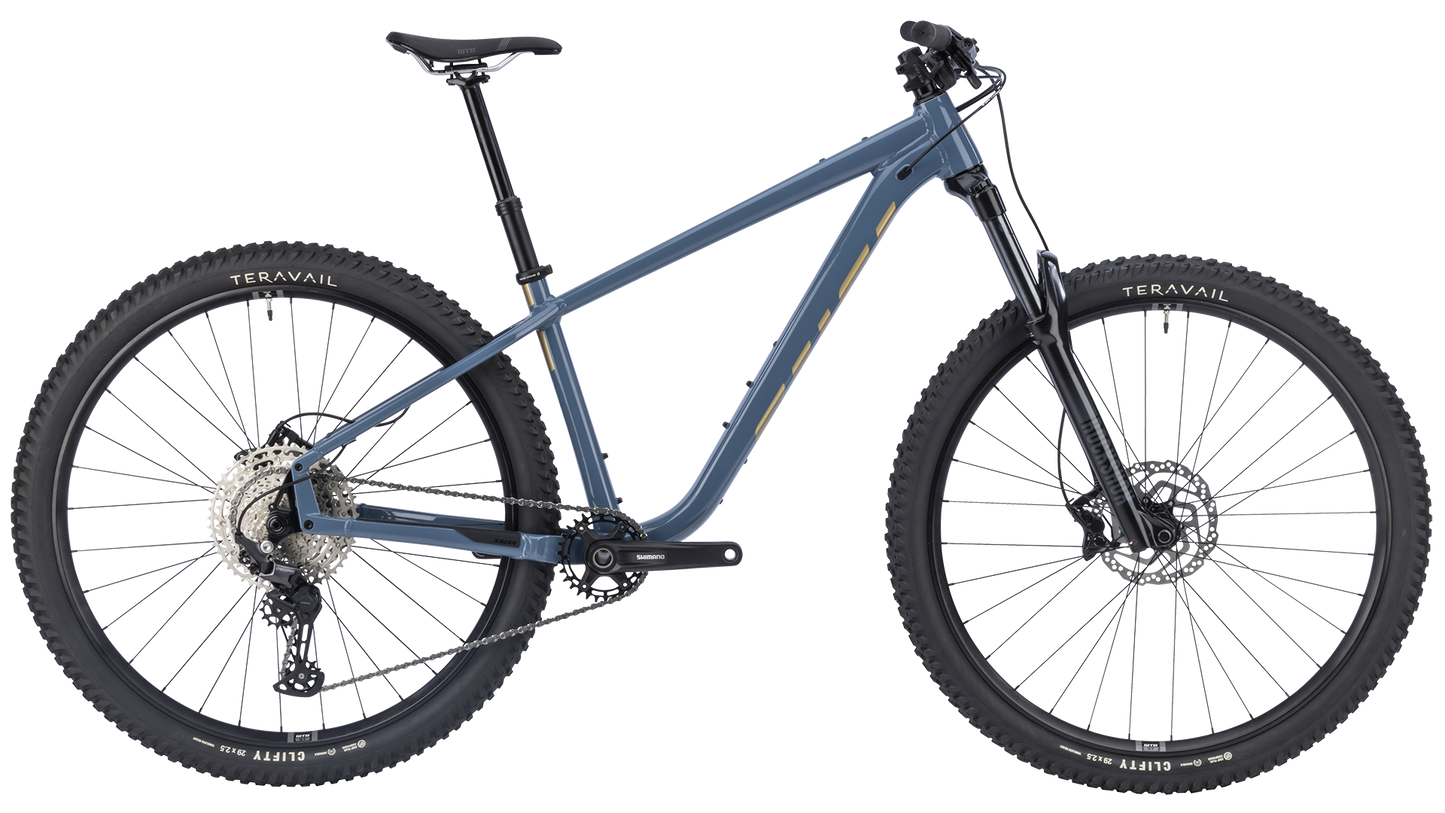

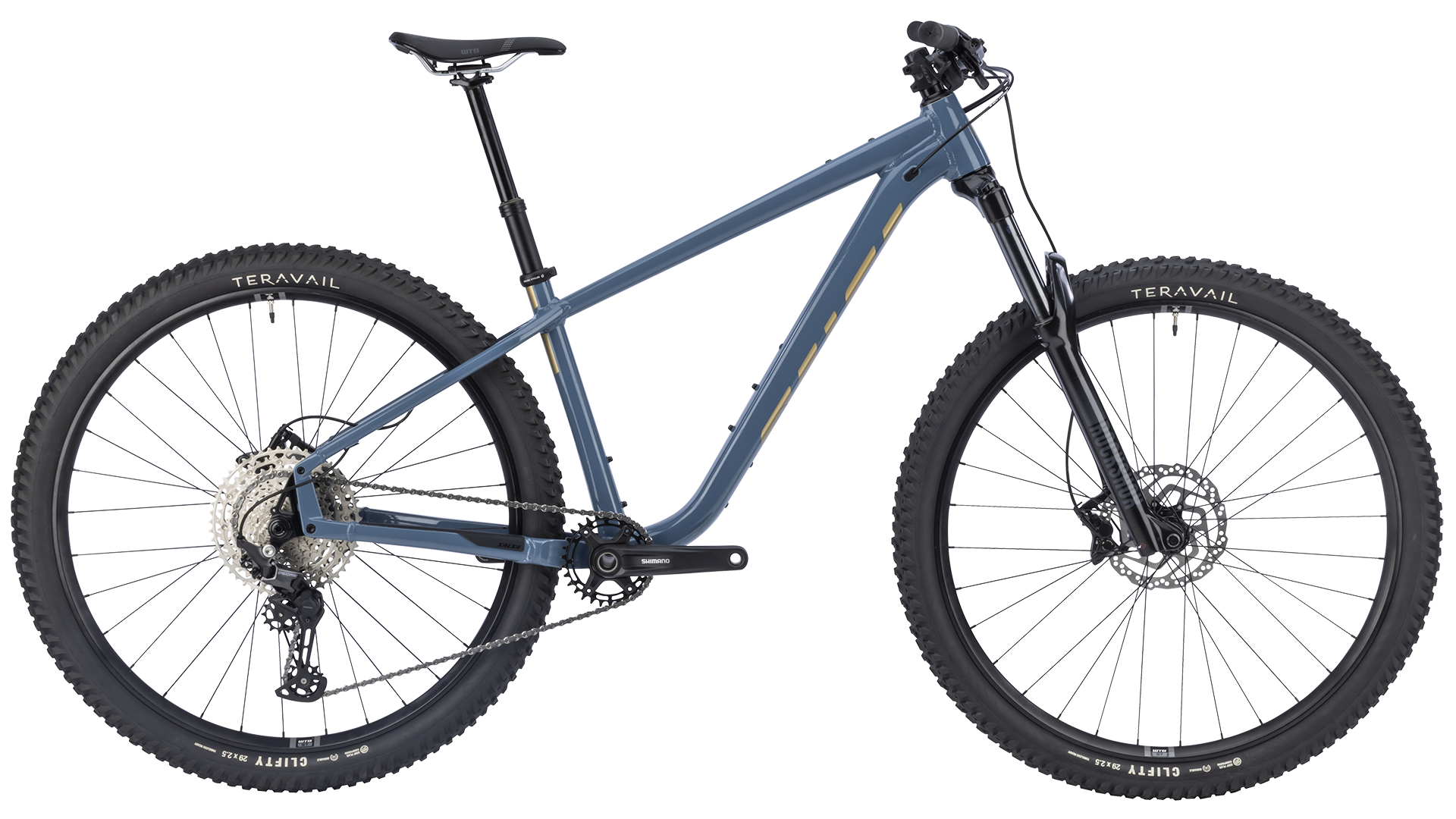

• Salsa Timberjack Deore 12 Mountain Bike - Storm Blue - Side profile view

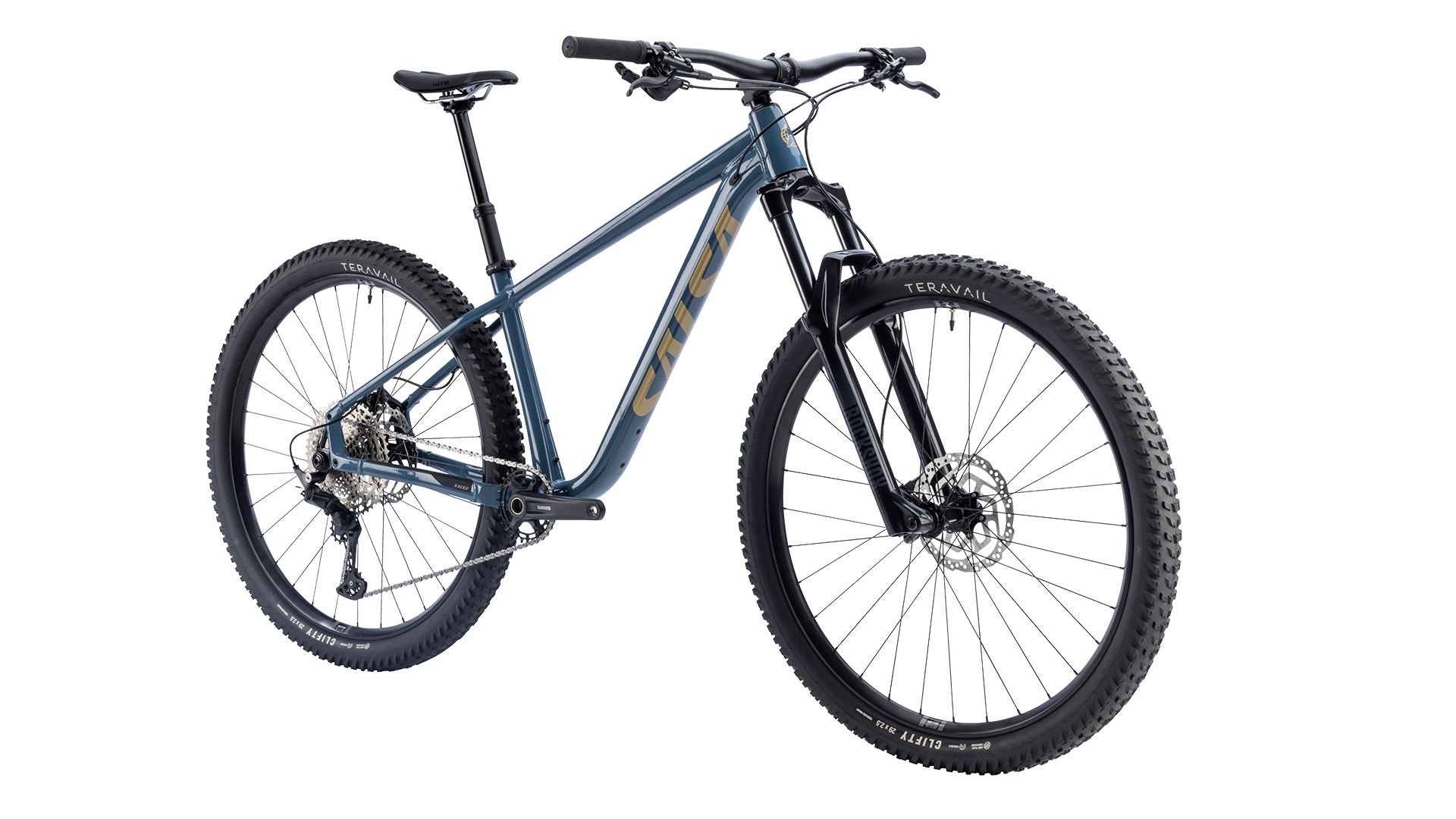

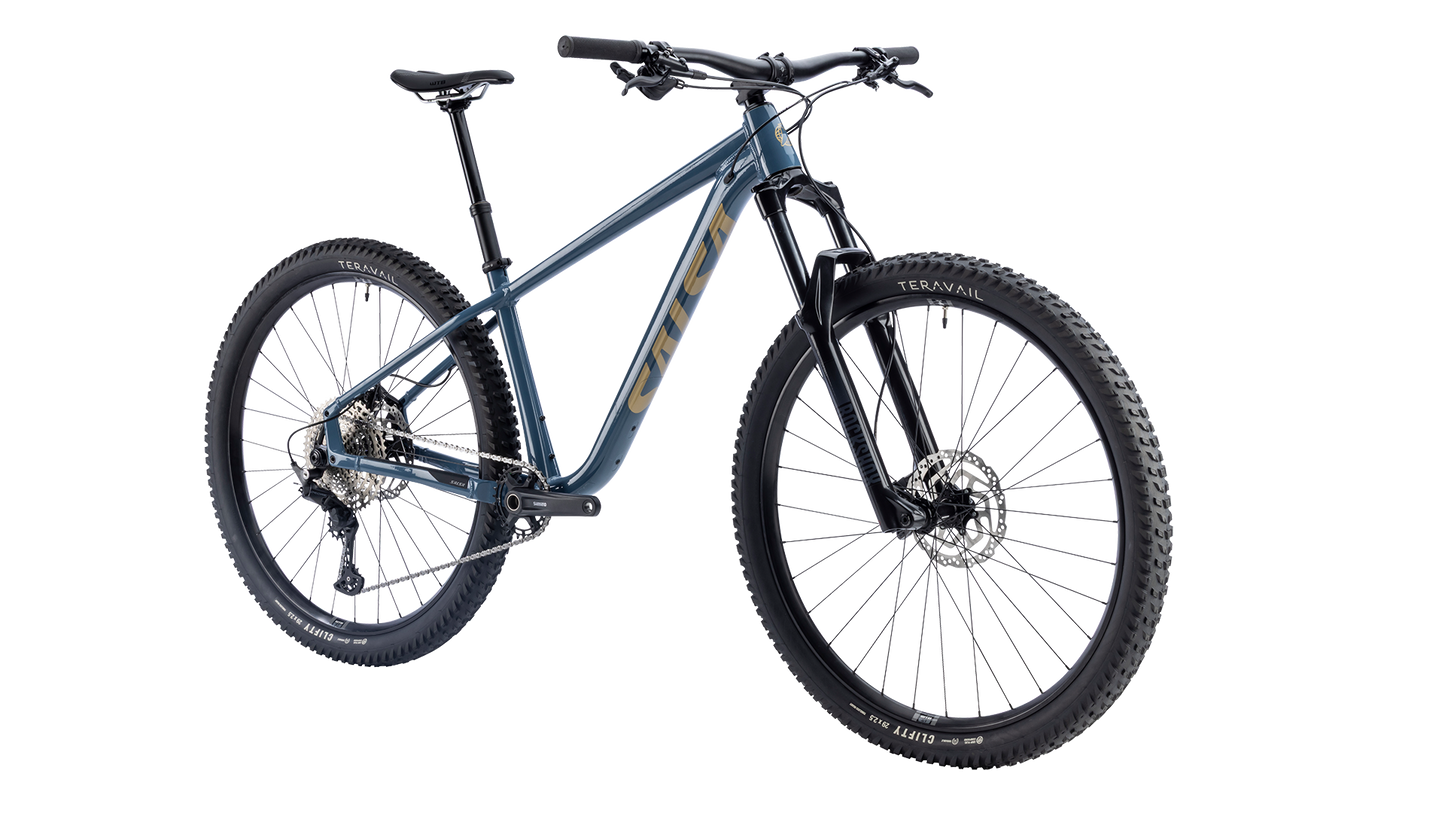

  • Salsa Timberjack Deore 12 Mountain Bike - Storm Blue - Front three quarter view

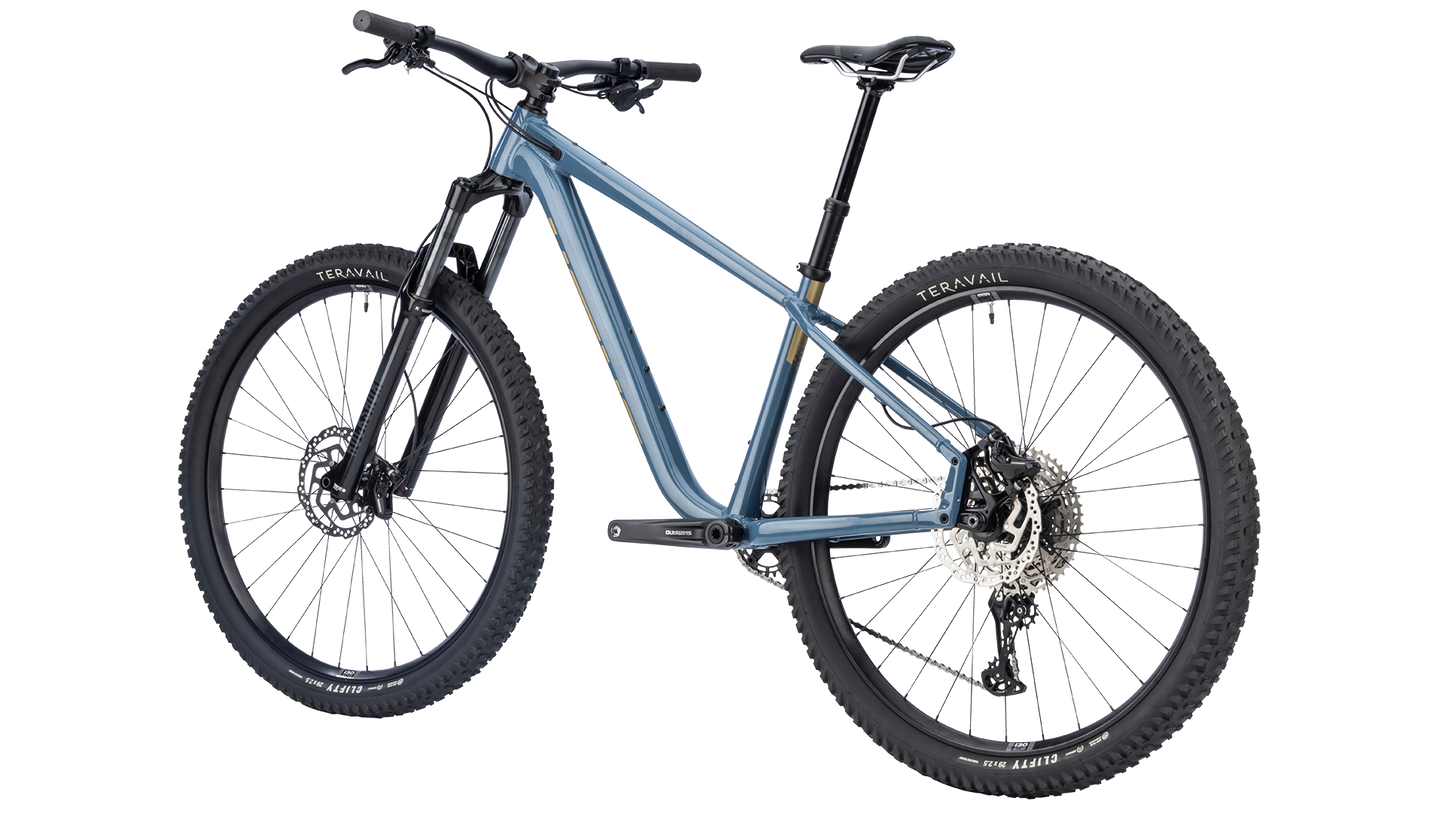

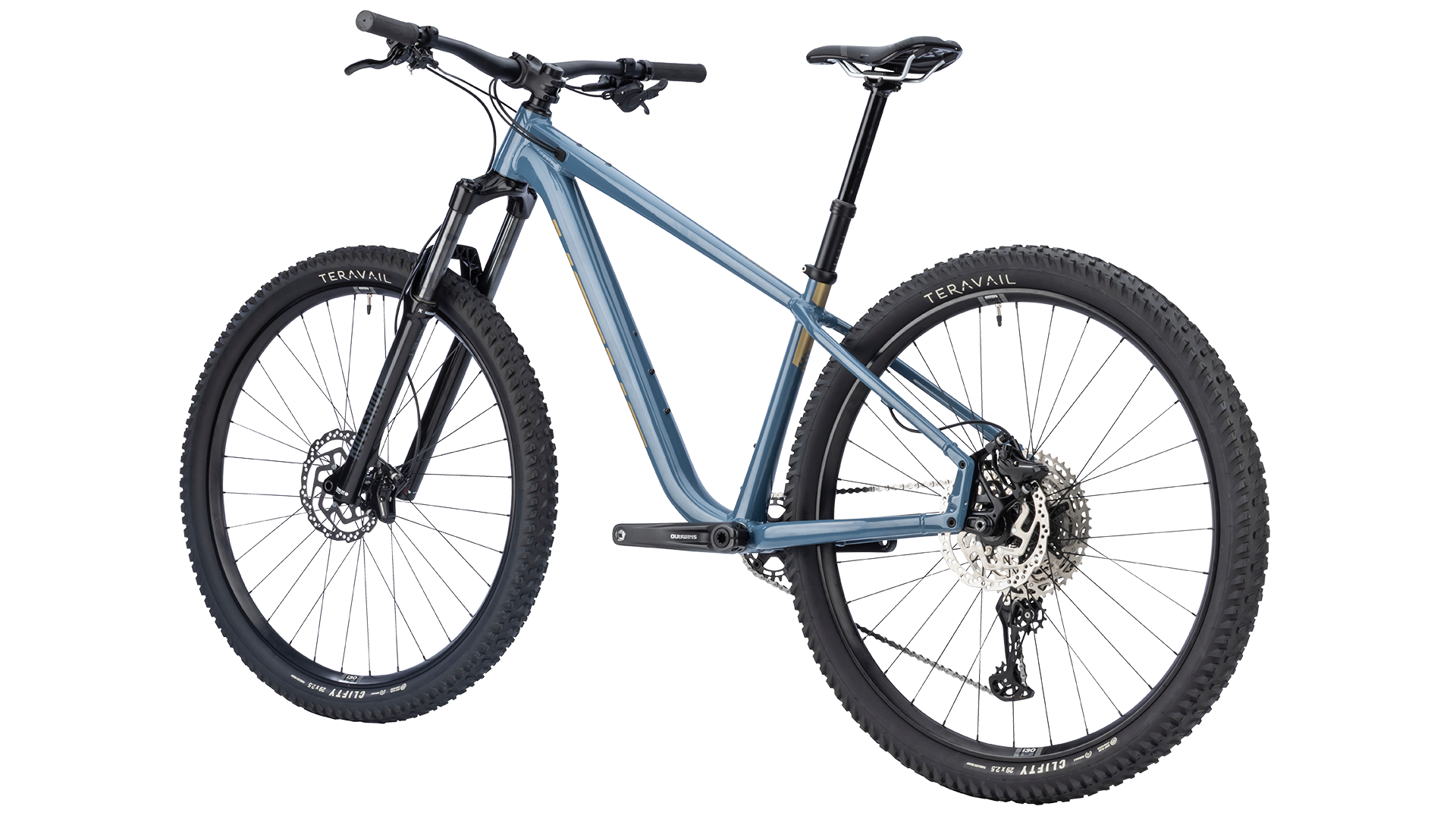

  • Salsa Timberjack Deore 12 Mountain Bike - Storm Blue - Rear three quarter view
1 3

Timberjack Deore 12 29

Timberjack Deore 12 29

$1,799.00 USD
$0.00 USD $1,799.00 USD
Size

Timberjack Deore 12 can be multiple bikes. Its aluminum frame, trail geometry, and 140mm-RockShox Recon Silver RL all push you to push your limits and get playful on the trail. The multiple bottle and cargo mounts plus the versatility of our Alternator dropout system invite you to explore just how far you can take your Timberjack. Bikepacking? You bet. Single-speeding? Sure.

Shimano’s Deore 12-speed drivetrain and four-piston brakes keep you confidently in control of the pace, whether picking your way up a steep, techy climb or bombing down a flowy line. We think this all adds up to make Timberjack the best hardtail mountain bike for riders who like a little of everything.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Timberjack 2.0 Aluminum

  • Color

    Storm Blue

  • Suspension Fork

    RockShox Recon Silver RL, 140mm

  • Rear Shock

    N/A

Components

  • Headset

    FSA Orbit

  • Seatpost

    TranzX YSI34 dropper, Shimano MT-500 I-Spec-EV lever

  • Stem

    Salsa Guide Trail 35.0

  • Grips/Bar Tape

    Salsa File Tread

  • Saddle

    WTB Solano, Steel Fusion Hybrid, medium

  • Handlebar

    TranzX alloy, 35.0

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano Deore 12

  • Cassette

    Shimano Deore 12

  • Chain

    Shimano

  • Crankset

    Shimano MT510

  • Shifter

    Shimano Deore 12

  • Brake Levers

    Shimano M4100

  • Brake Calipers

    Shimano MT420, 4-piston

  • Bottom Bracket

    Shimano SM-BB52, 73mm BSA

  • Rotors

    Shimano RT10 (Center Lock, 180mm front and rear)

Wheels

  • Front Tire

    Teravail Clifty 29 x 2.5", Durable casing, Grip Plus compound

  • Rear Tire

    Teravail Clifty 29 x 2.5", Durable casing, Grip Plus compound

  • Front Hub

    Shimano TC500, 15 x 110mm

  • Rear Hub

    Shimano TC500 12 x 148mm

  • Spoke

    14-gauge, black

  • Rim

    WTB ST i30, 32h, 29" (taped, TCS sealant and valves included)

Weight

  • Complete Bike

    32 lb. 6 oz (Medium)

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 570.0 594.1 615.3 639.0 659.3
B. Stand Over 702.9 722.6 742.1 772.1 792.9
C. Reach 410.7 433.6 453.6 475.5 492.6
D. Stack 599.0 599.0 607.4 613.5 625.5
E. Total Seat Tube Length 342.9 370.0 395.0 432.0 457.2
F. Headtube Length 100.0 100.0 105.0 115.0 125.0
G. Headtube Angle
66.4
66.4
66.4
66.4
66.4
H. Seat Tube Angle
75.1
75.1
75.1
75.1
75.1
I. BB Drop 56.6 56.6 56.6 56.6 56.6
K. Chainstay Length 437.0 437.0 437.0 437.0 437.0
L. Fork Length Axle to Crown 543.0 543.0 543.0 543.0 543.0
M. Fork Offset 44.0 44.0 44.0 44.0 44.0
N. Wheelbase 1137.0 1159.5 1181.5 1197.5 1228.7
Crank Arm Length 170.0 170.0 170.0 175.0 175.0
Handlebar Width 760.0 760.0 780.0 780.0 800.0
Recommended Rider Height 157.0 - 163.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length 50.0 50.0 50.0 50.0 50.0

Measurements based on:

  • an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
  • a 27.5 x 2.8" tire measuring 724.5mm in diameter
  • Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
  • Wheelbase at 420mm chainstay length

Size Guide

Timberjack Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes Tire Size Range for 622/29" Wheels: 53–66 mm (2.1–2.6")
  • Alternate Wheel/Tire Sizes Tire Size Range for 584/27.5" Wheels: 71 mm (2.8")
  • Max Tire Outer Diameter 760.5 mm (29.95")
  • Suspension Fork Length (Travel) 511–563 mm (100–150 mm travel)
  • Rigid Fork Length 483–501 mm
  • Fork Offset 42–51 mm
  • Rear Spacing 148 mm
  • Rear Axle Size M12 x 180L, TP = 1.5, TL = 20
  • Rear Brake (Rotor) IS mount (180 mm max)
  • Headset - Upper ZS44
  • Headset - Lower ZS56
  • Seatpost 30.9 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35 mm
  • Front Derailleur Clamp NOT COMPATIBLE
  • Derailluer Hanger Alternator 2.0 with UDH plates
  • Bottom Bracket 73 mm BSA
  • Crankset (Max Ring) 52 mm Boost chainline 1x only (34t)
  • Accessory Mounts Accessory Mounts: Yes, one pair
    Downtube Accessory Mounts: Yes, one pair
    Top Tube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
  • Bottle Mounts XS = 1, SM–XL = 2
  • Front Fender Mounts NOT COMPATIBLE
  • Rear Fender Mounts NOT COMPATIBLE

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tubing

Timberjack is built from our proprietary, top-shelf 6061-T6 aluminum tubing, which is double- and triple-butted in the main triangle for a light, responsive, and durable frame with great trail feel.

Timberjack Geometry

Our second-generation Timberjack geometry is longer, lower, and slacker for aggressive riding. A 66-degree head tube and long wheelbase make for a stable ride, while a long reach and steep (75-degree) seat tube balance weight distribution for efficient pedaling. Short chainstays (adjustable from 420–437 mm) keep the rear end nimble for responsive handling.

Alternator 2.0 UDH-compatible dropouts

The Alternator 2.0 dropout system on this Timberjack comes equipped with SRAM UDH-compatible, fixed-position dropout plates. Other Alternator 2.0 dropout plates (sold separately) allow for single-speed adjustability and accommodate different hub standards.

On-bike cargo

SM–XL frames have two bottle mounts—including a Three-Pack mount on the downtube—in the main triangle (XS frames have only the Three-Pack mount on the downtube). All sizes feature an accessory mount on the underside of the downtube, plus top tube mounts for our EXP-R Series Trillium Top Tube Bag means room for more ride essentials. Rear rack capability (with Salsa Rack-Lock seatpost collar) opens up possibilities for larger loads.

Full-length internal routing

Full-length internal routing for brake lines and shift cable housing means more reliable performance in sloppy conditions, simplified maintenance, and a better fit for frame bags.

Wheel and tire options

Timberjack is compatible with both 27.5 x 2.8" and 29 x 2.1–2.6" wheel and tire combinations.

FAQ

What size wheels/tires can I use on this frame?

Timberjack is designed for 27.5 x 2.8" or 29 x 2.1–2.6" wheels and tires

Can I use a suspension fork on this frame?

Yes, this frame is designed and tested for use with a suspension fork with an axle-to-crown length up to 563 mm (typically 150 mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer fork will void the frame warranty and could result in frame failure.

How do I take care of the alternator 2.0 dropouts

We recommend periodically removing the bolts and cleaning the dirt and grime off of the hardware and frame surfaces. Then, lightly regrease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
