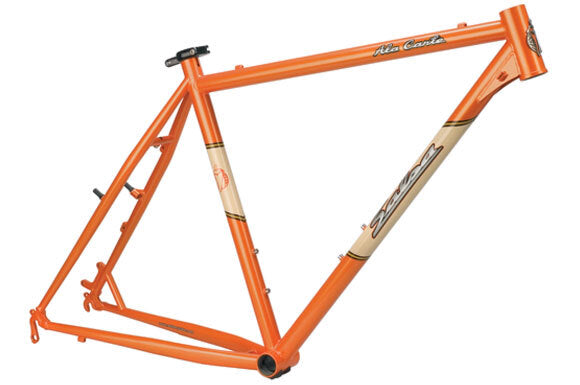

2009 Ala Carte Orange

2009 Ala Carte Orange

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: True Temper OX Platinum main triangle
  • 2: Butted CroMoly rear triangle
  • 3: TIG-welded construction
  • 4: Downtube gusset and reinforced one-piece headtube ring
  • 5: Includes 30.6mm Salsa Lip-Lock seat collar
  • 6: 1-1/8" headtube, 27.2mm seatpost, 68mm English bottom bracket shell, 135mm rear spacing, 28.6mm front derailleur clamp, bottom pull, top swing
  • 7: 18.5" frame weight: 4.48 lbs
  • 8: Color: Tang Orange
  • 9: ISO disc tabs/removable canti bosses
  • 10: Sizes: XXS, XS, SM, MD, LG, XL

Geometry

Geometry Diagram
Size 13.5" 15.5" 17" 18.5" 19.5" 21"
Top Tube Effective Metric 518 535 563 576 591 610
Seat Tube Length Metric 386.4 434.5 473.8 507.9 542.9 582.1
Head Tube Length Metric 90 90 95 100 130 150
Head Tube Angle 70 70 71 71 71 71
Seat Tube Angle 73 73 73 73 73 73
BB Drop Metric 35 35 35 35 35 35
Chainstay Length Metric 432 432 432 432 432 432
Fork Length Metric 441 441 441 441 441 441
Fork Offset Metric 39 39 39 39 39 39
Wheelbase Metric 39.6 40.3 41 41.6 42.2 43
Stack Metric
Reach Metric
Standover Metric 718.9 722.5 768.9 787.7 818.7 864.4
Rider Height Metric
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
