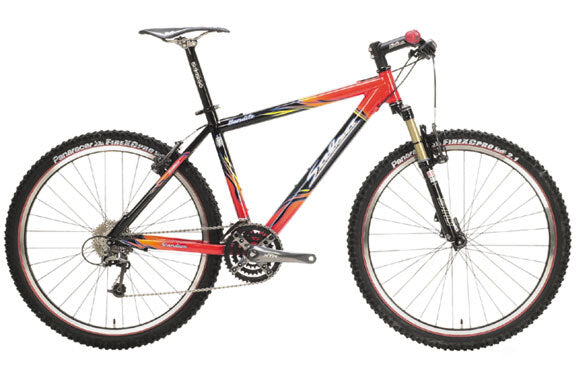

• Salsa Bandito hardtail mountain bike side view

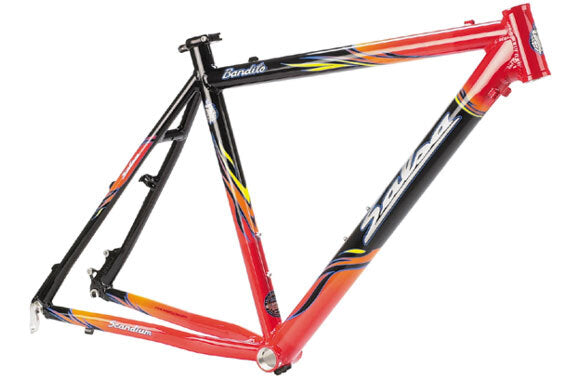

  • Salsa Bandito hardtail mountain frame side view
1 2

2009 Bandito

2009 Bandito

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Scandium, custom drawn tubeset
  • 2: Fits up to 26 x 2.3" tires
  • 3: 135mm rear spacing
  • 4: Standard 1-1/8" headset
  • 5: Seatpost diameter: 31.6mm
  • 6: Seatpost clamp: 34.9mm
  • 7: ISO disc tab mounts/removable canti bosses
  • 8: Front derailleur clamp: 34.9mm
  • 9: Bottom bracket: 68mm
  • 10: Includes Salsa Flip-Lock seat collar
  • 11: For use with 80mm fork
  • 12: Sizes: 16, 18, 20, and 22"
  • 13: 3.05 lbs for 18" (without brake bosses)
  • 14: Color: Inferno red

Geometry

Geometry Diagram
Size 16" 18" 20" 22"
Top Tube Effective Metric 560 576 596 615
Seat Tube Length Metric 406.4 457 508 558.8
Head Tube Length Metric 95 105 125 145
Head Tube Angle 71 71 71 71
Seat Tube Angle 73 73 73 73
BB Drop Metric 35 35 35 35
Chainstay Length Metric 429 429 429 429
Fork Length Metric 441 441 441 441
Fork Offset Metric 39 39 39 39
Wheelbase Metric 40.8 41.4 42.3 43
Stack Metric
Reach Metric
Standover Metric 758.8 785.9 820.3 853.6
Rider Height Metric
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height
