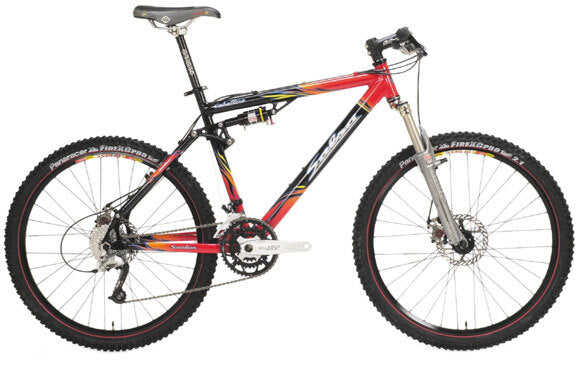

• Salsa Caballero bike side view

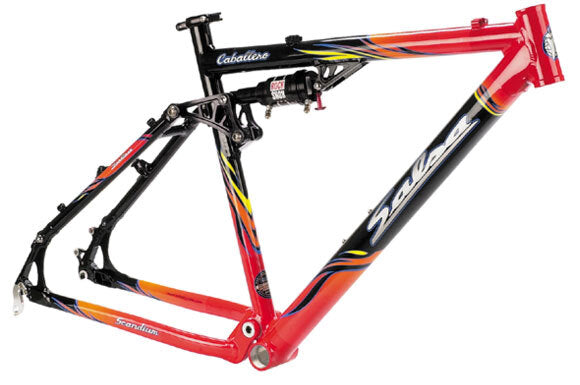

  • Salsa Caballero frame side view
1 2

2009 Caballero

2009 Caballero

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Scandium, custom drawn tubeset, CNC'd Rocker Arm
  • 2: Fits up to 26 x 2.3" tires
  • 3: 135mm rear spacing
  • 4: Standard 1-1/8" headset
  • 5: Seatpost diameter:27.2mm
  • 6: Seatpost clamp: 30.6mm
  • 7: ISO disc tab mounts/removable canti bosses
  • 8: Front derailleur clamp: 31.8mm
  • 9: Bottom bracket: 68mm
  • 10: Includes Salsa Flip-Lock seat collar
  • 11: 4" rear travel
  • 12: For use with 100mm fork
  • 13: Sizes: 16, 18, 20"
  • 14: 5.20 lbs for 18" with RockShox SID Air (without brake bosses)
  • : Color: Inferno red

Geometry

Geometry Diagram
16" 18" 20"
Top Tube Effective Metric 560 576 596
Seat Tube Length Metric 406.4 457 508
Head Tube Length Metric 95 105 125
Head Tube Angle 71 71 71
Seat Tube Angle 73 73 73
BB Drop Metric 5 5 5
Chainstay Length Metric 429 429 429
Fork Length Metric 461 461 461
Fork Offset Metric 39 39 39
Wheelbase Metric 41.2 41.9 42.7
Stack Metric
Reach Metric
Standover Metric 780.8 808.3 842.5
