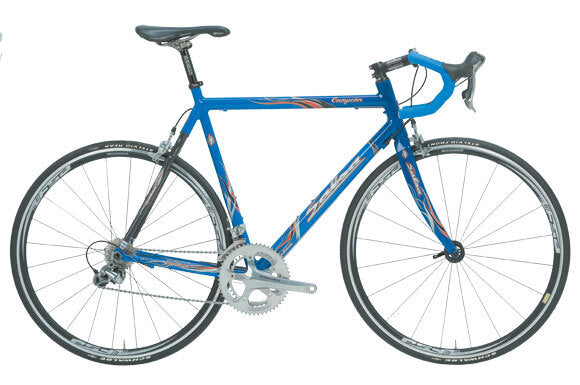

• Salsa Campeon bike side view blue color

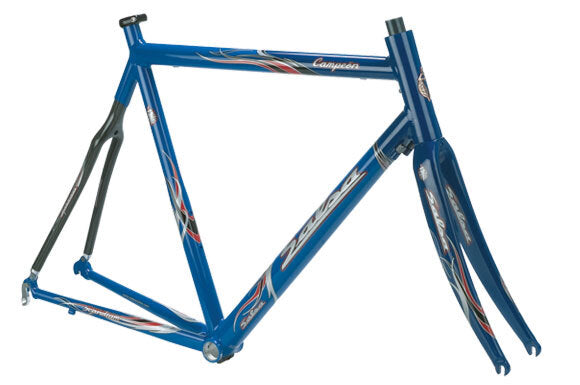

  • Salsa Campeon frameset side view blue color
1 2

2010 Campeon

2010 Campeon

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Frame: Salsa scandium size specific, custom-drawn tubeset with carbon seatstays
  • 2: Specially shaped scandium chainstays for added vibration damping
  • 3: Fork: Alpha Q CS20 full carbon fork
  • 4: Fits up to 700c x 25mm tires
  • 5: Rear spacing: 130mm
  • 6: Seatpost diameter: 27.2mm
  • 7: Seatpost clamp: 30.6mm Salsa Lip-Lock included
  • 8: Bottom bracket: 68mm English
  • 9: FSA Orbit I integrated headset included
  • 10: Front derailleur clamp: 34.9mm
  • 11: 2.98 pounds for 49cm frame plus .95 pounds for fork with uncut steerer
  • 12: Color: Silverfish White

Geometry

Geometry Diagram

2010 Campeon

47cm 50cm 52cm 54cm 56cm 58cm 60cm 62cm
Top Tube Effective Metric 498 510 530 545 560 575 590 605
Seat Tube Length Metric 470 500 520 540 560 580 600 620
Head Tube Length Metric 105 120 137 155 175 190 205 225
Head Tube Angle 71.5 72.5 72.5 73 73 73.5 74 74
Seat Tube Angle 75 74.5 74 74 73.5 73 72.5 72.5
BB Drop Metric 73 70 70 70 70 70 70 70
Chainstay Length Metric 405 405 405 405 408 408 408 408
Fork Length Metric 367 367 367 367 367 367 367 367
Fork Offset Metric 45 45 45 43 43 43 40 40
Wheelbase Metric 37.4 37.5 38.1 38.5 39 39.2 39.3 39.8
Stack Metric
Reach Metric
Standover Metric 737.6 753.1 770.9 789.9 807.5 824.7 841.7 860.8
