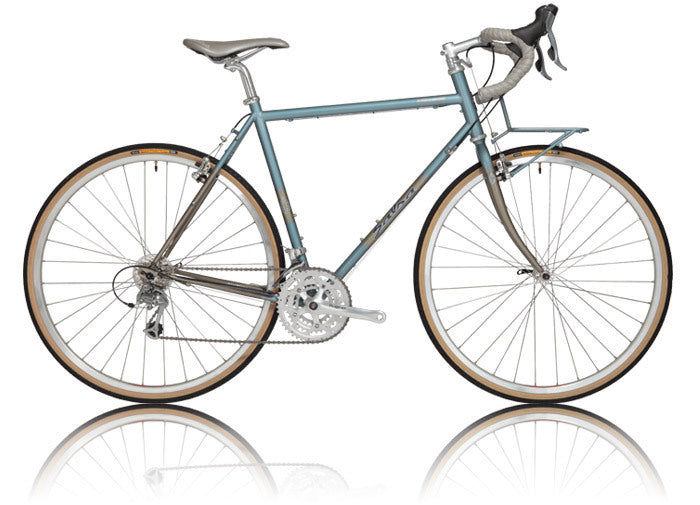

• Salsa Casseroll bike blue color side view

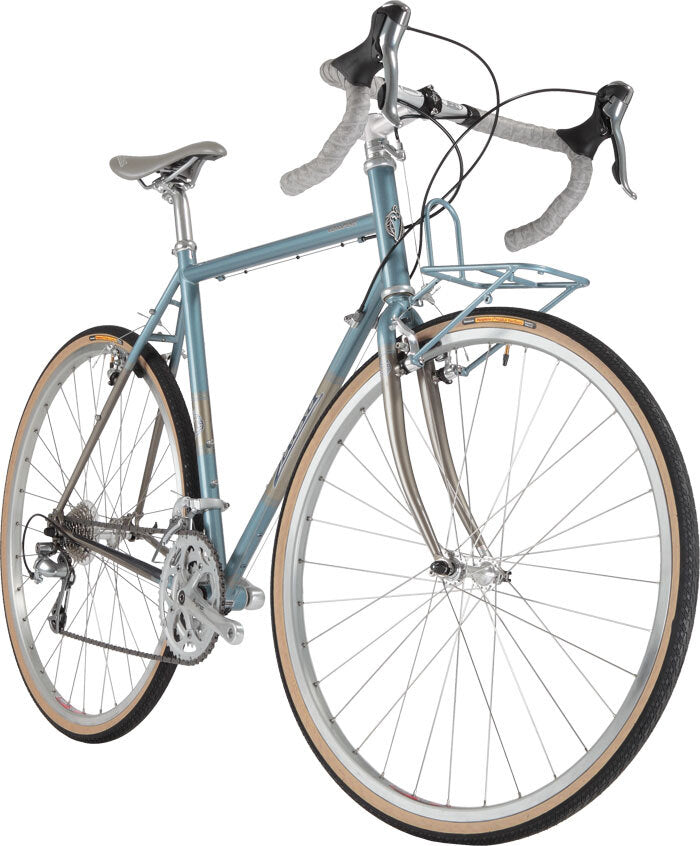

  • Salsa Casseroll bike blue color front three-quarter view

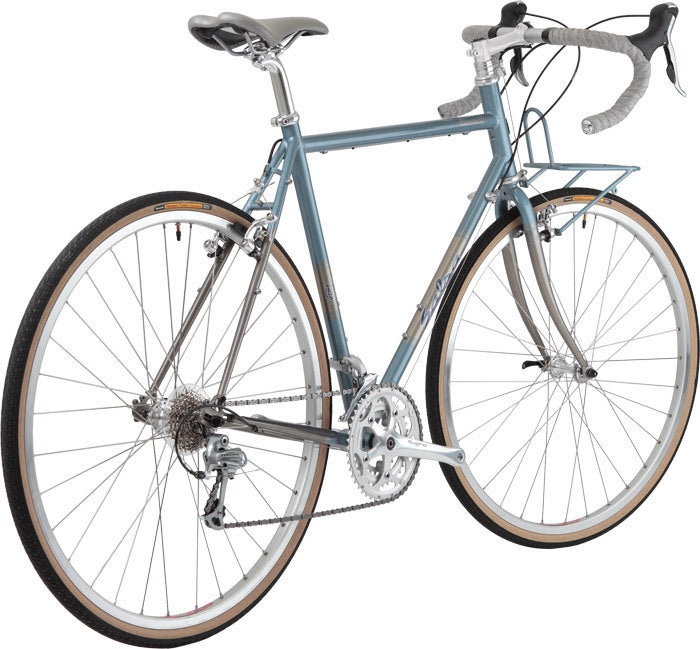

  • Salsa Casseroll bike blue color rear three-quarter view
1 3

2011 Casseroll

2011 Casseroll

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Salsa Classico CroMoly frameset
  • 2: Includes painted-to-match Casseroll front rack
  • 3: Designed for cantilever brakes
  • 4: Fits up to 700c x 38mm with or without fenders
  • 5: 130mm rear spacing
  • 6: 1-1/8" headtube
  • 7: Seatpost diameter: 27.2mm
  • 8: Seatpost clamp: 30.0mm Salsa Lip-Lock included
  • 9: Front derailleur clamp: 28.6mm; traditional
  • 10: Bottom bracket shell: English 68mm
  • 11: Frameset weight with uncut steerer: 51cm = 6 lbs 4 oz, 53cm = 6 lbs 5 oz, 54.5cm = 6 lbs 8 oz, 58cm = 6 lbs 14 oz
  • 12: Color: Vintage Blue

Geometry

Geometry Diagram
45cm 47cm 49cm 51cm 53cm
Top Tube Effective Metric 510 520 530 545 560
Seat Tube Length Metric 450 470 490 510 530
Head Tube Length Metric 85 110 125 145 165
Head Tube Angle 71.5 72 72 72.5 72.5
Seat Tube Angle 75 74.5 74 73.5 73.5
BB Drop Metric 76 76 76 76 76
Chainstay Length Metric 425 425 425 425 425
Fork Length Metric 383 383 383 383 383
Fork Offset Metric 50 50 50 50 45
Wheelbase Metric 38.8 38.9 39.2 39.4 39.8
Stack Metric 515.2 537.7 552 572.9 594
Reach Metric 370.5 369.3 375.5 379.7 388.4
Standover Metric 727.5 748.4 765.5 784.5 804
