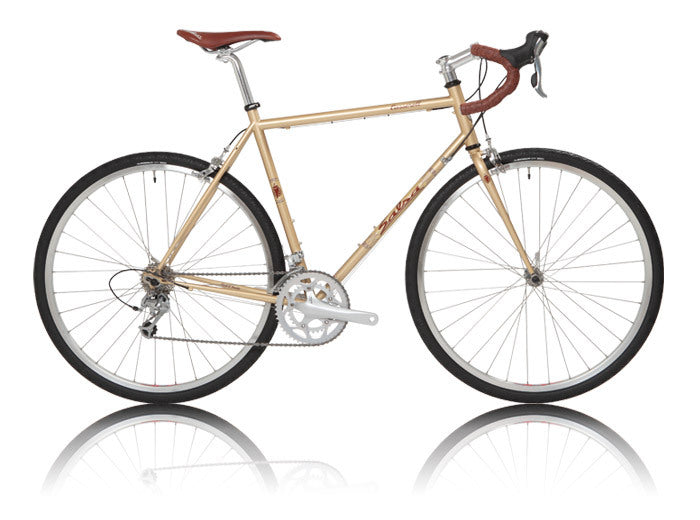

• Salsa Casseroll bike side view

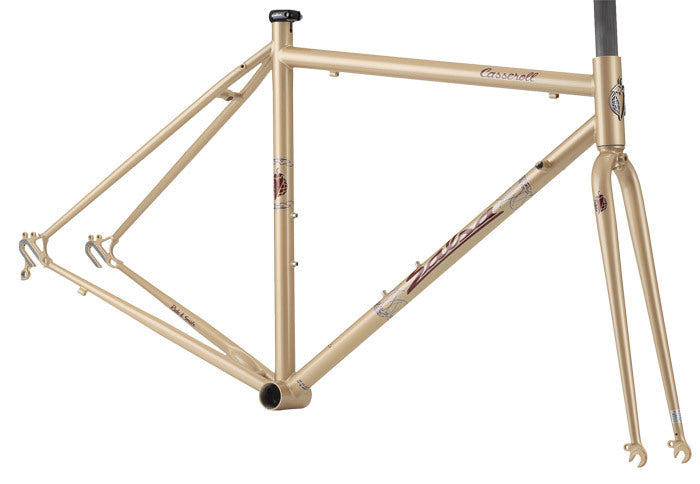

  • Salsa Casseroll frameset side view

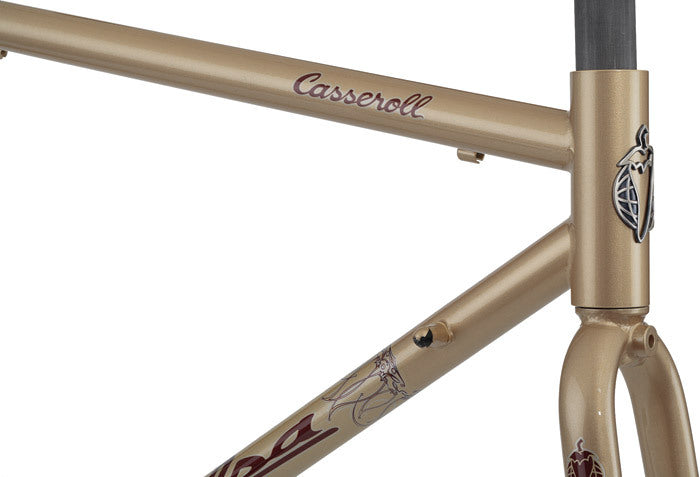

  • Salsa Casseroll frameset head tube area focus

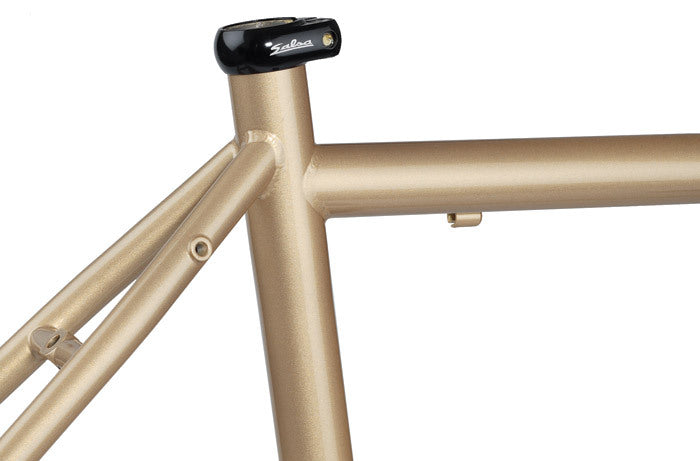

  • Salsa Casseroll frameset seat tube area focus

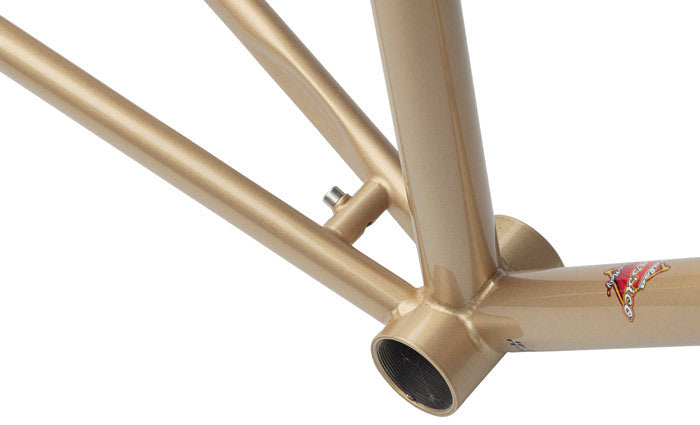

  • Salsa Casseroll frameset bottom bracket area focus
1 5

2010 Casseroll Double

2010 Casseroll Double

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Salsa Classico CroMoly frame
  • 2: Salsa Classico fork with CroMoly steerer
  • 3: Fits up to 700c x 35mm tires; 32mm with fenders
  • 4: 130mm rear spacing
  • 5: 1-1/8" headtube
  • 6: Seatpost diameter: 27.2mm
  • 7: Seatpost clamp: 30.0mm Salsa Lip Lock included
  • 8: Front derailleur clamp: 28.6mm; for bottom pull, top swing style
  • 9: Bottom bracket shell: English 68mm
  • 10: Includes Salsa Lip-Lock seat collar
  • 11: 53cm frame weighs 4.01 pounds; Salsa fork weighs 1.8 pounds with uncut steerer
  • 12: Color: Ginger Beer

Geometry

Geometry Diagram
45cm 47cm 49cm 51cm 53cm
Top Tube Effective Metric 510 520 530 545 560
Seat Tube Length Metric 450 470 490 510 530
Head Tube Length Metric 85 110 125 145 165
Head Tube Angle 71.5 72 72 72.5 72.5
Seat Tube Angle 75 74.5 74 73.5 73.5
BB Drop Metric 76 76 76 76 76
Chainstay Length Metric 425 425 425 425 425
Fork Length Metric 383 383 383 383 383
Fork Offset Metric 50 50 50 50 45
Wheelbase Metric 38.8 38.9 39.2 39.4 39.8
Stack Metric 515.2 537.7 552 572.9 594
Reach Metric 370.5 369.3 375.5 379.7 388.4
Standover Metric 727.5 748.4 765.5 784.5 804
