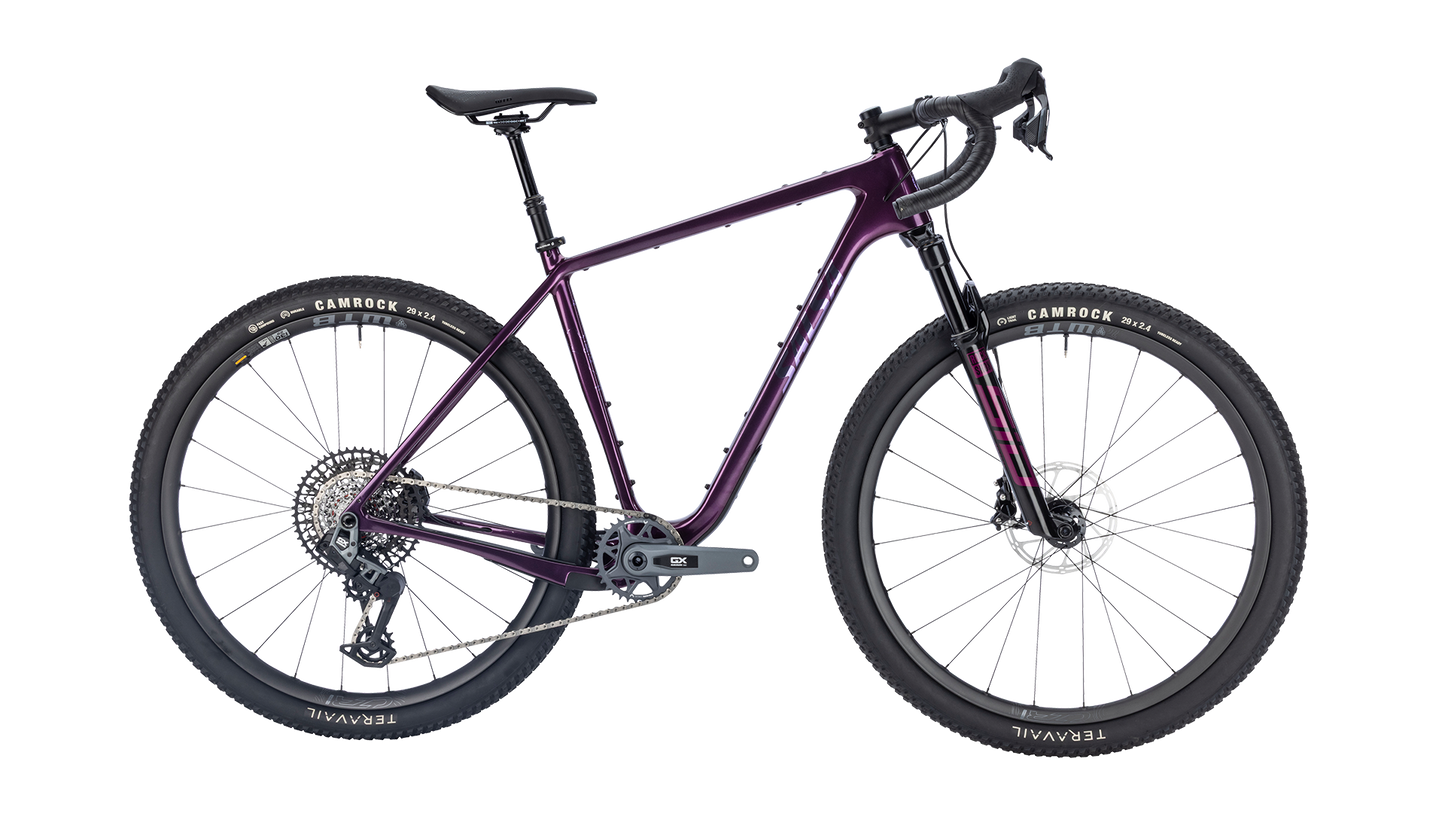

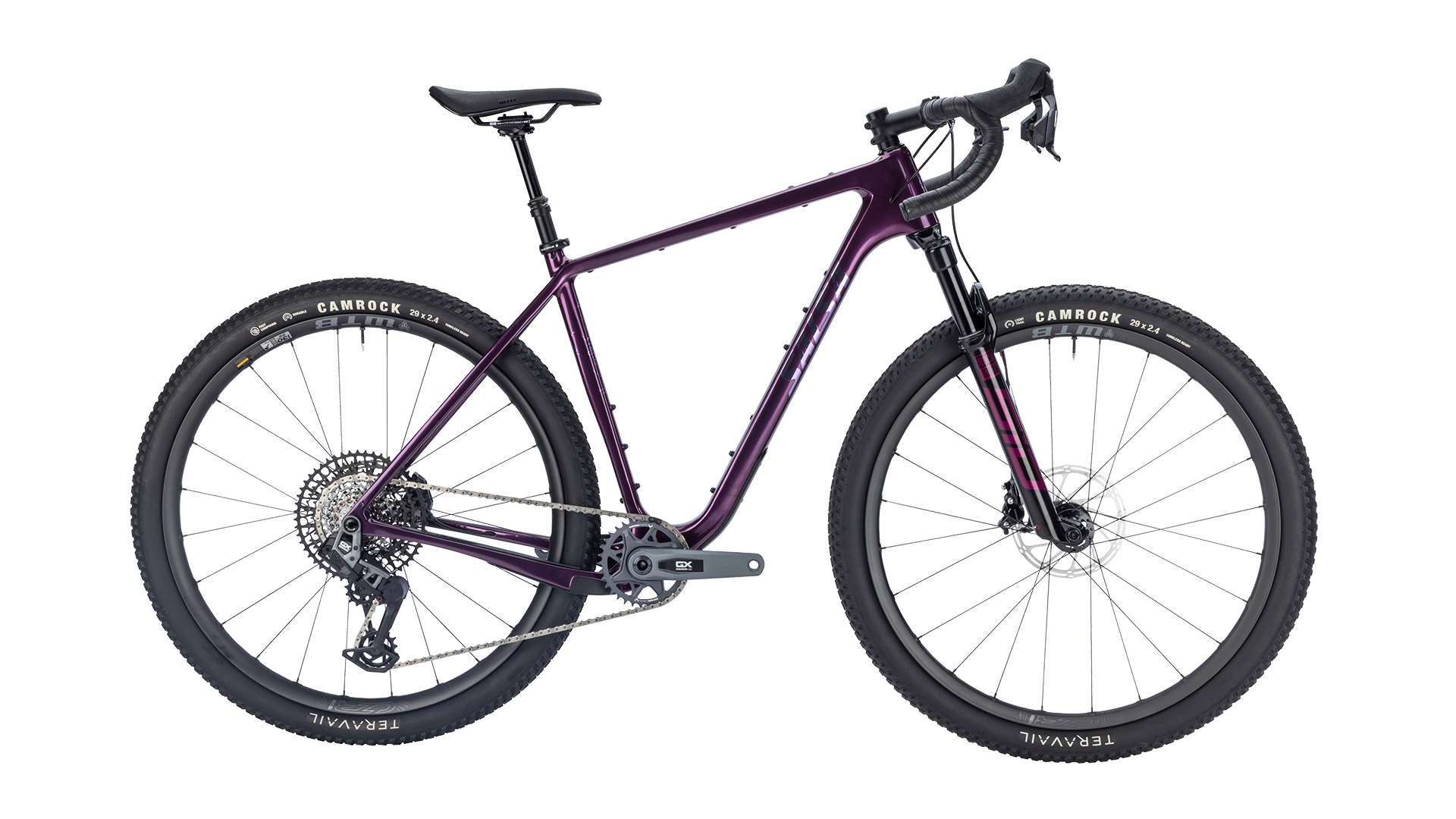

• Salsa Cutthroat Rival GX AXS Suspension Gravel Bike - Deep Orchid - Side Profile View

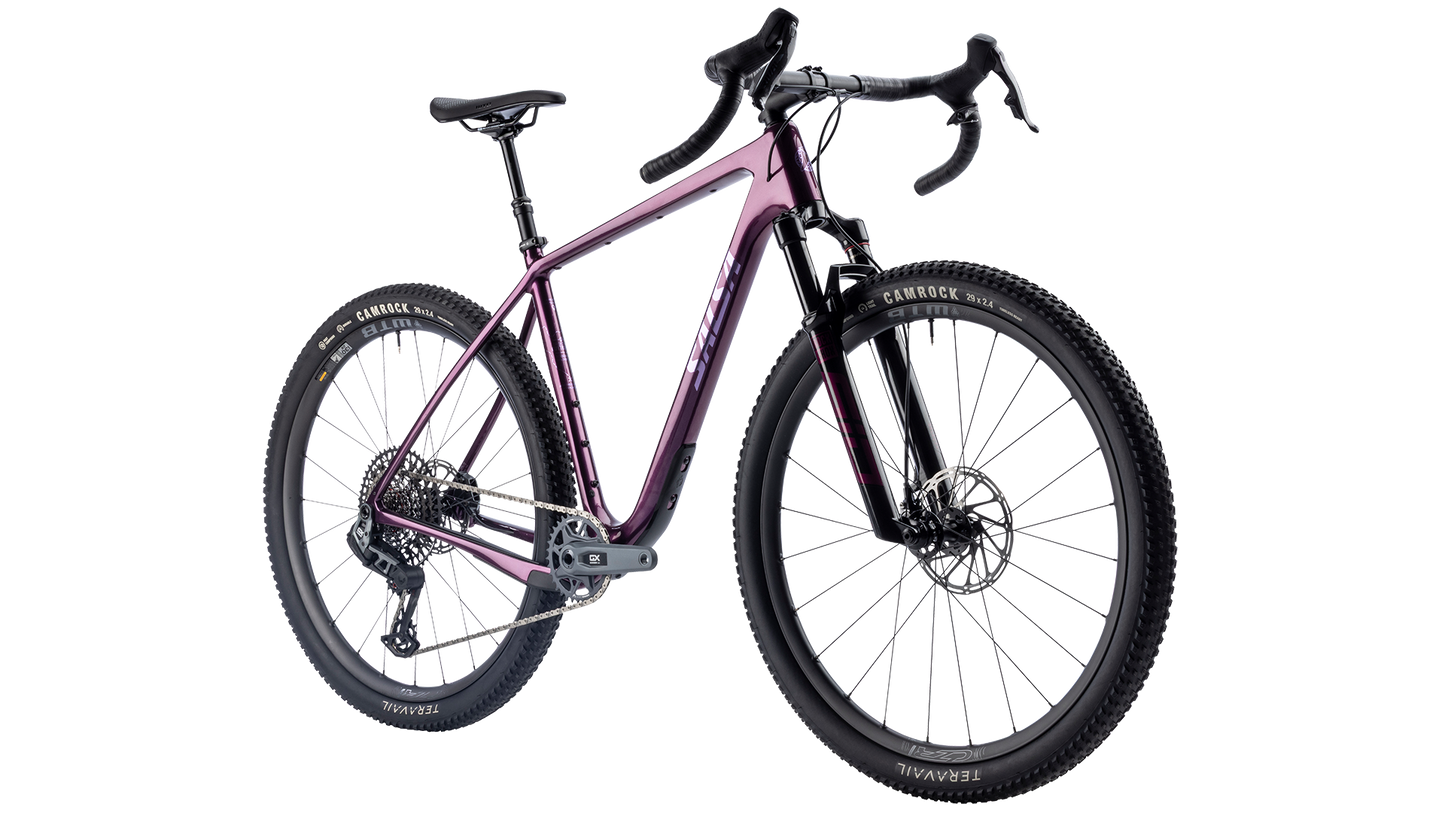

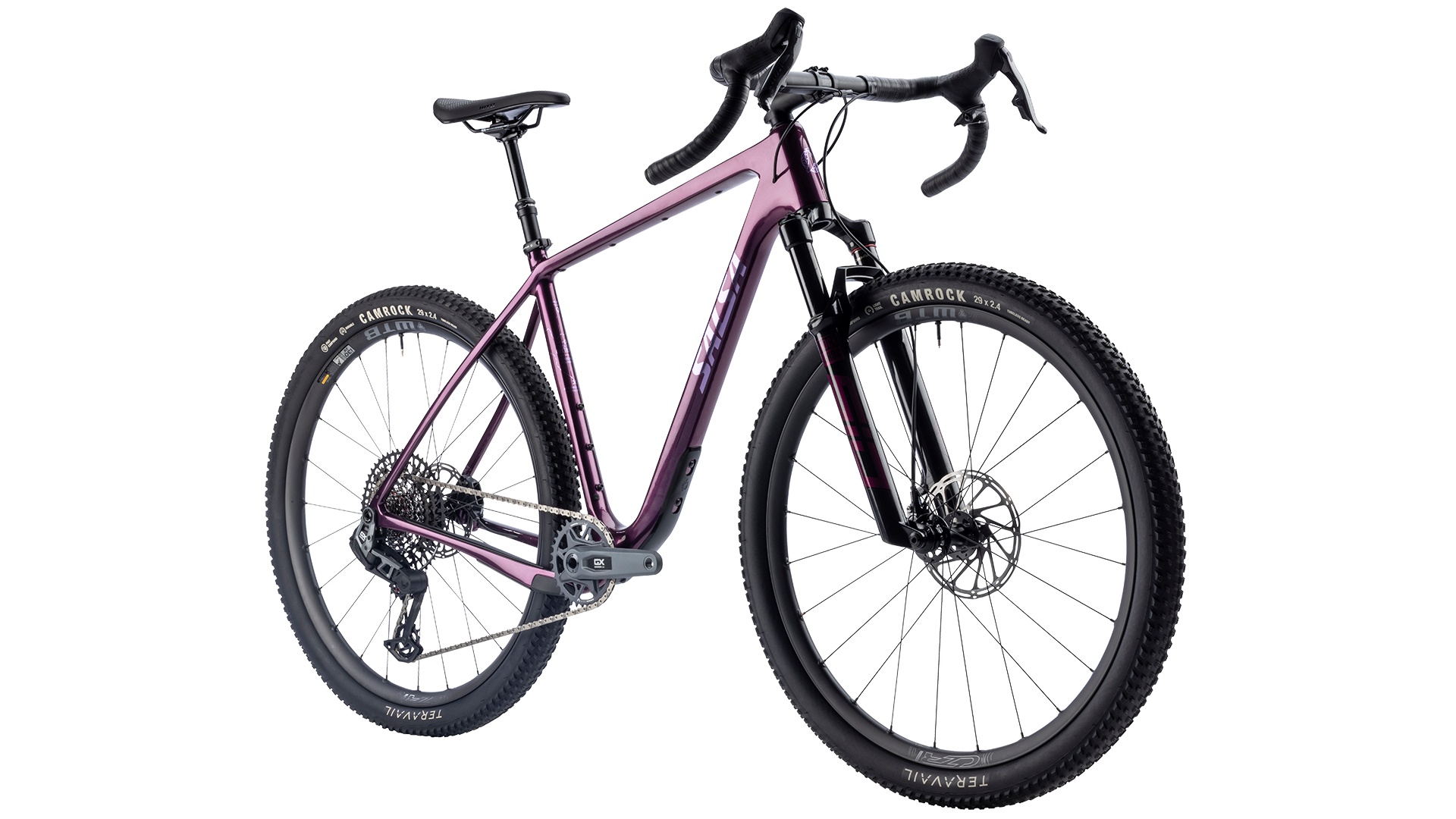

  • Salsa Cutthroat Rival GX AXS Suspension Gravel Bike - Deep Orchid - Front three quarter view

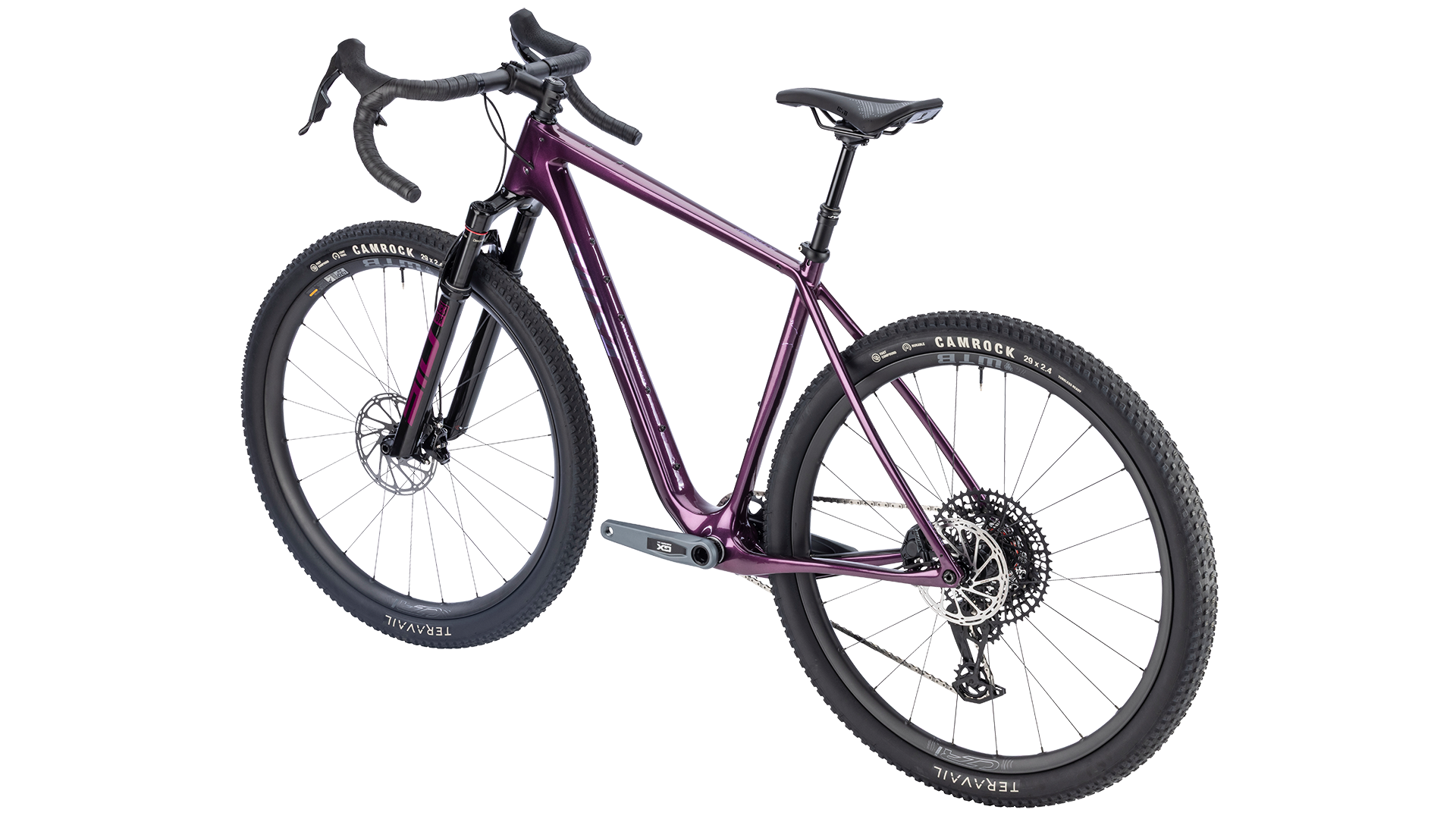

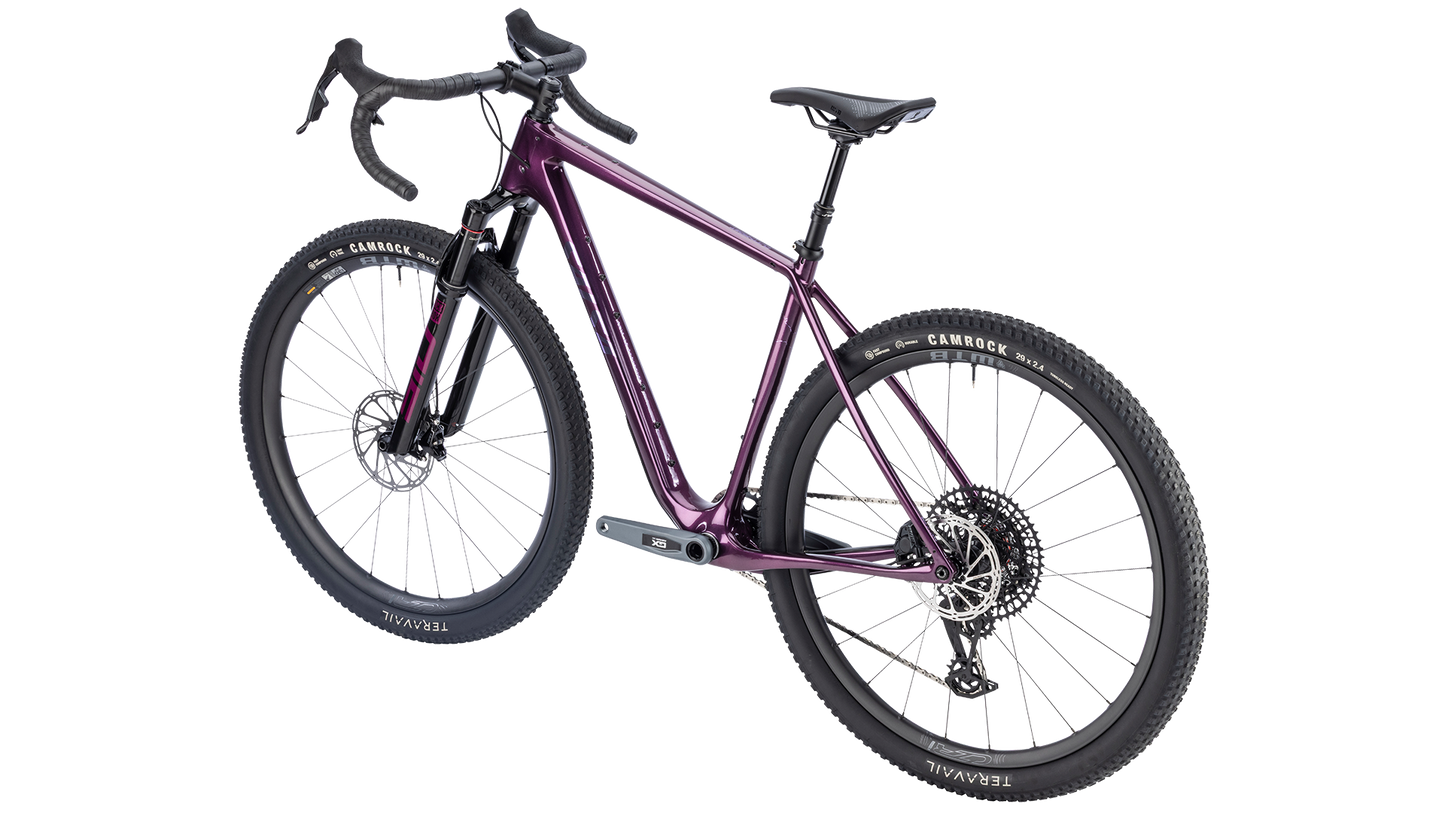

  • Salsa Cutthroat Rival GX AXS Suspension Gravel Bike - Deep Orchid - Rear three quarter view
1 3

Cutthroat C Rival GX AXS Transmission SUS

Cutthroat C Rival GX AXS Transmission SUS

$7,299.00 USD
$0.00 USD $7,299.00 USD
Coming Soon
Size

The Cutthroat C Rival GX AXS Transmission SUS is a carbon bikepacking bike designed for the roughest routes. We designed it to thrive on the mixed terrain and long miles that riders experience on the Tour Divide: its lightweight carbon fiber frame features our Class 5™ VRS (vibration reduction system) to soak up road chatter, and our drop-bar mountain bike geometry puts you in a confident, comfortable riding position. We’ve equipped this Cutthroat with a 100mm suspension fork for extra stability and control. Cargo mounts on the frame give you plenty of space for your supplies and shelter. The SRAM Rival - GX AXS Transmission drivetrain delivers smooth, effortless shifting and massive gear range.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Cutthroat Carbon

  • Color

    Deep Orchid

  • Suspension Fork

    RockShox SID Select+, 3-position, 100mm, black

  • Rear Shock

    N/A

Components

  • Headset

    FSA NO.42/ACB

  • Seatpost

    TranzX YSP38 dropper post, 90mm travel

  • Stem

    Teravail Radia

  • Grips/Bar Tape

    Teravail Radia

  • Saddle

    WTB Rocket Fusion

  • Handlebar

    Teravail Radia 24 Carbon

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    SRAM GX Eagle Transmission

  • Cassette

    SRAM XS-1275 Eagle Transmission, 10–52t, 12-speed

  • Chain

    SRAM GX Eagle Transmission Flattop (118 links)

  • Crankset

    SRAM GX Eagle Transmission DUB, 34t

  • Shifter

    SRAM Rival AXS HRD

  • Brake Levers

    SRAM Rival AXS HRD

  • Brake Calipers

    SRAM Rival

  • Bottom Bracket

    SRAM DUB Wide, PF92

  • Rotors

    SRAM CenterLine (6-bolt, 180mm front, 160mm rear)

Wheels

  • Front Wheel

    WTB CZR Light i30 carbon, 15 x 110mm hub, 24h, 29"

  • Rear Wheel

    WTB CZR Light i30 carbon, 12 x 148mm hub, 24h, 29"

  • Front Tire

    Teravail Camrock 29 x 2.4", Light Trail casing (WTB TCS Sealant included)

  • Rear Tire

    Teravail Camrock 29 x 2.4", Durable casing (WTB TCS Sealant included)

Weight

  • Complete Bike

    23 lbs. 14 oz.

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size52cm54cm56cm58cm60cm
A. Effective Top Tube 520.0 540.0 560.0 580.0 600.0
B. Stand Over 700.0 742.0 811.0 852.0 874.0
C. Reach 357.0 372.0 385.0 394.0 406.0
D. Stack 585.0 592.0 620.0 645.0 664.0
E. Total Seat Tube Length 356.0 419.0 508.0 559.0 584.0
F. Headtube Length 90.0 98.0 127.0 154.0 175.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
74.5
74.25
74.25
74.0
73.75
I. BB Drop 70.0 70.0 70.0 70.0 70.0
J. BB Height 300.0 300.0 300.0 300.0 300.0
K. Chainstay Length 445.0 445.0 445.0 445.0 445.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 483.0 483.0 483.0 483.0 483.0
N. Wheelbase 1050.0 1066.0 1091.0 1110.0 1129.0
Crank Arm Length 165.0 165.0 170.0 170.0 175.0
Handlebar Width 44.0 46.0 48.0 50.0 52.0
Recommended Rider Height 147.0 - 160.0 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0 - 201.0
Stem Length 60.0 70.0 80.0 80.0 90.0

Measurements based on:

  • an 483mm AC x 51mm offset fork which is equivalent to an average 100mm 29" suspension fork at 25% sag
  • a 29" x 2.2" tire measuring 740mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Size Guide

Cutthroat Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.25" (29 x 2.4" Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
  • Suspension Fork Length (Travel) 506 mm (100 mm Travel)
  • Rigid Fork Length 483 mm
  • Fork Offset 51 mm
  • Rear Spacing 148 x 12 mm Thru-axle
  • Rear Axle Size M12 x P1.0 x 175
  • Rear Brake (Rotor) Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
  • Front Brake (Rotor) Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 110 x 15 mm Thru-axle
  • Seatpost 27.2 mm
  • Dropper Post Compatible For Internal Dropper Post Routing:
    1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube
    Di2 drivetrains: Mount the Di2 battery in the seatpost, then route the dropper post cable through the drive side of the downtube
    For External Dropper Post Routing:
    1x/2x mechanical and Di2 drivetrains: Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Type Road, braze-on, 2x, bottom-pull
  • Derailluer Hanger SRAM UDH
  • Bottom Bracket Press Fit BB92, 41 x 92 mm
  • Crankset (Max Ring) 1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t *Oval chainrings subtract 2t from max*
  • Accessory Mounts Downtube Accessory Mounts: Yes, two pairs
    Rack Mounts Frame: Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58cm and 60cm frames. Not compatible with Salsa Wanderlust HD Rack
    Rack Mounts Fork: No
    Top Tube Mounts: Yes, compatible with Salsa Top Tube bag
  • Bottle Mounts Frame: Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle
    Fork: No
  • Front Fender Mounts Compatible with RockShox SID 2-Bolt A2 Fender
  • Rear Fender Mounts N/A

Supportive Documents

Support Document links

Additional Features

Class 5™ VRS

The Class 5™ Vibration Reduction System revolves around seatstays with a tall, thin, vertically-oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. Horizontally-oriented chainstays work to resist torque and maintain a laterally stiff rear end. The lack of seatstay and chainstay bridges allows the full length of the stays to contribute to flexibility. A rear thru-axle delivers precise tracking while allowing the seatstays to provide incredible compliance

Interior junction control mold technology

We use interior molds at all of the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner-wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Cutthroat geometry

Our drop bar mountain bike geometry features a 69° head tube angle for a long wheelbase that provides supreme stability over long days on any surface. 445 mm chainstays with Class 5 VRS will get you through everything from remote two-track gravel roads to technical singletrack trails, with the efficiency and comfort that endurance riders need to keep at it day after day. Cutthroat is designed for optimized fit with the Salsa Cowchipper or Woodchipper Bars

Tour Divide-inspired features

Designed for maximum frame bag volume on every size. Stay hydrated with room for three bottles on 54–60 cm frames (two bottles on 52 cm frames). The top tube bag mount makes mid-ride refueling easy, and the two Three-Pack mounts on the fork offer extra capacity for gear or water. The Cutthroat carbon fork has internal wire routing for dynamo hub lighting systems. Abrasion-resistant plates reduce frame and fork wear cause by mud and debris

Massive tire and mud clearance

Fits a 29 x 3.0" tire up front and a 29 x 2.4" tire in the rear, plus the mud you are likely to encounter in multi-day endurance races.

Road Boost drivetrain

2x mechanical-compatible using Race Face mountain boost cranks and Easton direct-mount chainrings (max 50/34t, complete bikes ship with 46/30t) and a road drivetrain in all other areas

Direct-mount frame pack compatible

Custom frame bags can be bolted directly to frame tool-free with EXP Series Direct Mount Thumb Screws

Multiple bottle and cargo-carrying options

Capable of carrying four (52 cm frames) or five (54–60 cm frames) bottles with Three-Pack Mounts on the fork. Mounts for EXP Series Top Tube Bag and two accessory mounts on the underside of the downtube provide space for the Salsa Anything Bracket Mini or fuel, water bottle, or Salsa KEG. Cutthroat Direct Mount Frame Pack provides ample capacity across all frame sizes, and front and rear rack mounts offer endless options for carrying cargo

Rear rack compatible

Accommodates the Salsa Wanderlust Rack (requires the Salsa Rack-Lock seatpost collar). Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Cutthroat V2 is not compatible with the Salsa Wanderlust HD Rack.

Frame protection

Abrasion-resistant plates on the frame and fork prevent damage from mud buildup and other debris.

SRAM UDH-compatible

SRAM's Universal Derailleur Hanger (UDH) makes it faster and easier to find a replacement at any bike shop, no matter how far from home you are.

FAQ

Can I run 27.5" (650b) rims and tires on this frameset?

No, you cannot. That wheel size is significantly smaller than the 29er wheels the bike is designed for.

Can I run 29+ rims and tires on this frameset?

No, you cannot.

Can I run flat bars on my Cutthroat?

Yes, but it is important to keep in mind that the Cutthroat is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I install a rack on my Cutthroat?

Yes. We recommend the Salsa Wanderlust Rack. You will need a Salsa Rack Lock seatpost collar. Salsa Bent Rack Struts (part #RK8030) are required for installation on 58 cm and 60 cm frames. The Salsa Wanderlust HD Rack is not compatible with Cutthroat V2.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
