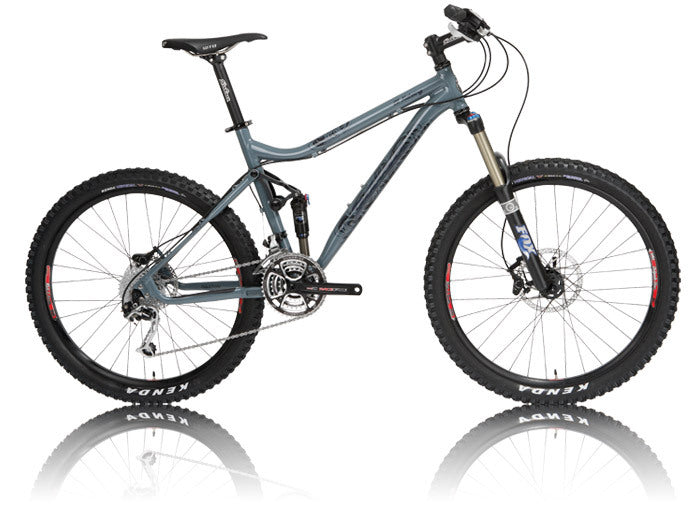

• Salsa El Kaboing bike gray color side view

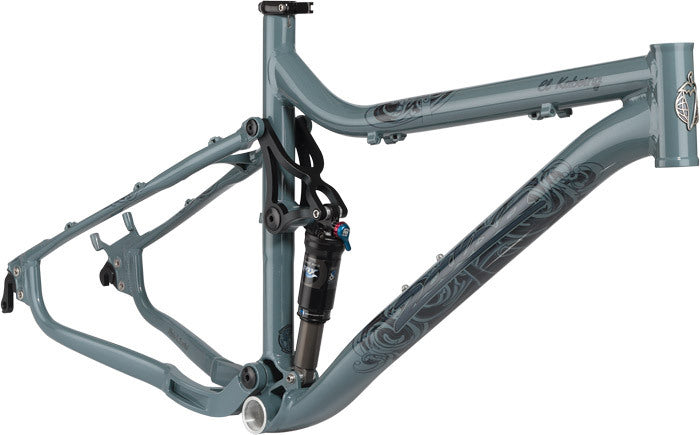

  • Salsa El Kaboing frame gray color side view

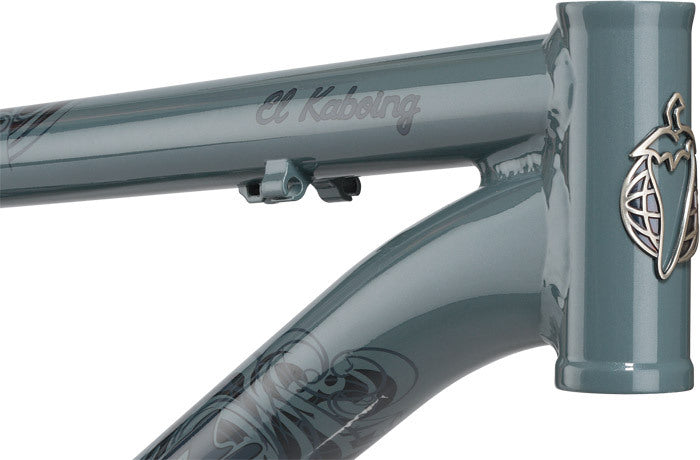

  • Salsa El Kaboing frame gray color head tube area focus

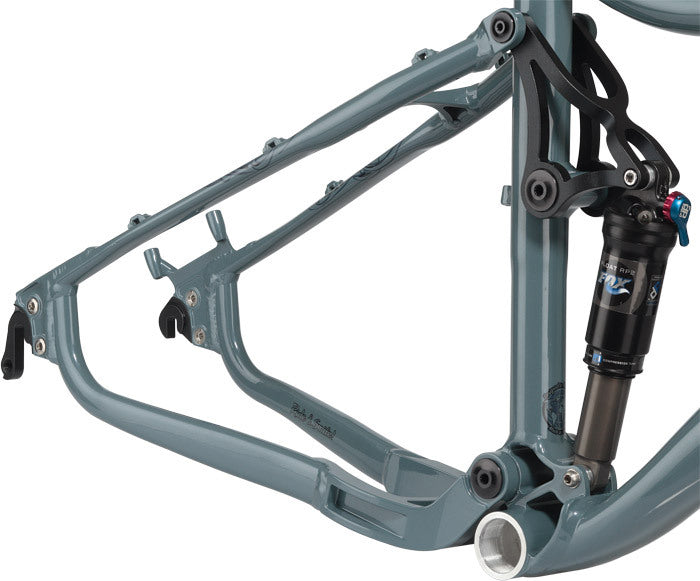

  • Salsa El Kaboing frame gray color swing arm, link, and rear shock area focus

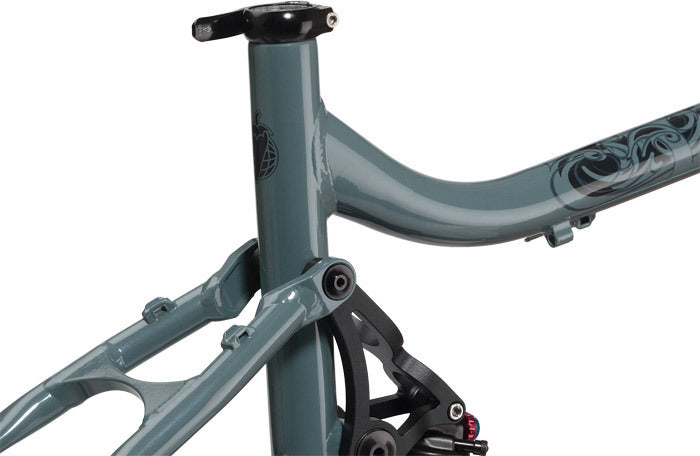

  • Salsa El Kaboing frame gray color top of swing arm, link, and seat tube area focus

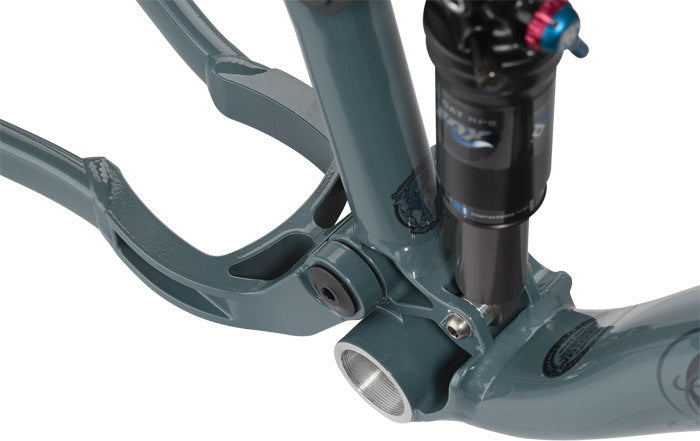

  • Salsa El Kaboing frame gray color lower shock mount and bottom bracket area focus

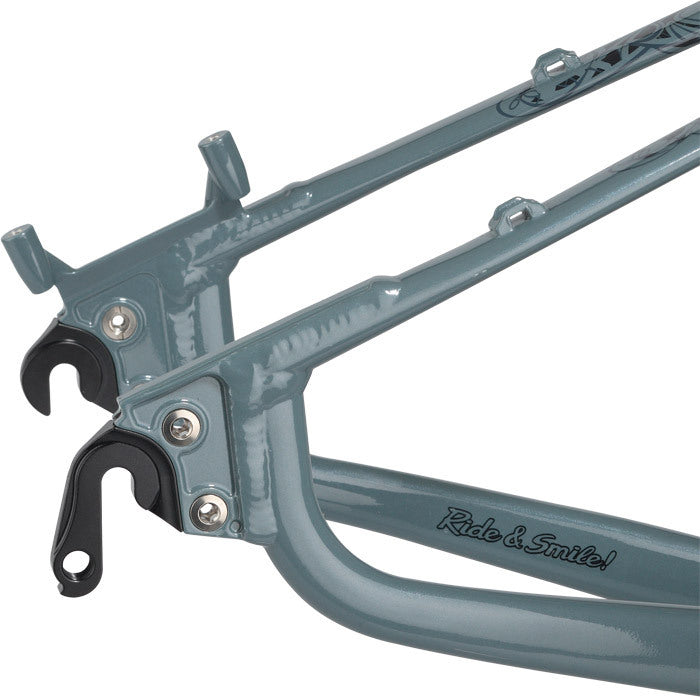

  • Salsa El Kaboing frame gray color rear dropout area focus
1 7

2010 El Kaboing

2010 El Kaboing

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Scandium, custom-drawn tubeset, 7 forged aluminum parts
  • 2: Forged, then CNC-machined, 1-piece 7000-series aluminum linkage with helicoil inserts
  • 3: Fox Float RP2 air shock, 190mm (7.5
  • 4: Enduro sealed cartridge bearings
  • 5: Designed around 510mm axle to crown 26" fork
  • 6: Dual driveside bearings at lower main pivot
  • 7: 135mm rear spacing
  • 8: Standard 1-1/8
  • 9: Seatpost diameter: 31.6mm
  • 10: Seatpost clamp: 35.0mm
  • 11: Post-mount disc brake mount
  • 12: Front derailleur clamp: 34.9mm
  • 13: Bottom bracket: 73mm
  • 14: Includes Salsa Flip-Lock seat collar
  • 15: 125mm rear travel
  • 16: For use with 125-140mm travel fork
  • 17: Replaceable dropout
  • 18: Small (16") frame weighs 6.6 lbs with Fox RP2 air shock
  • 19: Color: Battleship Gray

Geometry

Geometry Diagram
X-Small Small Medium Large
Top Tube Effective Metric 540 570 596 615
Seat Tube Length Metric 508 457.2 406.4 355.6
Head Tube Length Metric 120 115 100 100
Head Tube Angle 69 69 69 69
Seat Tube Angle 73 73 73 73
BB Drop Metric -12.5 -12.5 -12.5 -12.5
Chainstay Length Metric 430 430 430 430
Fork Length Metric 510 510 510 510
Fork Offset Metric 39 39 39 39
Wheelbase Metric 44.3 43.5 42.5 41.42
Stack Metric 551 551 564.9 574.3
Reach Metric 369.7 399.7 421 437.3
Standover Metric 693.3 700.1 711.3 745.7
