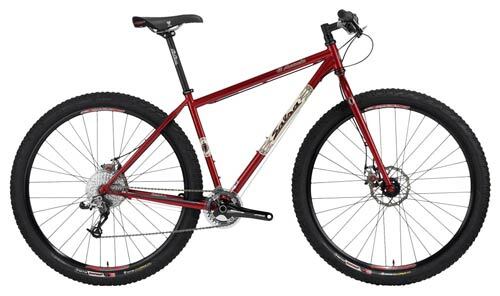

• Salsa El Mariachi bike red color side view
1 1

2010 El Mariachi

2010 El Mariachi

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: True Temper OX Platinum main frame and fork
  • 2: Includes Salsa CroMoto Grande fork made of True Temper OX
  • 3: ISO 51mm disc mounts
  • 4: Fits up to a 29 x 2.4" tire
  • 5: 135mm rear spacing
  • 6: Standard 1-1/8" headtube
  • 7: Seatpost diameter: 27.2mm
  • 8: Seatpost clamp: 30.0mm
  • 9: Front derailleur clamp: 28.6mm bottom pull
  • 10: Bottom bracket: Bushnell EBB, English 68mm
  • 11: Includes Salsa Lip-Lock seat collar
  • 12: Medium (18") frame weighs 5.0 lbs with EBB
  • 13: Designed for use with a 80mm travel front suspension fork
  • 14: Color: Ruby Rojo

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 508 457.2 406.4 558.8
Head Tube Length Metric 110 100 95 120
Head Tube Angle 71 71 71 71
Seat Tube Angle 73 73 73 73
BB Drop Metric 60 60 60 60
Chainstay Length Metric 445-462 445-462 445-462 445-462
Fork Length Metric 483 483 483 483
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.8 43 42.2 44.4
Stack Metric 604.2 608.9 618.3 627.8
Reach Metric 395.3 413.9 431 443.1
Standover Metric 733 771 809 846
Rider Height Metric
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height
