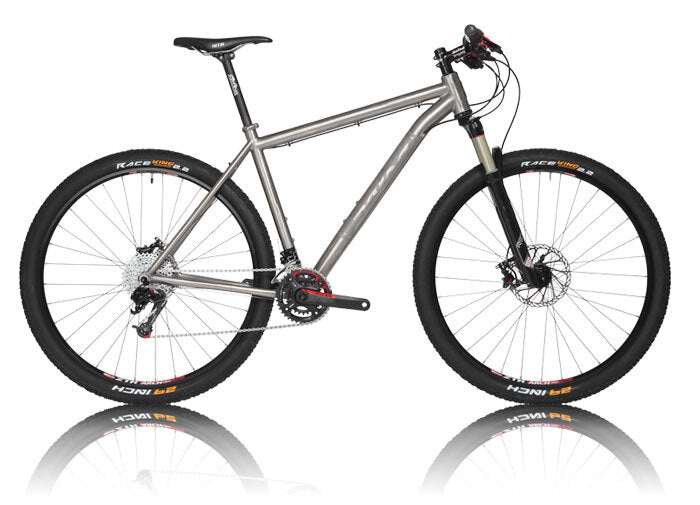

• Salsa El Mariachi Ti bike side view
1 1

2011 El Mariachi Ti

2011 El Mariachi Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: 3/2.5 seamless Titanium
  • 2: Designed for 80 - 100mm suspension fork
  • 3: 2" diameter, biaxial ovalized downtube
  • 4: 2" diameter headtube for increased fork options
  • 5: Size-specific toptube tubing: 1-3/8" for S and M, 1-1/2" for L and XL
  • 6: Replaceable derailleur hanger
  • 7: Fits up to 29 x 2.3
  • 8: 135mm rear spacing
  • 9: ZS44 Semi-integrated headset standard
  • 10: Seatpost diameter: 27.2mm
  • 11: Seatpost clamp: 35.0mm
  • 12: Bottom bracket shell: 73mm
  • 13: ISO 51mm disc brake mount
  • 14: Welded-in water bottle cage bosses
  • 15: Includes Pewter-colored Salsa Lip-Lock seat collar
  • 16: Finish: Industrial mill finish with etched Salsa graphics
  • 17: Weight: S = 3 lbs 11 oz, M = 3 lbs 13 oz, L = 4 lbs 3 oz

Geometry

Geometry Diagram
Small - 100mm Fork Medium - 100mm Fork Large - 100mm Fork X-Large - 100mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 580 600 620 635 577.8 597.7 617.7 632.6
Seat Tube Length Metric 508 457.2 406.4 558 508 457.2 406.4 558.8
Head Tube Length Metric 110 100 95 120 110 100 95 120
Head Tube Angle 71 71 71 71 71.7 71.7 71.7 71.7
Seat Tube Angle 73 73 73 73 73.7 73.7 73.7 73.7
BB Drop Metric 60 60 60 60 65.6 65.6 65.6 65.6
Chainstay Length Metric 450 450 450 450 450 450 450 450
Fork Length Metric 483 483 483 483 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45
Wheelbase Metric 43.96 43.16 42.37 44.57 43.77 42.98 42.38 44.38
Stack Metric 602.2 606.9 616.3 625.8 597.1 601.6 610.9 620.2
Reach Metric 395.9 414.5 431.6 443.7 403.4 422.1 439.3 451.5
Standover Metric 739.8 777.9 817.3 855 711.4 749 787.3 825.1
