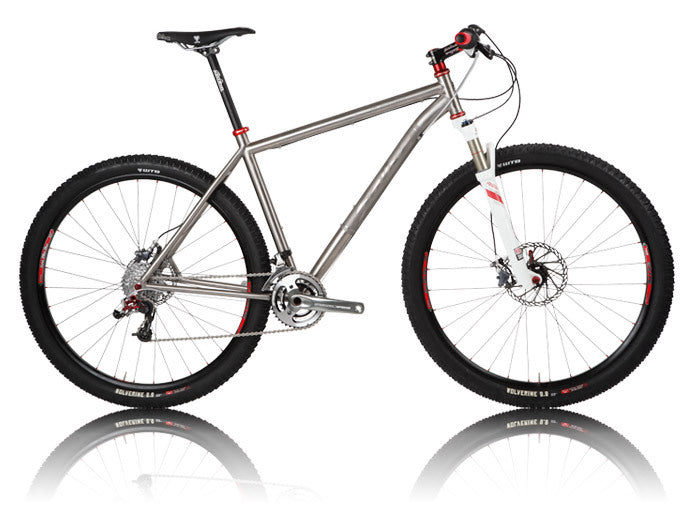

• Salsa El Mariachi Ti bike side view
1 1

2010 El Mariachi Ti

2010 El Mariachi Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: 3/2.5 seamless Titanium
  • 2: Designed for 80 - 100mm suspension fork
  • 3: 2" diameter, biaxial ovalized downtube
  • 4: 2" diameter headtube for increased fork options
  • 5: Size-specific toptube tubing: 1-3/8" for S and M, 1-1/2" for L and XL
  • 6: Replaceable derailleur hanger
  • 7: Fits up to 29 x 2.3
  • 8: 135mm rear spacing
  • 9: ZS44 Semi-integrated headset standard
  • 10: Seatpost diameter: 27.2mm
  • 11: Seatpost clamp: 35.0mm
  • 12: Bottom bracket shell: 73mm
  • 13: ISO 51mm disc brake mount
  • 14: Welded-in water bottle cage bosses
  • 15: Includes Pewter-colored Salsa Lip-Lock seat collar
  • 16: Finish: Industrial mill finish with etched Salsa graphics
  • 17: Weight: S = 3 lbs 11 oz, M = 3 lbs 13 oz, L = 4 lbs 3 oz

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 508 457.2 406.4 558.8
Head Tube Length Metric 110 100 95 120
Head Tube Angle 71 72 72 72
Seat Tube Angle 73 73 73 73
BB Drop Metric 60 60 60 60
Chainstay Length Metric 450 450 450 450
Fork Length Metric 468 468 468 468
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.5 42.71 42.36 44.13
Stack Metric 588 597 606 616
Reach Metric 400 418 435 447
Standover Metric 733 771 809 846

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
