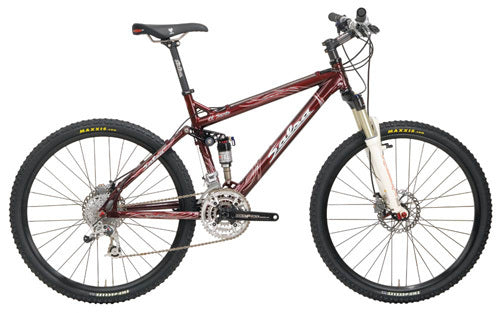

• Salsa El Santo bike maroon color side view
1 1

2010 El Santo

2010 El Santo

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Scandium, custom-drawn tubeset, forged and CNC-machined AL-6061-T6 rocker arm
  • 2: RockShox MC 3.3 Air Shock
  • 3: Fits up to 26 x 2.3" tires
  • 4: 135mm rear spacing
  • 5: Standard 1-1/8" headset
  • 6: Seatpost diameter: 27.2mm
  • 7: Seatpost clamp: 30.6mm
  • 8: ISO disc tab mounts
  • 9: Front derailleur clamp: 31.8mm, top-pull traditional
  • 10: Bottom bracket: 68mm
  • 11: Includes Salsa Lip-Lock seat collar
  • 12: Four inch rear travel
  • 13: For use with 100mm fork
  • 14: M (18") frame weighs 5.7 pounds with RockShox MC 3.3 Air Shock
  • 15: Color: Rojo-A-GoGo Red

Geometry

Geometry Diagram
14" 16" 18" 20" 22"
Top Tube Effective Metric 535 565 585 605 625
Seat Tube Length Metric 405.6 456 507 558 608
Head Tube Length Metric 95 95 105 125 145
Head Tube Angle 70 71 71 71 71
Seat Tube Angle 73 73 73 73 73
BB Drop Metric 5 5 5 5 5
Chainstay Length Metric 429 429 429 429 429
Fork Length Metric 461 461 461 461 461
Fork Offset Metric 39 39 39 39 39
Wheelbase Metric 40.6 41.4 42.2 43.1 43.9
Stack Metric
Reach Metric
Standover Metric 751.1 754.2 779.3 813.4 846.2

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
