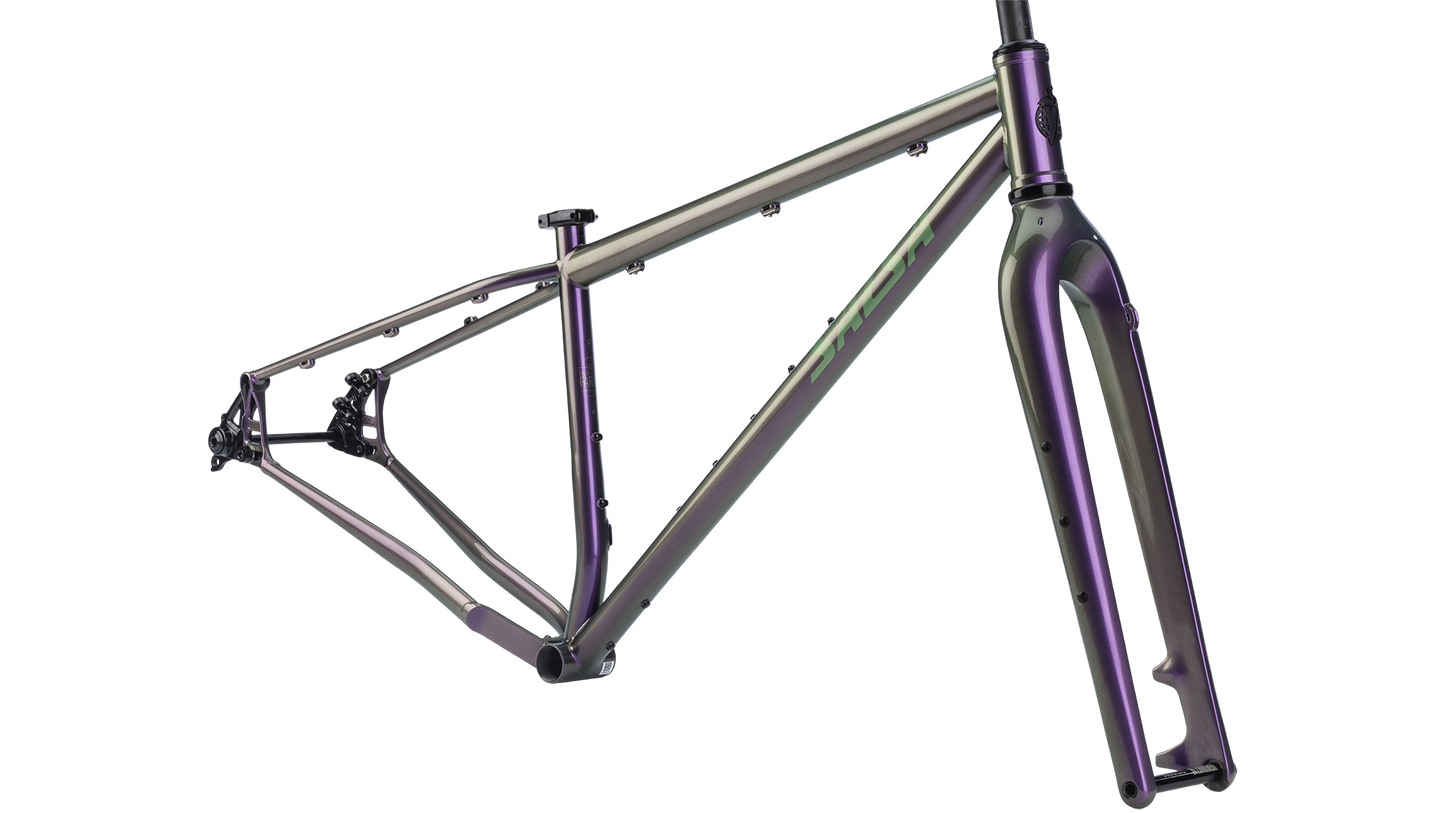

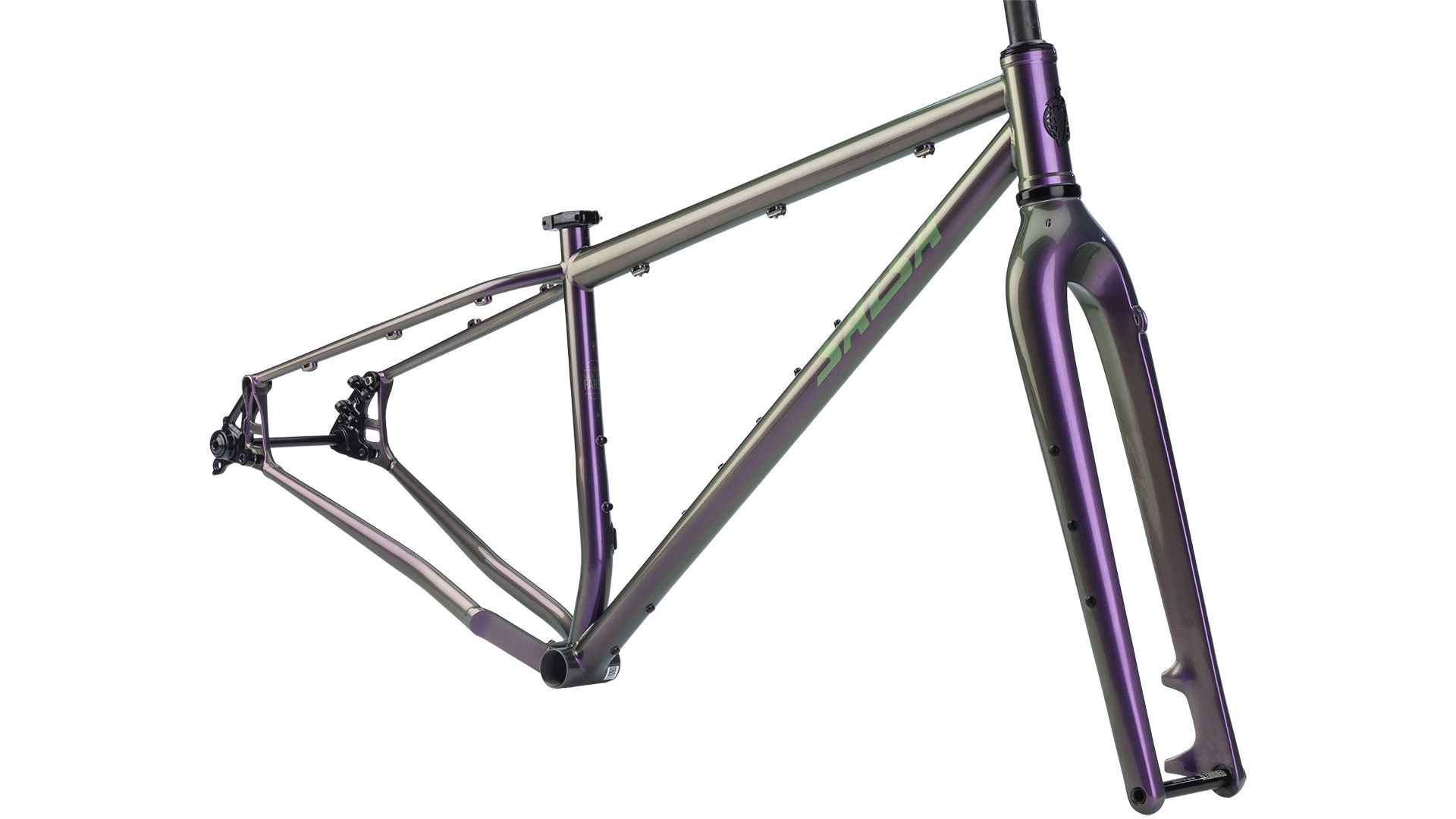

• Salsa Fargo 32 Steel Framset - Pearl Orchid - Side profile view

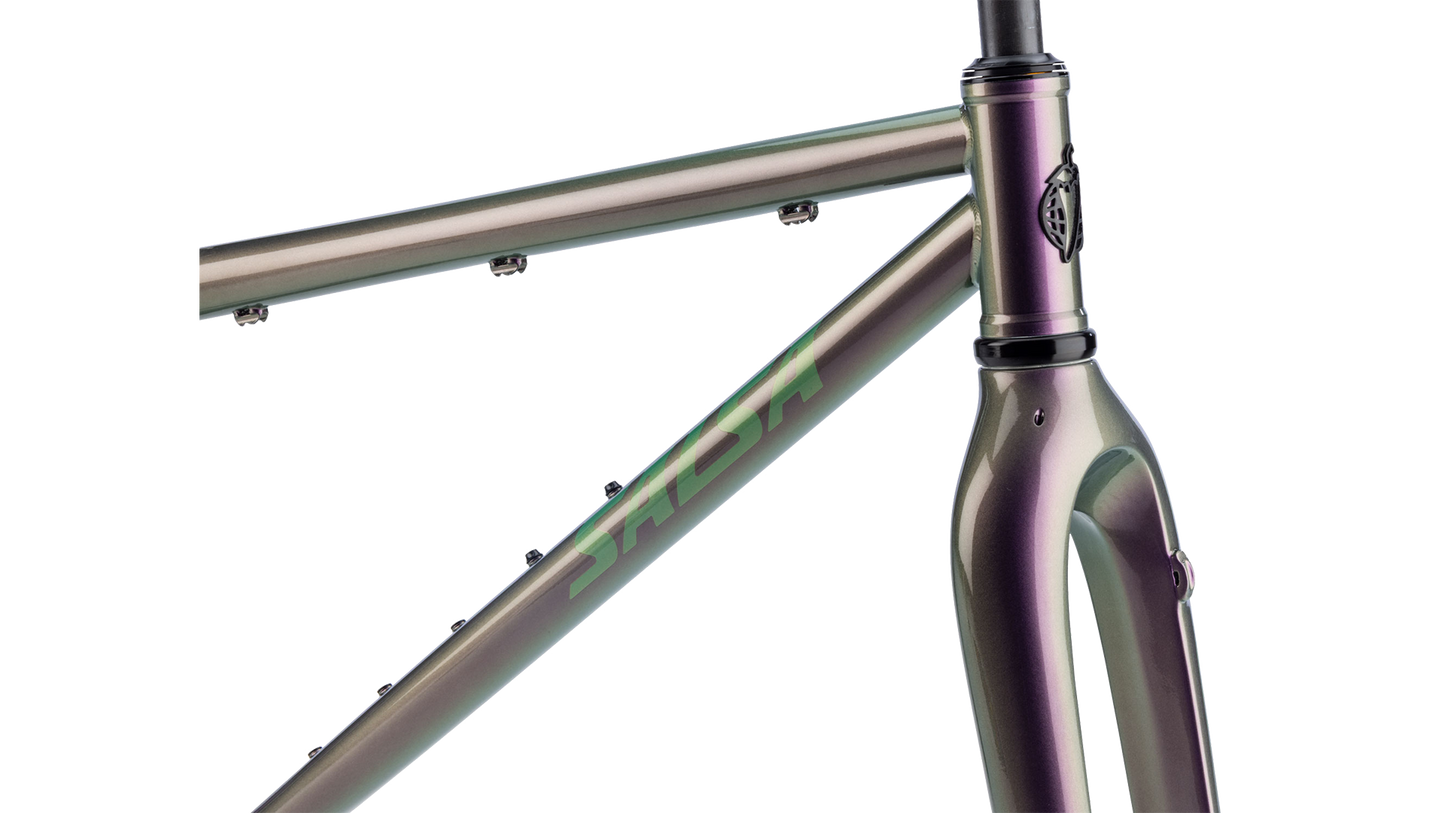

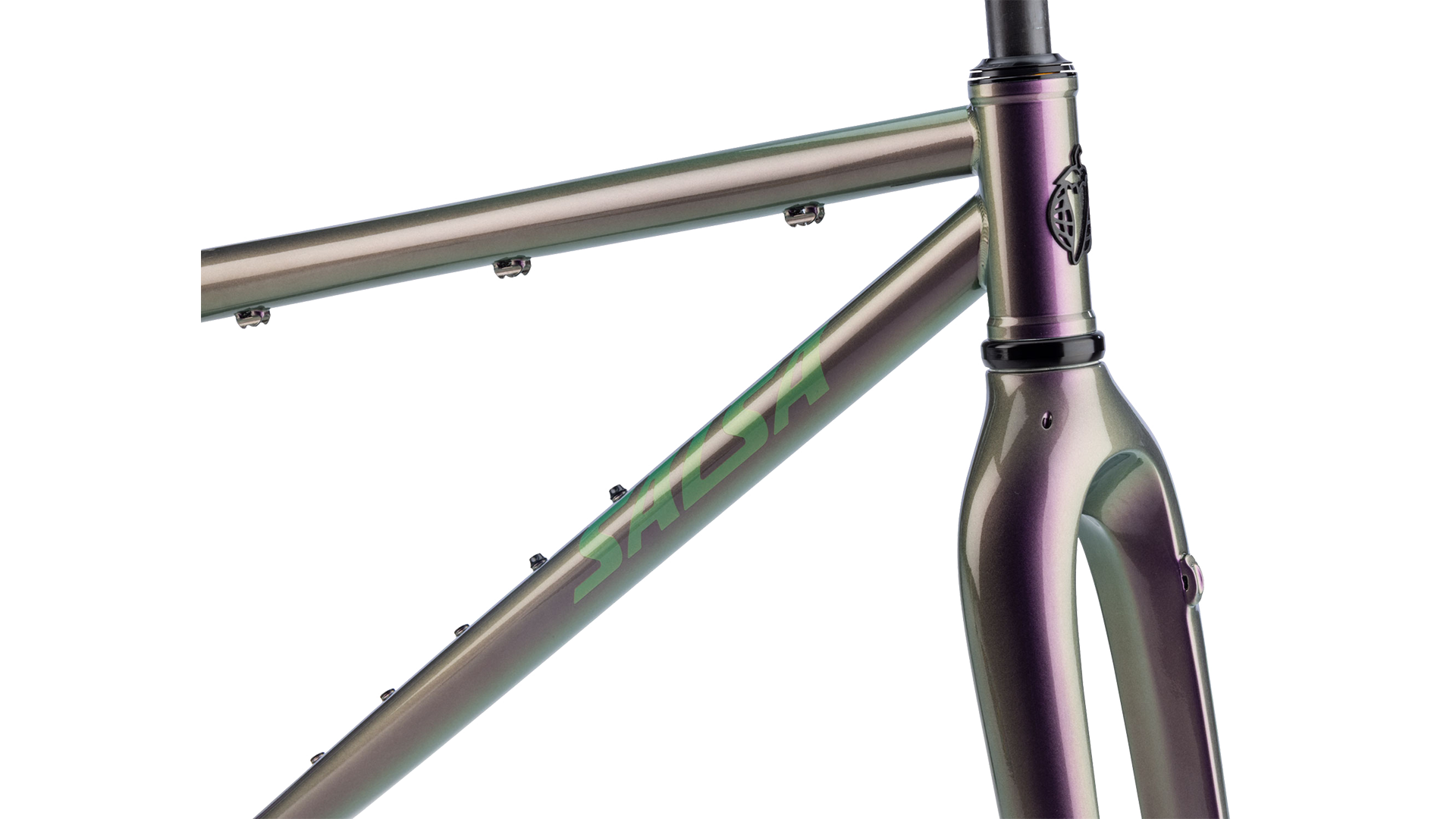

  • Salsa Fargo 32 Steel Framset - Pearl Orchid - headtube closeup view

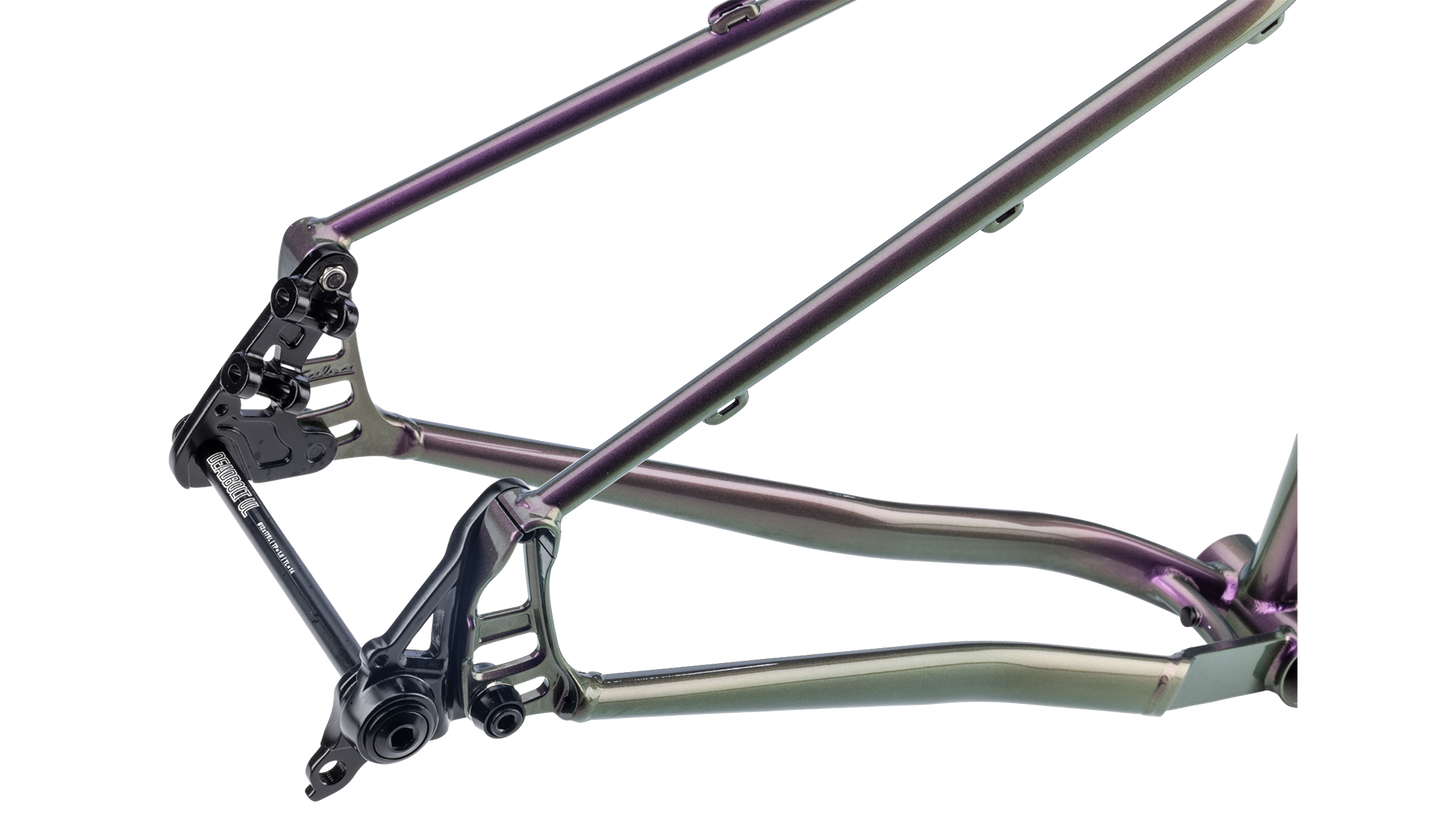

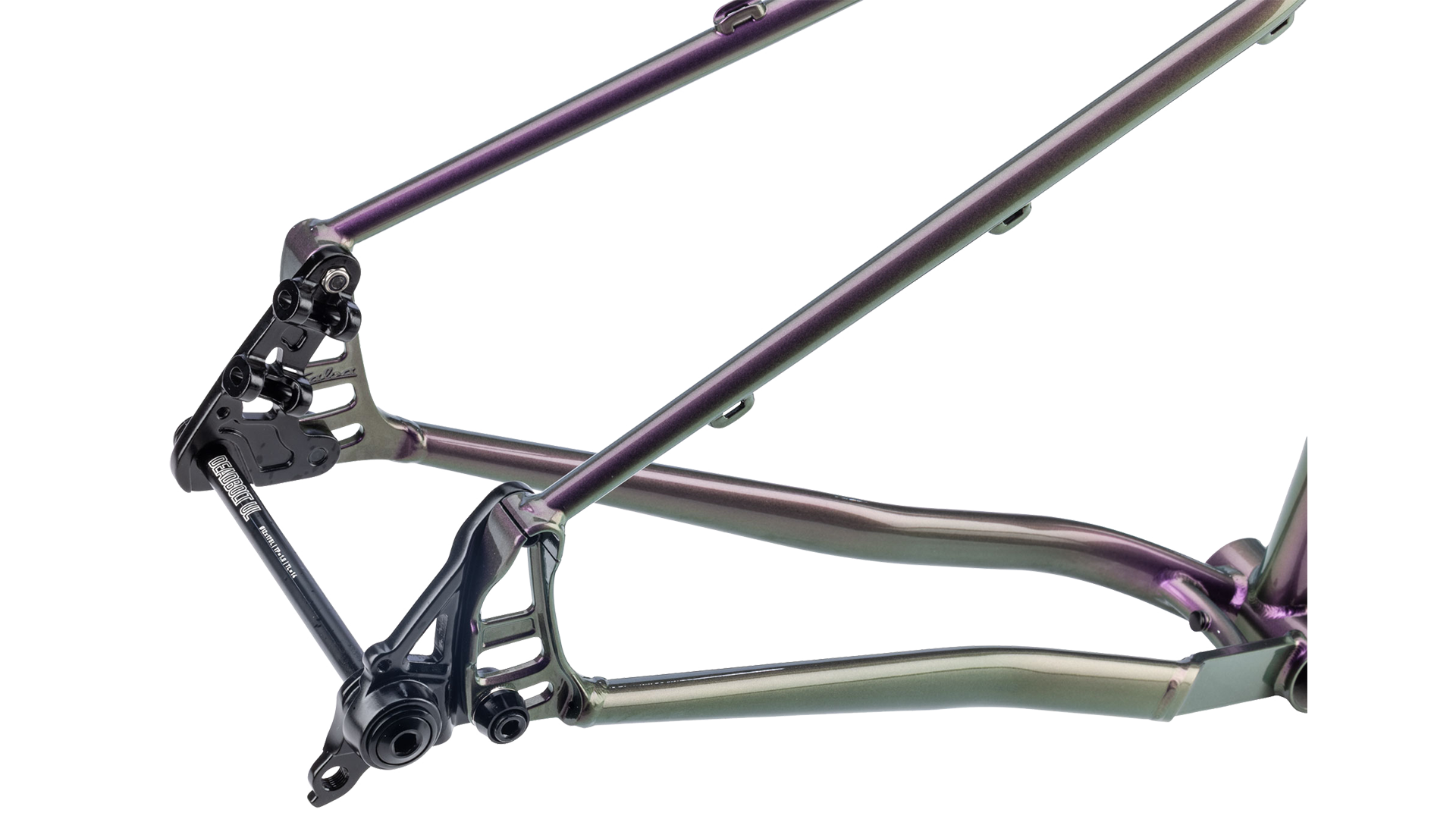

  • Salsa Fargo 32 Steel Framset - Pearl Orchid - Rear axle closeup

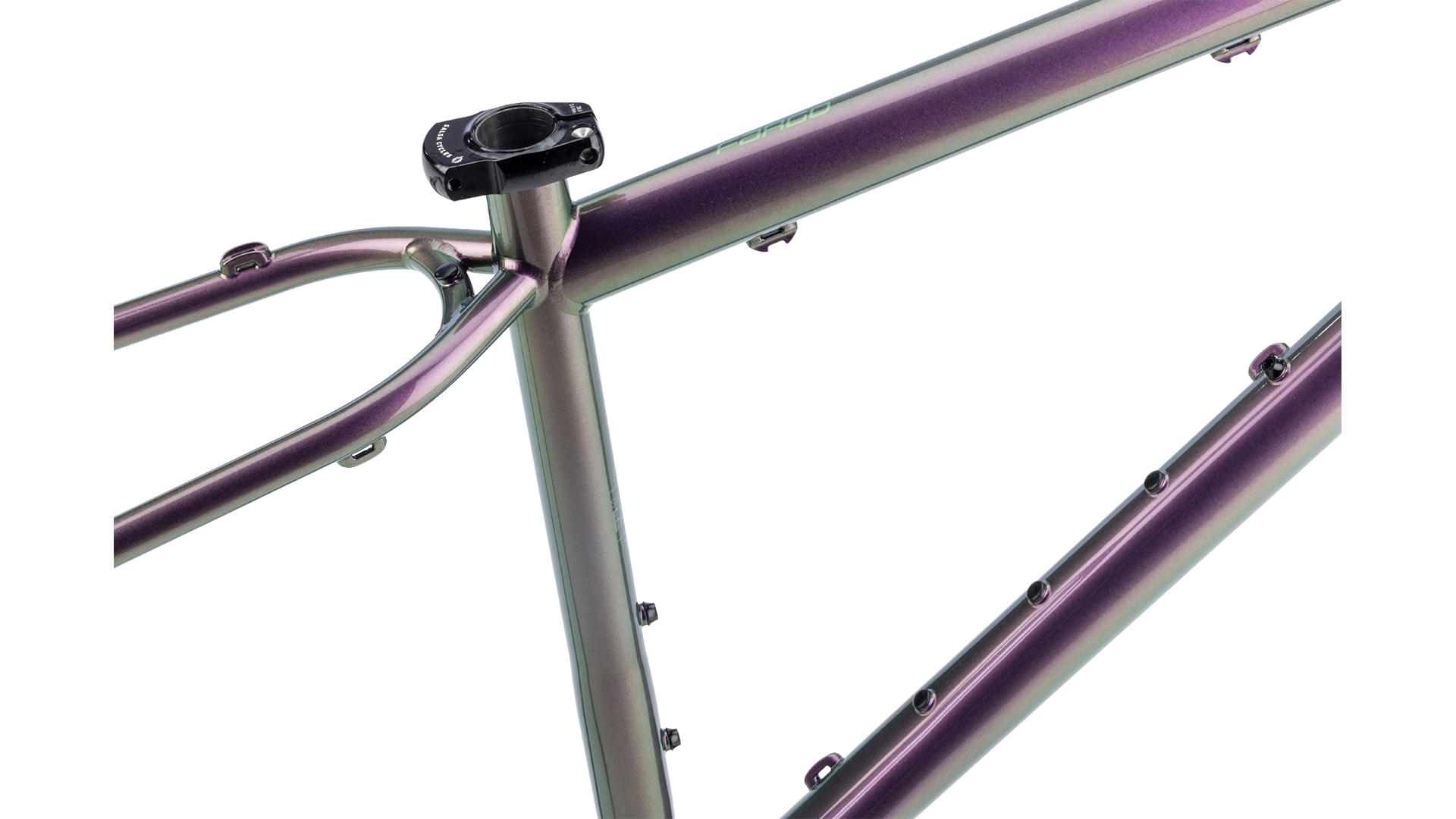

  • Salsa Fargo 32 Steel Framset - Pearl Orchid - Seat tube closeup view

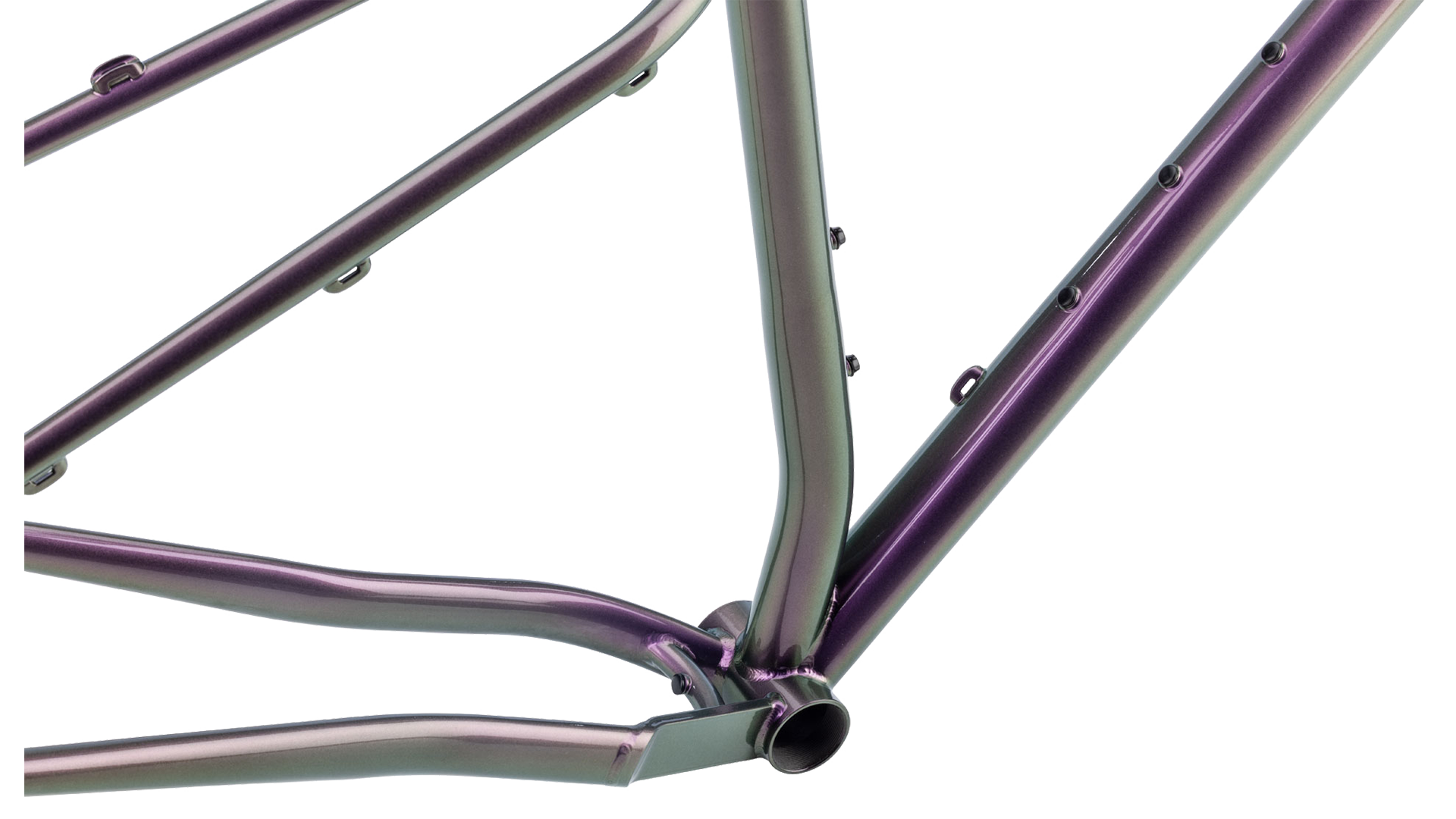

  • Salsa Fargo 32 Steel Framset - Pearl Orchid - Bottom bracket closeup view
1 5

Fargo 32 Steel Frameset

Fargo 32 Steel Frameset

$1,799.00 USD
$1,799.00 USD $1,799.00 USD
Size

What's My Size?

The Fargo 32 steel frameset expands on Fargo’s already legendary capability. It all starts with our triple-butted steel tubing and a carbon fiber fork for a supportive, comfortable, and durable ride. 32" wheels add exceptional stability while carrying more momentum and putting down more traction — which means more mixed-surface freedom. Cargo mounts galore give you flexibility to load up for a day or a month of Adventure by Bike. Our Alternator dropouts are UDH-ready out of the box and give you a world of hub and drivetrain options with our selection of Alternator plates (sold separately). The Fargo 32 steel frameset is the perfect platform to build a 32-inch bike that will take you as far and wide as your imagination can muster.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

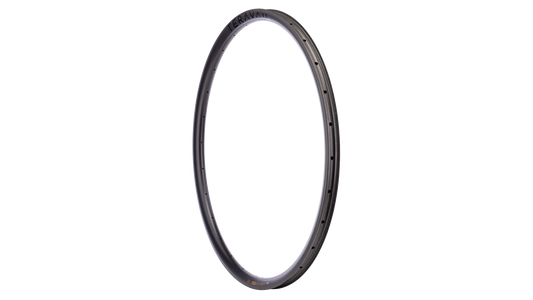

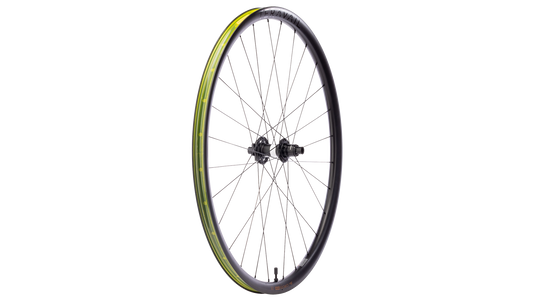

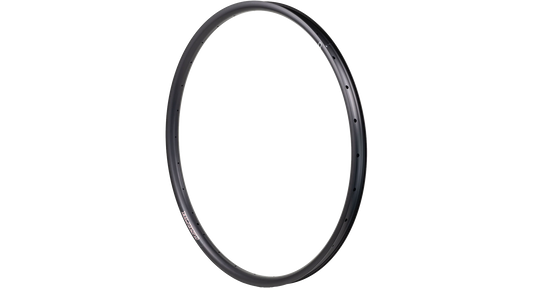

Complete Your 32 Build

1 4
View all

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Fargo Steel

  • Color

    Pearl Orchid

  • Fork

    Carbon Fiber

Components

  • Headset

    FSA Orbit ITA

  • Seatpost Clamp

    Salsa Rack-Lock seatpost clamp, 30.0mm

Drivetrain

Wheels

Weight

  • Frame

    8 lb 9 oz with axles, collar, headset, uncut steerer

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeSmallMediumLargeX-Large
A. Effective Top Tube 560.0 585.0 610.0 635.0
B. Stand Over 724.0 768.0 810.0 848.0
C. Reach 388.1 407.0 428.3 449.6
D. Stack 641.4 664.4 678.2 692.0
E. Total Seat Tube Length 390.0 440.0 490.0 540.0
F. Headtube Length 90.0 115.0 130.0 145.0
G. Headtube Angle
67.0
67.0
67.0
67.0
H. Seat Tube Angle
75.0
75.0
75.0
75.0
I. BB Drop 106.0 106.0 106.0 106.0
J. BB Height 303.3 303.3 303.3 303.3
K. Chainstay Length 481.9 481.9 481.9 481.9
L. Fork Length Axle to Crown 503.0 503.0 503.0 503.0
M. Fork Offset 51.0 51.0 51.0 51.0
N. Wheelbase 1140.9 1169.5 1196.7 1223.8
Crank Arm Length
Handlebar Width
Recommended Rider Height 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0 - 201.0
Stem Length

Measurements based on:

  • A Salsa Carbon Fiber 503 x 51 mm offset fork
  • A 32 x 2.4" tire measuring 818.5mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center
  • Wheelbase represents the longest alternator position, subtract 17mm for shortest position, which is available with non-UDH plates

Size Guide

Fargo 32 Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 32 x 2.4"
  • Max Tire Outer Diameter 32 x 2.4"
  • Frame Construction Triple-butted chromoly steel
  • Fork Construction Carbon fiber
  • Suspension Fork Length (Travel) 80mm
  • Rigid Fork Length 503mm axle to crown
  • Fork Offset 51mm (compatible with 44–51mm)
  • Rear Spacing 148mm
  • Rear Axle Size Ø12 x 175L, TP=1.0, TL=14
  • Rear Brake (Rotor) Flat Mount, 160mm maximum rotor size
  • Front Brake (Rotor) Post Mount, 200mm maximum rotor size
    Use Wolf Tooth Post to Flat Mount Adapter for flat mount brakes (not included with frameset)
  • Headset - Upper ZS44
  • Headset - Lower EC44
  • Front Spacing 110mm
  • Front Axle Size Ø15 x 135L, TP=1.5, TL=12
  • Steerer Tube 1-1/8"
  • Crown Race 1-1/2"
  • Seatpost 27.2mm
  • Dropper Post Compatible Yes (external downtube / internal seat tube)
  • Seatpost Clamp EC44 30.0mm
  • Max Post Insertion SM: 266mm
    MD: 222mm
    LG: 269mm
    XL: 319mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger Salsa Alternator 1.0 UDH Flat Mount
  • Bottom Bracket 73mm BSA, threaded
  • Crankset (Max Ring) 36t [55mm chainline]
  • Accessory Mounts Rack Mounts Frame: Yes, requires Salsa Rack-Lock
    Downtube Accessory Mount: 1
  • Bottle Mounts SM: 1, MD: 2, LG: 3, XL: 3
  • Fork Mounts 1 Three-Pack mount on each side (2 total)

Supportive Documents

Support Document links

Additional Features

Triple-butted chromoly steel tubeset

Salsa-designed, triple-butted, and frame size-specific seamless chromoly steel tubing

Carbon fiber fork

Fargo 32’s carbon fiber fork is 503mm axle to crown with a 51mm offset, 15 x 110mm Boost spacing, and Three-Pack mounts for cargo capacity.

Fargo Geometry

Fargo is our original drop-bar mountain bike, optimized for fit with flared drop bars. Redesigned for 32" wheels, it rolls faster and features more stability and traction than ever for traversing mixed terrain predictably, with or without a load. This is the bike for covering lots of ground on mixed-surface excursions ranging from technical singletrack trails to two-track, gravel to the occasional paved road. Fargo 32 also features multi-fit geometry which prioritizes drop-bar fit with short stems, allowing for easier adaptation to flat-bar fit.

Four sizes

Fargo 32 comes in sizes SM–XL, designed to bring the ride experience of 32" wheels to riders as short as 5′2″.

Alternator 1.0 UDH Flat Mount dropouts

Our renowned Alternator 1.0 rear dropout grants you ultimate drivetrain versatility. Fargo comes equipped with fixed-position Boost-spaced thru-axle plates that are compatible with SRAM UDH, flat-mount brakes, and rear racks. Different Alternator plates (sold separately) allow for different drivetrain setups — including single speed — and an adjustable rear center.

Belt drive compatible

Tested and certified for belt drive use

Cargo friendly

Fargo 32 can carry all you need for long-haul Adventure by Bike. The frame is designed for use with Salsa Alternator Plus Rack 135/142/148 in the rear with our Lift Kit (sold separately). The frame also features bottle cage mounts (SM: 1; MD: 2; LG–XL: 3) and a downtube accessory mount. The fork features two sets of Three-Pack mounts.

FAQ

Can I run wheel sizes other than 32" on this frameset

No, this frame was designed exclusively around 32" wheels and tire sizes 50mm-2.4"

Can I run flat bars on this frame?

Yes, this frame features our Multi-Fit geometry; designed around drop bars and 50-70mm stems, allowing for flat bars with 70-90mm or longer stems.

Can I use a suspension fork on this frame?

Yes, this frame was designed around 32", 80mm travel suspension forks.

How often should I service the Alternator Dropouts?

We recommend that you disassemble the alternator dropouts annually, clean all parts and reassemble using an assembly lubricant and blue threadlocker on hardware. Torque bolts to specifications found in the Alternator instructions.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
