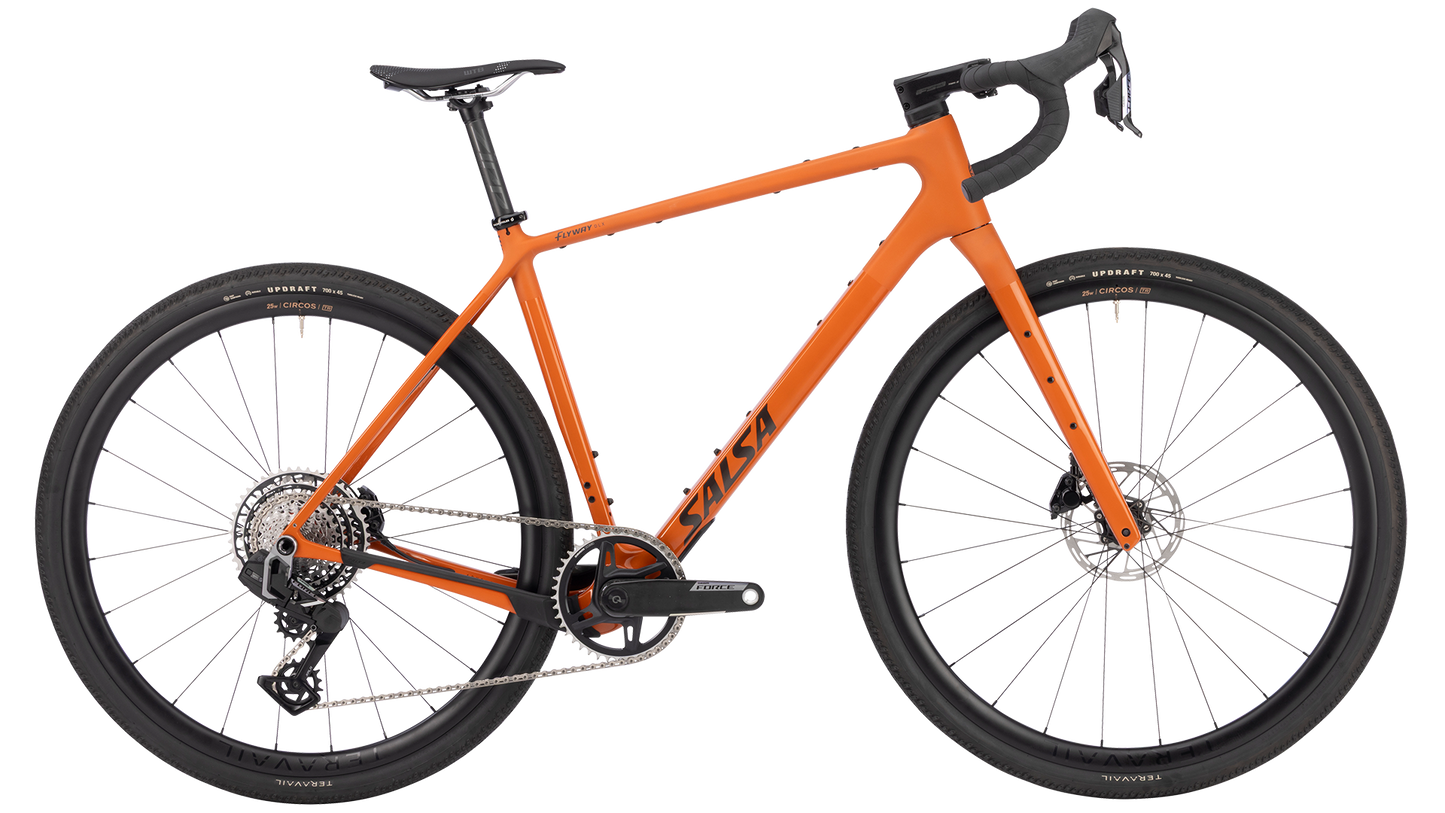

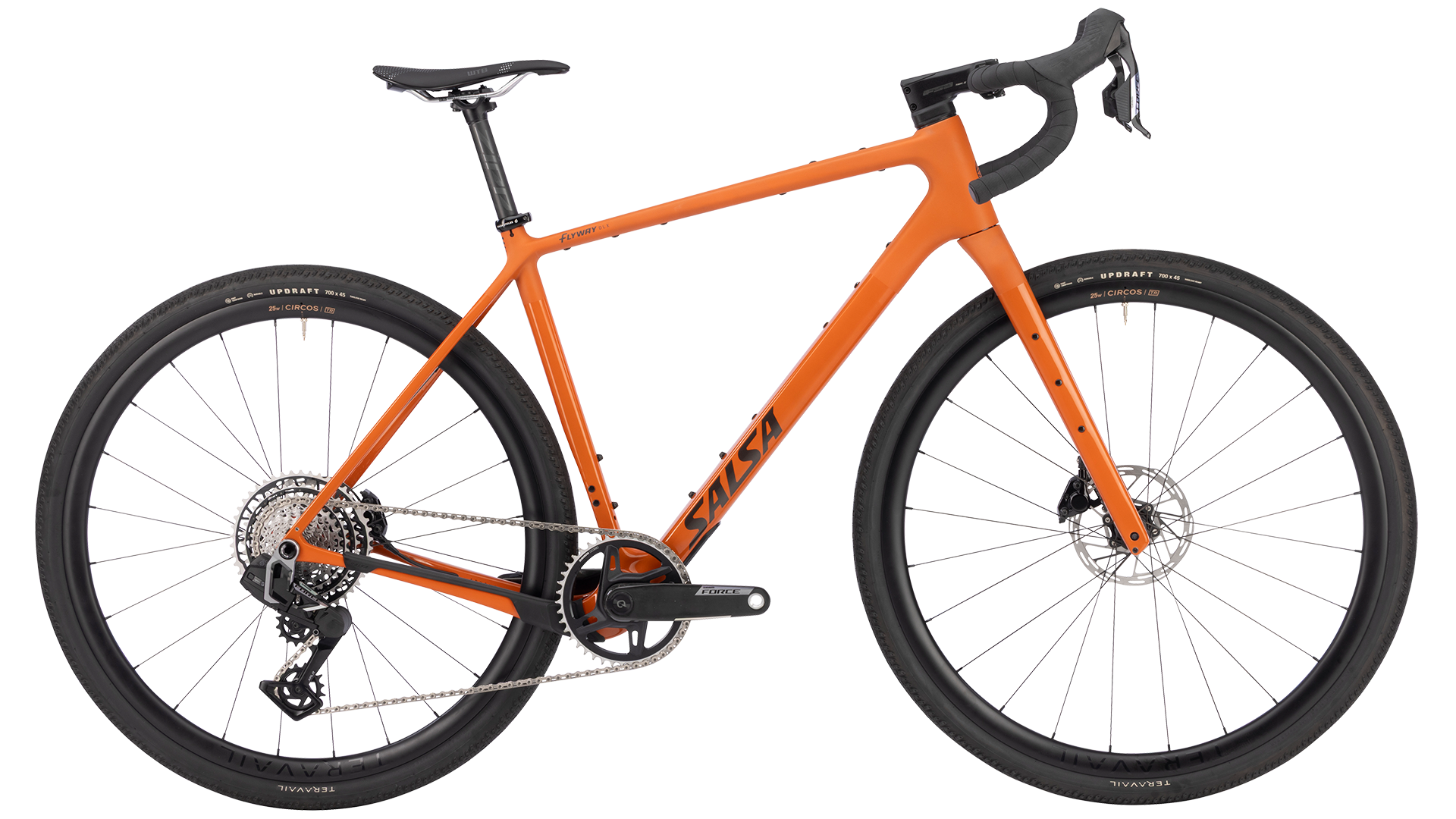

• Salsa Flyway Force XPLR AXS gravel bike - Amber -Side profile view

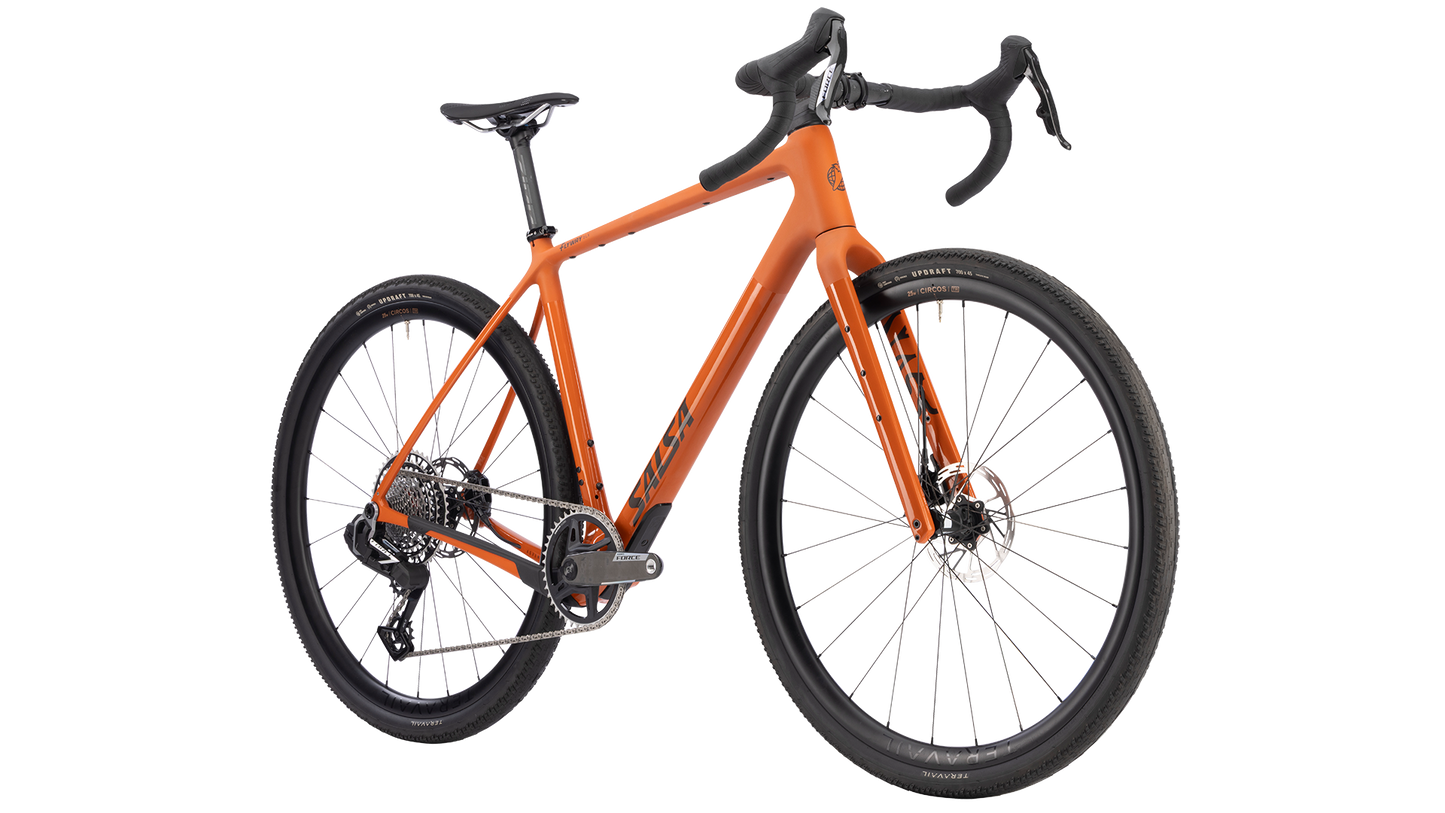

  • Salsa Flyway Force XPLR AXS gravel bike - Amber - front three quarter view

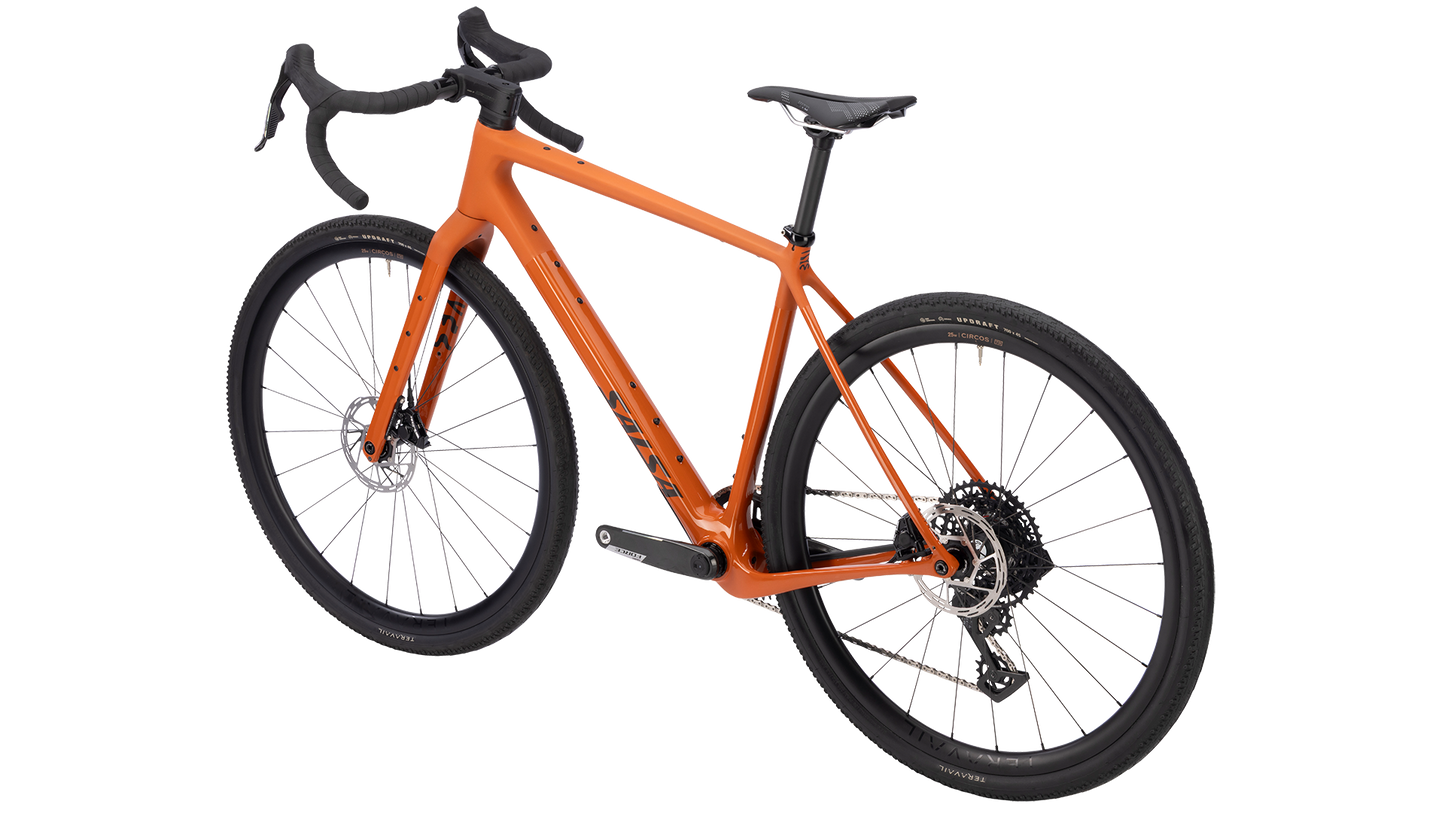

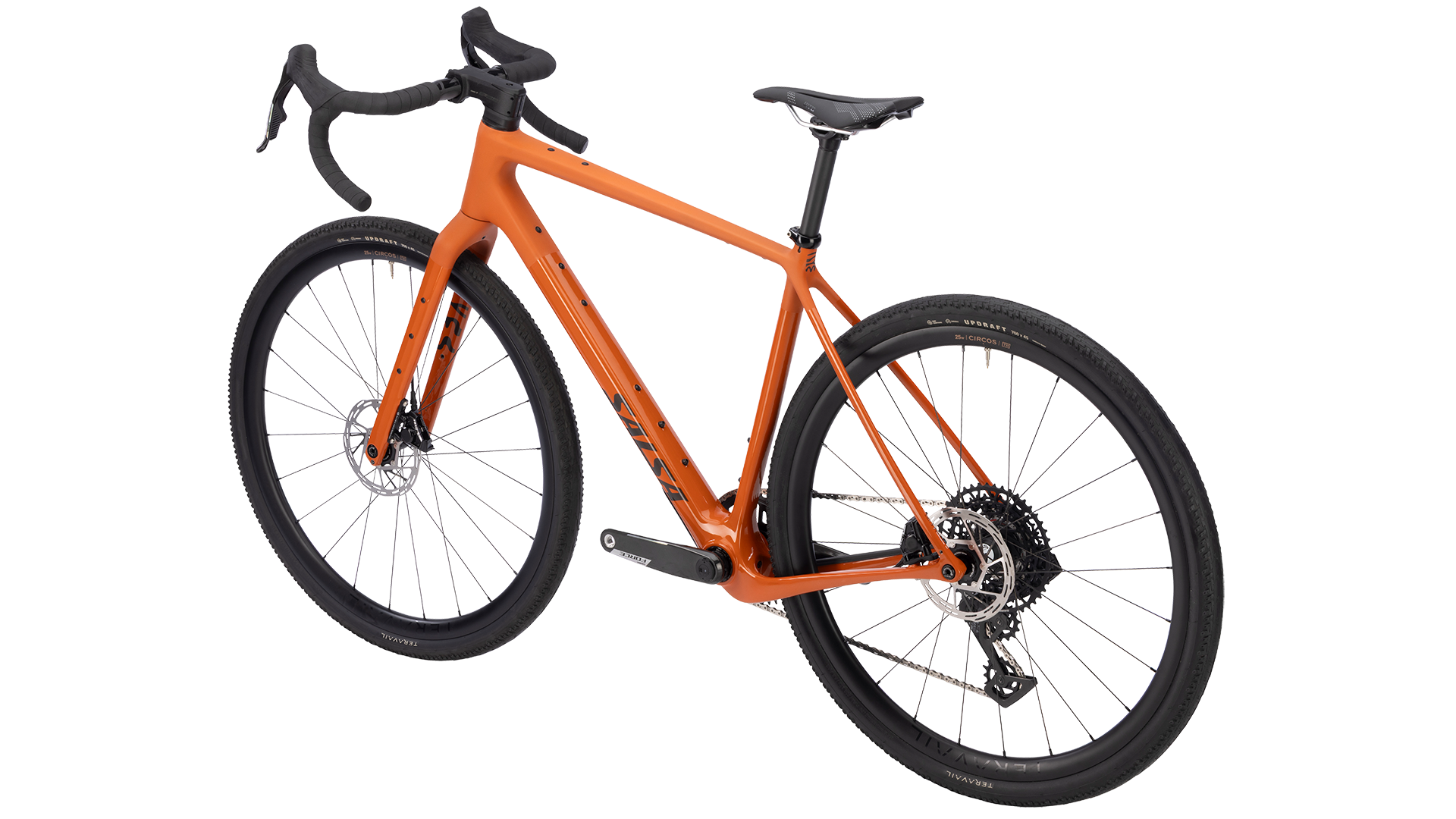

  • Salsa Flyway Force XPLR AXS gravel bike - Amber - rear three quarter view
1 3

Flyway C DLX Force XPLR

Flyway C DLX Force XPLR

$7,999.00 USD
$0.00 USD $7,999.00 USD
Size

Flyway C DLX Force XPLR is the carbon fiber gravel bike you’ll want to ride every time you head out. The frame features our Deluxe carbon layup for 150-gram weight savings over our standard carbon, and our Class 5 VRS™ frame design provides comfortable compliance over the ruts and rocks of any route. Flyway’s geometry lets you flex between race mode and all-day party pace. Cargo mounts let you distribute your snacks, layers, tools, and other ride essentials wherever it makes sense on your frame and fork. SRAM’s Force XPLR shifting setup ensures smooth, quick gear changes so you can focus on the adventure ahead.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Product Details

Build Kit

Frameset

  • Frame

    Flyway Carbon Deluxe

  • Color

    Amber

  • Fork

    Flyway Carbon

  • Rear Shock

    N/A

Components

  • Headset

    FSA CRII

  • Seatpost

    ZIPP Service Course SL, 0-degree offset

  • Stem

    FSA SMR-II

  • Grips/Bar Tape

    Velo anti-slip

  • Saddle

    WTB Gravelier

  • Handlebar

    Zipp SL-70 XPLR

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    SRAM Force XPLR AXS

  • Cassette

    SRAM Force XPLR 10–46t, 13-speed

  • Chain

    SRAM Force XPLR

  • Crankset

    SRAM Force XPLR AXS Power Meter, 42t

  • Shifter

    SRAM Force AXS HRD

  • Brake Levers

    SRAM Force AXS HRD

  • Brake Calipers

    SRAM Force

  • Bottom Bracket

    SRAM DUB T47 Internal

  • Rotors

    SRAM Paceline (160mm front and rear)

Wheels

  • Front Tire

    Teravail Updraft, 700c x 45mm

  • Rear Tire

    Teravail Updraft, 700c x 45mm

  • Front Hub

    DT Swiss 350 12 x 100

  • Rear Hub

    DT Swiss 350 12 x 142

  • Spoke

    DT Swiss

  • Rim

    Teravail Circos carbon, 28h, 700c

Weight

  • Complete Bike

    18 lb 7 oz (size Medium/Large)

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
A. Effective Top Tube 510.0 535.0 555.0 575.0 600.0 620.0
B. Stand Over 382.0 715.0 749.0 780.0 814.0 843.0
C. Reach 375.2 387.7 391.9 405.2 420.7 435.3
D. Stack 540.5 549.9 568.8 592.3 625.3 644.2
E. Total Seat Tube Length 390.0 430.0 470.0 505.0 540.0 575.0
F. Headtube Length 90.0 100.0 120.0 145.0 180.0 200.0
G. Headtube Angle
70.5
70.5
70.5
70.5
70.5
70.5
H. Seat Tube Angle
76.0
75.0
74.0
74.0
74.0
74.0
I. BB Drop 76.0 76.0 76.0 76.0 76.0 76.0
J. BB Height 283.0 283.0 283.0 283.0 283.0 283.0
K. Chainstay Length 425.0 425.0 425.0 425.0 425.0 425.0
L. Fork Length Axle to Crown 419.9 419.9 419.9 419.9 419.9 419.9
M. Fork Offset 51.0 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1012.0 1027.7 1038.7 1060.2 1087.5 1108.7
Crank Arm Length 160.0 165.0 165.0 170.0 170.0 175.0
Handlebar Width 40.0 40.0 42.0 44.0 44.0 46.0
Recommended Rider Height 147.0 - 157.0 156.0 - 166.0 165.0 - 175.0 174.0 - 184.0 183.0 - 193.0 192.0 - 201.0
Stem Length 60.0 60.0 70.0 80.0 90.0 100.0

Measurements based on:

  • A Flyway Carbon Fork which is 420 x 51mm offset
  • A 700c x 42mm tire measuring 718mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Size Guide

Flyway Size Chart (PDF)

Frame Specs

  • Design Wheel/Tire Sizes 700c
  • Alternate Wheel/Tire Sizes N/A
  • Max Tire Outer Diameter Tire Clearance Frame: 50mm
    Tire Clearance Fork: 57mm
  • Frame Construction Ultra-high-modulus carbon fiber
  • Fork Construction Carbon fiber
  • Suspension Fork Length (Travel) 40mm travel
  • Fork Offset 51mm
  • Rear Spacing 142mm
  • Rear Axle Size M12, L=175mm, TP=1.0
  • Rear Brake (Rotor) 34mm flat mount
  • Front Brake (Rotor) 74mm flat mount / 160mm
  • Headset - Upper IS 52
  • Headset - Lower IS 52
  • Front Spacing 100mm
  • Front Axle Size M12, L = 120, TP=1.5
  • Steerer Tube 1 1/8"
  • Seatpost 27.2mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32mm
  • Front Derailleur Clamp Direct-mount
  • Derailluer Hanger  SRAM UDH
  • Bottom Bracket T47 85.5 Internal
  • Crankset (Max Ring) 46t
  • Accessory Mounts Downtube Accessory Mounts: Yes
    Rack Mounts Frame: Yes, with Rack-Lock seatpost collar
    Rack Mounts Fork: No
  • Bottle Mounts Frame: 2 on XS–SM frames; 3 on MD–LG frames
    Fork: Two sets of Three-Pack mounts
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

Deluxe carbon fiber frame

Our most premium carbon fiber offering ever: this ultra-high-modulus carbon fiber frame shaves around 150 grams off the weight of our standard carbon construction without compromising durability, stiffness, or ride quality.

Class 5™ VRS

Our Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance.

Flyway Carbon fork

The Flyway Carbon fork is full-carbon, fits up to 700c x 57mm tires, and features two sets of Three-Pack mounts and fender mounts. It also has internal brake hose routing through the headset and steerer tube for a super-clean look.

40mm suspension corrected

Flyway is suspension-corrected to fit 40mm gravel bike suspension forks to add even more rough road capability to your Flyway.

Flyway geometry

Flyway features progressive geometry with a long reach and short stem. A low bottom bracket and slack head tube angle maximize stability and confidence. Flyway’s short chainstay length makes it very responsive and symmetrical dropped chainstays combined with a steep seat tube angle deliver excellent power transfer.

On-bike cargo

Top tube bag mounts, generous bottle capacity, direct-mount frame bag mounts, rack and fender mounts.

Through-headset cable routing

Clean internal routing that’s hidden in the handlebars and stem and keeps hoses and housing out of the way of handlebar bags and accessories.

Generous tire clearance

Flyway can fit a 700c x 50mm tire in the frame and a 700c x 57mm tire in the fork.

FAQ

What headset standard does the Flyway use?

The Flyway frame uses an integrated style IS52/IS52 headset, so the bearings fit directly inside the headtube. This design also allows cables and hoses to be routed through the headset for a clean aesthetic and protection from damage.

What is the difference between the Deluxe Carbon layup and the Standard Carbon layup?

The Deluxe Carbon layup uses higher modulus carbon fiber in key areas of the frame to reduce weight. We focussed the Deluxe layup on weight reduction only, a MD Deluxe frame is about 150g lighter than a MD frame in the standard carbon layup. The Deluxe layup still has the same great ride quality as the standard layup as we did not want to jeopordize that as part of reducing weight.

Can I run 650b on the Flyway?

Yes. Although Flyway is optimized for 700c tires, it can accommodate up to 650b x 51mm tires. Keep in mind that 650b tires will lower the bottom bracket height; we do not recommend installing tires smaller than 650b x 47mm.

Is Flyway compatible with front derailleurs?

Yes, the Flyway is compatible with Shimano Di2 and SRAM AXS electronic front derailleurs.

Can I run fenders on the Flyway?

Yes, you can run full coverage fenders on the Flyway but you will need a Salsa Seatstay Bridge Fender Mount Adaptor for Class 5 VRS, that allows installation of full coverage fenders on Class 5 VRS frames that do not have a seat stay bridge.

Can I use a suspension fork on the Flyway?

Yes, the Flyway frame is optimized around gravel suspension forks with 40mm of travel, but is compatible with all gravel suspension forks that have an axle to crown length of up to 457mm.

Can I mount a rack on the Flyway?

Yes. Flyway is compatible with rear racks (Salsa Rack Lock seatpost collar required); the Flyway Carbon fork is compatible with the Salsa Down Under front rack

Is the Flyway dropper post compatible?

Yes. We designed Flyway with enough seat tube insertion depth that you can install any length 27.2mm dropper post that will accommodate your saddle height.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
