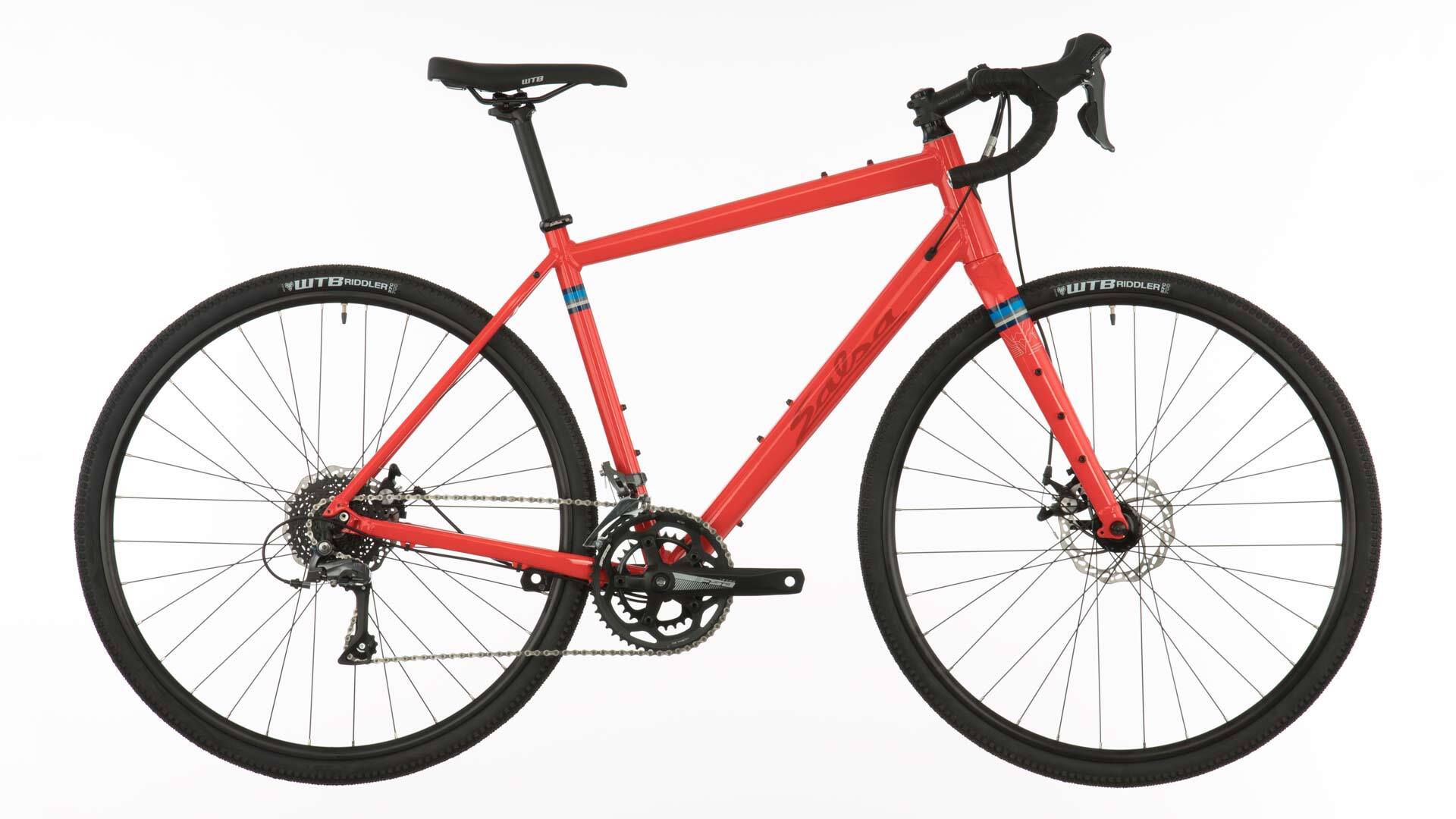

• Salsa Journeyman 700c Claris bike orange color side view

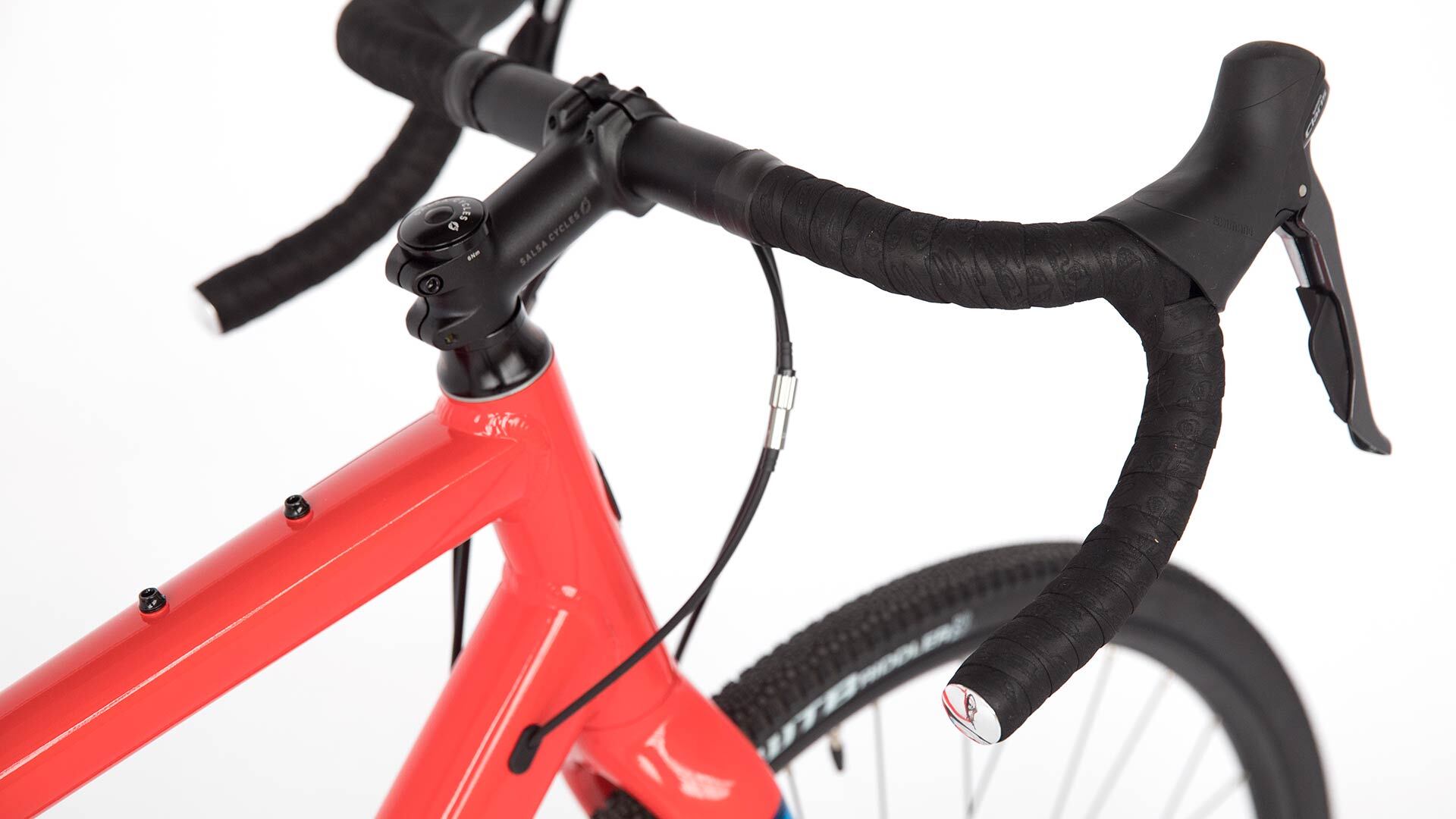

  • Salsa Journeyman 700c Claris bike orange color handlebar area focus

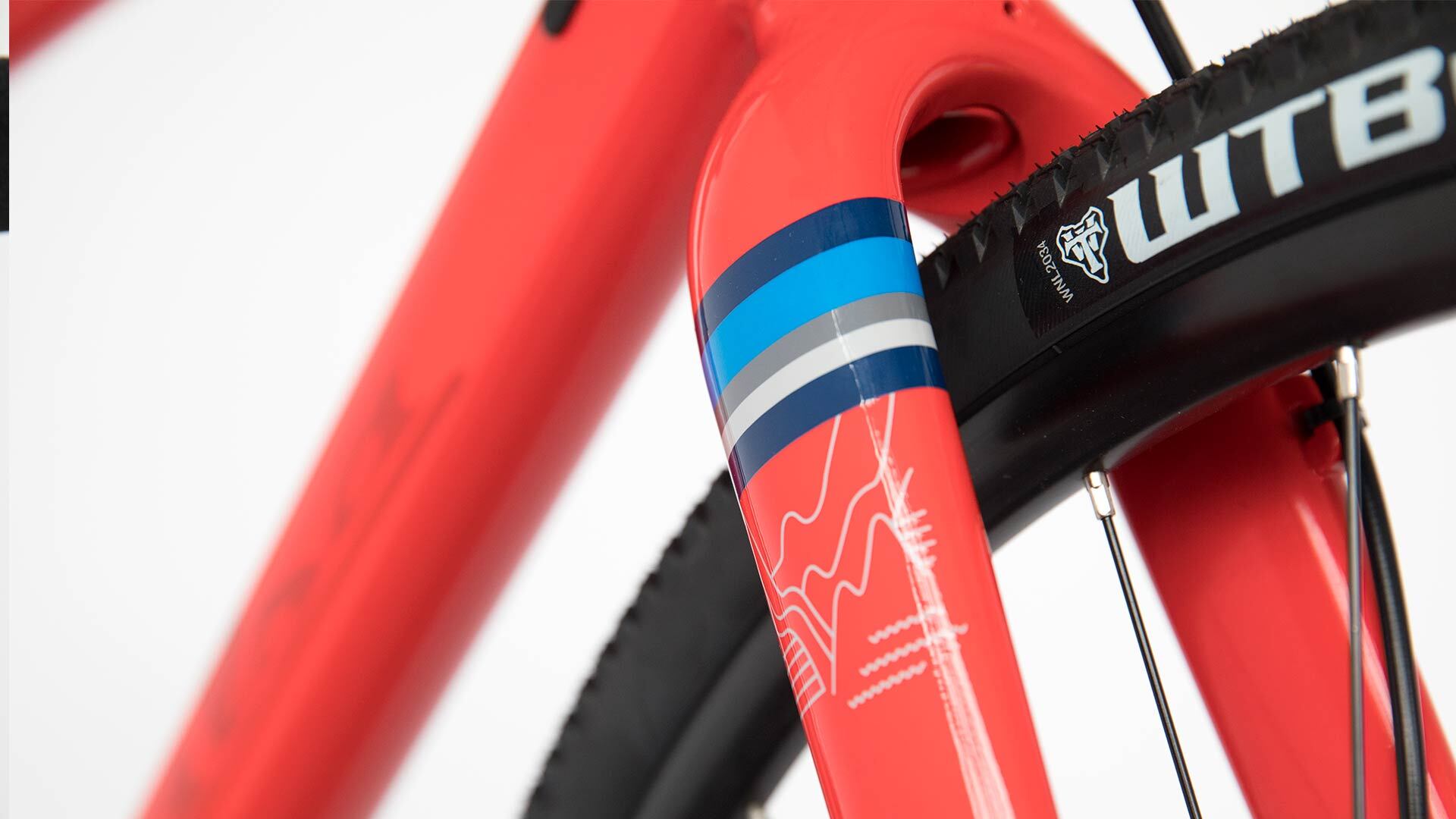

  • Salsa Journeyman 700c Claris bike orange color fork and front tire close-up

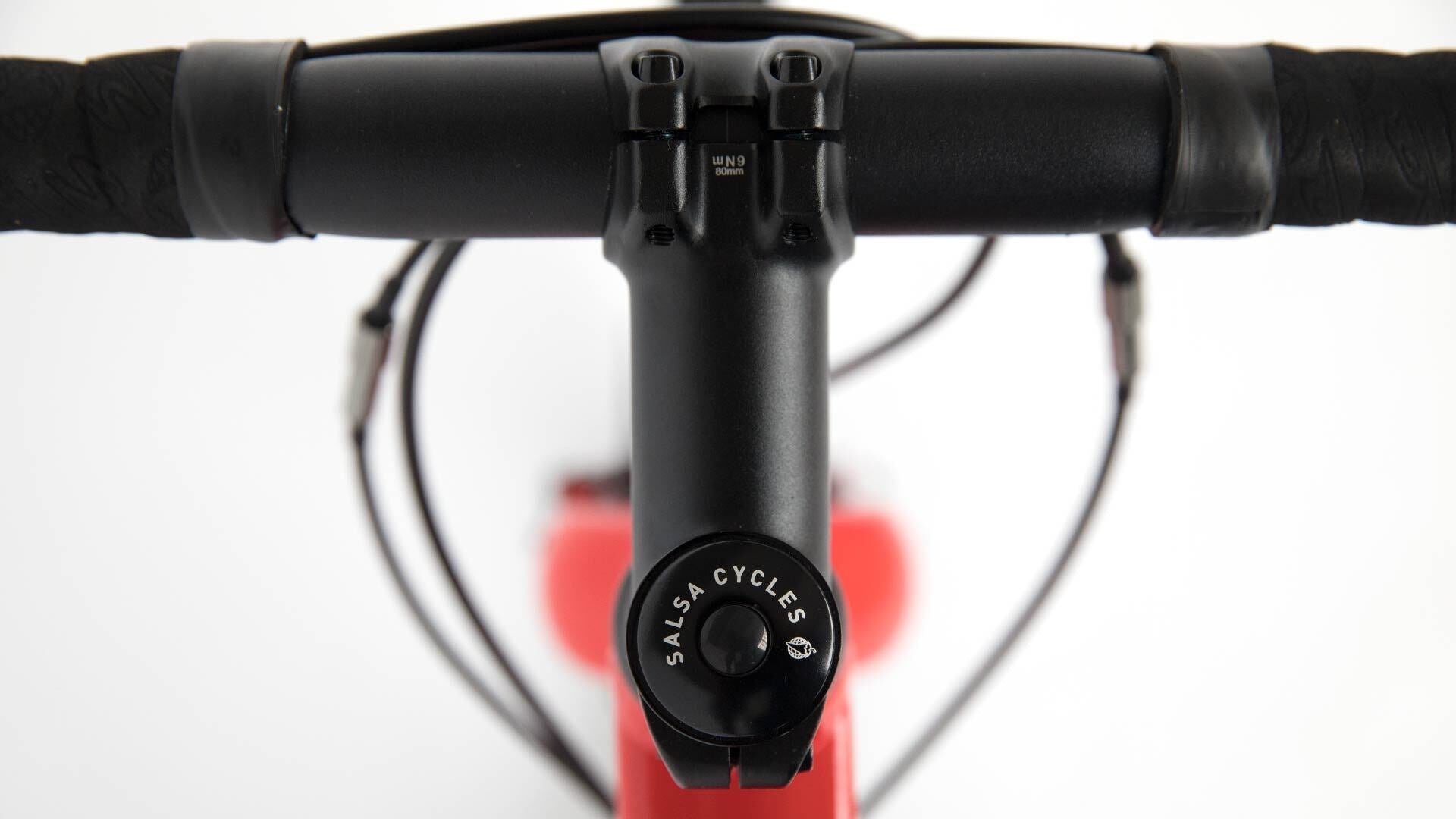

  • Salsa Journeyman 700c Claris bike orange color stem and top cap close-up

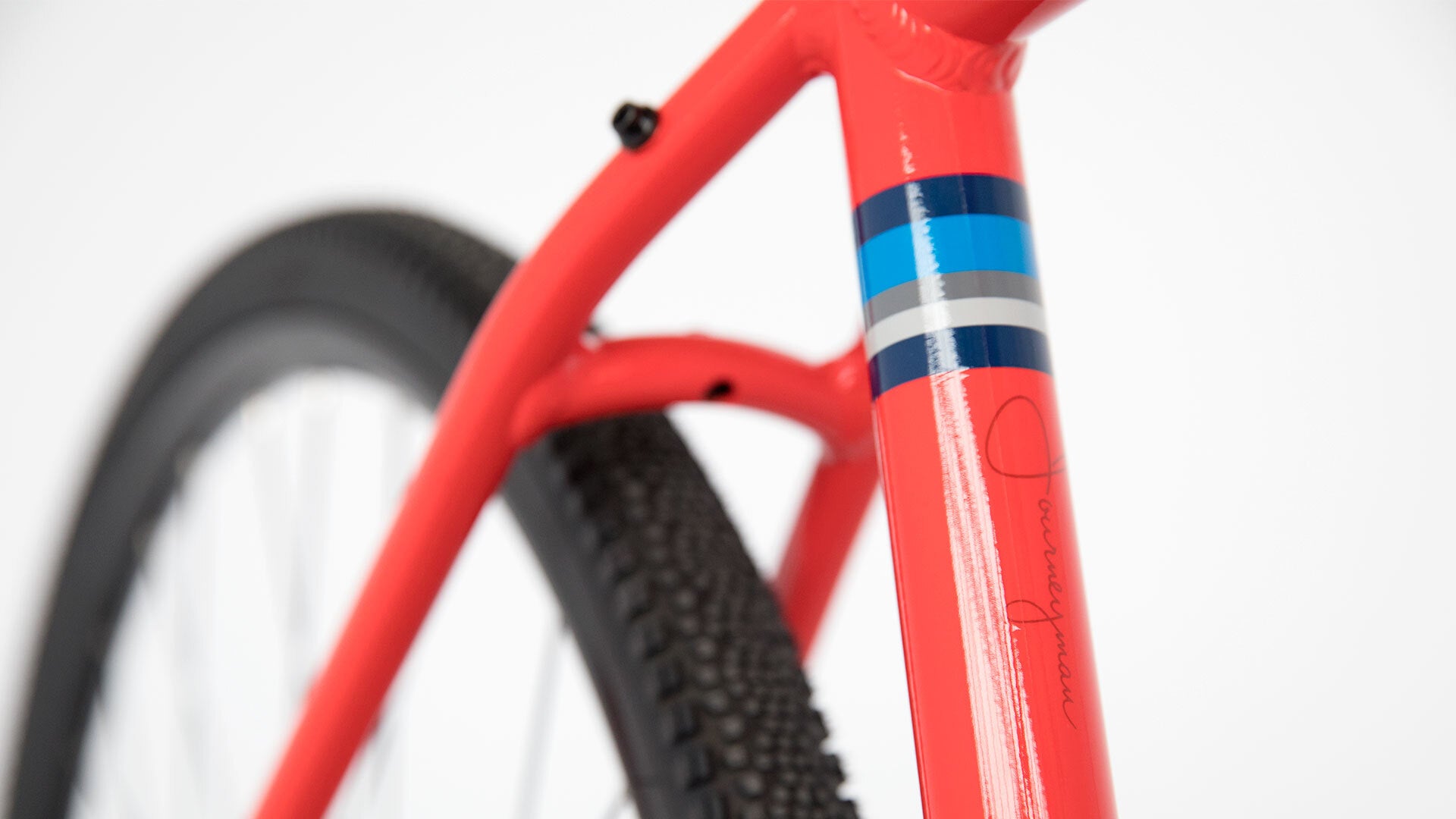

  • Salsa Journeyman 700c Claris bike orange color seat tube decal close-up
1 5

2018 Journeyman Claris 700

2018 Journeyman Claris 700

Archived

Journeyman Claris 700 offers all the essentials of a premium all-road bike. It starts with an aluminum frame, aerodynamic handlebars and our Fantail fork. We finish it with a Shimano Claris drivetrain and 700c x 37mm wheels/tires for a fast and efficient ride for every adventure.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Journeyman Drop Bar
  • Fork: Fantail Fork with Three-Pack Mounts
  • Color: Orange
  • Rear Shock: N/A
  • Front Der: Shimano Claris
  • Rear Der: Shimano Claris GS 8-speed
  • Cassette: Sunrace 8-speed, 11-34t
  • Chain: KMC X8
  • Crankset: FSA Tempo Adventure, 46/30t
  • Shifter: Shimano Claris
  • Brakes & Rotors: Promax DSK-330R Flat Mount 160mm
  • Headset: VP Sealed Bearing
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell
  • Grips: Salsa Gel Cork Bar Tape
  • Seatpost: 27.2 x 350mm
  • Saddle: WTB Volt Sport 142
  • Front Wheel : Formula, 32h, 100mm, WTB STP i19 TCS 700c, 2.0mm spokes, brass nipples
  • Rear Wheel: Formula, 32h, 135mm, WTB STP i19 TCS 700c, 2.0mm spokes, brass nipples
  • Tires: WTB Riddler 700 x 37mm Comp
  • Complete Bike Weight: 25 lb 11 oz for size 55.5cm

Frame Specs

  • Tire Size Range for 622/700c/29" Wheels: 32–51mm (1.26–2.0")
  • Tire Size Range for 584/650b/27.5" Wheels: 47–57mm (1.85–2.2")
  • Tire Size Range for 559/26" Wheels: 559/26" is Not Compatible
  • Maximum Wheel/Tire Diameter: 727mm (28.6")
  • Minimum Wheel/Tire Diameter: 684mm (26.9")
  • Rigid Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: IS41
  • Headset-Lower: IS47
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Front Derailleur Mount: 34.9mm OD, bottom pull
  • Bottom Bracket: 68mm BSA
  • Crankset (Max Ring): 1x crankset: 46t max, 2x crankset: 52/36t max, 3x crankset: 53/39/30t max
  • Rear Brake (Rotor): Flat mount (140–160mm)
  • Rear Spacing: 135mm
  • Rear Axle Size: 10 x 135mm, QR
  • Derailleur Hanger: 959 hanger
  • BB Cable Guide: 06-000682
  • Fender Mounts: Yes
  • Rack Mounts: Yes
  • Stem Clamp: 28.6mm
  • Crown Race: 33mm
  • Front Brake (Rotor): 140–160mm
  • Front Spacing: 100mm
  • Front Axle: See Fork

Geometry

Geometry Diagram
Metric 50cm 52cm 54cm 55.5cm 57cm 59.5cm
Top Tube Effective Metric 500 520 540 555 570 595
Seat Tube Length Metric 380 450 470 510 530 560
Head Tube Length Metric 100 115 140 170 200 215
Head Tube Angle 70 70.5 70.5 70.5 70.5 70.5
Seat Tube Angle 75.5 74 73 73 73 72.5
BB Drop Metric 72 72 72 72 72 72
Chainstay Length Metric 440 440 440 440 440 440
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50
Wheelbase Metric 1017 1018 1029 1045 1061 1081
Stack Metric 528 544 567 595 624 639
Reach Metric 364 364 367 373 379 394
Standover Metric 666 720 742 778 801 823
Rider Height Metric 152cm–160cm 157cm–165cm 165cm–175cm 173cm–183cm 180cm–190cm 188cm–UP
Stem Length 60 70 80 80 90 100
Crank Length 165 165 170 172.5 175 175
Handlebar Width 38cm 40cm 42cm 42cm 44cm 46cm
Seatpost Offset Metric 12 12 12 12 12 12
  • A fork which is 405 x 50mm offset
  • Measurements listed are based on a 700 x 38mm tire measuring 706mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Designed to Meet Your Needs

We offer our Journeyman model in two different wheel/tire sizes (700c x 37/38mm or 650b x 2.1") as well as in two different handlebar styles (drop bar or flat bar). There is a Journeyman to meet your needs as a rider

Journeyman Specific Aluminum Tubing

Journeyman utilizes the same custom toptube and downtube we developed for the Warbird Aluminum, with new seatstays, chainstays, and dropouts in 6061-T6 aluminum to match. The entire frame is then heat treated to T6 alloy standards for extra strength and durability

700c x 38mm Wheel/Tire Spec

700c wheels with 38mm tires are fast rolling and efficient, and the best choice if speed is a high priority

Salsa Cowbell Drop Bar Handlebar

Drop bars provide multiple hand positions, increasing comfort and efficiency on long rides. They also provide the rider a more aerodynamic position when stiff headwinds arise

Fantail Aluminum Fork

Feature-packed aluminum fork with a tapered steerer and flat-mount brake. A crown light mount, fender eyelets, mid-blade mounts for low-rider racks, and Three-Pack mounts for our Anything Cages or water bottles help add to the potential length of your rides

Journeyman Geometry

Journeyman geometry was developed from years of riding our Vaya and Warbird. Taking cues from both, Journeyman is comfortable stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths into and through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides

Full-Length Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Front and Rear Fender Mounts

Integrated front and rear fender mounts for drier riding in inclement weather.

Front and Rear Rack Compatible

Low-rider rack capability on the fork with mid-blade mounts with integrated mounts for a rear rack. For optimal rear rack fit, we recommend our Wanderlust Rack

Toptube Bag Mounts

Install our EXP Series Toptube bag using Journeyman’s integrated toptube mounts
