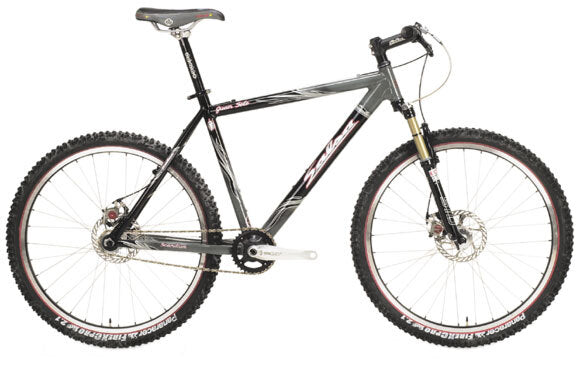

• Salsa Juan Solo single speed bike gray color side view

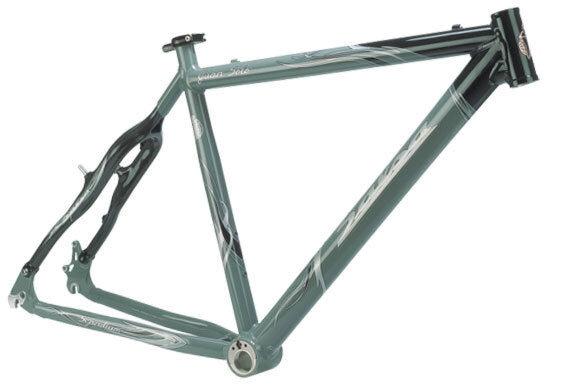

  • Salsa Juan Solo single speed frame gray color side view
1 2

2009 Juan Solo (v2)

2009 Juan Solo (v2)

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Scandium, custom-drawn tubeset, carbon seatstays
  • 2: Includes Bushnell eccentric bottom bracket (200 grams) for 68mm BB English thread
  • 3: Fits up to 2.3" tires
  • 4: 135mm rear spacing
  • 5: Standard 1-1/8" headset
  • 6: Seatpost diameter: 27.2mm
  • 7: Seatpost clamp: 30.6mm Lip-Lock included
  • 8: ISO disc tabs mounts/removable canti bosses
  • 9: Designed for 80mm travel fork
  • 10: Will accept derailleur hanger
  • 11: Sizes: XS, SM, MD, LG, XL
  • 12: Color: Vader Gray
  • 13: 3.77 lbs for 18"

Geometry

Geometry Diagram
14" 16" 18" 20"
Top Tube Effective Metric 535 565 585 605
Seat Tube Length Metric 405 456 507 558
Head Tube Length Metric 95 95 105 125
Head Tube Angle 70 71 71 71
Seat Tube Angle 73 73 73 73
BB Drop Metric 35 35 35 35
Chainstay Length Metric 429 429 429 429
Fork Length Metric 441 441 441 441
Fork Offset Metric 39 39 39 39
Wheelbase Metric 40.2 41 41.8 42.6
Standover Metric 733.6 759.2 787.3 820.7
