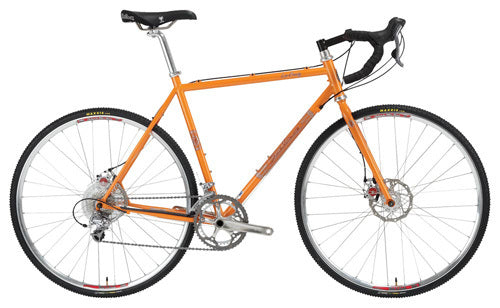

• Salsa La Cruz bike orange color side view
1 1

2010 La Cruz

2010 La Cruz

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: True Temper OX Platinum main triangle, butted CroMoly rear triangle, disc brake onlyLa Cruz cyclocross fork, True Temper OX Platinum, disc brake only, 1-1/8"
  • 2: TIG-welded construction
  • 3: Disc brake only, ISO 51mm disc mounts
  • 4: Downtube cable routing
  • 5: Fits up to 700c x 42mm tires
  • 6: 135mm rear spacing
  • 7: Standard 1-1/8
  • 8: Seatpost diameter: 27.2mm
  • 9: Seatpost clamp: 30.0mm
  • 10: Front derailleur clamp: 28.6mm
  • 11: Bottom bracket shell: 68mm
  • 12: Includes Salsa Lip-Lock seat collar
  • 13: 49cm frame weighs 4.5 lbs, fork weighs 2.1 lbs with uncut steerer
  • 14: Color: Orange Pop

Geometry

Geometry Diagram
47cm 49cm 51cm 53cm 55cm 57cm 59cm
Top Tube Effective Metric 530 540 555 570 580 595 605
Seat Tube Length Metric 470 490 510 530 550 570 590
Head Tube Length Metric 100.4 112.4 132.6 155.2 174.4 190.2 209.7
Head Tube Angle 71 71.5 71.5 71.5 72 72 72
Seat Tube Angle 73.5 73 73 72.5 72.5 72 72
BB Drop Metric 68 68 68 68 68 68 68
Chainstay Length Metric 430 430 430 430 430 430 430
Fork Length Metric 395 395 395 395 395 395 395
Fork Offset Metric 45 45 45 45 45 45 45
Wheelbase Metric 39.4 39.5 40.1 40.5 40.8 41.1 41.5
Stack Metric
Reach Metric
Standover Metric 759 777 796.1 813.8 834.2 851.7 870.7
