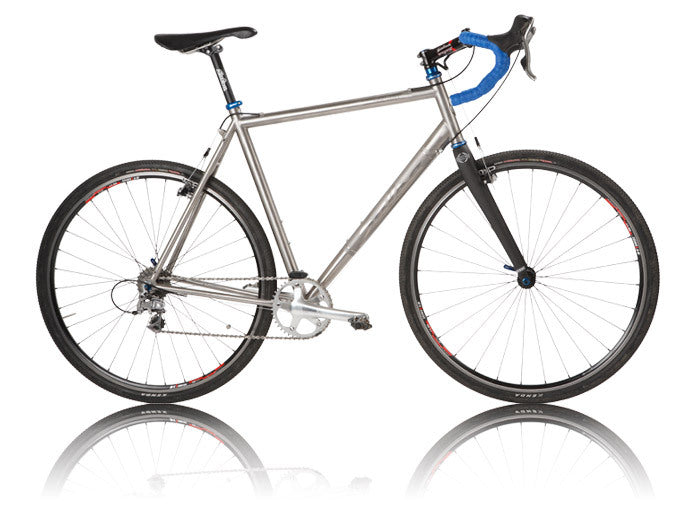

• Salsa La Cruz Ti bike side view
1 1

2011 La Cruz Ti

2011 La Cruz Ti

Archived

La Cruz Ti 2011

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: 3/2.5 seamless Titanium
  • 2: Designed for 47mm rake cyclocross fork
  • 3: Biaxial ovalized downtube
  • 4: Replaceable derailleur hanger
  • 5: Fits up to 700c x 38mm tires
  • 6: 130mm rear spacing
  • 7: Standard 1-1/8
  • 8: Seatpost diameter: 27.2mm
  • 9: Seatpost clamp: 35.0mm
  • 10: Bottom bracket shell: 68mm
  • 11: Cantilever brake studs
  • 12: Fender mounts
  • 13: Welded-in water bottle cage bosses
  • 14: Includes Pewter-colored Salsa Lip-Lock seat collar
  • 15: Frame weight: 51.5cm = 3 lbs 4 oz, 53cm = 3 lbs 6 oz, 54cm = 3 lbs 8 oz, 55.5cm = 3 lbs 9 oz, 57cm = 3 lbs 11 oz, 58cm = 3 lbs 11 oz, 59.5cm = 3 lbs 11 oz, 60cm = 3 lbs 13 oz
  • 16: Finish: Industrial mill finish with etched Salsa graphics

Geometry

Geometry Diagram
51.5 53 54 55.5 57 58
Top Tube Effective Metric 515 530 540 555 570 580
Seat Tube Length Metric 485 515 535 555 575 595
Head Tube Length Metric 85 100 120 140 160 180
Head Tube Angle 71 71 71.5 71.5 71.5 72
Seat Tube Angle 74.5 73.5 73 73 72.5 72.5
BB Drop Metric 68 68 68 68 68 68
Chainstay Length Metric 430 430 430 430 430 430
Fork Length Metric 395 395 395 395 395 395
Fork Offset Metric 47 47 47 47 47 47
Wheelbase Metric 39.38 39.62 39.65 40.27 40.66 40.85
Stack Metric 516.2 530.4 551.1 570.1 589.1 610
Reach Metric 371.9 372.9 371.5 380.7 384.3 387.7
Standover Metric 732.1 755.9 775.9 795 813.9 834
