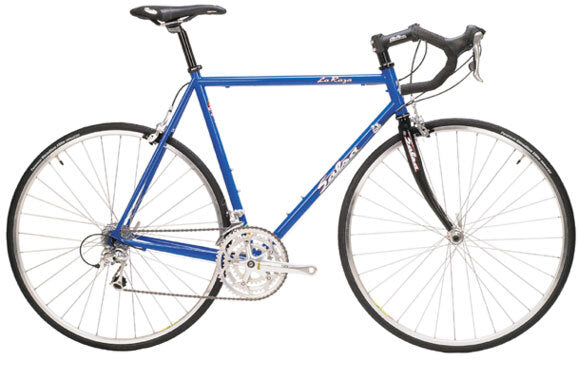

• Salsa La Raza bike blue color side view

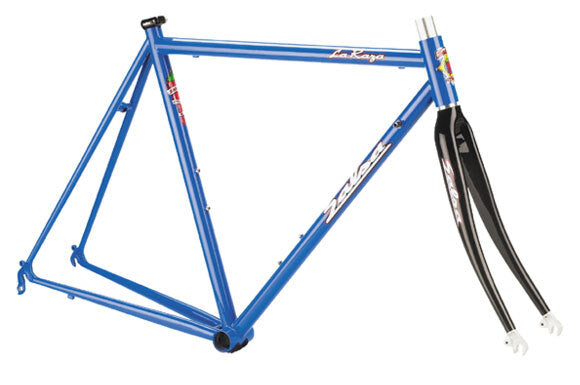

  • Salsa La Raza frameset blue color side view
1 2

2010 La Raza - Blue

2010 La Raza - Blue

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Reynolds 853 main triangle
  • 2: Butted CroMoly rear triangle
  • 3: TIG-welded construction
  • 4: Includes Salsa carbon fork with alloy steerer
  • 5: Includes 30.0mm Salsa Lip-Lock seat collar
  • 6: 1-1/8" headtube, 27.2 mm seatpost, 68 mm English bottom bracket shell, 130mm rear spacing, 28.6 front derailleur clamp
  • 7: 56cm frame weight: 3.8 lbs
  • 8: Salsa carbon with alloy steerer fork (uncut): 1.20 lbs
  • 9: Color: Baja blue
  • 10: Fits 700 x 28mm tires

Geometry

Geometry Diagram
Metric 49cm 52cm 54cm 56cm 58cm 60cm
Top Tube Effective Metric 510 530 545 560 575 590
Seat Tube Length Metric 490 520 540 560 580 600
Head Tube Length Metric 90 101.4 119.7 137 153.4 170
Head Tube Angle 72.5 72.5 73 73 73.5 74
Seat Tube Angle 74.5 74 74 73.5 73 74
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 409 409 409 409 409 409
Fork Length Metric 370 370 370 370 370 370
Fork Offset Metric 45 45 45 45 45 45
Wheelbase Metric 37.6 38.3 38.7 38.9 39.1 39.3
Standover Metric 750.5 769.8 789.1 806.9 824.7 842.2
