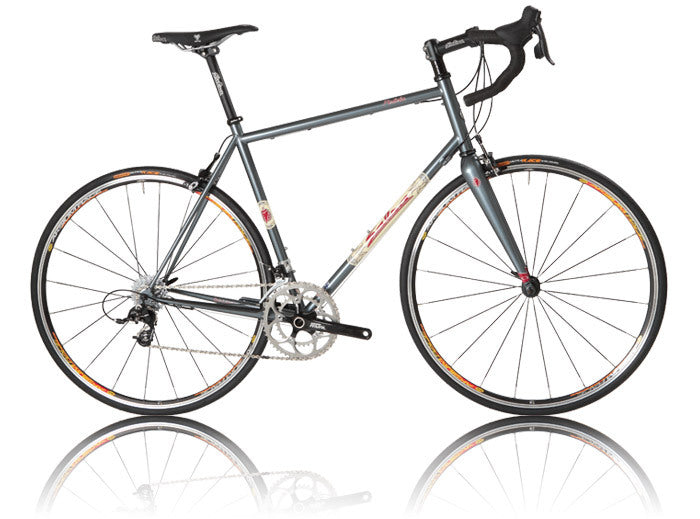

• Salsa Pistola bike gray color side view

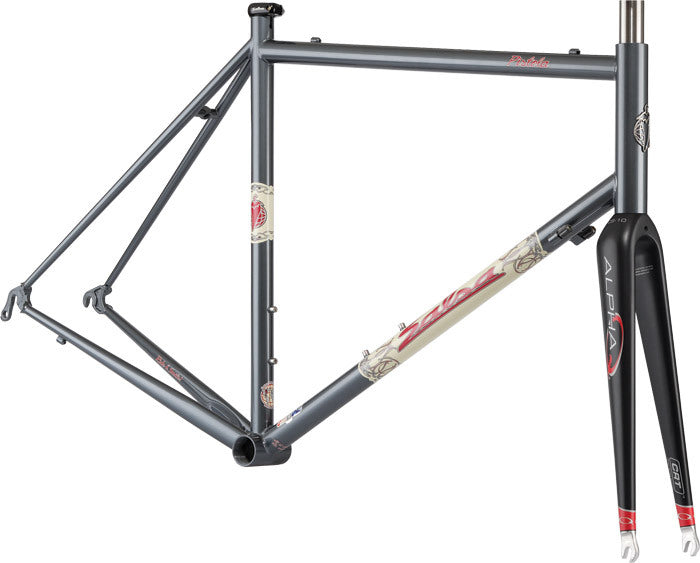

  • Salsa Pistola frameset gray color front three-quarter view

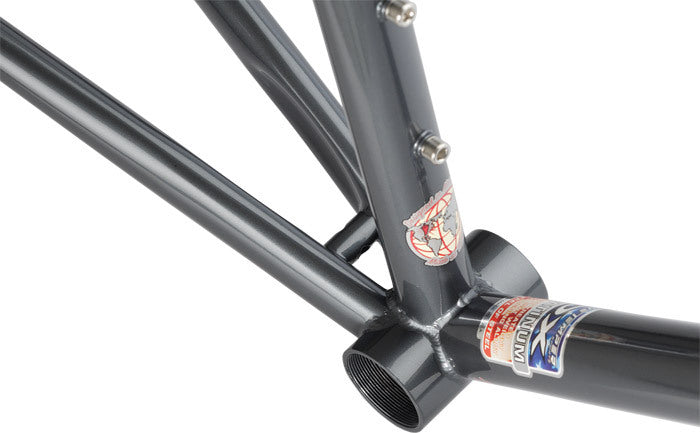

  • Salsa Pistola frameset gray color bottom bracket area focus

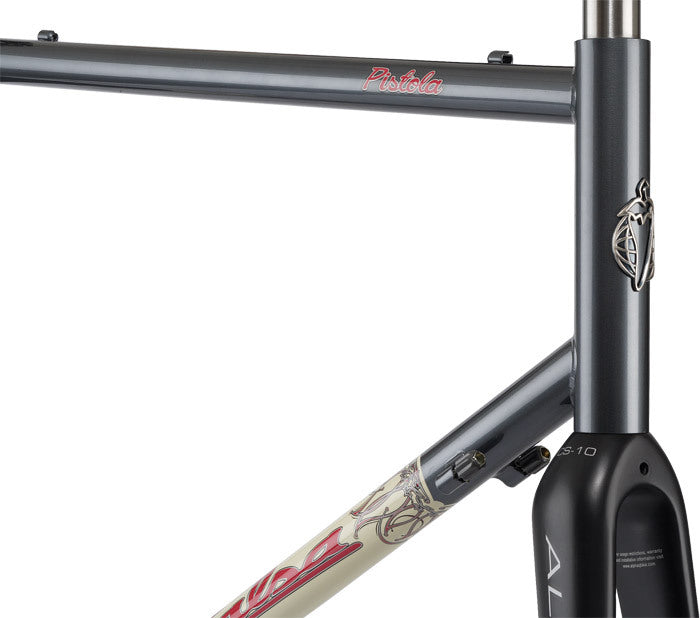

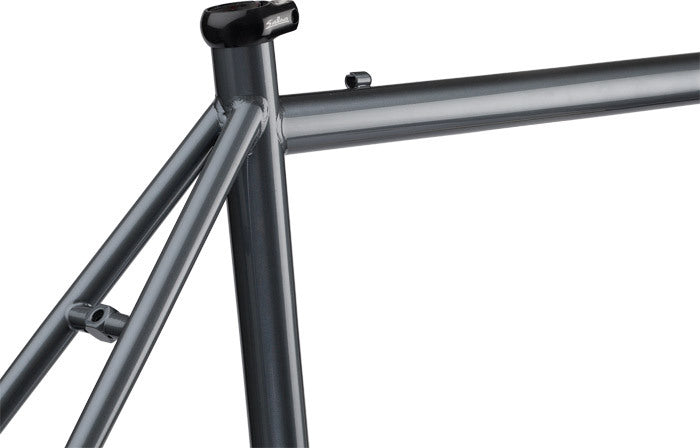

  • Salsa Pistola frameset gray color top tube and seat tube area focus
  • Salsa Pistola frameset gray color head tube area focus
1 5

2010 Pistola

2010 Pistola

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: Frame: True Temper OX Platinum tubeset
  • 2: Fork: Alpha Q CS10 carbon fork with OX Platinum steerer
  • 3: Sloping toptube design (49cm frame is 56cm level)
  • 4: Fits up to 700c x 28mm tires
  • 5: 130mm rear spacing
  • 6: Standard 1-1/8" headset
  • 7: Seatpost diameter: 27.2mm
  • 8: Seatpost clamp: 30.0mm
  • 9: Front derailleur clamp: 28.6mm
  • 10: Bottom bracket shell: 68mm English
  • 11: Includes Salsa Lip-Lock seat collar
  • 12: 49cm frame weighs 4.1 lbs, fork weighs 0.9 lbs with uncut steerer
  • 13: Color: Stone Bridge Gray

Geometry

Geometry Diagram
Metric 41cm 43cm 45cm 47cm 49cm 51cm 53cm 56cm
Top Tube Effective Metric 500 510 530 545 560 575 590 605
Seat Tube Length Metric 455 475 495 515 535 555 575 595
Head Tube Length Metric 95 110 130 150 170 190 205 220
Head Tube Angle 71.5 72.5 72.5 73 73 73.5 74 74
Seat Tube Angle 75 74.5 74 74 73.5 73 72.5 72.5
BB Drop Metric 73 73 73 73 73 73 73 73
Chainstay Length Metric 415 415 415 415 415 415 415 415
Fork Length Metric 371 371 371 371 371 371 371 371
Fork Offset Metric 44 44 44 44 44 44 44 44
Wheelbase Metric 37.9 37.82 38.44 38.87 39.27 39.46 39.61 40.19
Stack Metric 510.8 528.4 547.5 568.3 587.4 608.4 624.5 639
Reach Metric 361.4 362.5 372.3 381.5 385.7 389.3 393.8 404.3
Standover Metric 692.9 712.5 731.8 751.8 771.3 791.4 809.8 827.4

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
