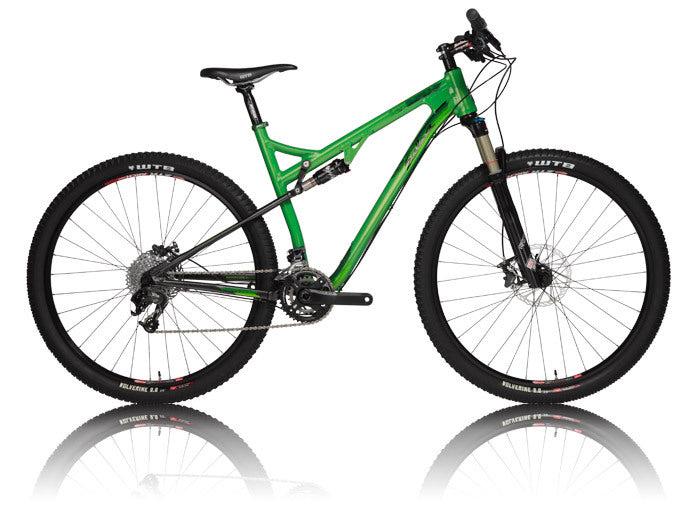

• Salsa Spearfish bike green color side view
1 1

2011 Spearfish

2011 Spearfish

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • 1: EV-6 Extralite Aluminum frame
  • 2: 80mm of vertical rear wheel travel
  • 3: Rock Shox Monarch R air shock, 165mm (6.5
  • 4: 8mm x 22.2mm upper & lower shock mounting hardware
  • 5: Sealed cartridge bearings at all pivots (6900-2RS qty 2 and 698-2RS qty 4)
  • 6: Tapered 1-1/8
  • 7: Designed around 100mm travel 29'er suspension forks
  • 8: Press-Fit BB30 bottom bracket shell, 73mm wide
  • 9: Compatible with both 10-speed double and 9-speed triple cranks (NOTE: not compatible with 156mm Q-factor XX cranks)
  • 10: 135mm x 10mm rear hub spacing
  • 11: Clearance for 2.25" tires
  • 12: ISO 51mm disc brake mount
  • 13: Replaceable
  • 14: Seatpost diameter: 31.6mm
  • 15: Front derailleur: 34.9mm clamp, bottom-pull
  • 16: Seatpost clamp: 35.0mm
  • 17: Triple guide, full-length housing cable routing
  • 18: One front triangle H2O bottle mount
  • 19: Includes Salsa Flip-Lock seat collar
  • 20: Frame weight: SM=5.3, MD=5.5, LG=5.8, XL=5.9 lbs with Rock Shox air shock
  • 21: Color: Green Machine

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 457.2 406.4 406.4 508
Head Tube Length Metric 130 120 110 140
Head Tube Angle 71 71 71 71
Seat Tube Angle 73.5 73 73 73
BB Drop Metric 45 45 45 45
Chainstay Length Metric 455 455 455 455
Fork Length Metric 503 503 503 503
Fork Offset Metric 45 45 45 45
Wheelbase Metric 44.46 43.65 43.08 45.06
Stack Metric 613.7 623.2 632.6 642.1
Reach Metric 398.2 409.5 426.6 438.7
Standover Metric 752.7 753.2 758.5 763.5
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
