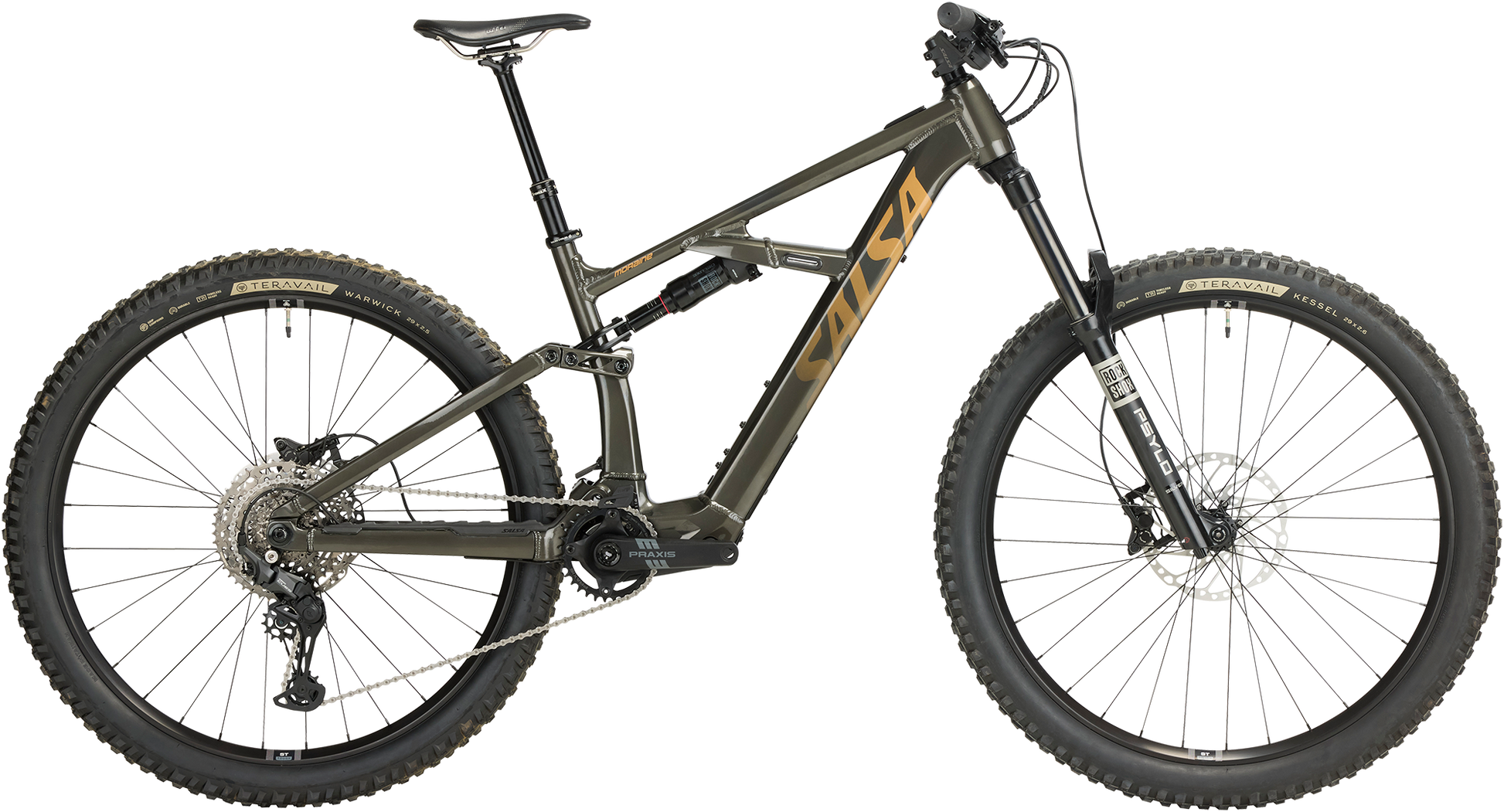

• Salsa Moraine CUES 10 trail ebike black color side view on white background

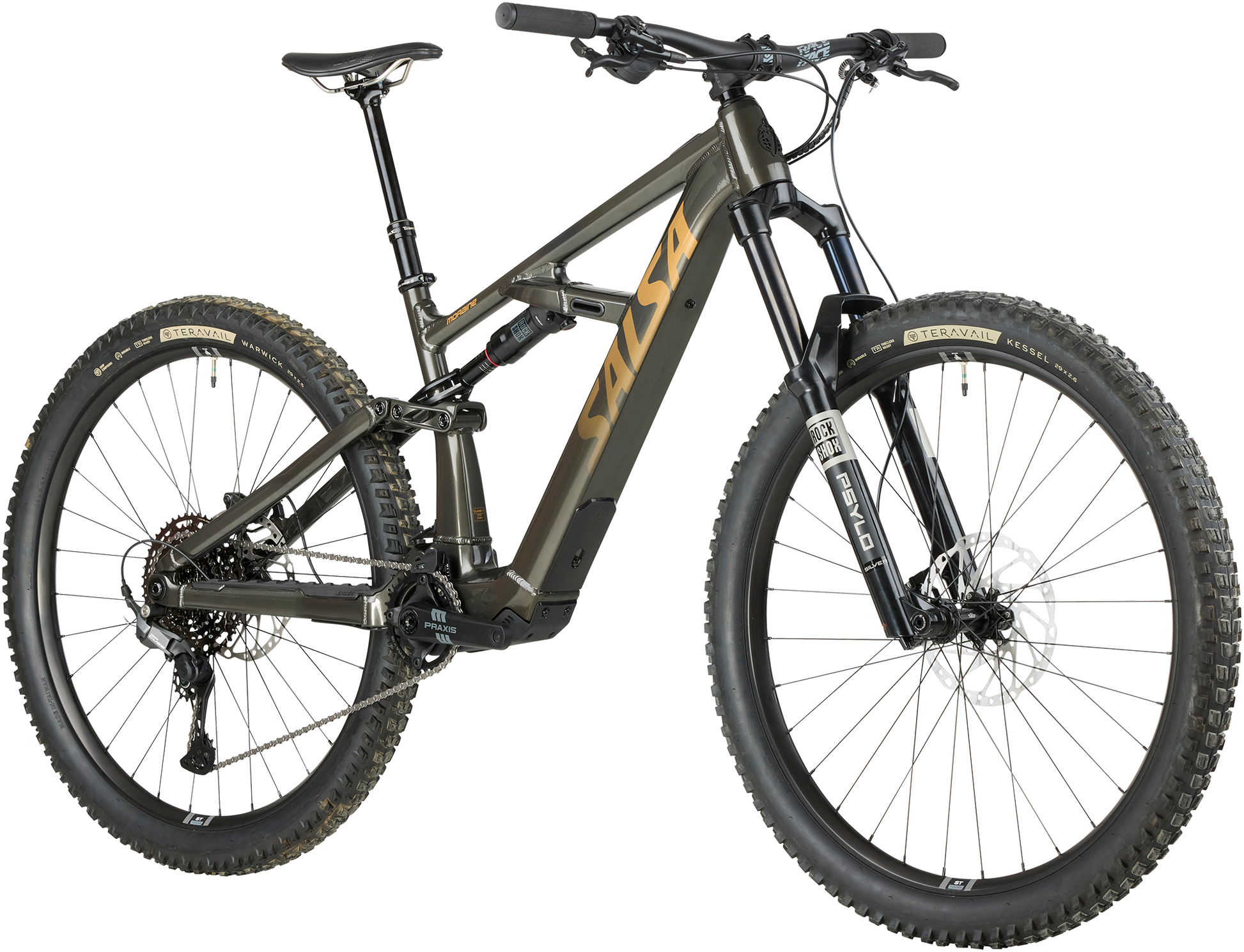

  • Salsa Moraine CUES 10 trail ebike black color front three-quarter view on white background

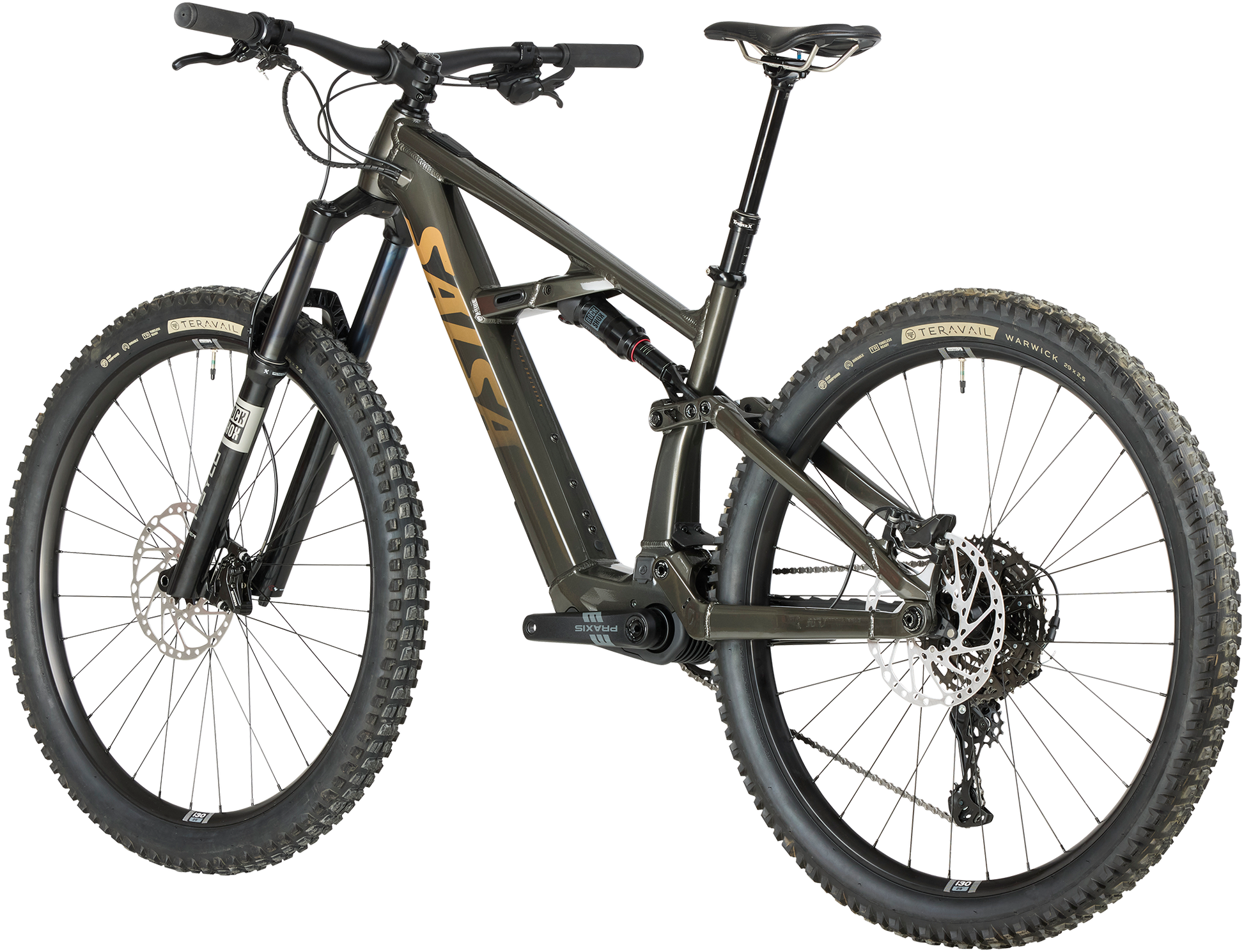

  • Salsa Moraine CUES 10 trail ebike black color rear three-quarter view on white background
1 3

Moraine Cues 10

Moraine Cues 10

$3,249.99 USD
$4,999.00 USD $3,249.99 USD
Sale
Size

Moraine CUES 10 is an all-mountain eMTB that lets you ride wherever your heart wants, without your legs and lungs disagreeing: think long days of ridgelines, rocky slopes, and perfect viewpoints. Moraine’s 6061-T6 aluminum frame and its playful geometry say “heck yes” to everything. The Fazua Ride 60 drive system encourages you further with 60Nm of torque and a 430Wh battery in a quiet, compact package. Moraine’s 145mm of Split Pivot rear suspension teams up with a 160mm fork for supportive and efficient pedaling and soaking up the terrain. Our on-bike storage keeps the essentials secured to your frame and the sweat off your back. Shimano’s CUES 10 drivetrain is a workhorse with everything you need (smooth shifting, durability, wide range) and nothing you don’t. Moraine makes big days in the mountains more fun.

  • Meets UL 2849, and UL 2271 certification

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Use the previous and next buttons to traverse through the carousel.

1 6

Product Details

Build Kit

Frameset

  • Frame

    Moraine Aluminum

  • Color

    Black Coffee

  • Suspension Fork

    Rockshox Psylo Silver RC, 160mm

  • Rear Shock

    Rock Shox Deluxe Select

Components

  • Headset

    FSA Orbit 1.5E ZS NO.57E

  • Seatpost

    Tranz X YSP18, SM, MD: 150mm travel; LG, XL: 170mm travel

  • Stem

    Salsa 35.0 Guide Trail, 40mm

  • Grips/Bar Tape

    Salsa file tread, lock-on

  • Saddle

    WTB Solano, Medium, Fusion Form, steel rail

  • Handlebar

    RaceFace Chester 35.0, 20mm rise, 780mm wide

  • Lights Included

    No

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    Shimano CUES U6000 Shadow Plus

  • Cassette

    Shimano LG400, 11–48t, 10-speed

  • Drive Type

    Mid-drive

  • Chain

    Shimano LG500

  • Crankset

    FSA CK-730 Fazua Ride 60 crank arms, 55mm CL, 104 BCD Spider, MegaTooth 34t steel chainring. MRP 1x SL TR2 for Fazua Ride 60

  • Shifter

    Shimano CUES U6000

  • Brake Levers

    Shimano M4100

  • Brake Calipers

    Shimano MT420

  • Assist Levels

    Breeze / River / Rocket / Boost

  • Rotors

    Shimano Deore RT64, Center Lock (200mm front and rear)

  • Drive Unit

    Fazua Ride 60

  • Ebike Classification

    Class 1

  • Max Assist Speed

    20 mph / 32 kph

  • Motor Torque

    60Nm

  • Max Motor Assist

    450W (w/ Boost function)

  • Battery Capacity Watt Hours

    430Wh

  • Battery Type

    Energy 430 Fix (Lithium Ion)

  • Removable Battery

    Removable for Service

  • Battery Power Volts

    43V

  • Battery Capacity Amp Hours

    9.95Ah

  • Estimated Charge Time

    3.5 hours

  • Charger Included

    Yes

  • Range Estimate

    40 miles

  • Throttle

    No

  • Walk Assist

    Yes

Wheels

  • Front Tire

    Teravail Kessel 29 x 2.6", Durable casing, WTB TCS Sealant included (tubes installed)

  • Rear Tire

    Teravail Warwick 29 x 2.5", Durable casing, WTB TCS Sealant included (tubes installed)

  • Front Hub

    Shimano TC500-15-B CLD

  • Rear Hub

    Shimano TC500-MS-B CLD

  • Spoke

    2.0mm straight gauge, black

  • Rim

    WTB ST i30 Tough TCS, 32h

Weight

  • Complete Bike

    50 lbs 13 oz (Medium)

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeSmallMediumLargeX-Large
A. Effective Top Tube 590.2 612.2 634.2 656.2
B. Stand Over 754.6 754.5 754.3 754.2
C. Reach 453.0 473.0 493.0 513.0
D. Stack 613.6 622.6 631.6 640.5
E. Total Seat Tube Length 405.0 430.0 455.0 480.0
F. Headtube Length 100.0 110.0 120.0 130.0
G. Headtube Angle
63.9
63.9
63.9
63.9
H. Seat Tube Angle
77.4
77.4
77.4
77.4
I. BB Drop 25.0 25.0 25.0 25.0
J. BB Height 351.0 351.0 351.0 351.0
K. Chainstay Length 435.3 435.3 435.3 435.3
L. Fork Length Axle to Crown 573.0 573.0 573.0 573.0
M. Fork Offset 44.0 44.0 44.0 44.0
N. Wheelbase 1225.0 1249.4 1273.8 1298.2
Crank Arm Length 165.0 165.0 165.0 165.0
Handlebar Width 780.0 780.0 780.0 780.0
Recommended Rider Height 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0
Stem Length 40.0 40.0 40.0 40.0

Measurements based on:

  • An unsprung bike (no sag)
  • A 29 x 2.5" tire measuring 752 mm in diameter
  • Standover (D) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.2–2.5" (55–66mm)
  • Alternate Wheel/Tire Sizes 27.5 x 2.6–2.7" (66–71mm) **rear only w/ H chip setting, 160mm fork, and crank arms ≤165mm
  • Max Tire Outer Diameter Tire Clearance Frame 29 x 2.5"; Tire Clearance Fork: Max tire diameter=732mm; max tire width=81mm
  • Suspension Fork Length (Travel) 551–573mm A2C (140–160mm travel)
  • Rigid Fork Length N/A
  • Fork Offset 44mm
  • Rear Spacing 12 x 148mm
  • Rear Axle Size 12 x 188mm, TP=1.0, TL=13
  • Rear Brake (Rotor) 74mm post mount (180–200mm rotor)
  • Front Brake (Rotor) 74mm post mount (180–220mm rotor)
  • Headset - Upper ZS44 / 28.6
  • Headset - Lower ZS56 / 40
  • Rear Shock Size 210 x 55mm
  • Shock Mount, Fore ⌀10 x 30mm
  • Front Spacing 15 x 110mm
  • Front Axle Size 15 x 110mm, TP=M15x1.5, TL=9mm, 158mm overall length
  • Steerer Tube 1.125–1.5" tapered
  • Crown Race 59mm
  • Seatpost 30.9mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.0mm
  • Max Post Insertion SM: 215mm / MD: 240mm / LG: 265mm / XL: 290mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger Universal Derailleur Hanger (UDH w/ Ø30mm washer)
  • Bottom Bracket Fazua Ride 60
  • Crankset (Max Ring) 34t
  • Bottle Mounts 1 per frame

Supportive Documents

Support Document links

Additional Features

6061-T6 Alloy Frame

Moraine’s aluminum alloy tubing is developed specifically for the Moraine frame, and is heat-treated to T6 alloy standards for extra strength and durability.

Split Pivot Rear Suspension

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction.

Split Pivot+ Design Methodology

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means you can swap control and shock links, in addition to the rear shock and fork, for more or less travel. You can set up Moraine for 125—145mm of rear travel and a 140–160mm fork. One frame, multiple bikes.

Fazua Ride 60 Drive System

Moraine runs on Fazua’s Ride 60 drive system, a lightweight unit weighing in at just 9.2lb (4.2kg) yet delivering 60Nm max torque. Moraine’s mid-drive setup also keeps the motor’s weight low and centered on the bike for neutral handling. The Fazua Ride 60 is a Class 1 motor with electric assist up to 20 mph/32 kph.

60Nm max torque

The Fazua Ride 60 system delivers up to 60Nm of assist, with three customizable assist levels and a speed sensor to control torque output.

430Wh Internal Battery

The Fazua Energy 430 battery offers enough range to roam far on your favorite trail systems or into the backcountry. It’s also fully encased in the downtube for added stiffness and a nice, clean look.

Fazua Ring Controller

The handlebar-mounted Fazua Ring Controller lets you cycle through assist levels in an intuitive and minimalist way.

Flip Chip

Make simple, quick adjustments to Moraine's bottom bracket height (5mm) and head and seat tube angles (0.3 degrees) to account for your preferences, terrain, or wheel and tire size

Pack-Free Riding Features

Moraine gives you a dedicated spot in the frame for your bottle, multi-tool, pump, and spare tube so you can leave your hip pack at home.

Internal Routing

Internal routing for dropper and shift cable housing and brake hoses gives Moraine a clean look and helps keep cables from catching on the trail.

29 x 2.5" Tire Clearance

Hold your line on steep, loose terrain with clearance for large tires.

Molded Frame Protection

Take the “ding” out of riding with durable, custom-fit frame protection pieces in high-wear and damage-prone areas.

SRAM UDH Compatible

This derailleur hanger design optimizes shifting performance and makes it much easier to replace a bent or broken hanger.

FAQ

What is the Fazua Ride 60 mid-drive system?

Moraine uses the Fazua Ride 60 mid-drive system. This system features a motor built into the bike’s bottom bracket, powered by a battery in the bike’s downtube. The Fazua Ride 60 system delivers up to 60Nm of torque and is paired with a 430Wh Fazua Energy 430 battery. This is a Class 1 system that only provides electric assist up to 20mph/32kph.

For more information, visit our Why Fazua? page.

What is the range?

Ebike range depends on many factors, including rider and equipment weight, weather conditions, route choice, assist level, and more. The Fazua App provides real-time data on battery level and range.

Is the battery removable?

The battery is designed to be removed only by a bike shop for service.

How do I maintain my e-bike?

Maintenance on an ebike is mostly the same as any other bike, but keep these tips in mind:

  • More torque and more miles = more wear: Electric assist puts more strain on components and empowers you to ride more miles, so parts like your chain, brakes, and tires may wear out faster than you’re used to. Check them frequently and replace as you would on any other bike.
  • Washing is OK: The motor and battery on your ebike are sealed against water, so you can wash your ebike like you would a regular bike. However, avoid high-pressure hoses and keep the charging port closed to block moisture. Wipe down controllers rather than spraying them directly with water.
  • Battery care: Your ebike’s battery will last longer if the bike is stored in a cool, dry place. If storing the bike for long periods of time, try to keep battery charged between 30–60%. The battery will gradually lose charge, so check it periodically and charge as necessary.
  • Don’t try motor maintenance at home: If your ebike’s motor, battery, or other electronic components aren’t functioning properly, take them to your local authorized Salsa retailer for service — they are trained and best-equipped to maintain and repair ebike systems.

Is my ebike safe to keep in my home?

Yes. The batteries used in Salsa ebikes are UL 2849-compliant, meaning they have been tested to the highest standards of safety to prevent electrical shock or fires. Always use the manufacturer-supplied charger for your ebike.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

ViewWarranty

Can I run a coil shock?

Yes, Moraine 1.0 uses a progressive leverage rate that is compatible with Air and Coil shocks. Please see the attached PDF with starting coil weight recommendations based on rider + gear weight.
