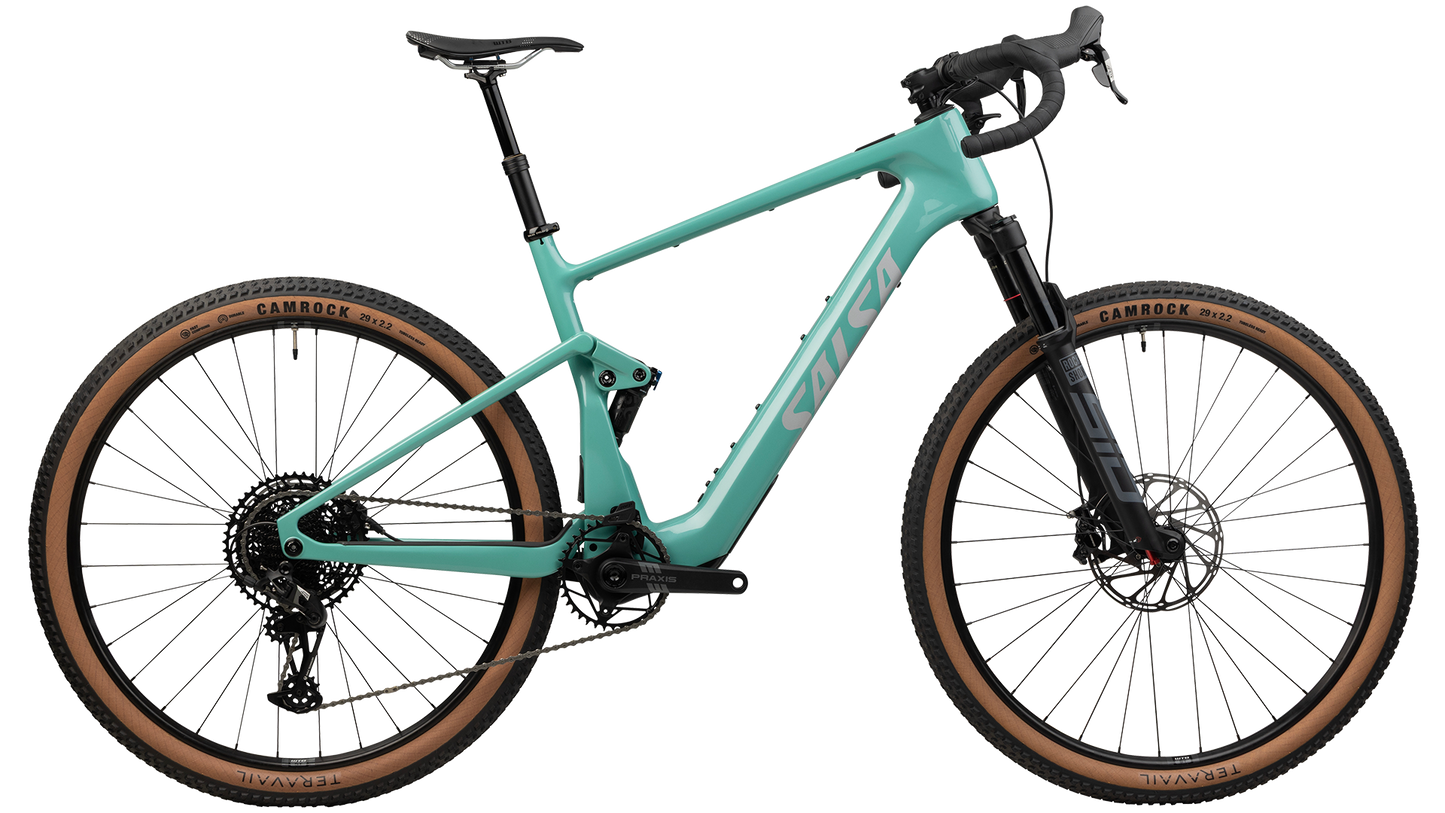

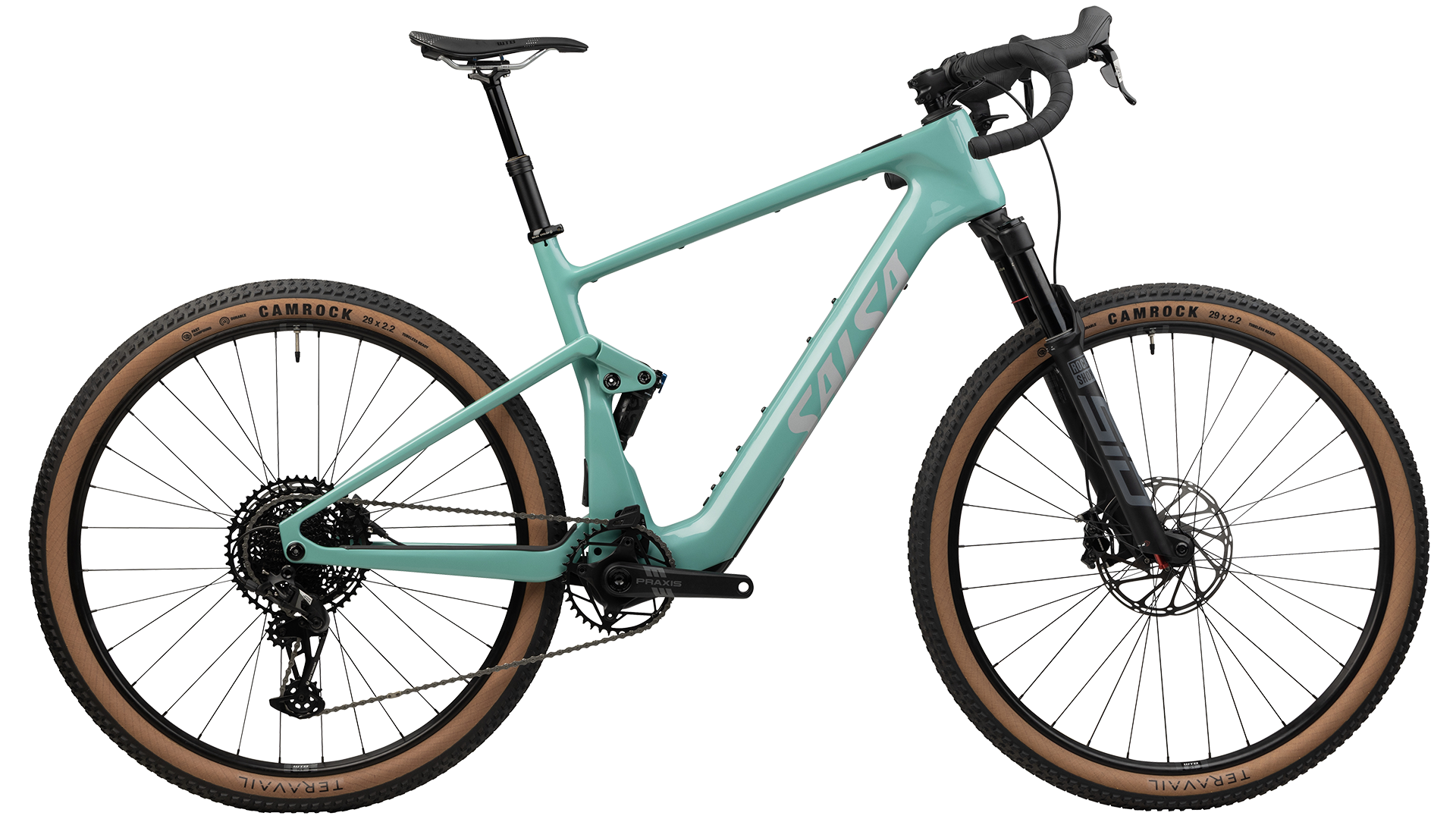

• Salsa Wanderosa C Apex Eagle Full Suspension Gravel Ebike - Green - Side view

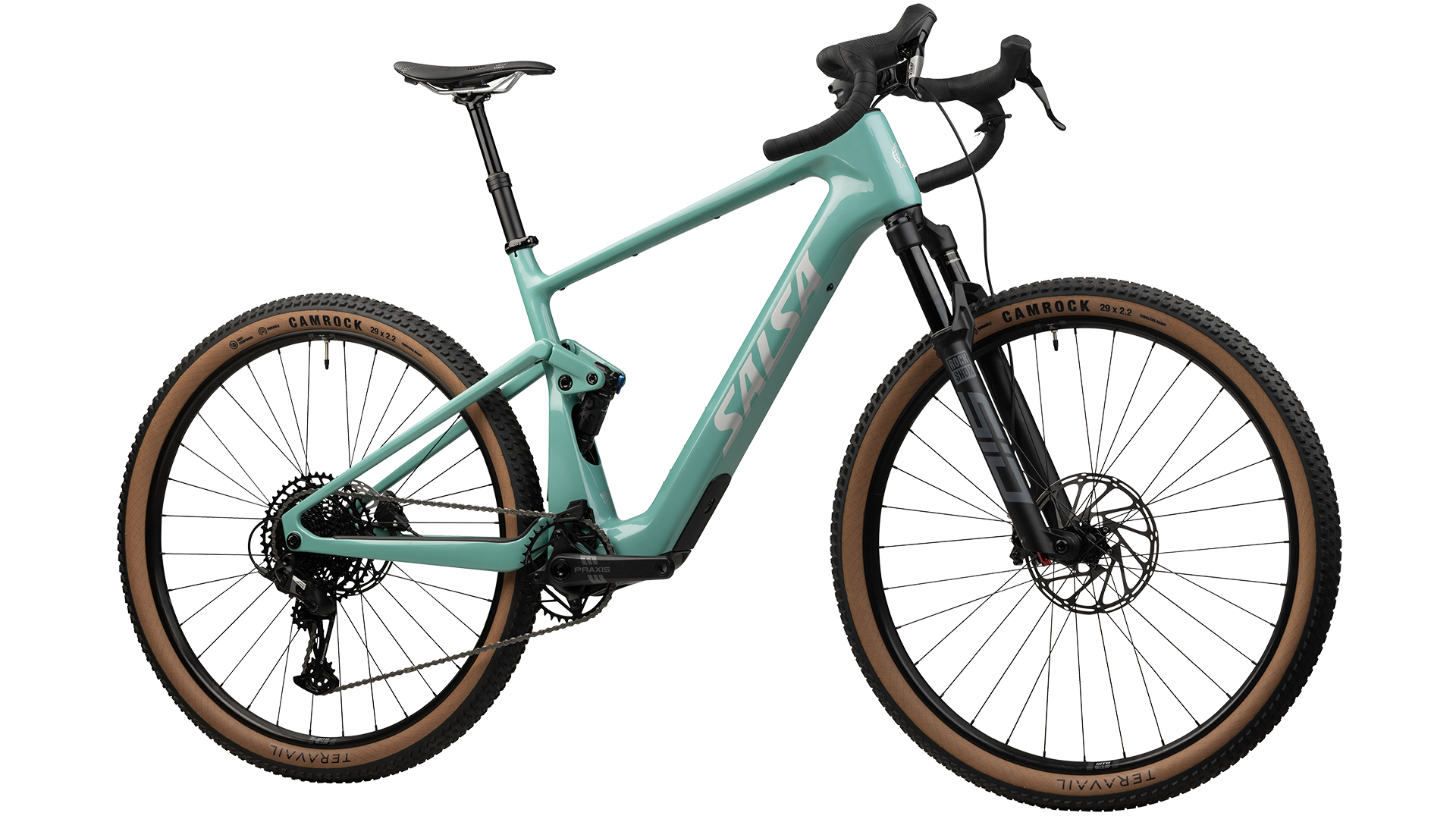

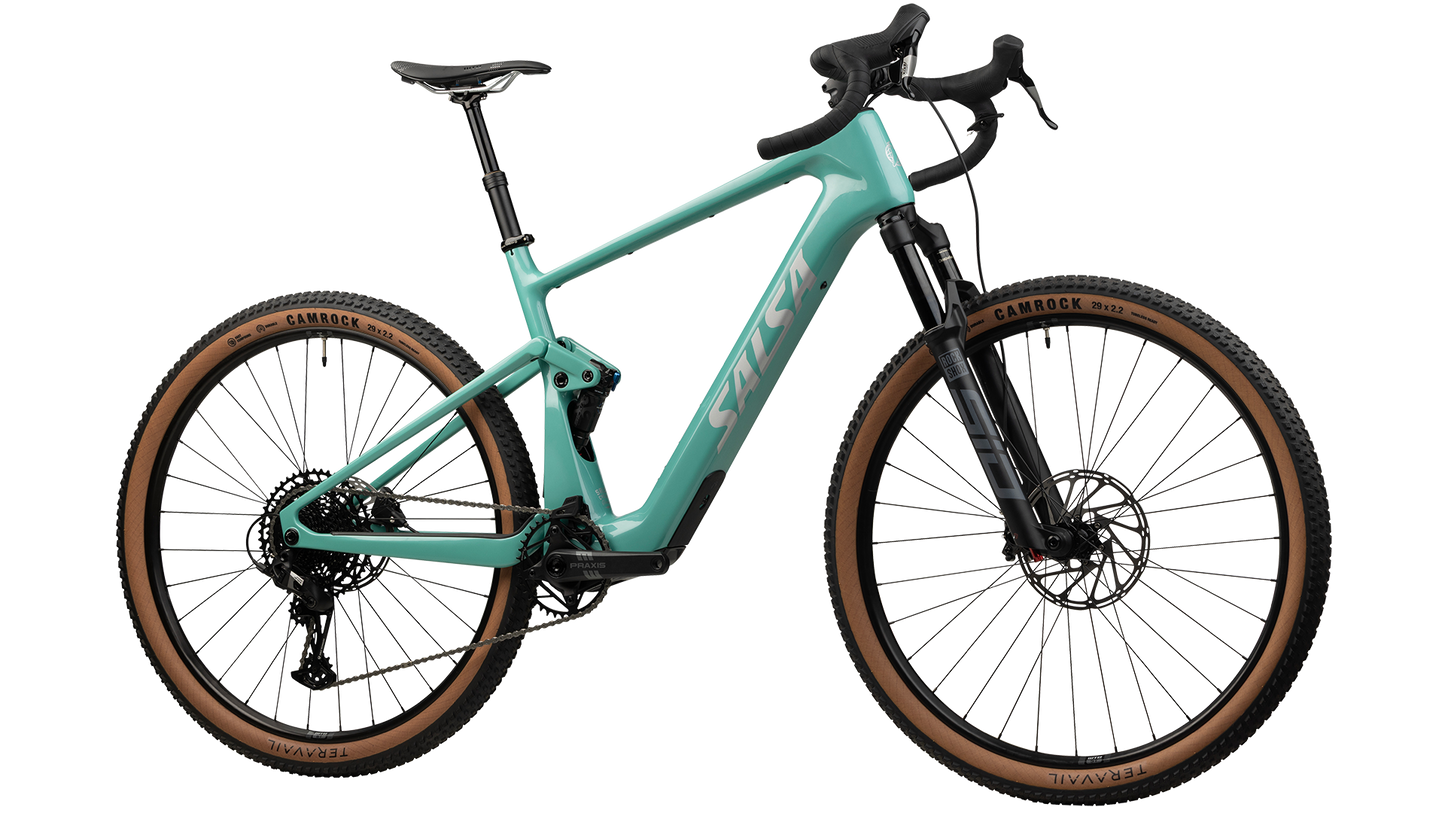

  • Salsa Wanderosa C Apex Eagle Full Suspension Gravel Ebike - Green - Front three quarter view

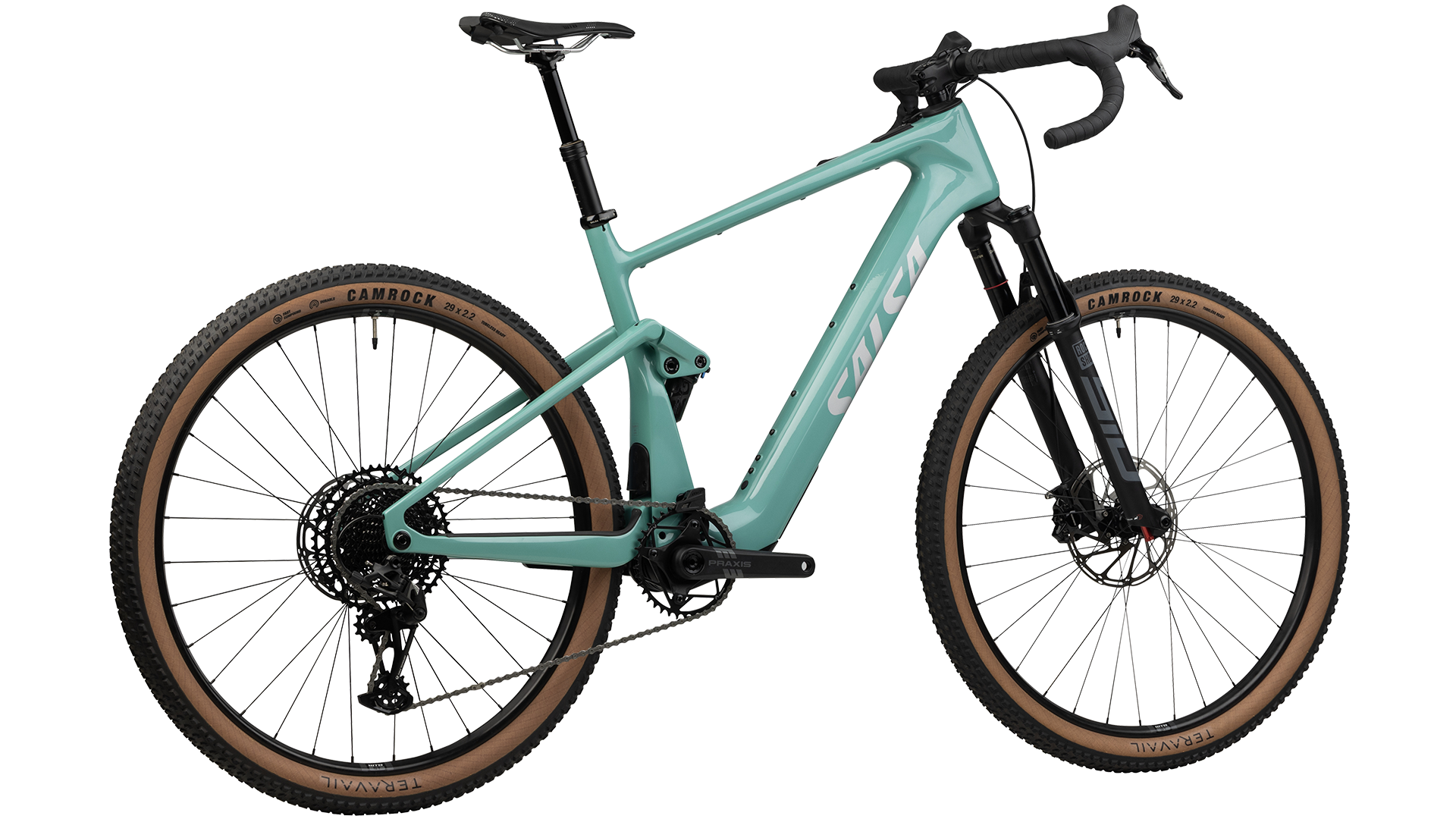

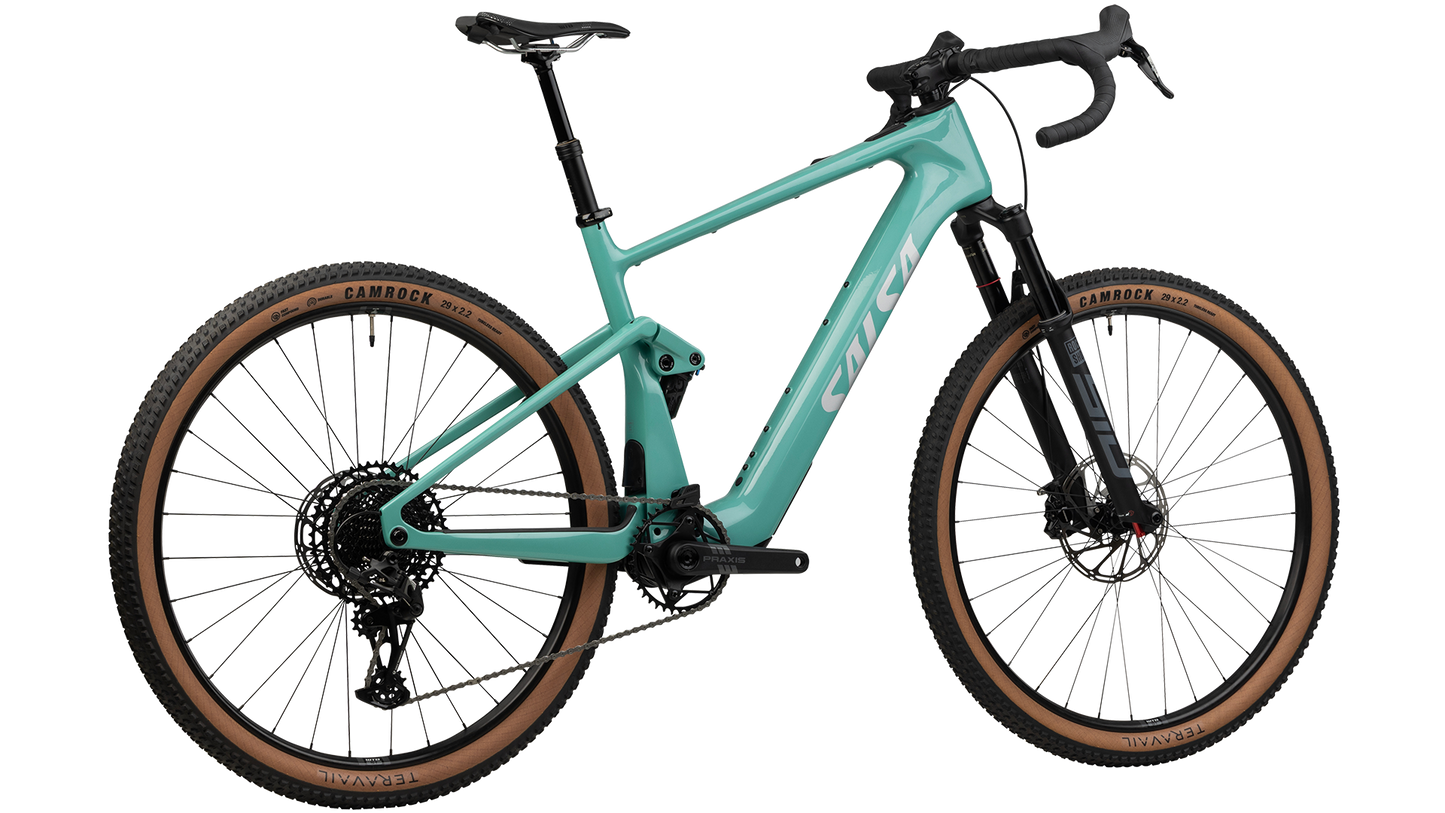

  • Salsa Wanderosa C Apex Eagle Full Suspension Gravel Ebike - Green - Rear three quarter view
1 3

Wanderosa C Apex Eagle

Wanderosa C Apex Eagle

$7,999.00 USD
$0.00 USD $7,999.00 USD
Size

Wanderosa C Apex Eagle is a full-suspension ebike built for otherworldly gravel adventures. Its carbon fiber frame, 120mm front and 110mm rear suspension travel, and 29 x 2.2″ tires offer a hover-bike feel over harsh terrain.

The FAZUA Ride 60 drive unit gives you the boost to explore more side roads and stay in the saddle on the steepest climbs. Wanderosa’s progressive gravel geometry puts you in a comfortable, confident position for whatever your route has in store, and on-bike cargo keeps you equipped for those far-out journeys.

The SRAM Apex Eagle components get shifting duties done without drama, rounding out a full-suspension ebike made to wander the gravel roads you love or have yet to discover.

  • Meets UL 2849, and UL 2271 certification

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Use the previous and next buttons to traverse through the carousel.

1 5

Product Details

Build Kit

Frameset

  • Frame

    Wanderosa Carbon

  • Color

    Green

  • Suspension Fork

    RockShox SID Base, 2P, 120mm

  • Rear Shock

    RockShox SIDLuxe Select+ 3P, 110mm travel, 165mm stroke

Components

  • Headset

    Acros

  • Seatpost

    TranzX YSP18

  • Stem

    Salsa Guide Trail

  • Grips/Bar Tape

    Velo

  • Saddle

    WTB Gravelier

  • Handlebar

    Salsa Cowchipper

  • Lights Included

    No

Drivetrain

  • Front Derailleur

    N/A

  • Rear Derailleur

    SRAM Apex Eagle

  • Cassette

    SRAM PG-1210, 10–50t, 12-speed

  • Drive Type

    Mid-Drive

  • Chain

    SRAM NX Eagle

  • Crankset

    Praxis aluminum, ETOR, 38t ring

  • Shifter

    SRAM Apex Eagle

  • Brake Levers

    SRAM Apex Eagle

  • Brake Calipers

    SRAM Apex (post-mount front, flat-mount rear)

  • Assist Levels

    No Support / Breeze / River / Rocket / Boost

  • Rotors

    SRAM CenterLine (6-bolt, 200mm front, 180mm rear)

  • Drive Unit

    Fazua Ride 60

  • Ebike Classification

    Class 3

  • Max Assist Speed

    28mph/45kmh

  • Motor Torque

    60Nm

  • Max Motor Assist

    450W (w/ Boost function)

  • Battery Capacity Watt Hours

    480Wh

  • Battery Type

    Energy 480 Lithium Ion

  • Removable Battery

    Removable for service

  • Battery Power Volts

    43.2V

  • Battery Capacity Amp Hours

    9.9Ah

  • Estimated Charge Time

    3.5 hours

  • Charger Included

    Yes

  • Range Estimate

    No Range extender

  • Throttle

    No

  • Walk Assist

    Yes, up to 6 kmh

Wheels

  • Front Tire

    Teravail Camrock, 29 x 2.2" Durable casing, tan wall

  • Rear Tire

    Teravail Camrock, 29 x 2.2" Durable casing, tan wall

  • Front Hub

    Shimano TC500 15 x 110mm

  • Rear Hub

    Shimano TC500 12 x 148mm

  • Spoke

    2.0/1.8mm butted

  • Rim

    WTB ST i27, 29"

Weight

  • Complete Bike

    40 lb 12 oz - LG with tubes

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 538.2 563.3 588.4 613.4 638.5
B. Stand Over 725.6 749.2 776.3 803.1 829.7
C. Reach 380.3 404.1 424.4 444.6 464.9
D. Stack 595.4 599.9 618.1 636.3 654.5
E. Total Seat Tube Length 430.0 460.0 490.0 520.0 550.0
F. Headtube Length 100.0 105.0 125.0 145.0 165.0
G. Headtube Angle
65.3
65.3
65.3
65.3
65.3
H. Seat Tube Angle
75.1
75.1
75.1
75.1
75.1
I. BB Drop 37.6 37.6 37.6 37.6 37.6
J. BB Height 332.4 332.4 332.4 332.4 332.4
K. Chainstay Length 440.6 440.6 440.6 440.6 440.6
L. Fork Length Axle to Crown 531.0 531.0 531.0 531.0 531.0
M. Fork Offset 44.0 44.0 44.0 44.0 44.0
N. Wheelbase 1123.7 1149.7 1178.3 1206.8 1235.5
Crank Arm Length 160.0 165.0 165.0 170.0 170.0
Handlebar Width 44.0 46.0 48.0 50.0 52.0
Recommended Rider Height 147.0 - 160.0 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0 - 201.0
Stem Length 35.0 35.0 45.0 45.0 45.0

Measurements based on:

  • An unsprung bike (no sag)
  • A 29 x 2.2" tire measuring 740 mm in diameter
  • Standover (D) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.2"
  • Alternate Wheel/Tire Sizes N/A
  • Max Tire Outer Diameter Tire Clearance Frame: 29 x 2.35"
    Tire Clearance Fork: See fork manufacturer specs
  • Frame Construction Carbon fiber
  • Suspension Fork Length (Travel) 120mm travel
  • Fork Offset 44mm
  • Rear Spacing 148mm Boost
  • Rear Axle Size M12 x 175mm, TP=1.0
  • Rear Brake (Rotor) Flat mount
  • Front Brake (Rotor) Post mount
  • Headset - Upper ZS56
  • Headset - Lower ZS56
  • Rear Shock Size 165 x 45mm
  • Shock Mount, Fore Trunnion
  • Front Spacing 110mm Boost
  • Steerer Tube Tapered
  • Seatpost 30.9mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.4mm
  • Front Derailleur Clamp N/A
  • Derailluer Hanger SRAM UDH
  • Bearings 3800v (2), 3801v (2), 3802v (2), 6803v (2)
  • Crankset (Max Ring) 40t
  • Accessory Mounts Downtube Accessory Mounts: No
    Rack Mounts Frame: No
    Rack Mounts Fork: N/A
    Salsa Wanderosa Frame Bag Guide
  • Bottle Mounts Frame: 2
    Fork: N/A
  • Front Fender Mounts N/A
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

High-modulus carbon fiber frame

Wanderosa’s carbon fiber frame keeps weight to a minimum and provides a custom-tuned blend of stiffness and compliance where it matters.

Progressive Gravel Geometry

Wanderosa combines a long reach with a short stem and wide drop bars. This puts riders in position for comfort, confidence, and control on rugged terrain at higher speeds.

Flex-stay rear suspension design

Wanderosa’s flex-stay suspension uses a flexing frame element in the rear triangle instead of the rear axle pivot used in our Split Pivot design. Wanderosa’s seatstays are shaped and tuned to flex along their length, making up the difference that a pivot normally would as the suspension moves, but without the weight of bearings and pivot hardware. Wanderosa is set up for 110mm of rear wheel travel but can also be set to 100mm by reducing shock stroke to 40mm.

FAZUA Ride 60 drive unit

This mid-drive electric-assist system delivers up to 60Nm of torque and is custom-tuned for gravel riding. This is a Class 3 drive unit with pedal assist limited to 28 mph/45 kmh. Models sold in Canada are equipped with Class 1 drive units (pedal assist limited to 20 mph/32 kmh).

480Wh internal battery

The FAZUA Energy 480 battery offers enough range to get lost on your favorite forest roads. It’s fully encased in the downtube for added stiffness and a clean look, yet is removable for service.

29 x 2.35″ tire clearance

Larger tires keep you comfortable and in control on even the most rugged gravel roads.

On-bike cargo

Bring all the essentials (and maybe a few luxuries) on your next ride. Wanderosa fits a water bottle and includes dedicated space for your multitool, tube, and pump. An downtube accessory mount and direct-mount bag mounts make it easy to expand your cargo capacity for longer days out.

Compatible with SRAM UDH and Full Mount drivetrains

Reliable and durable drivetrain setups for all your adventures.

Molded frame protection

Take the “ding” out of riding with durable, custom-fit frame protection pieces in high-wear and damage-prone areas.

FAQ

What is the FAZUA Ride 60 mid-drive system?

Wanderosa uses the FAZUA Ride 60 mid-drive system. This system features a motor built into the bike’s bottom bracket, powered by a battery in the bike’s downtube. The Ride 60 system delivers up to 60Nm of torque and is paired with a 480Wh Fazua Energy 480 battery. This is a Class 3 system that only provides electric assist up to 28mph/45kph.

For more information visit our Why Fazua? page.

What is the range?

Ebike range depends on many factors, including rider and equipment weight, weather conditions, route choice, assist level, and more. The FAZUA app provides real-time data on battery level and range.

Is the battery removable?

The battery is designed to be removed only by a bike shop for service.

How do I maintain my e-bike?

Maintenance on an ebike is mostly the same as any other bike, but keep these tips in mind:

  • More torque and more miles = more wear: Electric assist puts more strain on components and empowers you to ride more miles, so parts like your chain, brakes, and tires may wear out faster than you’re used to. Check them frequently and replace as you would on any other bike.
  • Washing is OK: The motor and battery on your ebike are sealed against water, so you can wash your ebike like you would a regular bike. However, avoid high-pressure hoses and keep the charging port closed to block moisture. Wipe down controllers rather than spraying them directly with water.
  • Battery care: Your ebike’s battery will last longer if the bike is stored in a cool, dry place. If storing the bike for long periods of time, try to keep battery charged between 30–60%. The battery will gradually lose charge, so check it periodically and charge as necessary.
  • Don’t try motor maintenance at home: If your ebike’s motor, battery, or other electronic components aren’t functioning properly, take them to your local authorized Salsa retailer for service — they are trained and best-equipped to maintain and repair ebike systems.

Is my ebike safe to keep in my home?

Yes. The batteries used in Salsa ebikes are UL 2849-compliant, meaning they have been tested to the highest standards of safety to prevent electrical shock or fires. Always use the manufacturer-supplied charger for your ebike.

Can I run flat bars on my Wanderosa?

Yes, but doing so will change your riding position and change how the bike handles. You may want to adjust reach and/or stack by using a longer or higher-rise stem. Also, keep in mind that you will need a new shift lever and new brake systems, which may require brake adapters for compatability with the frame.

Can I install a rear rack on my Wanderosa?

No, due to rear suspension and frame design there is no way to install a rear rack on the Wanderosa.

Are there integrated frame bag options for the Wanderosa?

We offer free frame bag guidlines so you can have your favorite bag manufacturer make a custom direct-mount frame bag for your Wanderosa. Find frame bag guidelines here.

Can I install a different suspension fork on my Wanderosa?

The Rockshox SID fork that comes equipped on Wanderosa is a special class 3 ebike-rated suspension fork. Only suspension forks with a class 3 ebike rating and maximum axle to crown of 531mm are approved for use with Wanderosa. Please note that most other "e-rated" suspension forks are only for class 1 ebikes.

A 100, 110, or 120mm Rockshox SID air spring can be used in the OE fork. Maximum axle-to-crown fork length should not exceed 531mm.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
